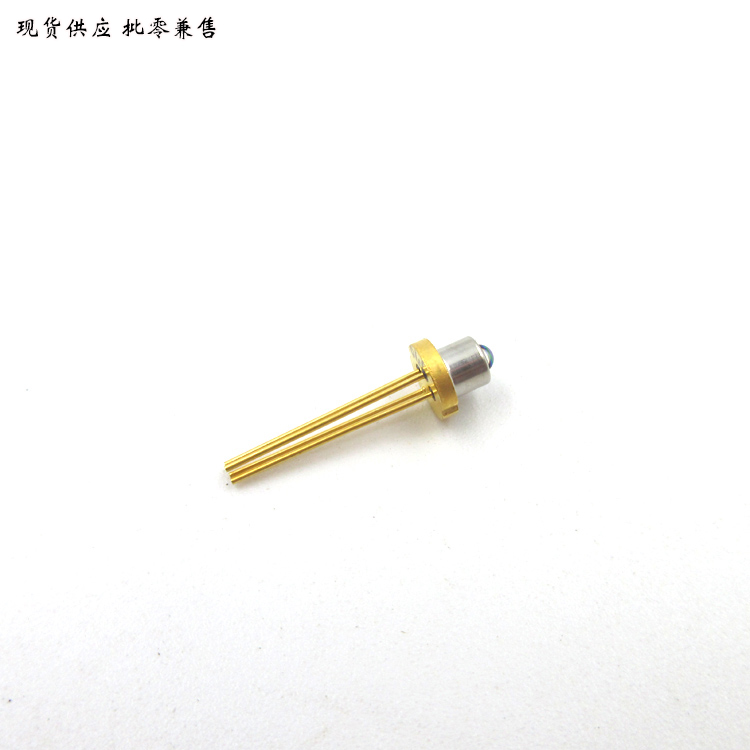

1500nm 1550nm 1600nm 1491nm 5mw laser diode TO56

$9.89$12.09

SKU: 2255800965848813 Category:

Description

  • Item Type: BALL

Specifications:

Wavelength:         1500-1600nm       2.5Gbps transmission

Light Output:         5mW     CW    mW

Package Type:       Φ5.6mm TO56

Absolute Maximum Ratings(Tc=25℃)

Parameter

Symbols

Ratings

Units

Optical Output(功率)

Po CW

5

mW

 Forward curren(正向电流)      —        mA

Reverse Voltage(反向电压)

VrL

2

V

Case Temperature(外壳温度)

Tc

– 40 ~ 85

Storage Temperature(储存温度)

Tstg

– 40 ~ 100

Electrical and Optical Characteristics(Tc=25℃)

Parameter

Symbols

Min.

Typ.

Max. Unit.

Threshold Current(阈值电流)

Ith

  13   mA

Operating Current(工作电流)

Iop

  39   mA

Operating Voltage(工作电压)

Vop

  1.1 1.5 Volt

Slope Efficiency (斜率效率)

η

    mW/mA

Monitor Current (峰值电流)

Im

    mA

Beam Divergence(水平方向)

θ//

    deg.

(FWHM)             (垂直方向)

θ⊥

    deg.
Central wavelength(中心波长) λ 1540 1550 1560 nm

and θ⊥ are defined as the angle within which the intensity is 50% of the peak value.
