Description
- Laser wavelength:: 445nm
- Laser color: blue light
- Output power:: 15W (15000MW)
- Drive mode:: external ACC constant current drive
- Cooling method:: forced air cooling
- Working voltage:: 12 V DC
- Material:: Aluminum, anodized surface
- Material form:: copper
- Is the laser focal length adjustable: Not adjustable
- Fixed focal length: Fixed focal length is 1.8cm
- Working temperature:: -40-75 degrees Celsius
- Control:: TTL / PWM real-time control
- Light output form:: spot-shaped fixed focus (non-adjustable focus)
- Lens material:: optical glass coated with high antireflection coating
- Shell material:: module copper, aluminum anode black
- Carving material: stainless steel surface anode colored aluminum alloy surface
- Can be used for engraving machine: Use on 40×50 laser engraving machine
- Applicable materials:: wood, plastic, 304 stainless steel, etc.
- Condition: New
- Is Smart Device: YES
- Origin: CN(Origin)
- CNC or Not: Normal
- Model Number: 15W Laser Module
15000MW laser module blue light 445nm wavelength fixed focus laser DIY laser engraving cutting wood plastic 304 stainless steel anode colored aluminum alloy table lettering
Product parameters
Laser wavelength: 445nm (blue light)
Output power: 15W (15000MW)
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Working voltage: 12 V DC
Material: Aluminum, anodized surface
Material form: copper
Laser focal length is not adjustable, focal length is 1.8cm
Working temperature: -40-75 degrees Celsius
Control: TTL / PWM real-time control
Light output form: spot-shaped fixed focus (non-adjustable focus)
Lens material: optical glass coated with high antireflection coating
Shell material: module copper, aluminum anode black
Cooling method: forced air cooling
Friendly reminder: This fixed focus product can be engraved on stainless steel surface and anode colored aluminum alloy surface.

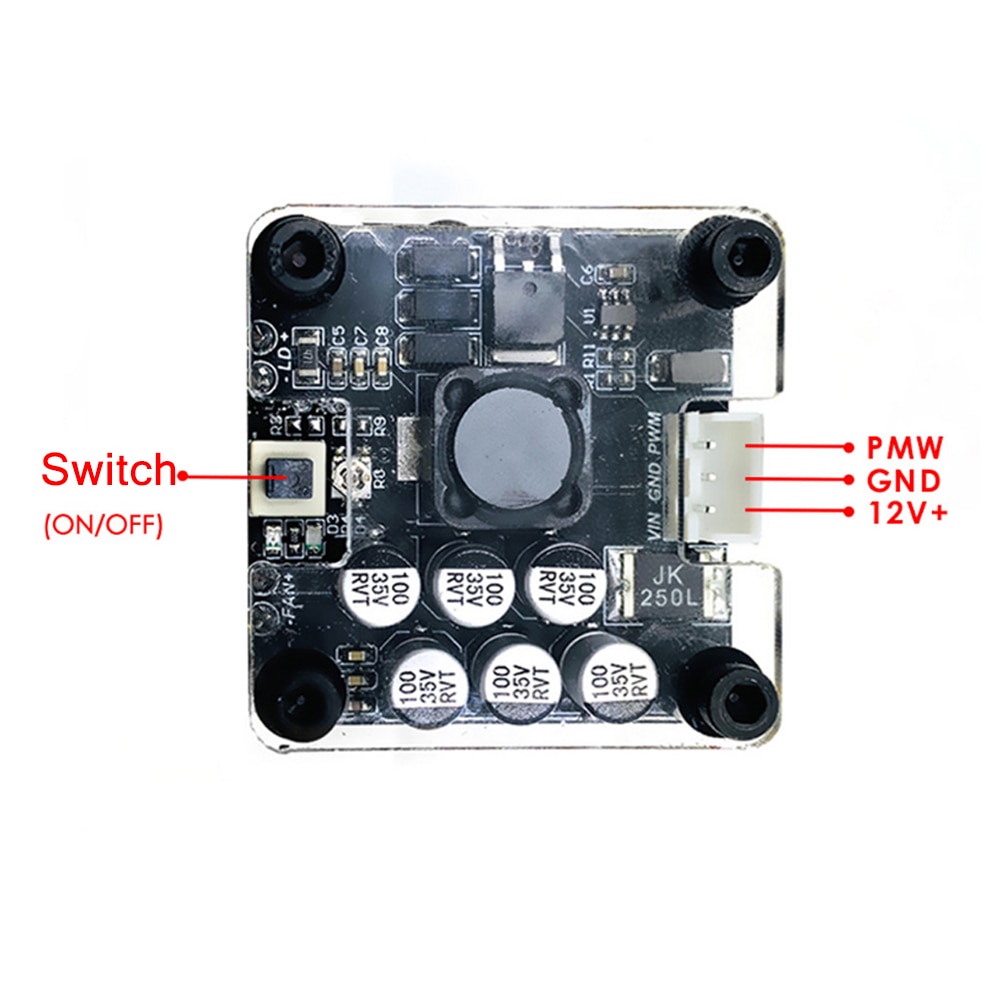

Note: Red is positive +, black is negative-, and yellow is PWM. If the wiring is wrong, it may damage the diode and the driver board, resulting in no light. Please add a fan when engraving or cutting to prevent the smog from damaging the lens
