15000mW 100*100CM 2Axis Laser Engraving Machine Desktop DIY Laser Engraver Cutter Wood Router Kit


• Laser Power(options):500mw/2500mw/5500mw/15000mw
• Laser Wavelength: 0.5w(405nm), 2500mw/5500mw/15000w(450nm)
• Supports PWM TTL modulated laser power
• Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
• Engraving Accuracy:0.01mm
• Supported Formats:jpg, bmp, svg, G-code
• Software System : Laser Engraver/ Laser GRBL/Benbox
• (Laser GRBL support many kinds language. We will send GRBL1.1 for controller, if you need Benbox, please contact us!)
• Sysytem Support;Win XP/7/8/10
• Function:Ideal for amateur laser engraving usage, low-light positioning and freedom positioning.

• With CNC Chain Bridge, no need to worry about cable when engraving
• 2040 Aluminum material, 8mm acrylic produced
• Laser power can be adjusted by software

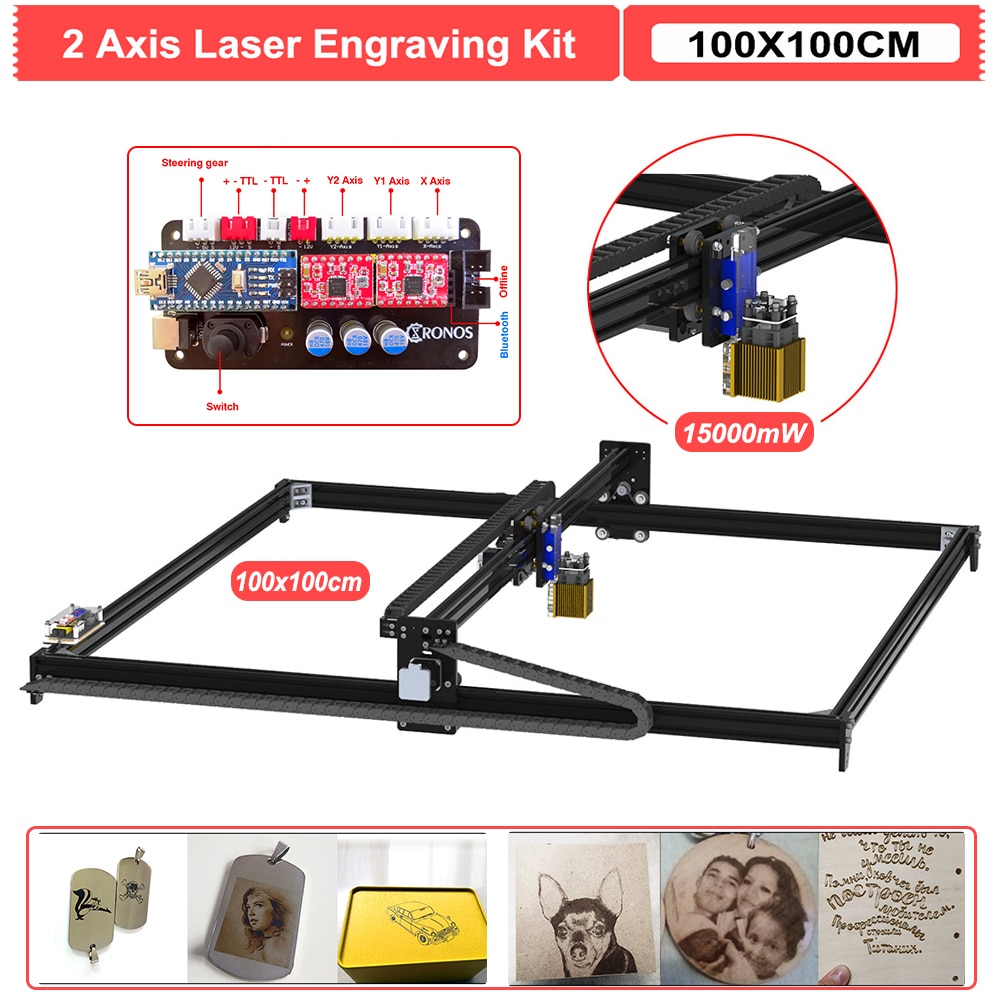

• 100*100 ultra large engraving area,gantry shape design,no engraving height limitation
• Three 42HS60 stepper motors, providing faster moving speed
• 15W violet laser module with heatsink (2500MW /5500MW Laser focus is adjustable, 15W Laser with fixed focus )

• Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
• Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc

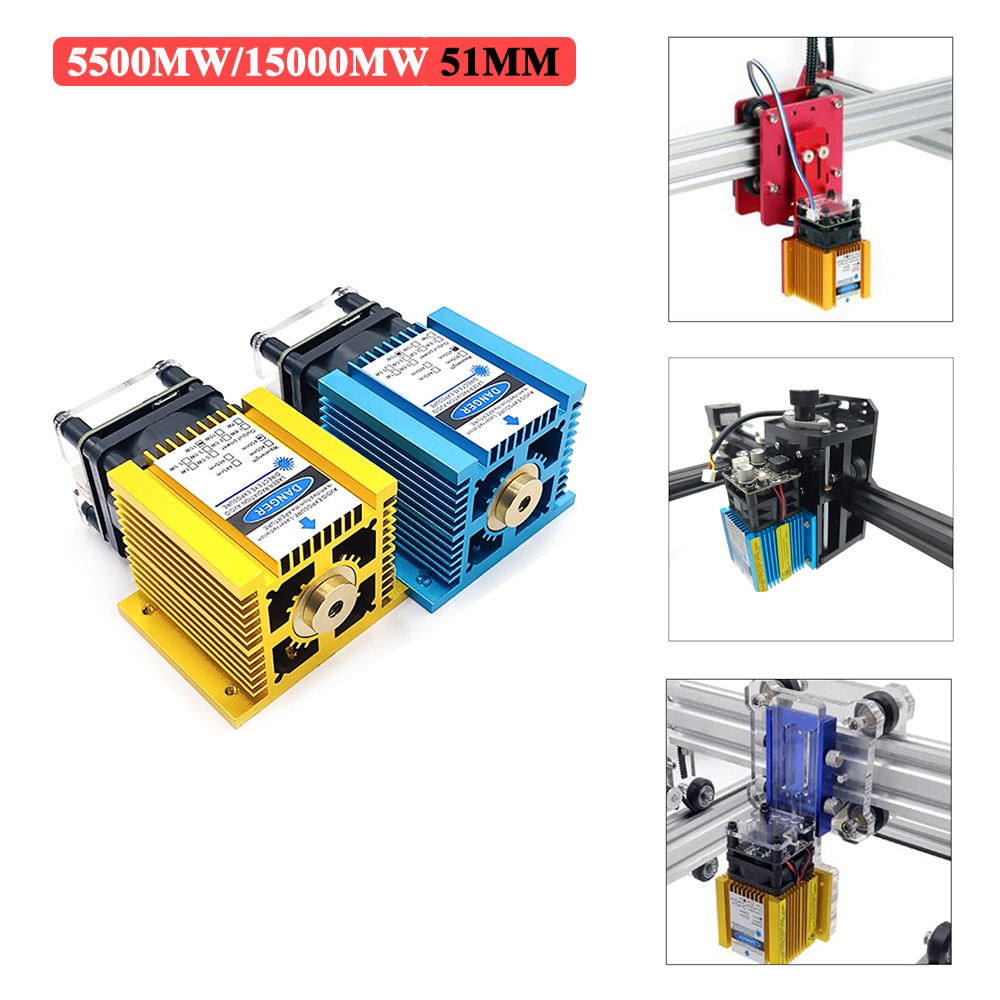

Laser Module 500mW/2500mW/5500mW/15W

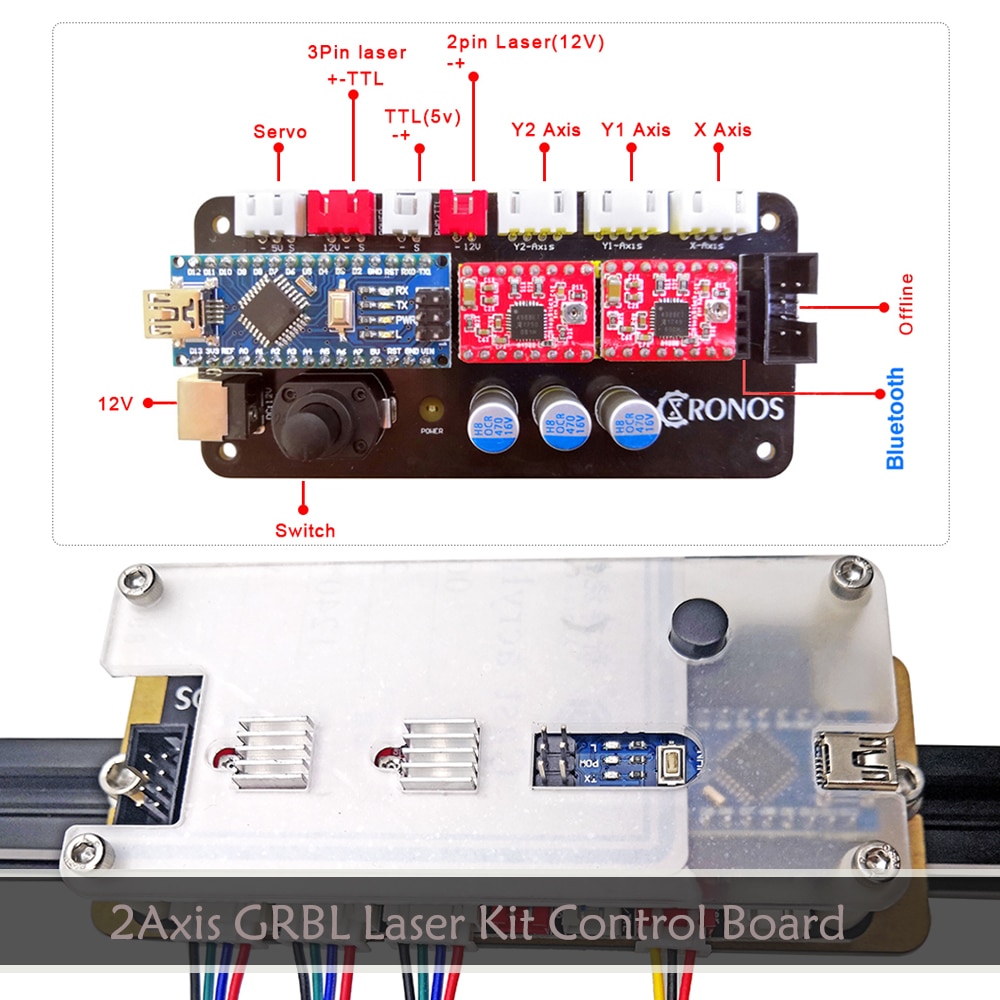

Detail Pictures

Software and instructions

• Please download software and installation instructions from our Web Cloud Disk(We'll send you after shipment).

• Or tell me your email address, we'll send you the software and installation instruction



Brief introduction

A. What area it can used for?

• Laser Engraving machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Adverstising Signs,Artwork,Crafts,Aircraft Models etc.

B. What materials it can used for?

• Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
• Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper et

C. Samples

F.A.Q:

1 Q: Does this machine need to be assembled when I received it?

  A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included

      in the kit.

2 Q:  How to assemble the kit?

   A:We’ll provide whole assemble and operating manual,please share your email address,then we’ll send to you.

3 Q: Are there software and instructions can I get it?

  A:You can get the software with machine which is a CD ,contact us for instructions.

4 Q: And what image format the software supports? Engrave Mode?

   A: Supported Image Format: jpg, bmp, svg, G-code

       Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving

5 Q: Whick type computer system can run its software?

  A:The software only support the Windows XP/7/8/10.

6 Q: What’s the laser’s lifetime?

   A: The laser module have over 6,000 hours lifetime.

 7 Q: What material can it engrave?

   A:Wood, bamboo, plastic, paper, leather, rubber,MDF.

8 Q:What material can it cut?

  A:wood, paper, thin leather.

9 Q:Can I use it to cut or engrave on metal?

   A:It can not engrave or cut on any metal.

10 Q: Can I regulate the laser power or the laser power is adjustable?

   A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.

11 Q: How long can the machine work continuously?

   A: It can work continuously about 45 minutes, after the laser mould cool down(about half of an hour), then start work again. Long time work continuously with shorten the laser module lifetime.

12 Q:My laser doesn’t work, what should I do?

If the machine does not work, it might because:

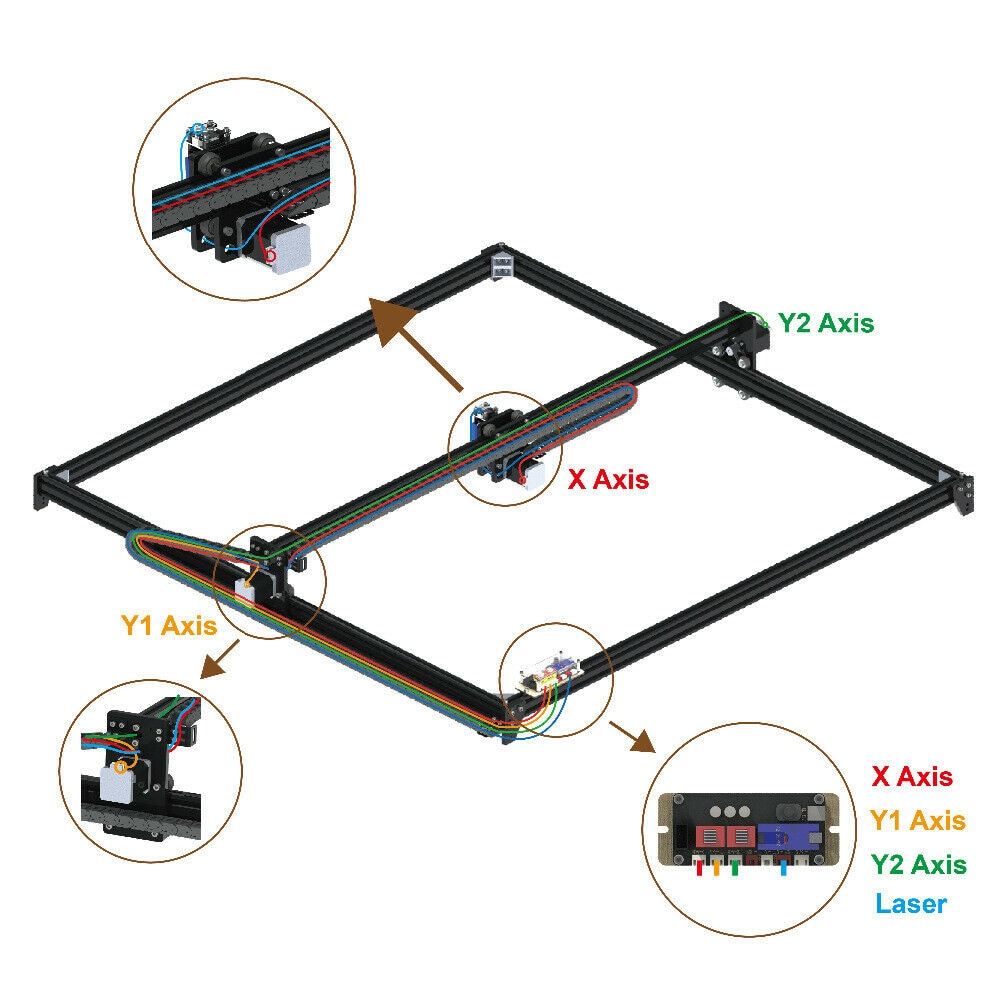

A The wire connection is wrong.Please check the connection like the picture shown.

B Your computer could not support the software.Please use Win XP 7/8/10 to check it.

C Software problem .Please check whether wires are inserted rightly. And then check your data setting.

D The kit misses some accessories. Please compare with the instruction and tell us, we will solve it once you send us the email.

E Laser module/ driver board/power supply is broken.

   Please check which part is the main problem, and then send us a video to prove it.

   Or you can send us a video about your software setting, working laser and driver board. We will analyze it and give you a solution.
