1390 1325 3015 Stainless Carbon Steel Metal Cnc Fiber Laser Cutting Machine 500w 1000W 1500w 2000w

  • Home
  • 1390 1325 3015 Stainless Carbon Steel Metal Cnc Fiber Laser Cutting Machine 500w 1000W 1500w 2000w

1390 1325 3015 Stainless Carbon Steel Metal Cnc Fiber Laser Cutting Machine 500w 1000W 1500w 2000w

$77,323.03$78,823.03

SKU: 1005002260184066 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AKJ1390F
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Product name: fiber laser cutting machine laser metal cutter 3015
  • Weight: 1800kg
  • Working area: 1300*900mm
  • Control system: Cypcut
  • Cutting speed: 0-20000mm/min
  • Cooling mode: Water cooling
  • Guide rail: Hiwin guide rail
  • Repeat positioning: 0.03mm/min
  • Dimension: 1460*1850*2040mm
  • Warranty: 2 years

Contact Detail:

Monica Yang

Email&Skype:export05@acctekcnc.com

Jinan AccTek Machinery Co.,Ltd

Product Description

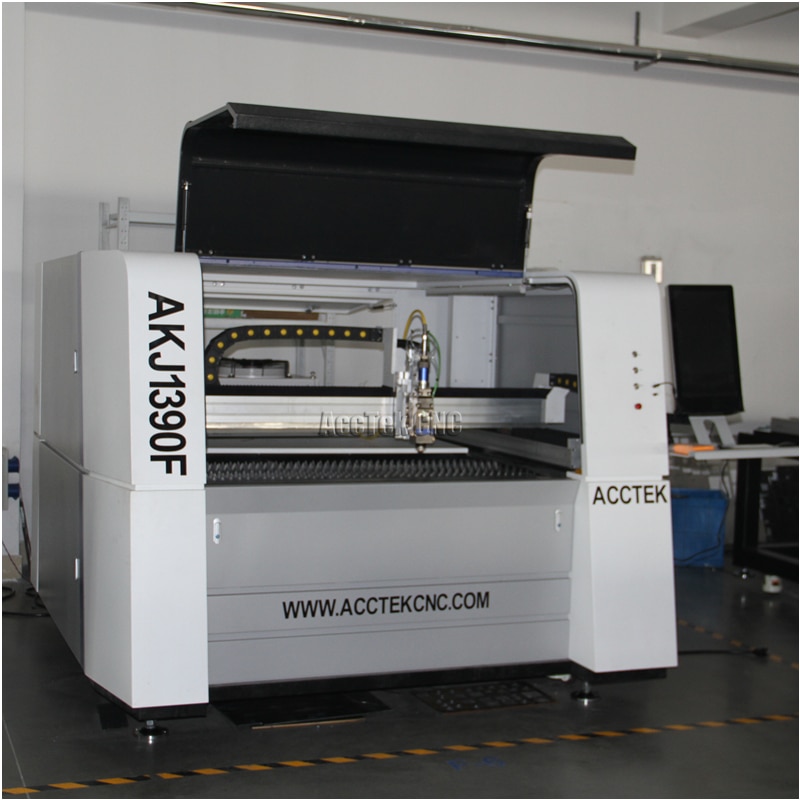

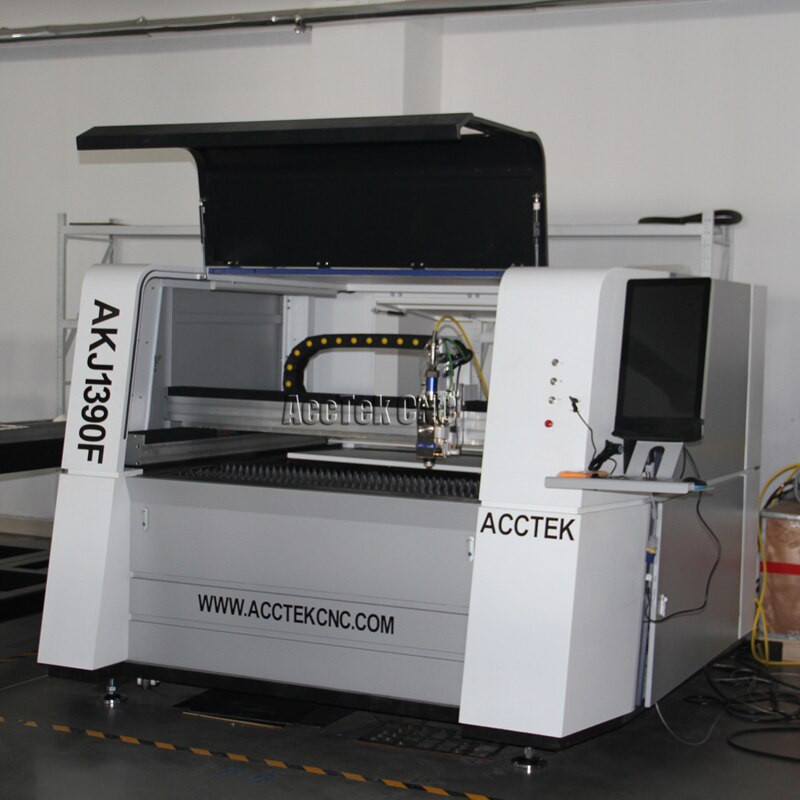

Full enclosed raycus 1kw fiber laser cutting machine AKJ1390F
Main features.Fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel,galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
1) Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2) High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3). High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
4) The laser maintenance free;
5) The cutting edge looks perfect and the appearance is smooth and beautiful;
6) Imported the transmission mechanism and servo motor, and high cutting accuracy;
7) Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
Machine parameter
Standard configuration:# Heavy duty structure
# Full enclosure structure, high safety

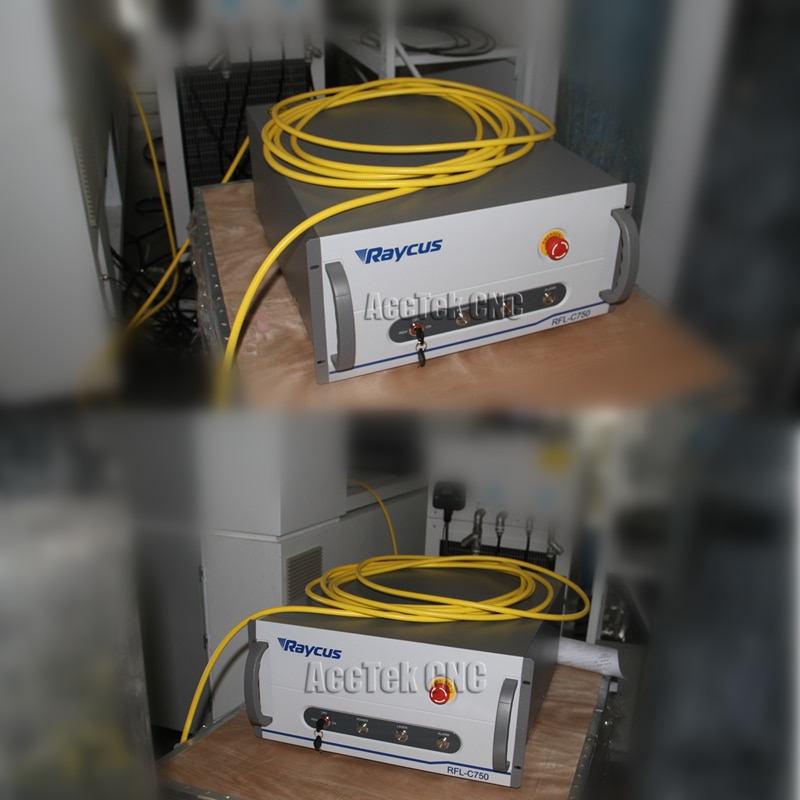

# Raycus 1000w laser generator

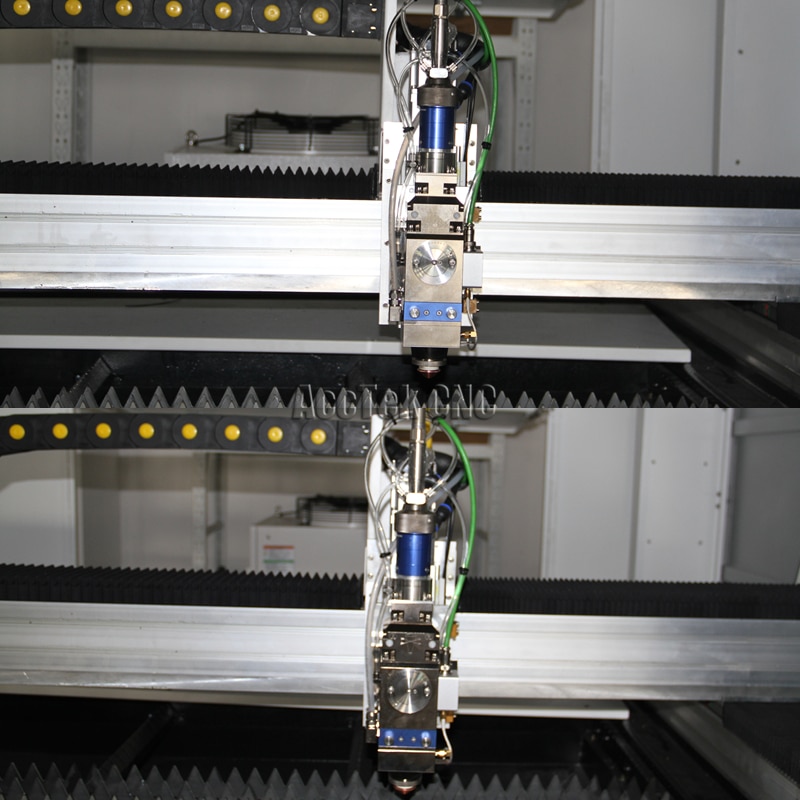

# WSX/Raytools brand cutting head
# ATLANTA gear and rack, Rack and pinion transmission
# Japanese SMC Airtac pneumatic element.
# Industrial water chiller
# French MOTOVARIO reducer
# French Schneider Electronic Components
# Including computer
# Automatic exchange platform as option
# Rotary axis cutting steel pipe as option
Working area
1300*900mm
Control System
Cypcut
Cutting head
WSX / Raytools fiber laser head
Guide rail
Taiwan HIWIN 30mm linear guide rail
Transmission
Taiwan APEX gear and rack transmission
Electronic Components
French Schneider
Motor
X-axis Japanese Yaskawa servo motor 850w
Y-axis Yaskawa servo motor 1800w
Z axis Panasonic servo motor 400w
Max Speed
120m/min
Repeat positioning accuracy
±0.02mm/m
Maximum Acceleration
1.0G
Min line width
0.1mm
Power Requirements
220V/380V, 50/60Hz
Cooling Way
Water Cooling
Machine Operating temperature
0 ℃ -40 ℃
Graphic Format Supported
AI, BMP, DST, DXF, DXP, PLT
Product Detail
Some Samples
1. Application industry.Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.2. Application materials.Our fiber cutting machine can work on the following materials : steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.
Packing & Delivery
Our Services
After sale service of AccTek:
1. 24 months guarantee of the whole machine. 1.5 years for fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.
Payment terms:
A. T/T: 30% T/T deposite,70% before shippment.
This is the most convinent payment terms for international trade.
B. Paypal: only for parts of machine.
C. Western Union/ Moneygram.
D. Trade Assurance on Alibaba. For more details, pls click the below photo.
