Description
- Brand Name: Rabotec
- Origin: CN(Origin)
- Condition: New
- Model Number: RTJ-1390Iv88
- CNC or Not: CNC
- Is Smart Device: YES
- Item: cnc laser cutting machine
- working size: 1300*900mm
- laser tube: 100w 150w 180w
- Laser type: CO2 sealed laser tube,water-cooled
- Graphic format supported: BMP, PLT,DST,DXF,AI,CDR
- Software supported: CorelDraw, PhotoShop
- Highest Scanning Precision: 2000DPI

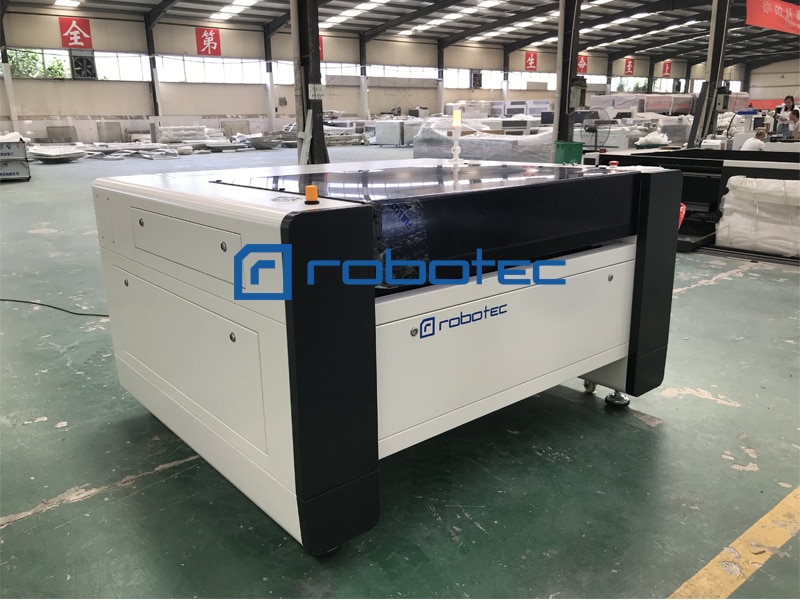

1300*900mm Ruida 100W CO2 Laser Machine 1390 Can Egraving And Cutting Wood Acrylic Non-metal Material With Module Transmission
1390 laser cutting machine
Item / Model |
RDJ-1390 |
Cutting area |
1300mm*900mm |
Laser power |
80W 100W 130W 150W |
Laser type |
CO2 sealed laser tube,water-cooled,10.6um |
Engraving speed |
0-60000mm/min |
Cutting speed |
0-40000mm/min |
Laser Output |
1-100%software setting |
Resetting positioning accuracy |
≤±0.01mm |
Power supply |
220V/50HZ (Optional 110V/60HZ) |
Operating temperature |
0 – 45°C |
Operating humidity |
5 – 95% |
Min. shaping character |
English 1.0 x 1.0mm |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
Driving system |
stepper motor |
Cooling mode |
Water-cooling and protection system |
Equipment Dimensions |
1850x1320x1110mm |
Net Weight: |
350kg |
Shipping Dimensions |
1980 x 1440 x 1220mm |
Optional Spare Parts |
Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts |
Laser Tube and Lens |

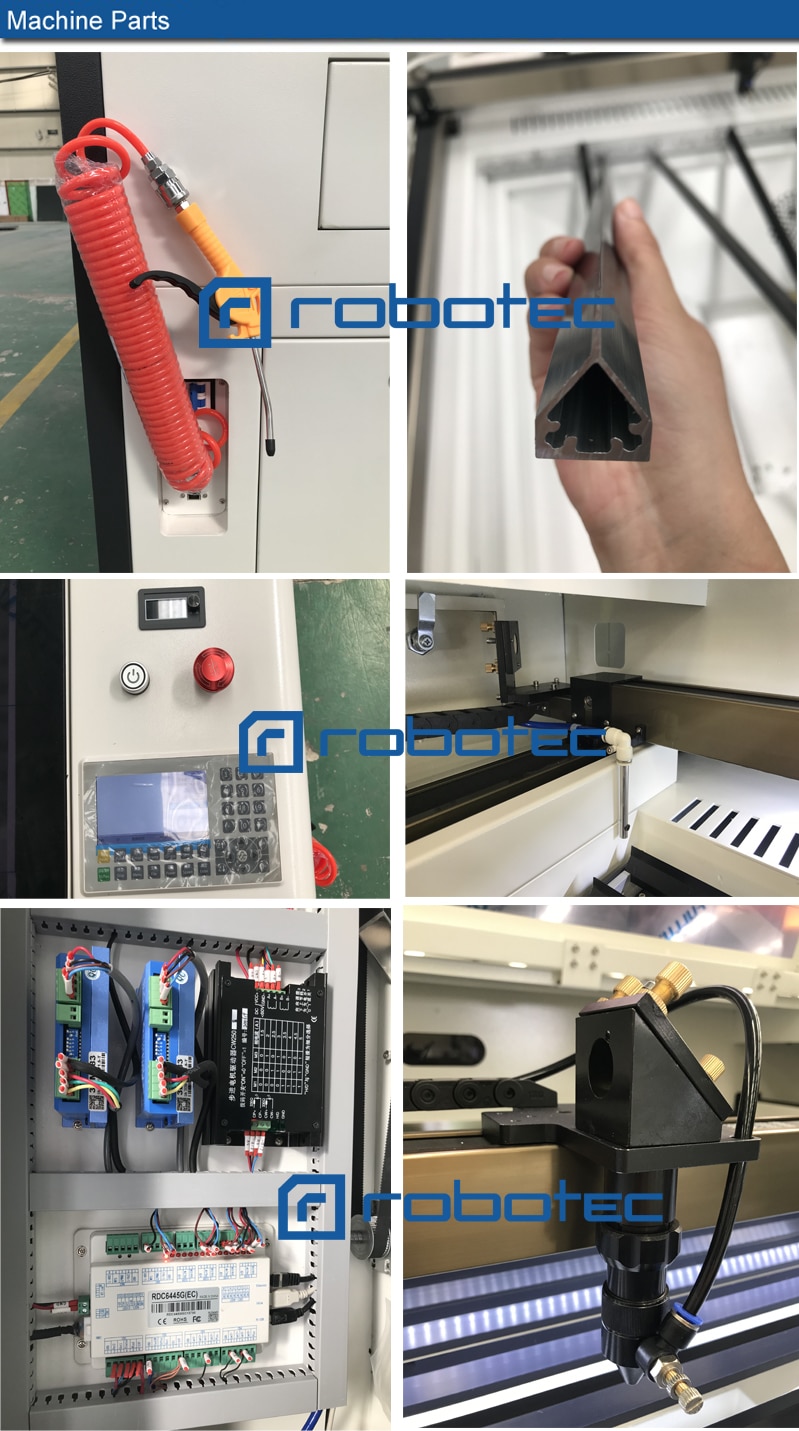

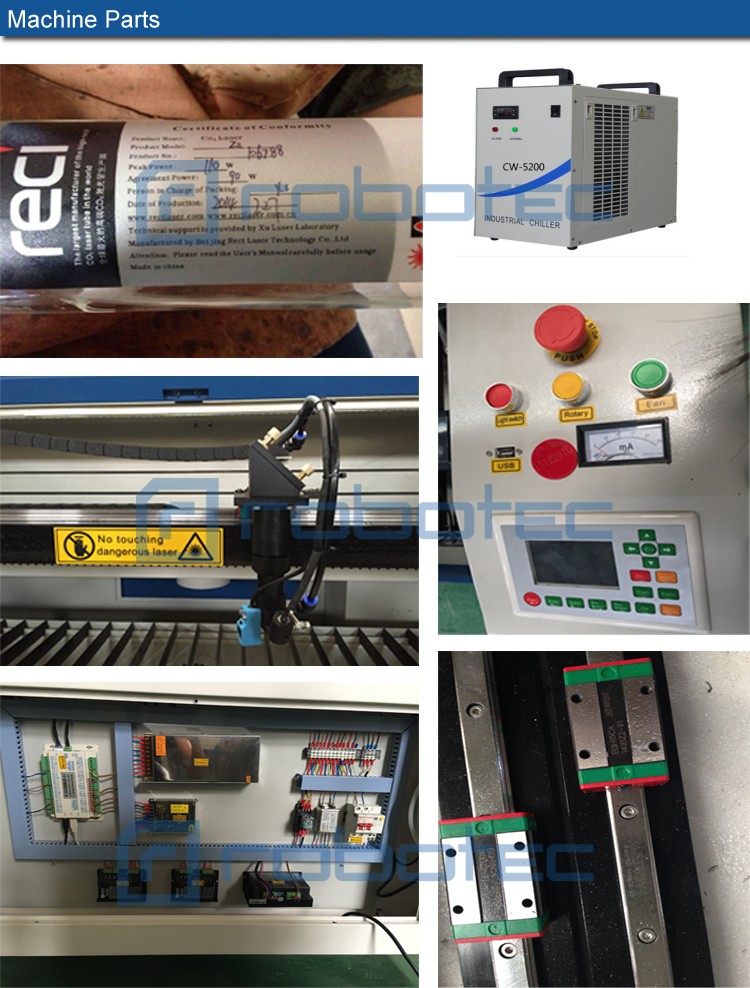

1390 laser cutting machine parts pictures:

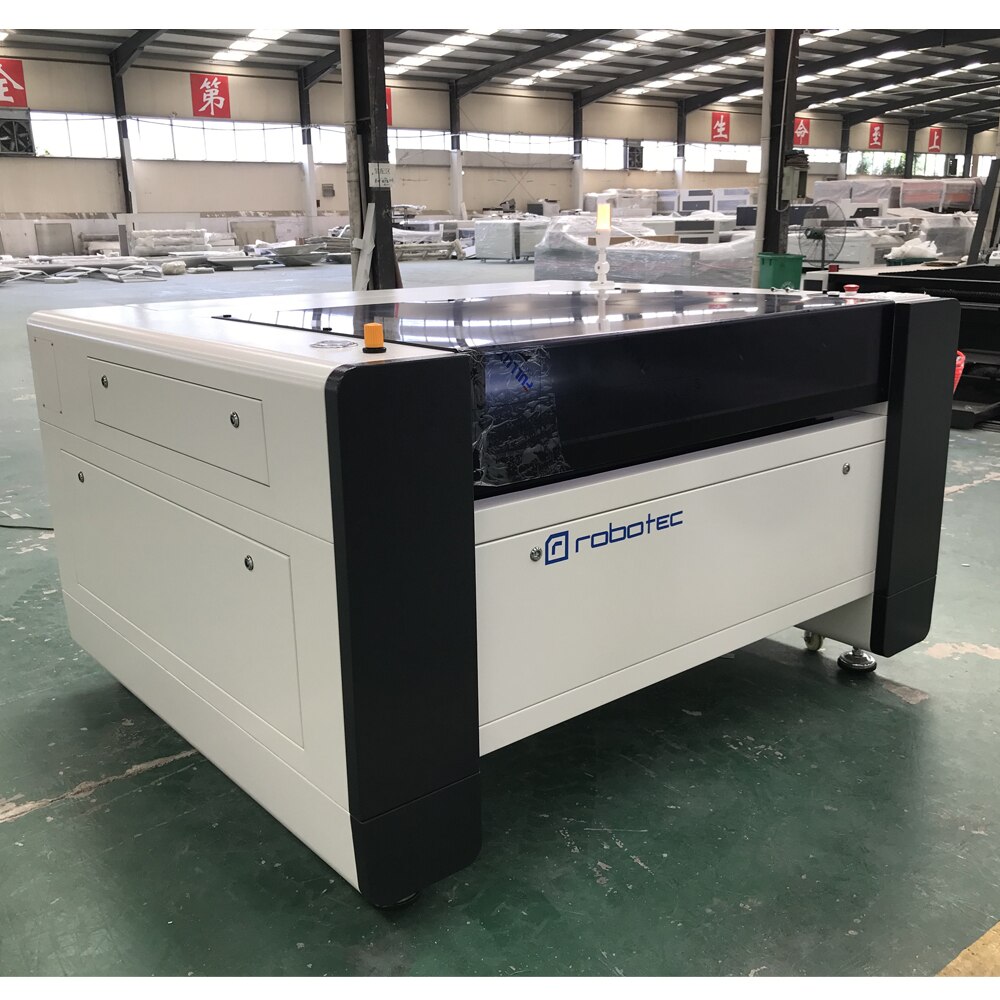

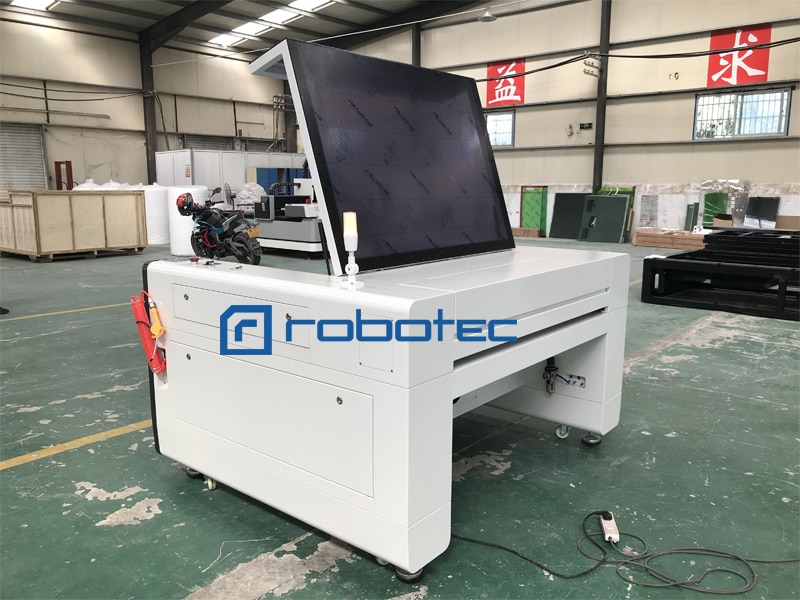

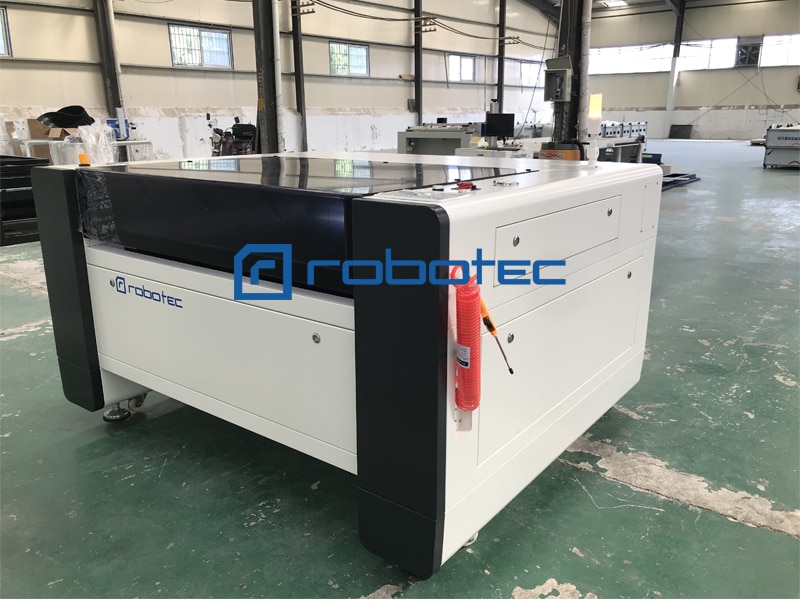

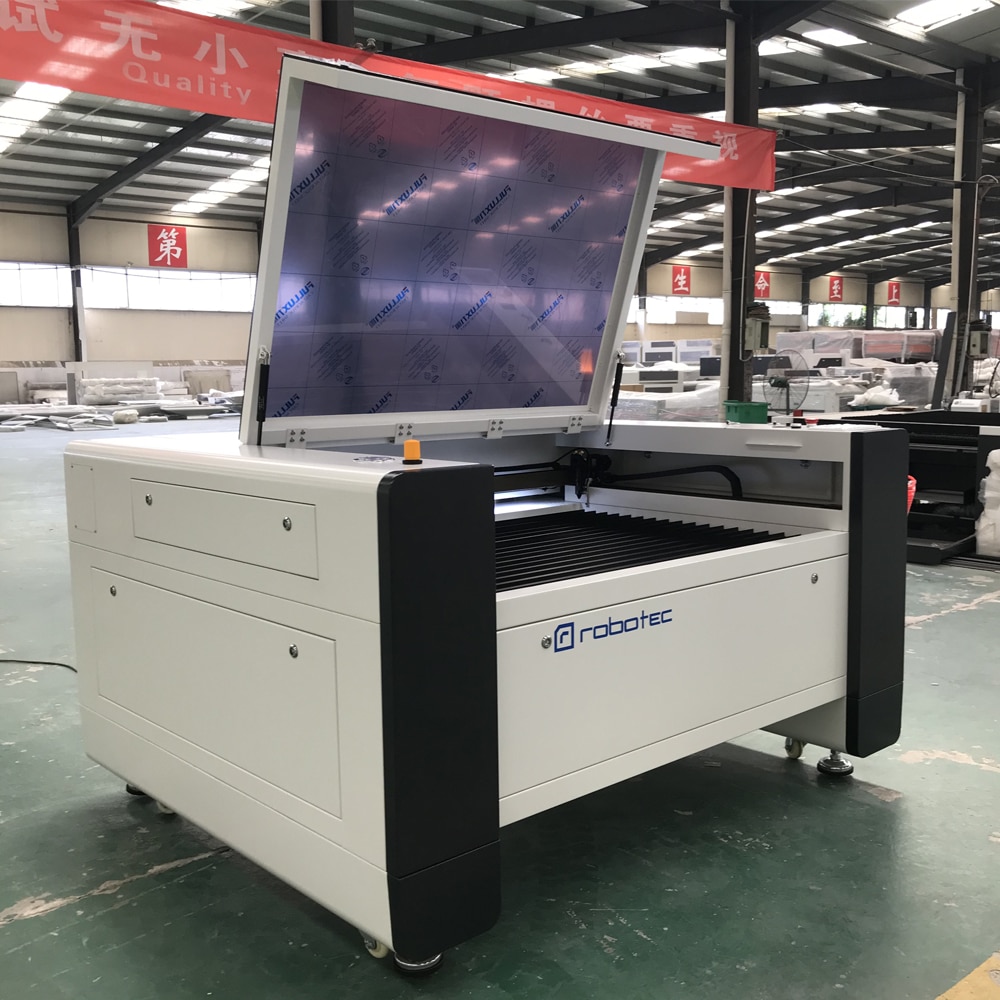

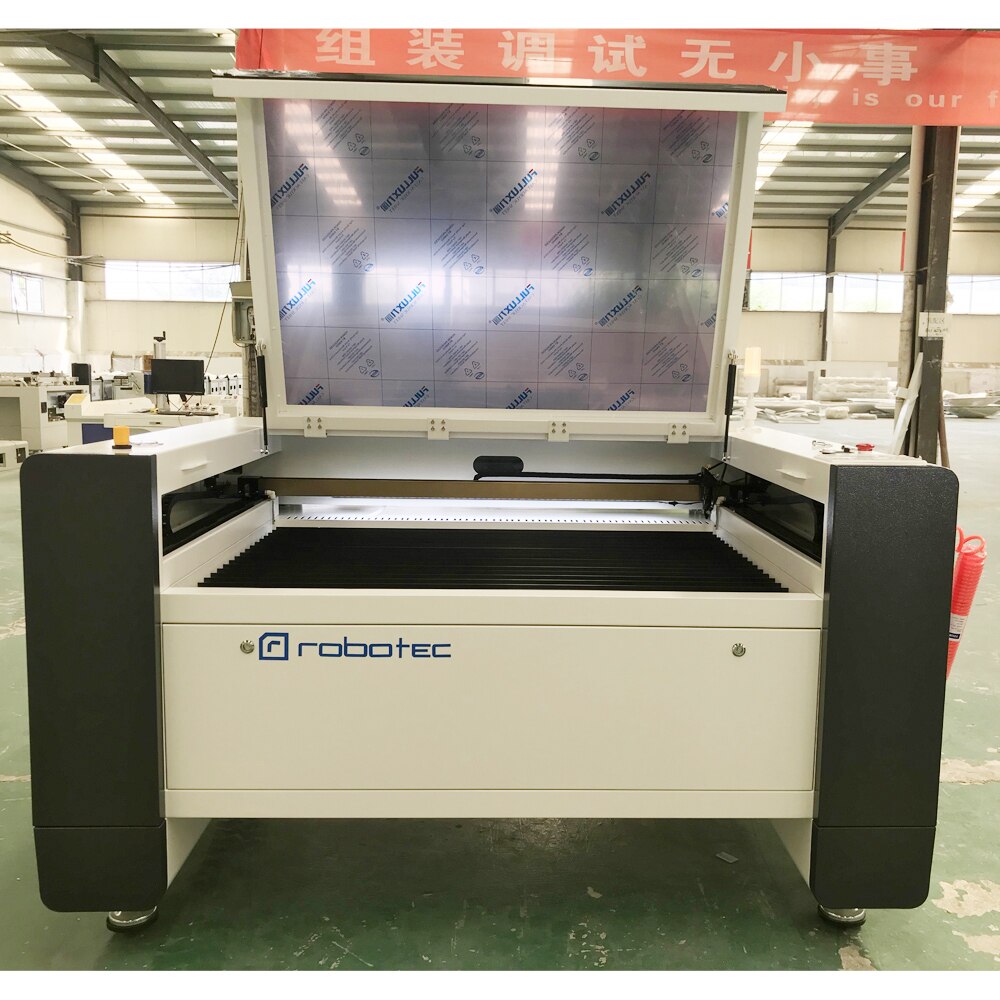

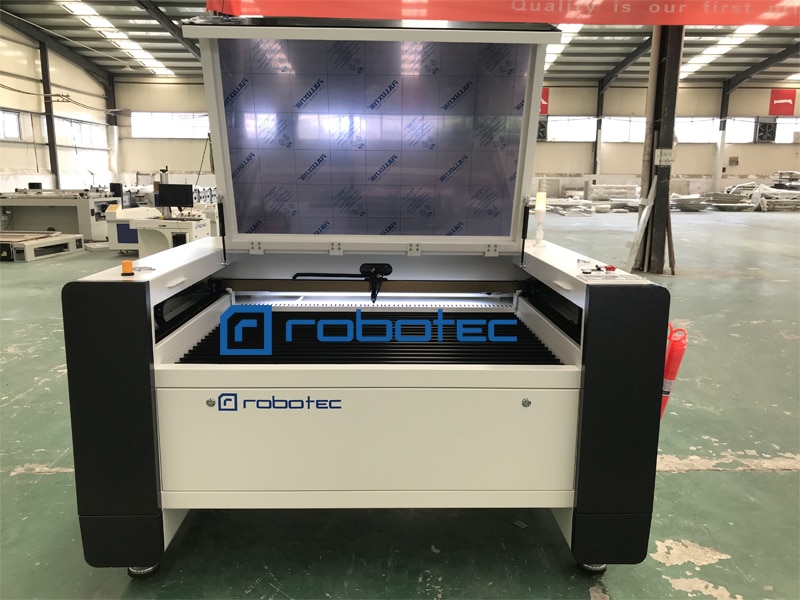

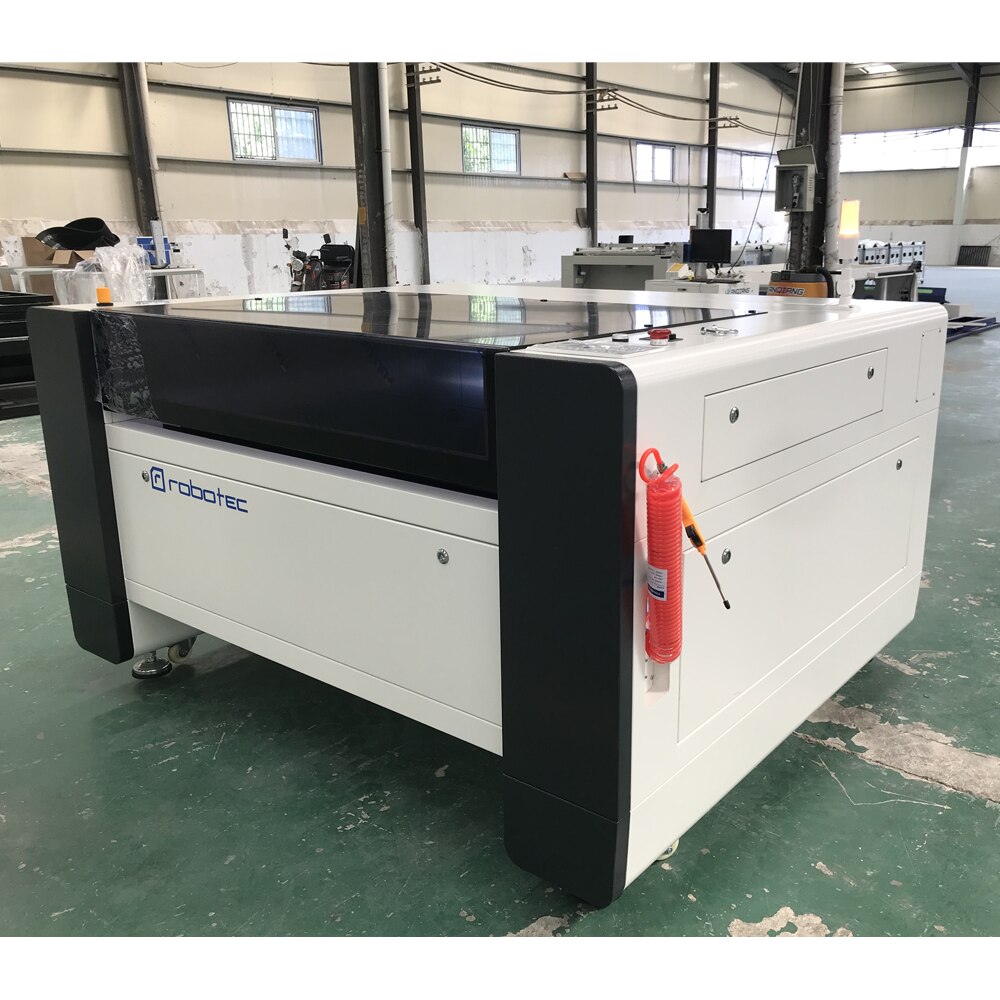

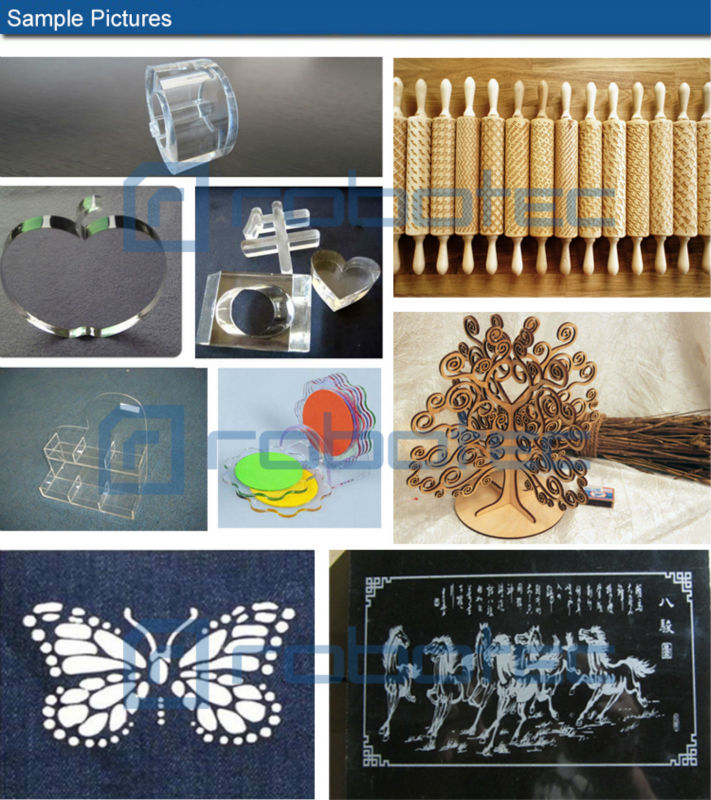

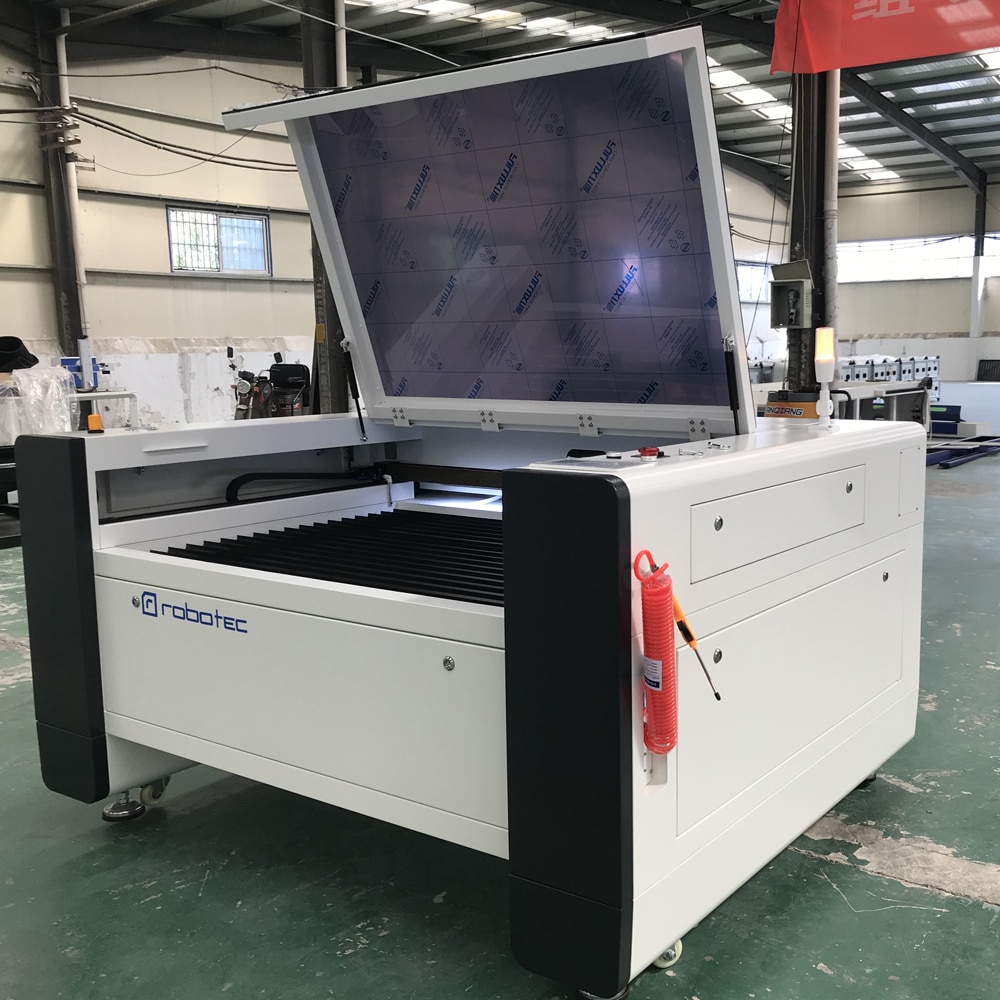

1390 laser cutting machine machine sample pictures: >> Laser engraving machine features:
1. 3mm Cold-rolled steel welded machine bed, strong and running stable.
2. Aluminium blade table: to process hard materials like acrylic, wood and so on.
3. Fireproof window,more security.
4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service time over 8500~10000 working hours.
5. Laser Power 40W~180W, good quality and stable output to prolong the laser tube service time.
6. Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.
7. Ruida or Leetro Controller USB interface, support online/offline working, English language system, adjustable cutting speed and power.
8. High accuracy stepper motors and drivers. Belt transmission.
9. Tiwan Hiwin Linear square guide rails, higher precision.
10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.
11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick.
12. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.

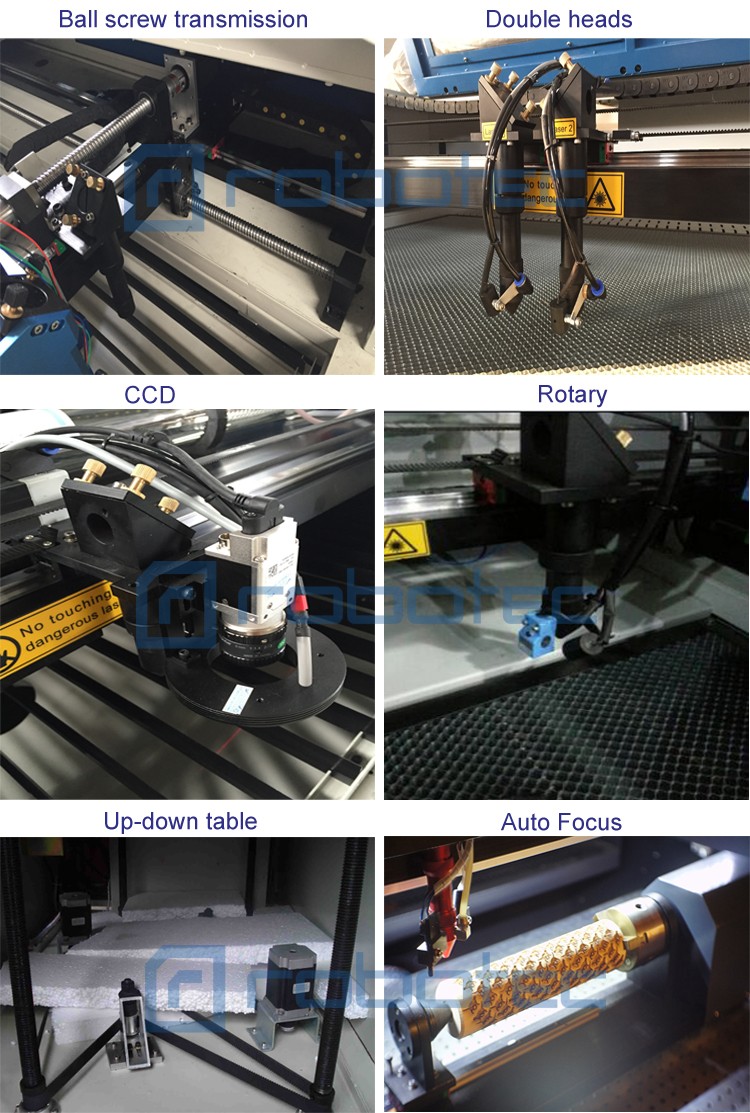

>>Option Parts:
>>Applicable Material:
Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,
embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Applicable Industry:
Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.
1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.

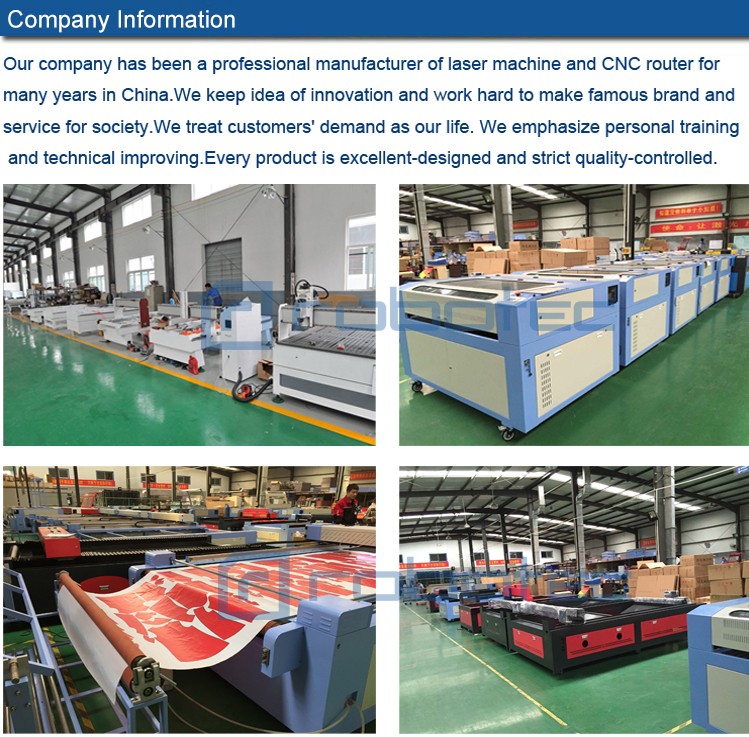

7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001
For offer the most suitable machine with favorable price, would you like to confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
After your return comments, we will send you more information about the machine along price . Thanks
