Description
- Brand Name: ATORCH
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Certification: CE
- Display Type: Digital Only
- Dimensions: 65*24*14mm
- Power Supply: DC
- Operating Temperature: -10-60Degrees
- Accuracy Class: 1% (Software calibration tec
- Model Number: U96
Tips:
1) The upgraded version of the U96 model now supports 180W power with a maximum voltage of 32V and a maximum current of 6.5A. The upgraded USB port is OPPO’s 5P high-current port, but some Huawei chargers are 4P ports. If you find contact If it is not good enough, the current is low or no power is supplied. At this time, please try to pull out a short section for better contact and compatibility;
2) In addition, the button operation logic is optimized this time: Click the button to switch the interface cyclically; quickly double-click to clear the capacity, three-click to clear the battery, four-click to clear the time, and long press the button to clear all accumulated data ; Long press on the AAA interface is the screen flip; when you see the model is U96, please follow this instruction to operate the keys, thank you(2020.12.20)
USB multi-function true color screen four high-precision tester
Adopt 12800 pixel IPS true color LCD screen
General test of various USB digital devices, support Qualcomm QC3.0/2.0/MTK-PE fast charging voltage
A variety of parameters on one screen display, real-time monitoring of charging voltage, current, power, capacity, power, timing, temperature (Celsius / Fahrenheit, etc.)

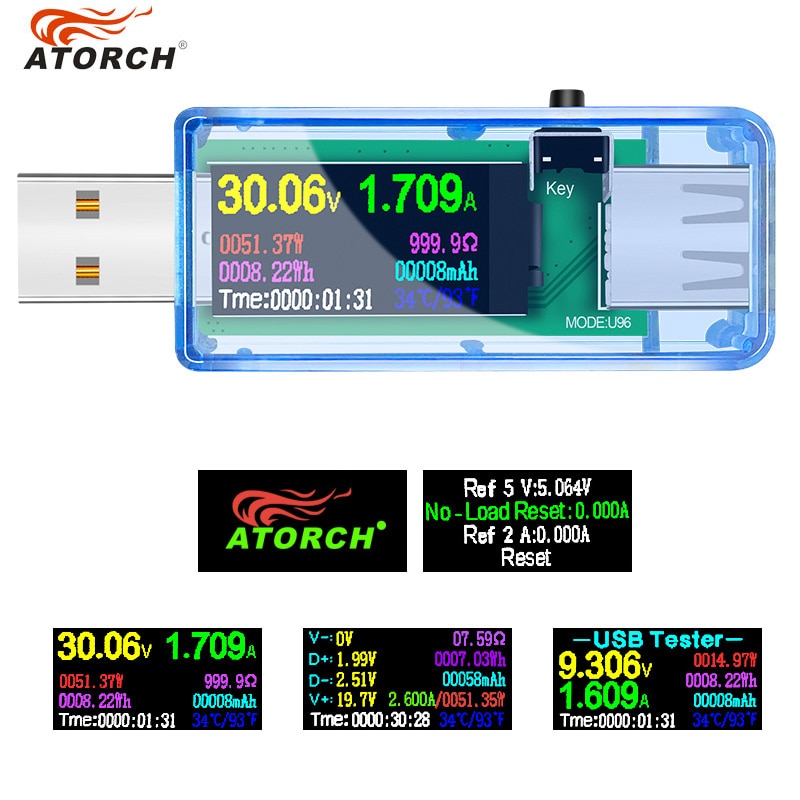

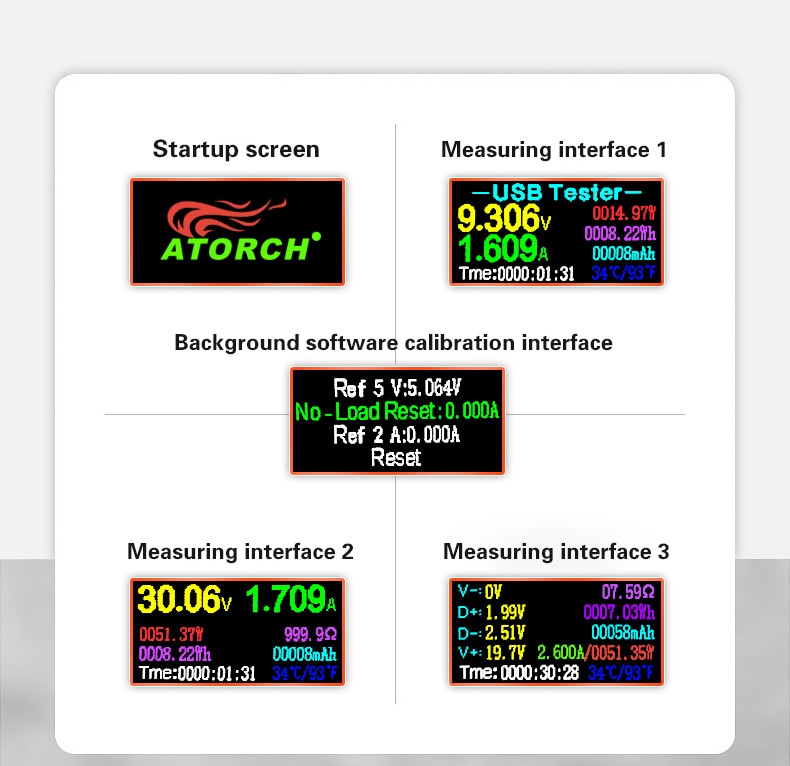

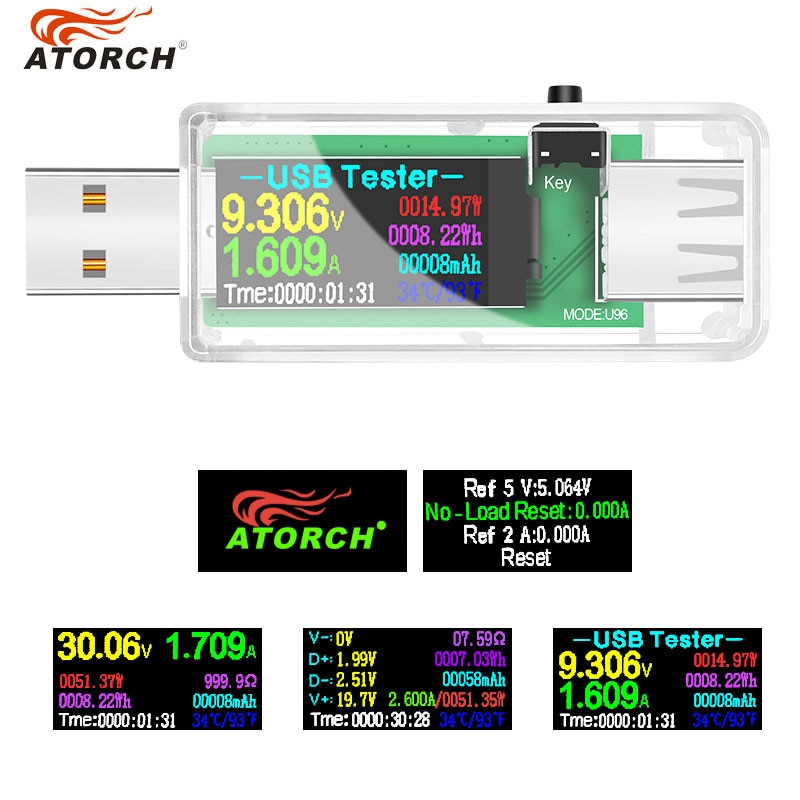

U96 multi-screen interface design display
U96 key button operation instructions:
1. Short Press key button to switch screen
2. Long press key button the screen to flip
3. Quickly double-click key button the power Wh to clear zero
4. Fast three-click capacity mAH to clear zero
5. Fast four-click time to clear zero

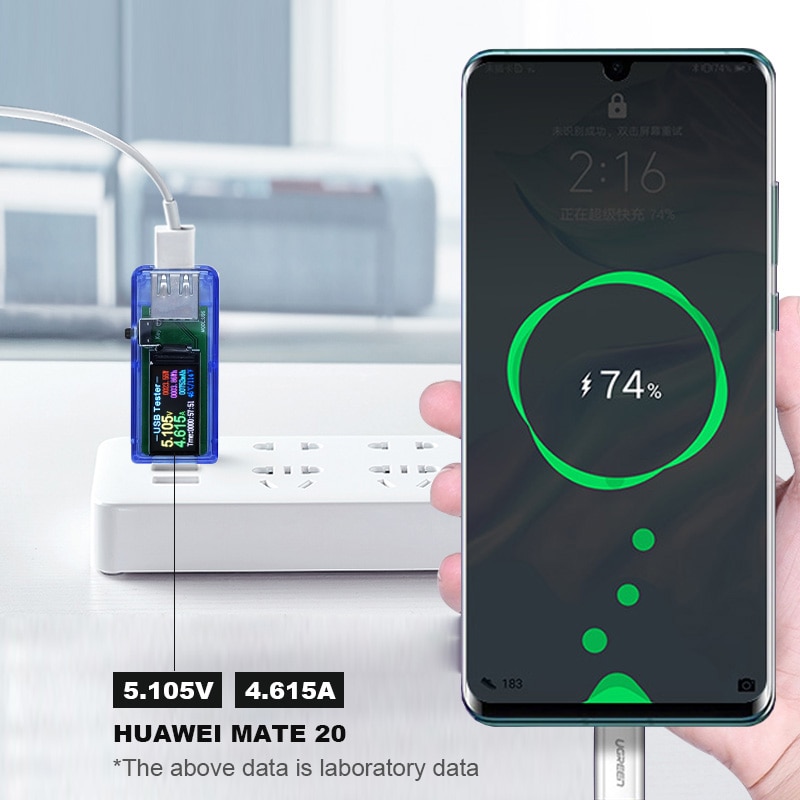

Real-time monitoring of the charging status of various data Cable
U96 USB color tester can monitor the charging data of the mobile phone in real time, supporting QC3.0 (3.8~12V, -/+0.2 step)
Support QC2.0 (5V9V12V20V), Android BC1.2 (5V), Apple 5V2.4A and MTK-PE (5V/7V/9V/12V)
Wait for the fast charging voltage range to charge!
Smart repair hardware, poor software calibration technology
Press and hold the USB tester button when no power is on, and insert the USB charger to enter the background calibration mode.
Press the button shortly to switch to the corresponding calibration function, long press to confirm the corresponding calibration function!
(Tips: This calibration must use 5V standard voltage and 2A constant current power supply, no misoperation is allowed.)
Support Huawei super fast charge detection
Support various fast charge detections such as Huawei/Samsung/OPPO/VIVO, DCP (9V2A), SCP (4.5V5A)
Super flash charging 4.5V5A, Samsung / Qualcomm 5V9V12V and other fast charging protocols
Color screen display on/off function
By pressing the button to switch the interface to the information screen to turn off the display, you can also charge the device normally!
Click the button to wake up the display again
General test various USB chargers
Through the constant current load, you can test whether the voltage and current power of its charger meet the nominal value.
General test of various charging treasure capacity
First clear all data of U96 color screen, clear it and insert it into charging USB
Output port, then the U96 color screen meter output port is connected to the discharge load to discharge until
When the charging power is used up, the capacity value (mAH) shown above is multiplied by the ratio of the aluminum battery to the output voltage and the charging efficiency ratio is the charging capacity.
(Approximate multiply by 1.35 when outputting 5V, and approximately equal to the nominal value of charge Po when it is multiplied by 2.45 when outputting 9V)
General test of various mobile hard drives
Test a variety of technical parameters such as the current and voltage of the mobile silver disk of the notebook, USB connection test, and easily carry out various electrical monitoring of the device.
U96 13 IN 1 Technical parameters
Voltage measuring range: 3.60V ~ 32.5 V Resolution precision: 0.01 V
Current measuring range: 0.00A ~ 5.00 A Resolution precision: 0.01 A
Power cumulative range: 0 ~ 999999 WH Resolution precision: 0.001 Wh
Capacity range : 0 ~ 999999 mAH Resolution precision: 0.001 Ah
Temperature：0 ℃ ~ + 80 ℃ Resolution precision:1 ℃
D+ Voltage : 0.000V ~ 2.999 V Resolution precision: 0.001 V
D- Voltage : 0.000V ~ 2.999 V Resolution precision: 0.001 V
Load impedance: 0 ~ 999 ohm Resolution precision: 1 ohm
Power metering range: 0 ~ 299.999 W Resolution precision: 0.001 W
Timing maximum time: 999 H 59 M 59 S Resolution precision: 1 S
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times/s
Use large equipment of the same metal manganese bronze sampling resistor
(1.0 mm diameter metal manganese bronze material < 0.05R)
Product size: 65 x 24 x 14 mm
Since the power flow: < 0.003 A （ < 3mA ）
Working temperature: – 10 ~ + 60 ℃
Working humidity: 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
Cumulative capacity range: 0-99999 mah precision: 0.001 Ah (New features or D+ D- Voltage )
Specifications:
Item size:65 * 24 * 14 mm
Net weight: 19g
Package weight: 28g
Color: Black
Display Color: IPS color
Packing content:
1 x Digital USB Voltmeter Tester
Computer USB interface application
Perform various electrical tests on USB devices such as U disk, mouse, keyboard, mobile power, HUB splitter, etc.

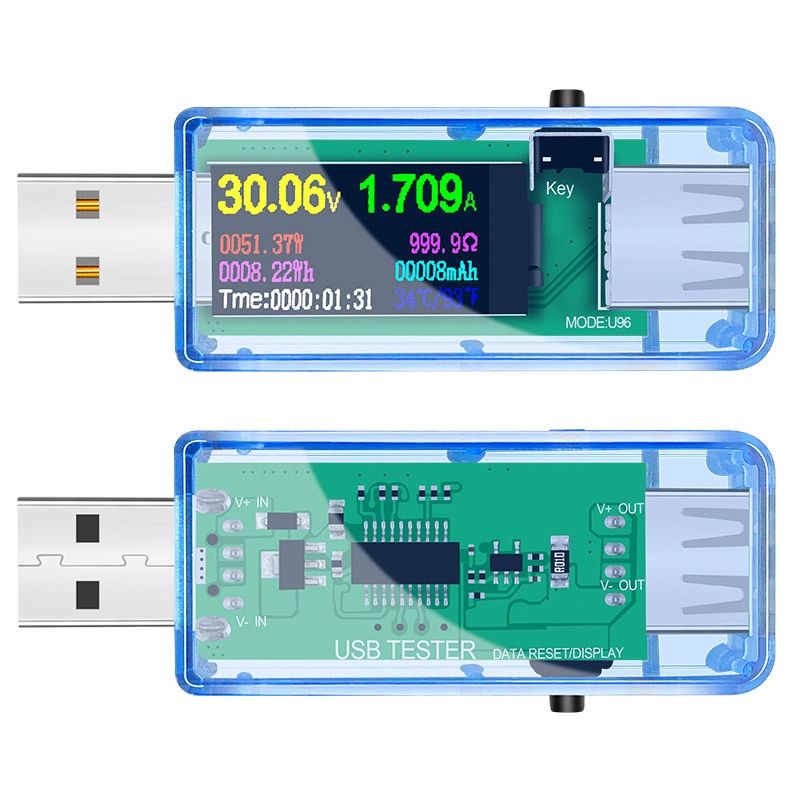

Blue shell color USB tester
U96 true color screen four high-precision detector (Blue)
Transparent shell color USB tester
U96 true color screen four high-precision detector (Transparent)
Black shell color USB tester
U96 true color screen four high-precision detector (Black)
!!!Announcements!!!
1, the load device is working, winding resistance caused by large current, will produce very, very high temperature, therefore in the process of use, and just use the finished in a short period of time, absolutely can’t human exposure golden metal radiator parts, to avoid the scald!Nor to flammable items contact tester, in order to avoid the fire!In use process must be highly vigilant!
2, considering the particularity of heat resistance, the initial use of electricity after a period of time will appear a few white smoke and smell, because outside the paint contains very little moisture, high temperature electric heating, moisture evaporates form the phenomenon of white smoke, produce peculiar smell by high temperature baking paint outside phenomenon, completely disappear after using for a period of time.This phenomenon is inevitable, belongs to the normal situation, do not have to worry about load tester can damage, please be assured that use.
The load application
Can be convenient to test mobile power charging treasure, mobile phone charger, USB power output current is such as to amount to mark, so long as connect USB above.And can do it for mobile power supply and USB power adapter aging test, aging test discharge resistance will be hot, temperature is controlled in 80 ~ 85, please pay attention to prevent hot.
