12w Output Power Laser Head WIth Air Assist Laser Module For Plywood And Leather MDF Cutting

$194.70$262.90

SKU: 3588110018651 Category:

Description

Product Overview

12w Output Power Laser Head WIth Air Assist Laser Module For Plywood And Leather MDF Cutting

Features:

* Can Cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper.

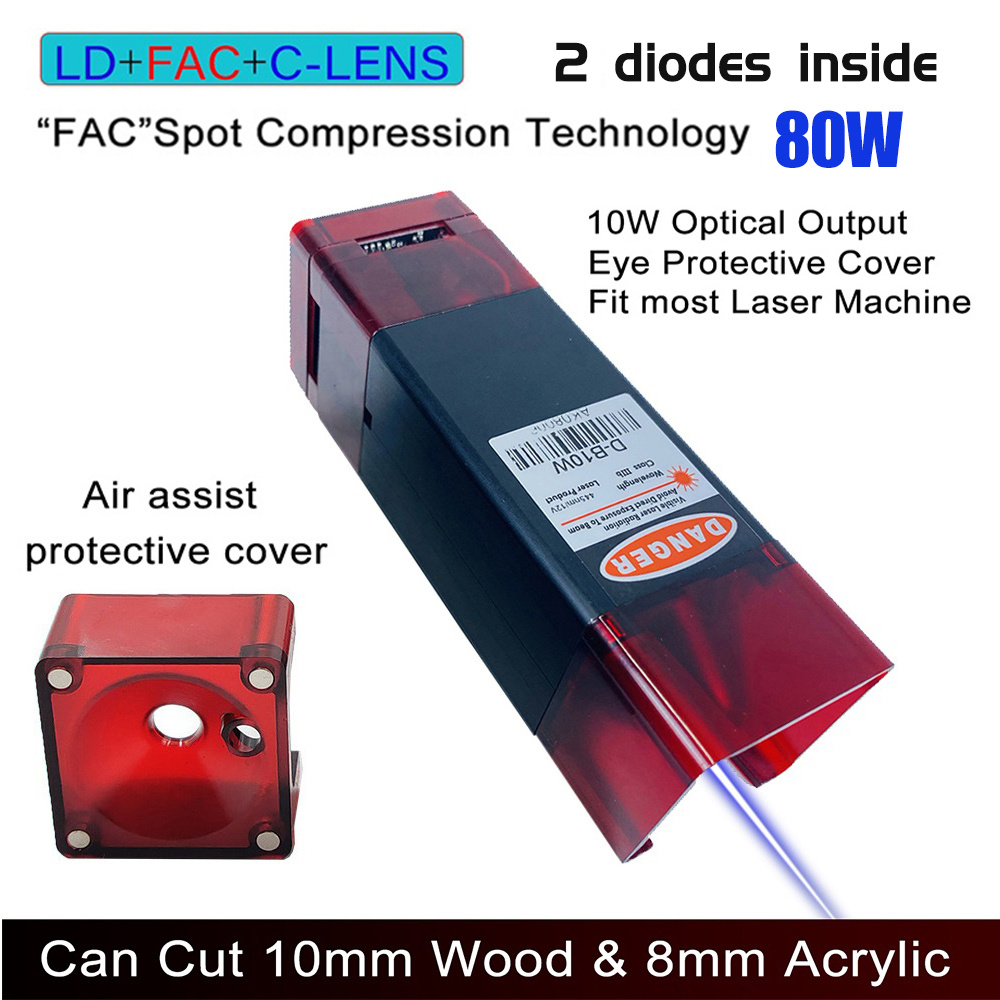

* FAC technology: FAC technology means the laser power is more centralized, the engraving/cutting/marking is more accurate.
* It is suitable for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, and so on.

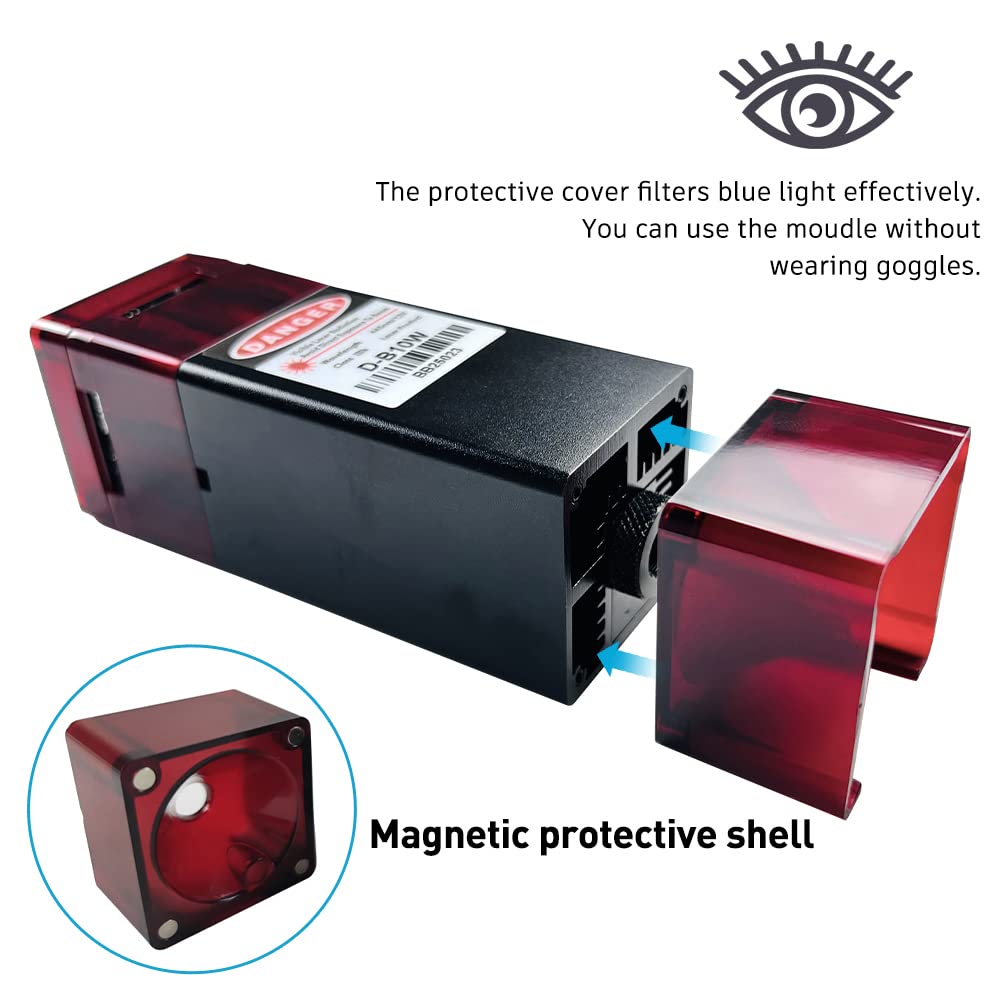

* The Upgraded Laser Modele equiped with protective cover can effectively reduce the damage of the laser to the eyes, and is safe and beautiful.

Specification

Laser Power
40W/80W
Laser Wavelength
445nm (blue viole)
Optical Power Output
5.5W/12W
Drive mode
External ACC constant current drive
Cooling Method
Forced air cooling
Operating Voltage
12V DC
Shell Material
Aluminum,Surface Anodized
Module Material
Copper
Life Time
8000-10000 hours
Working Temperature
-40-75Celsius
Focal Length
40W-23mm; 80W-50mm

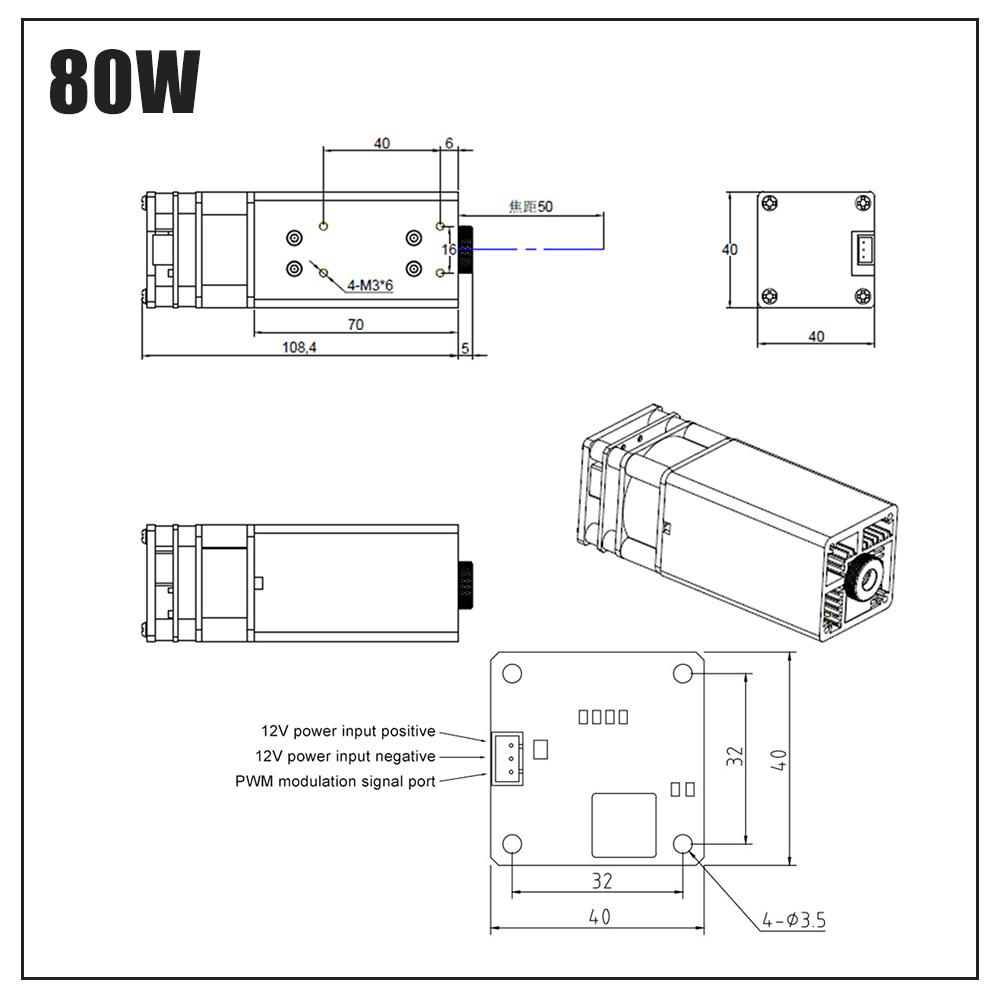

Dimensions

Product Detail





DIODE INPUT VOLTAGE: 5V
POWER INPUT VOLTAGE: 12V
CONTROL: PWM







AIR ASSIST PROTECTIVE
EYE PROTECTIVE COVER





FIXED FOCAL LENGTH
40w-23mm
80w-50mm





FIT MOST LASER MACHINE
Free lift

Application

Additional information

Model Number

New 40W, New 80W
