Description
- Brand Name: Jolooyo
- Style: Mini
- Model Number: 532MD-100-3055-12V-XL
- Power: 100mw
- Item Type: Stage Lighting Effect
- Occasion: Home Entertainment
- Voltage: 12V
Dot Green Diode Laser Locator Module 532nm 100mw LED Lighting Room Escape Lights w 12V 1A Adapter & Holder
Parameters
Wavelength: 532nm
Output power: 100mW
Operating voltage: 12V DC
Operating Current: I <350mA
Operating temperature: -10 ℃ ~ +40 ℃
Storage Temperature: -10 ° C to +40 ° C
Laser Shape: Dot
Cooling methods: Fan cooling
Modulation frequency: TTL 0-30K HZ
Working Method: continuous work
Color: Black
Material: Aluminum
Circuit control: constant control
Reverse polarity protection: Yes, with automatic identification of positive and negative
Warm up time: Noe
Structure: laser diode + lens + cooling Housing
Laser Module Size: 50x30x30mm
Circuit Board size: 71.5x35x20mm
Features:

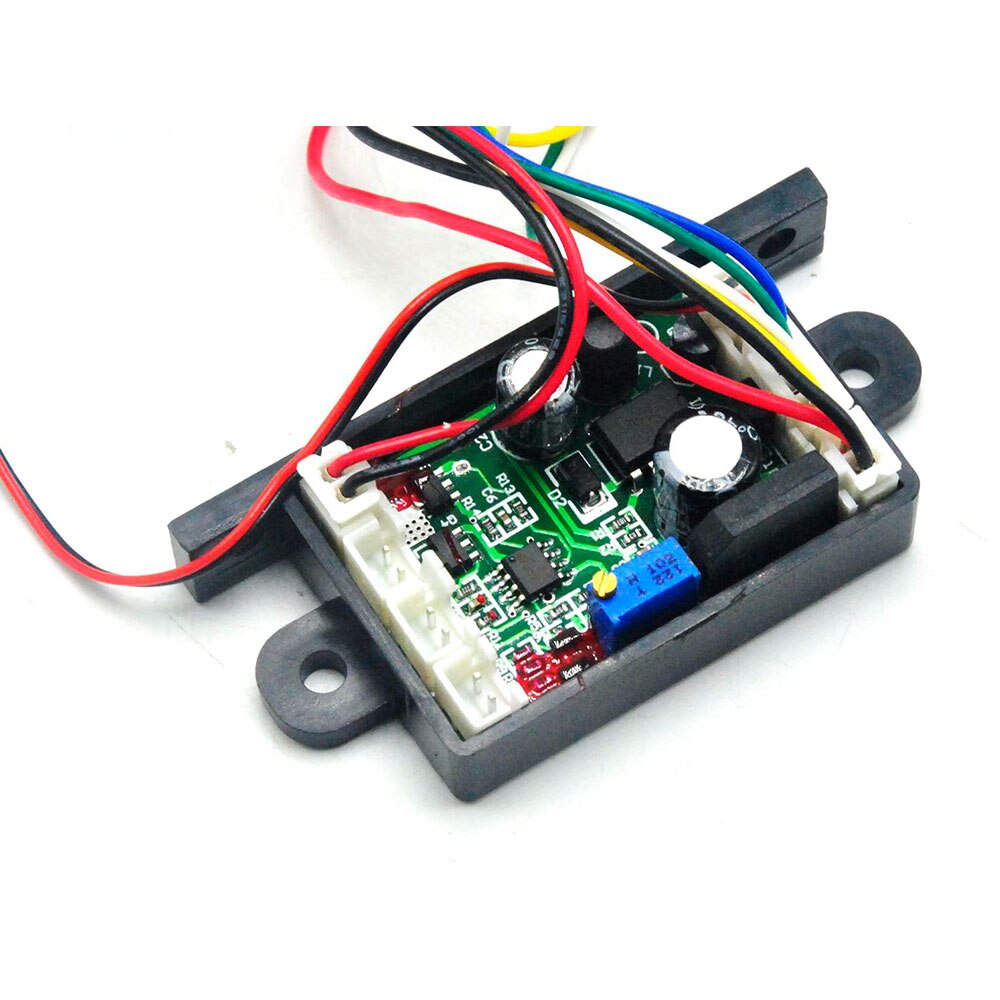

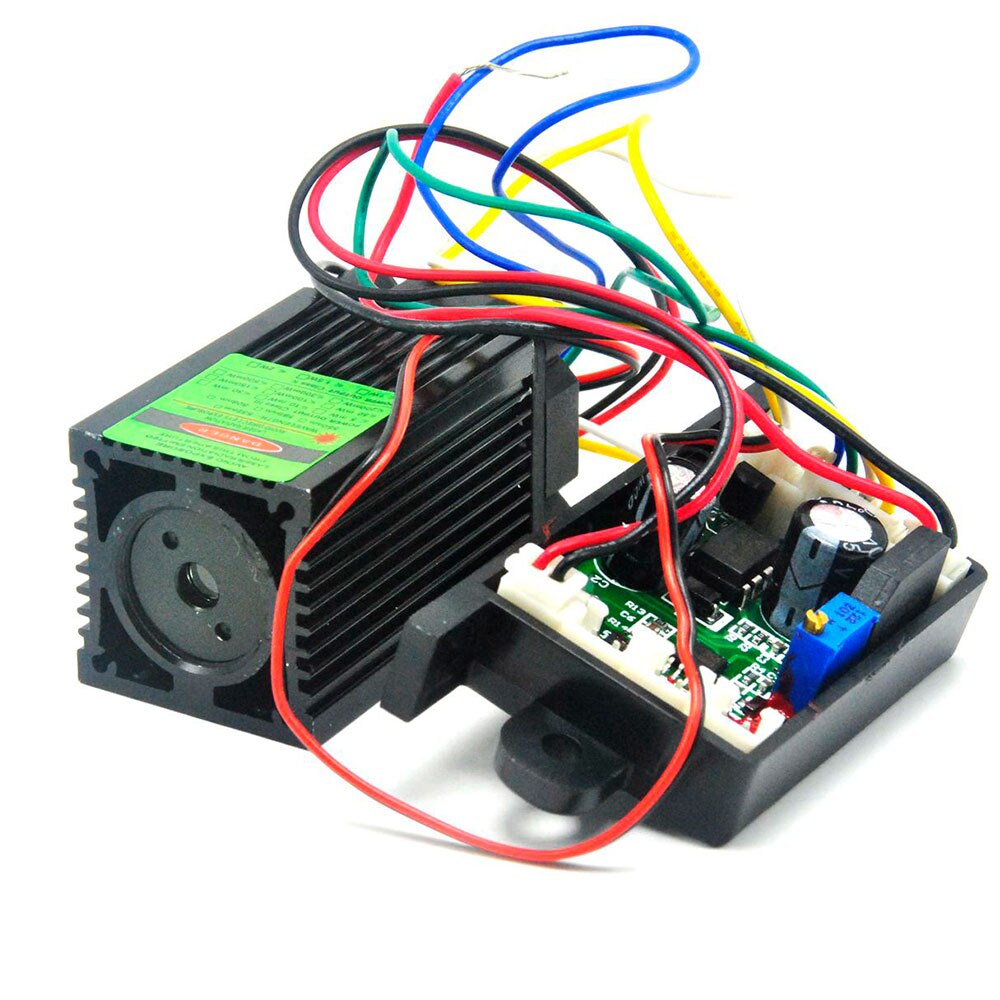

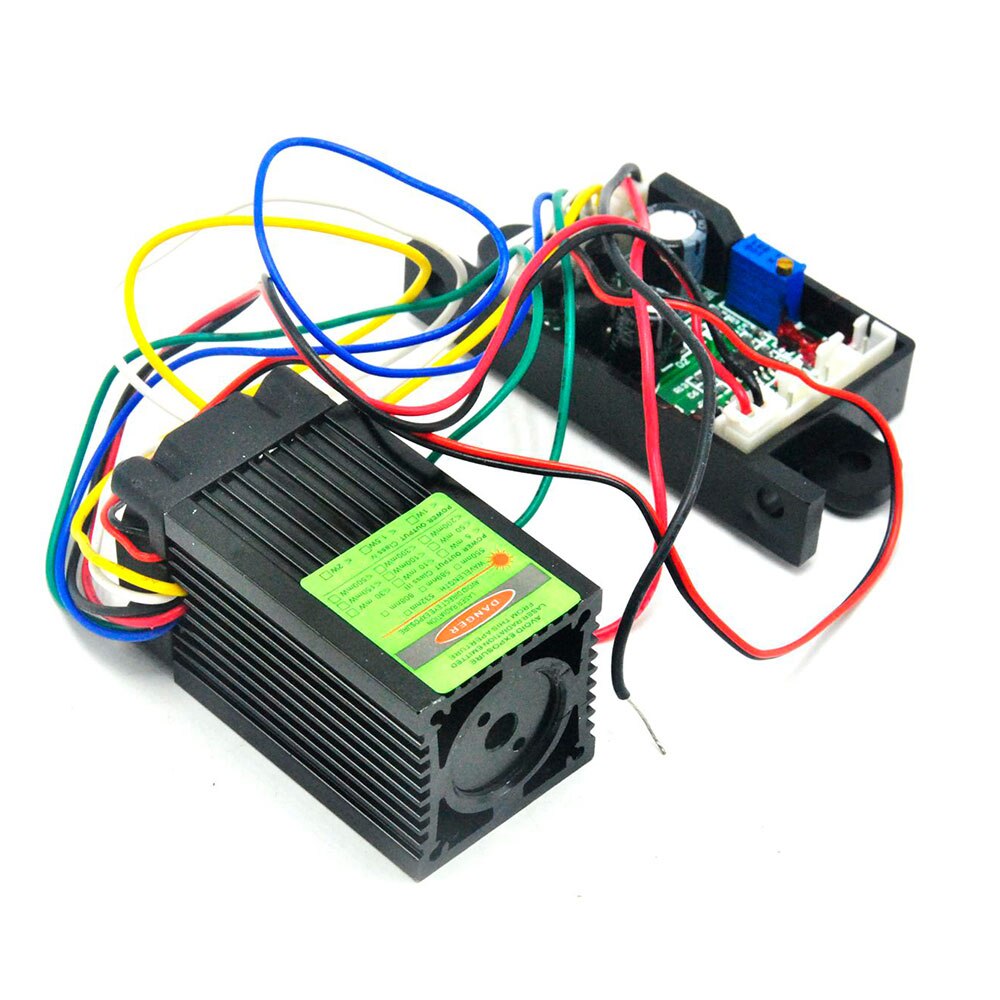

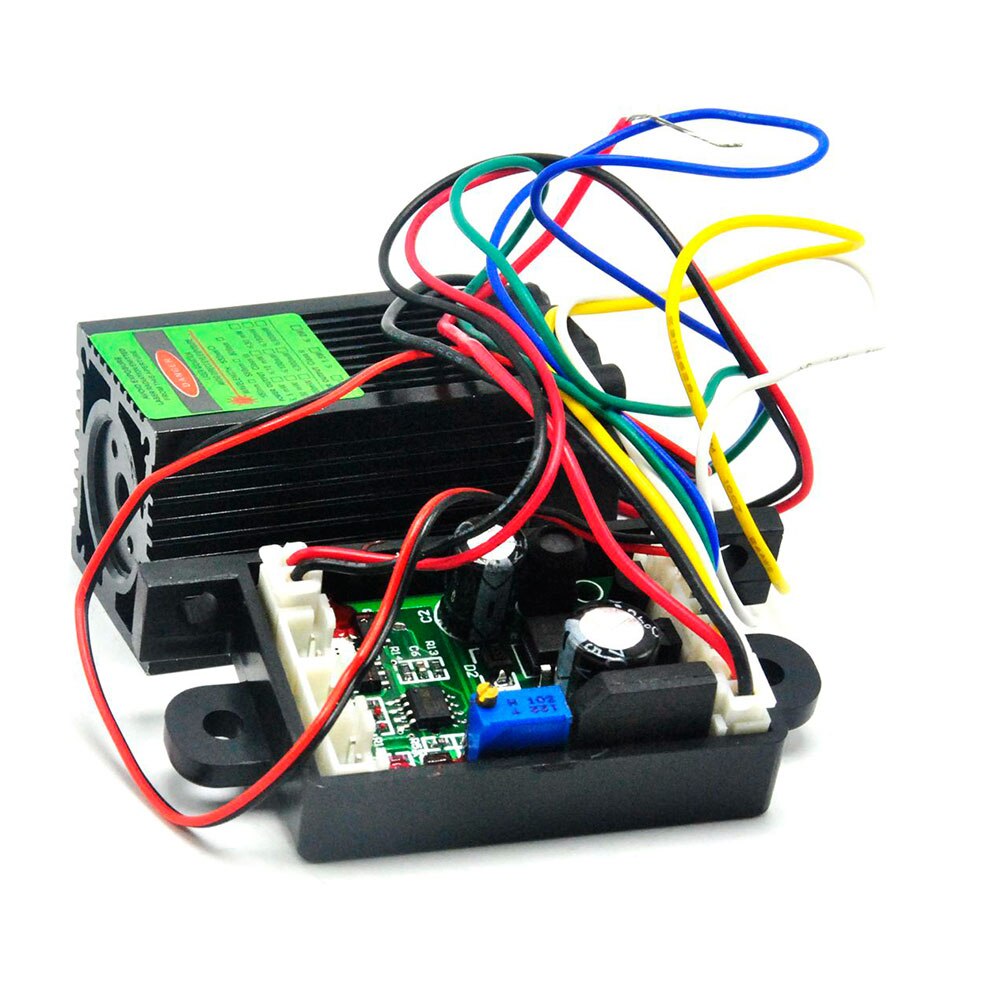

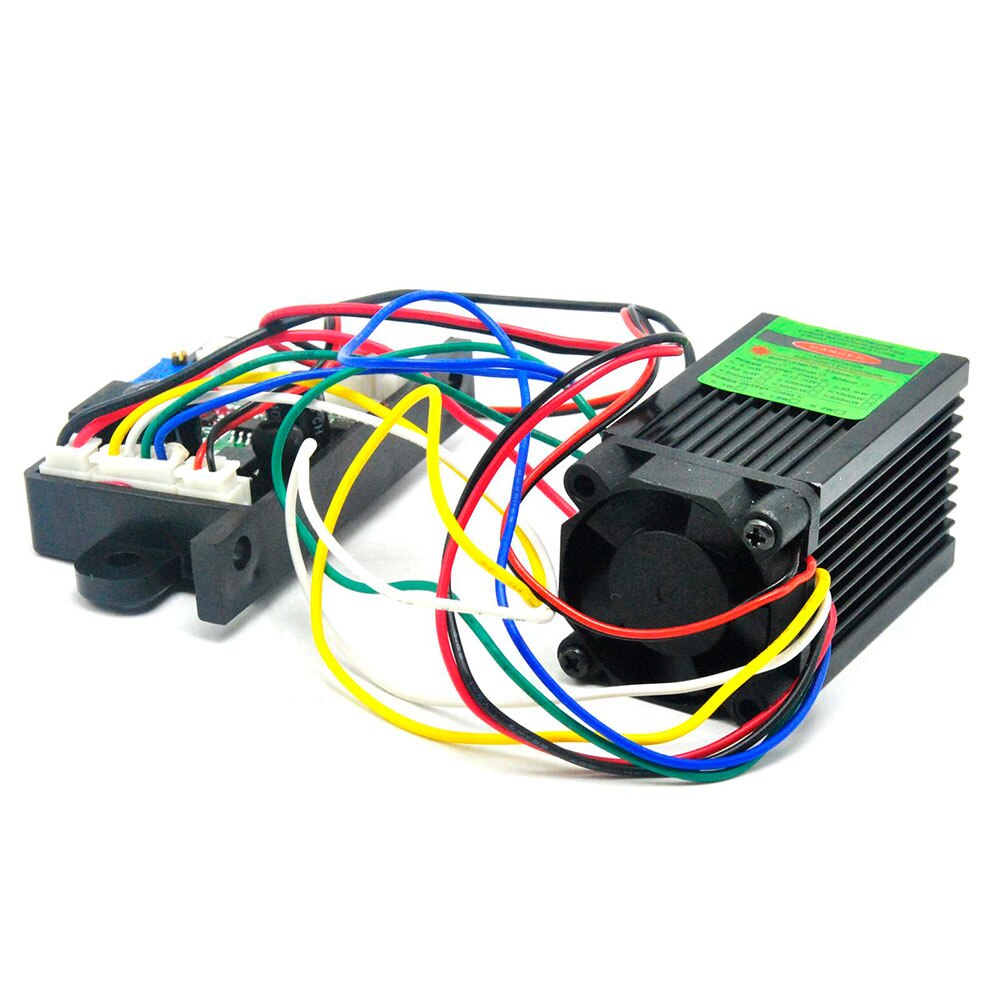

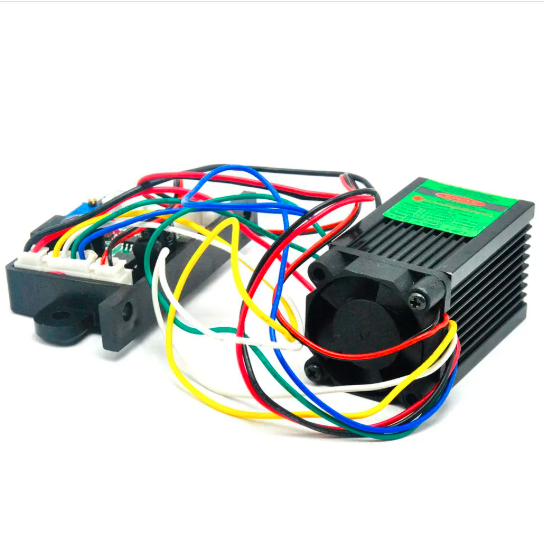

The 532nm Laser dot module is composed of 2 parts, Laser head (Laser diode+ housing +lens)and its driver circuit board. the laser head brings with fan cooling.
The input voltage is 12V, an over-specified voltage will lead to damage of circuits and modules
This laser module can work for a long time!
Please aviode direct eye exposure to the laser beam, please wear 532nm protection glasses when working on this laser module!
Package
1pc 532nm 100mW Laser Dot Module
