Description
- Brand Name: Starry
- Certification: CE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Model Number: W6000-RGB
- Voltage: 120-240V
- Occasion: Professional Stage & DJ
- Module Input voltage: 12Vdc
- Modulation Mode: TTL or Analog
- Modulation Voltage: 5Vdc
- Red 638nm output: 1800mW
- Green 520nm output: 1100mW
- Blue 445nm output: 3100mW
- Lifespan: >10000 hours
- Work Temperature: -30~40 Celsius Degree
- Beam Size Divergence: <1.0mRad
Detailed description
Wavelength: R:638nm G:520nm B:445nm
Output power: R:1.8W G:1.1W B:3.1W
Beam Divergence : 3.5*6mm
1.1mRad
Laser Modulation : TTL/Analog
Input stability: ±5%
Input voltage :12V
Ambient temperature: -10~40℃
Lifetime :10000h
N.W.:760g
There are red, green, and blue color laser diodes installed inside, after connecting to the analog modulation board it could give off million of different colors.

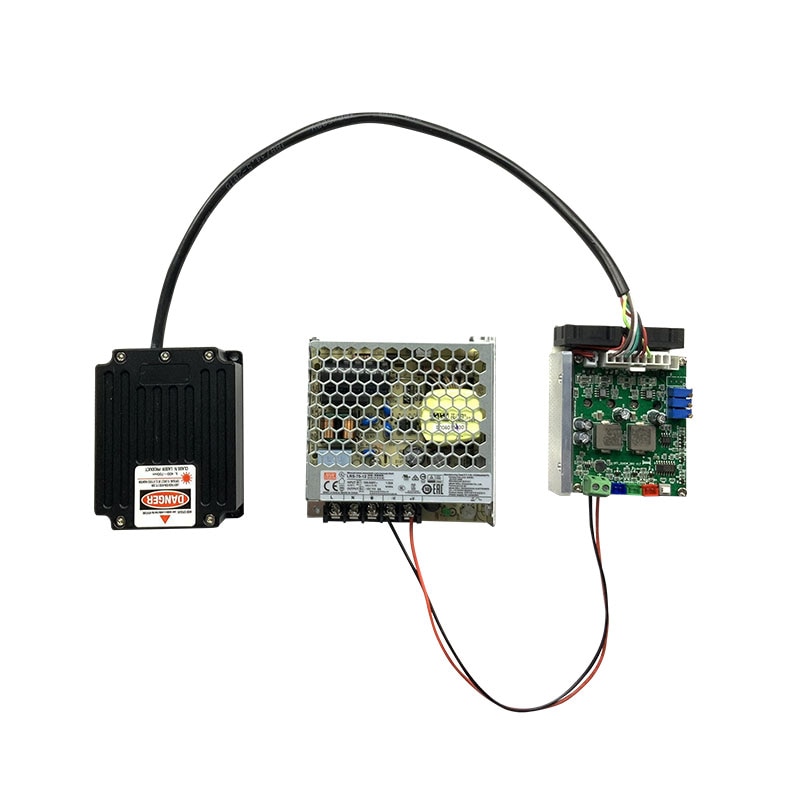

The whole set includes:
1pcs laser module,

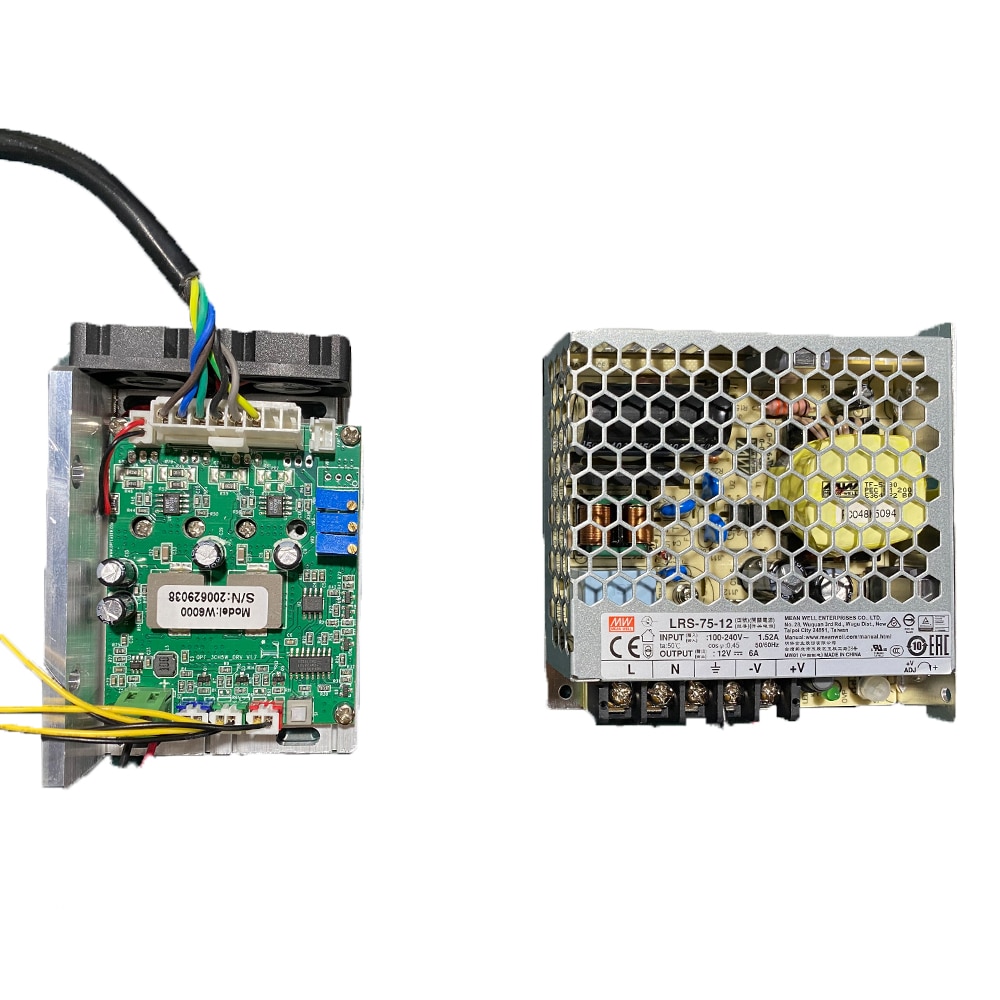

1pcs modulation board,
1pcs 120V~240Vac input 12Vdc output power supply (include 1 pair 10cm red and black color cables.)
The Whole Package
Modulation (Analog/Off Defaulted)
There is a modulation switch for changing the modulation mode between Analog and TTL, the default factory mode is “Analog Modulation” and the inside indicator LED is in GREEN color; if the modulation is changed to TTL, the LED will be in RED color.
The laser is defaulted NON-WORKING in factory mode, it means the laser will not give off light after we connect the whole set to the AC source, the laser only gives off lights after receiving modulation signal.
Important Notice
NEVER try to change the output current of any laser diode by rotating the adjustable resistor on the modulation board, all the diodes are nearly driven by their full powers, and the over driving will burn the diodes in only 0.5~2 seconds.
Module size
Modulation boar size
Pls install the module on the metal plate or another heat sink for faster heat dissipation.
12V Power Supply
Stage Laser Effects
