Parameter

Output Power:100mW
Wavelength:635nm 638nm
Working:Voltage 12V
Lens:Glass
Material:Metal
Focusable;None
Laser Shape:Dot
Dimensions head: 34X34X50mm
Currancy board: 55X64X90mm

Details:

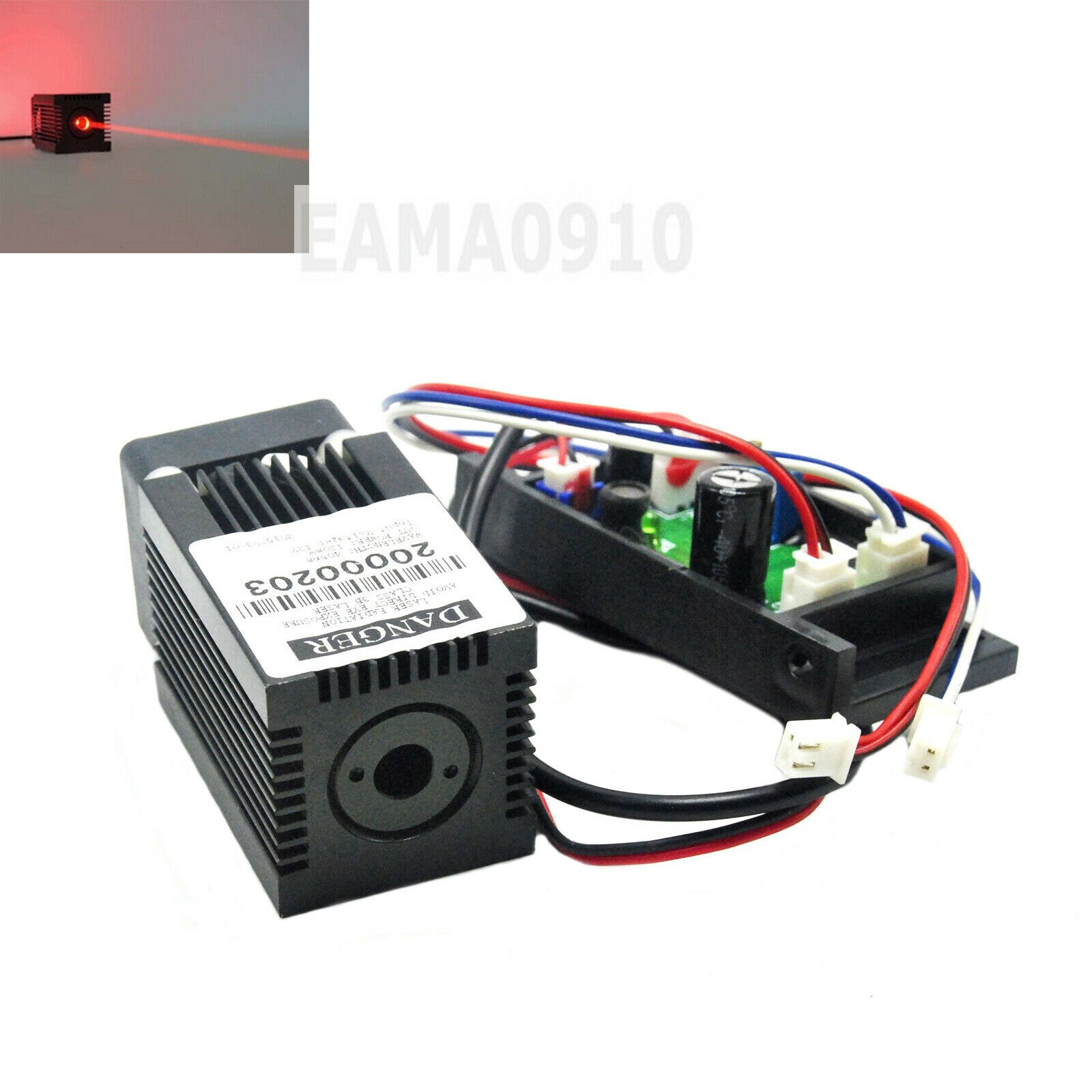

638nm 100mw Orange-Red Laser Dot module!
It uses 12v voltage to drive! Red wire for 12V +, black wire for 12v-, blue wire for TTL +, white wire for TTL-. If you dont need TTL, just leave them unconnected.
This one has not built-in TEC cooling, please pay attention to its duty cyle, can not work for a long time without additional coolding deveice!

Something buyer need to know:
1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30 °C.
2. Please add a 12VDC power to this laser module. If you do not use TTL (Blue and White wires), please just leave them unconnected.
3. This is a laser module for Laser show. Please protect the lens and keep it clean and avoid dust.
4. Please wear 650nm laser protection goggles to protect your eyes when working on this module.

Package

1x 100mW 635nm Laser Dot Module
