Description
- Brand Name: Q-LINE
- Certification: NONE
- Origin: Mainland China
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Power: 80mw
- Model Number: 532nm
Parameters
wavelength: 532nm
Output Power: 80mW
Spot ellipticity:> 0.9
Light Height: 15mm
Laser Shape:Dot/Line/Cross
Divergence angle: <1.2mrad
Beam diameter: <3mm
Operating temperature: 0 ~ 40 ℃
Modulation: TTL level (0 ~ 20Khz)
Input voltage: DC 12V
Laser Size: 65 (L) X30 (W) X30 (H) mm
Power Dimensions: 45 (L) X34 (W) mm
Features

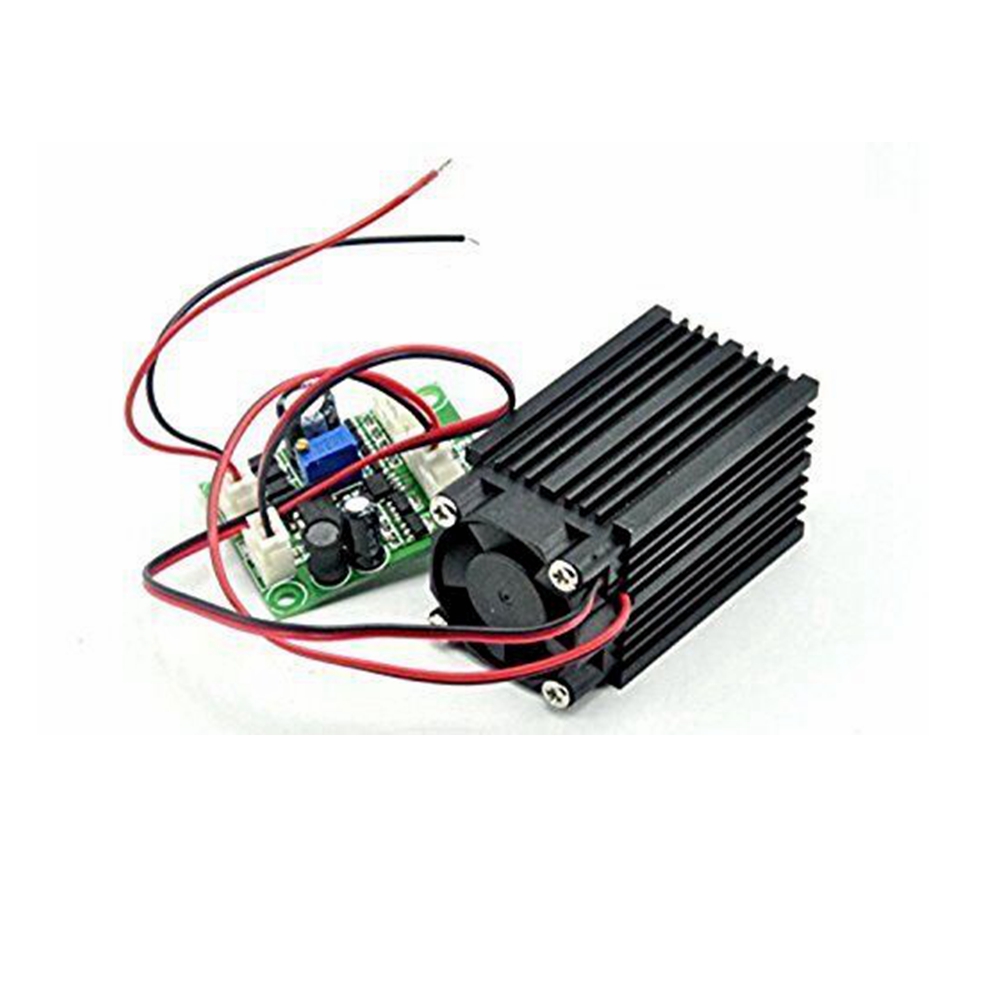

1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.

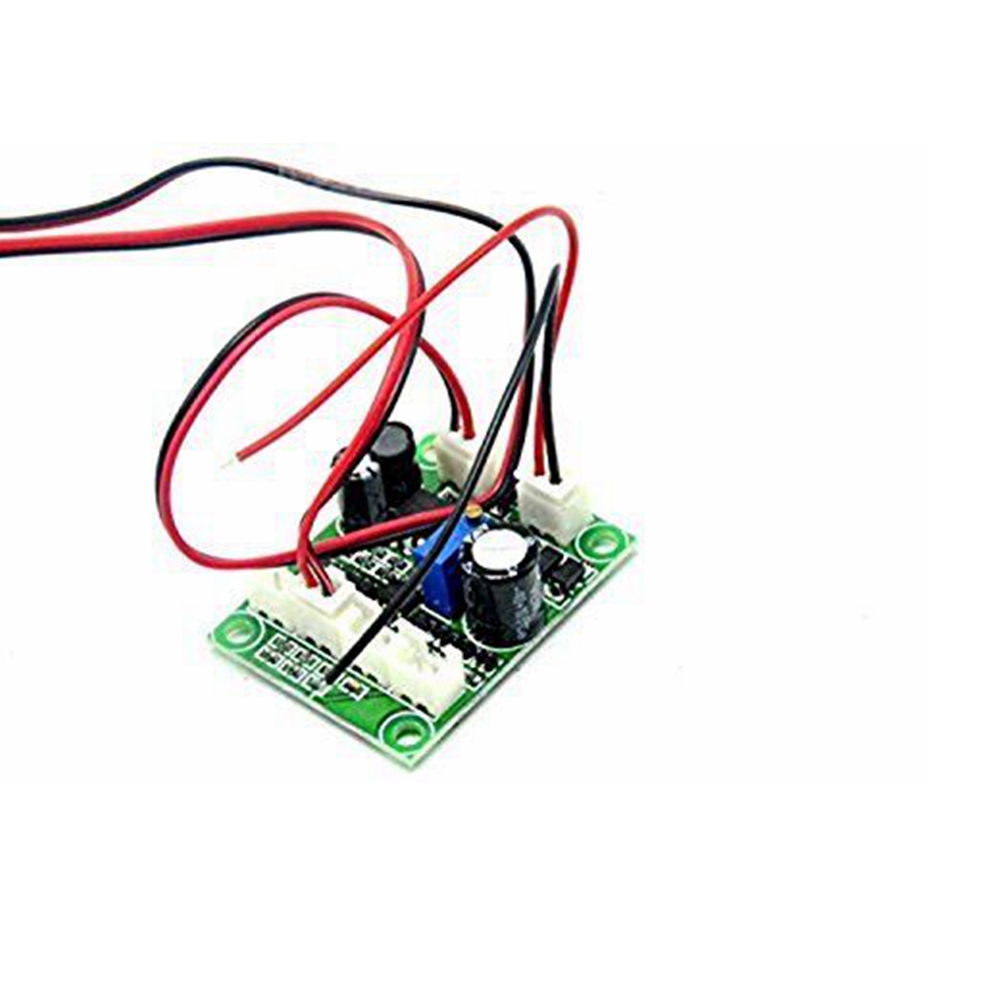

2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 0V on, 3-5V off. If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
4. Please wear 532 laser protection goggles to protect your eyes when working on this module.(Suitable Item No:282325405782)
Package

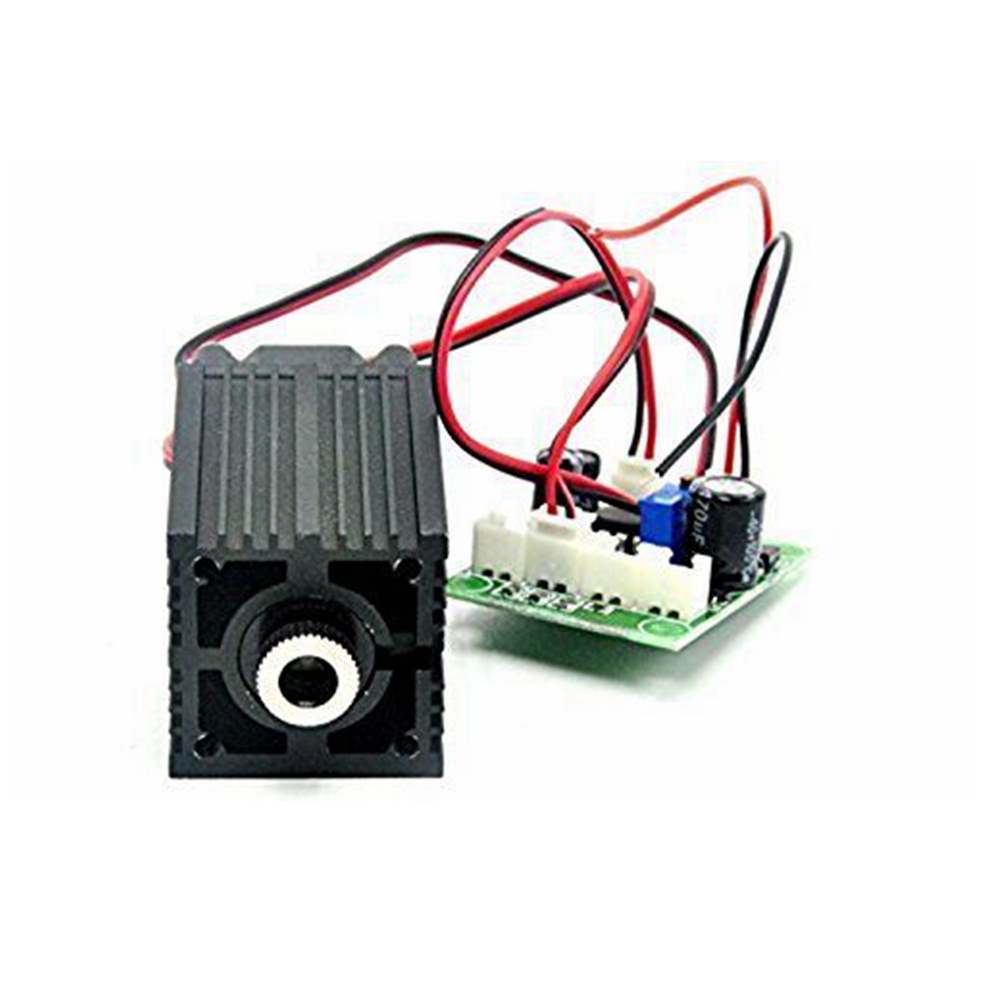

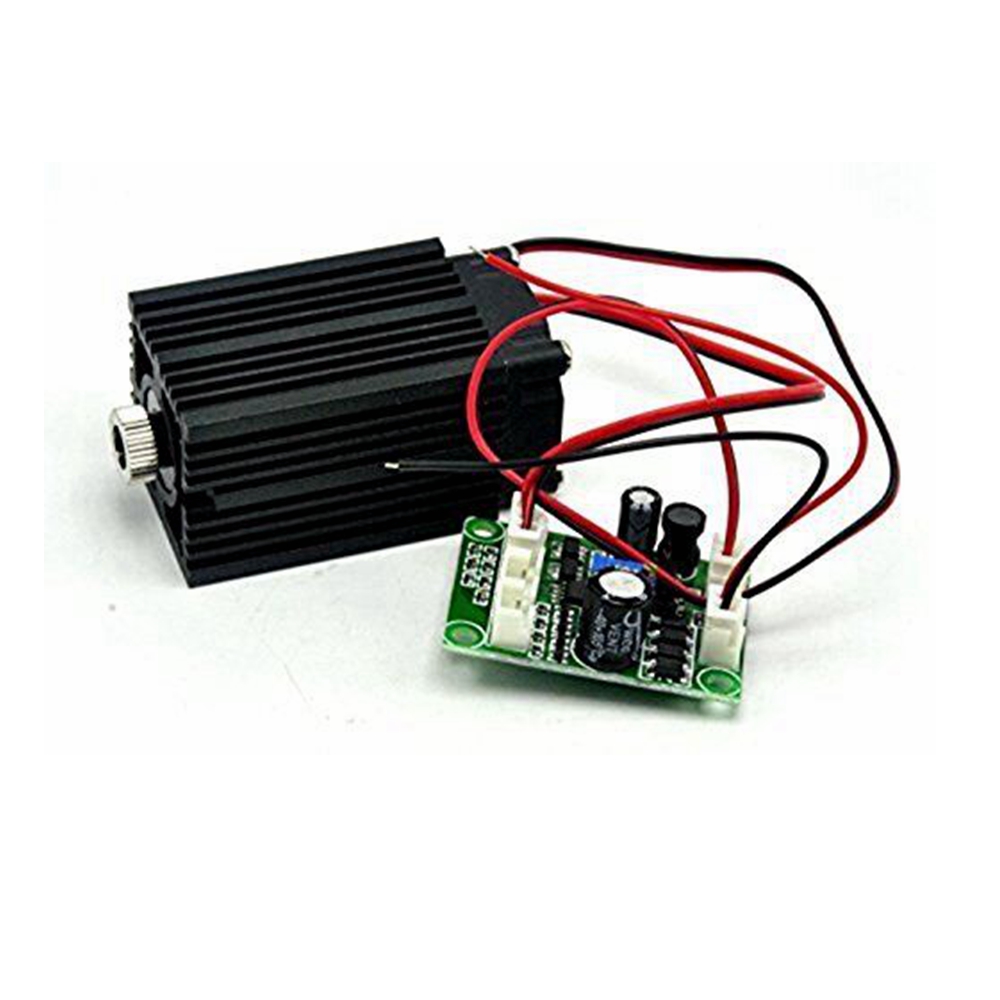

1pc 12V 532nm 80mW Green Laser Diode Module Stage Lasers Long-Time Working w/ Fan
