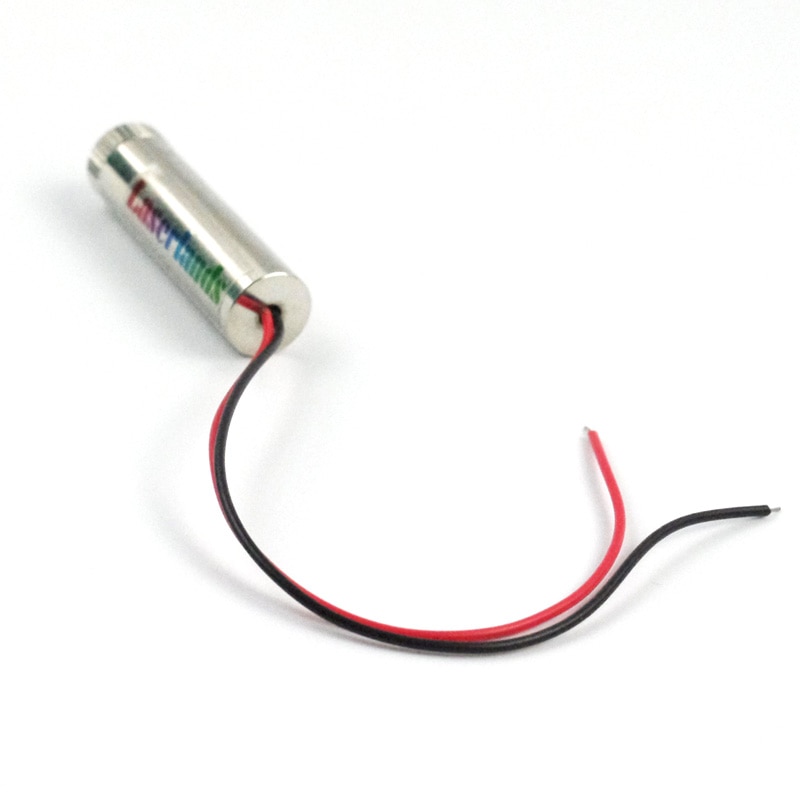

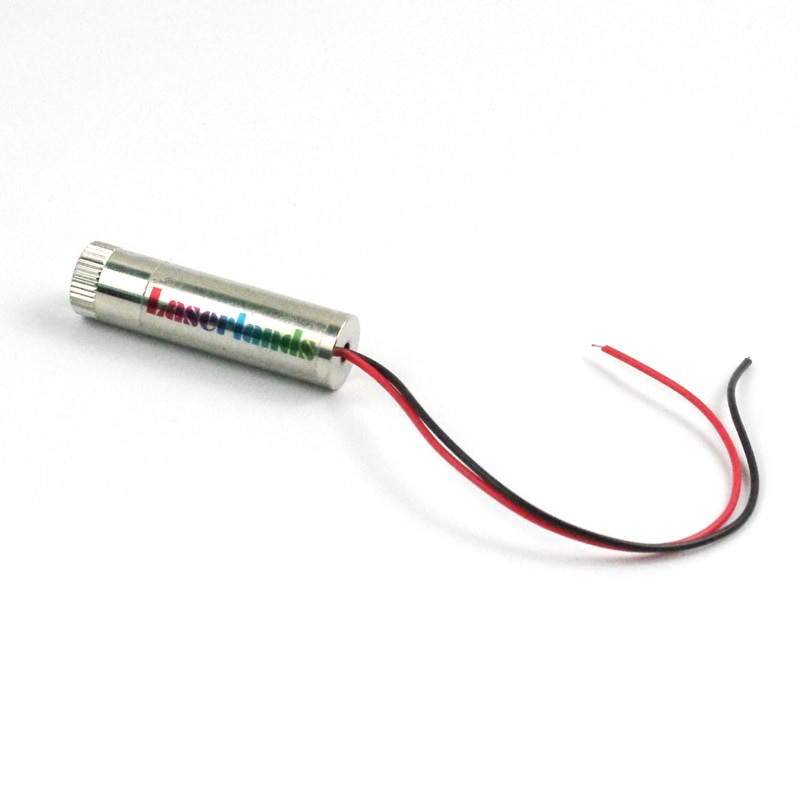

12*45mm 60mw 780nm Infrared Laser Line Diode Module 120

New 780nm 80mW Infrared IR Laser Line 90° Diode Module


Specification

Model  780ML(90)-80-1235

Output Power  80mw

Working Current   <350mA

Working Voltage   3-3.6VDC

Wavelength  780nm

Focusable   Yes

Duty Circle  1 min without heatsink

Electronical Pole   Red wire to “+” and BLK to “-”

Working Temperature   -10 ~40 centi-degree

Laser Shape   Line

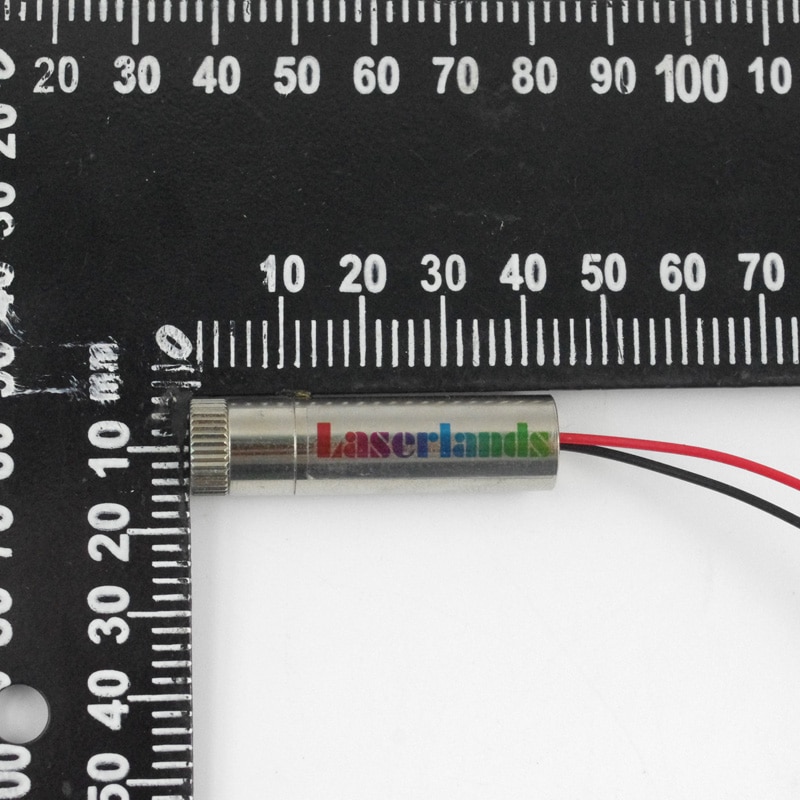

Dimensions   Ø12mmX35mm

Package   780nm 80mw laser module


Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.

If there is any problem, please feel free to contact us. We will solve the problem asap.
