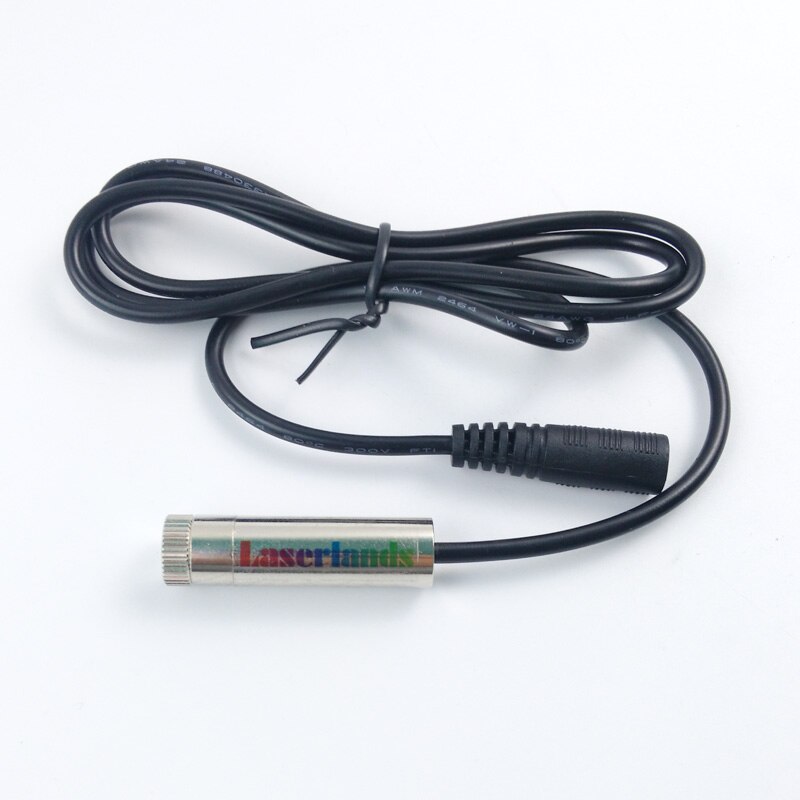

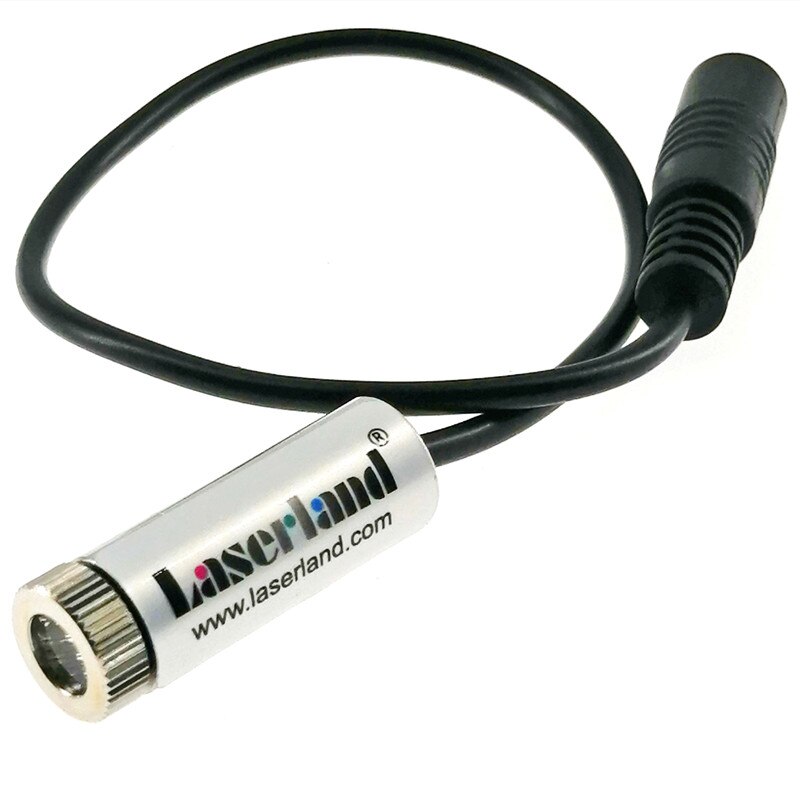

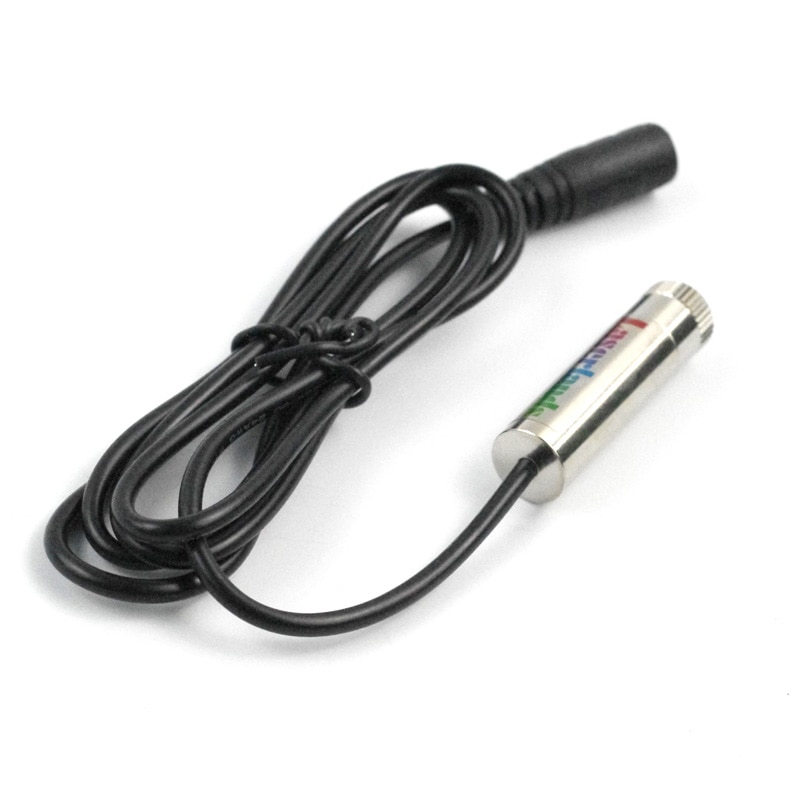

1245 300mW 808nm IR Infrared Cross Focusable Laser Diode Module AC Adapter Mount

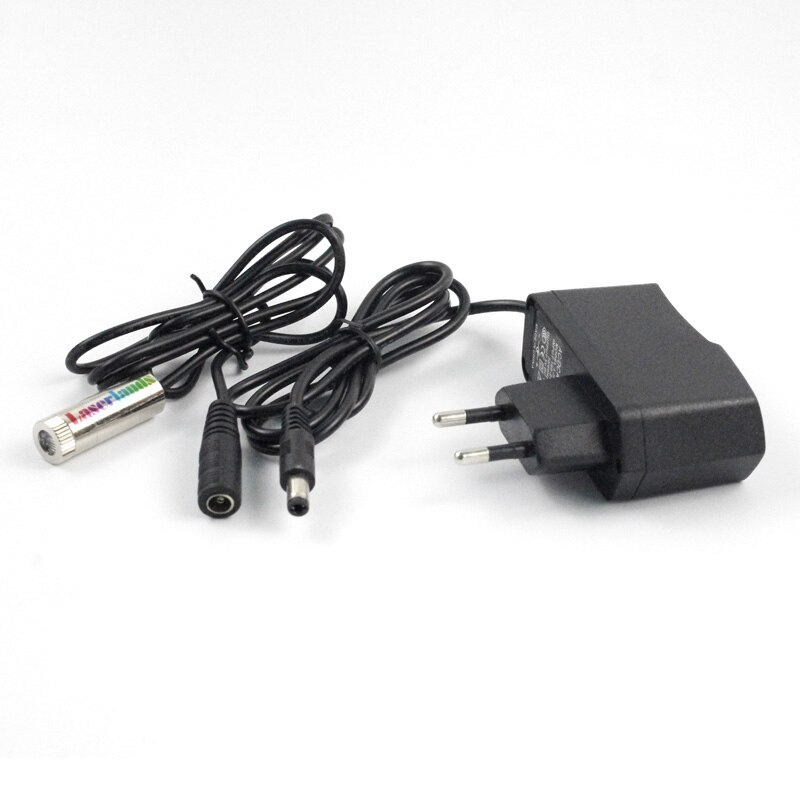

300mw 808nm IR Focusable Adjustable Laser Cross Module with AC-DC adapter 100-240V



This laser module is an industrial electronic component and used for as Industrial test, Lab, DIY. Not a handheld laser.



Note:

The modules are tested and the output power are measured by laser power meter before sending out.

Please don’t compare the power of this one with a none-measured laser.

If you doubt the output, please have the laser you recieved checked by laser power meter.

If there is any problem, please feel free to contact us. We will solve the problem asap.

808nm laser is 99% ir cannot be seen by human bare eyes.

it has 1% red bomb can be seen.

lens: plastic

adapter: we have us and eu standard adapter, but we cannot guarantee it can work for you. we send the adapter out as bonus for free. so that if it cannot work, it has no warranty.

duty cycle: 45 seconds on, 15 seconds off, if you want to prolong the duty cycle, please add heatsink,





Specification



Model  808MD-300-1245

Output Power  300mw

Working Voltage 5.0VDC

Wavelength  808nm

Working Temperature 15-35 centi-degree

Laser Shape Cross

Divergence 120 degree line

Focusable Yes

Dimensions ø12mmX45mm

Electronica Pole dc connection

Working Time(under normal operation) >5000hours
