Description
- Brand Name: laserland
- Certification: NONE
- Origin: CN(Origin)

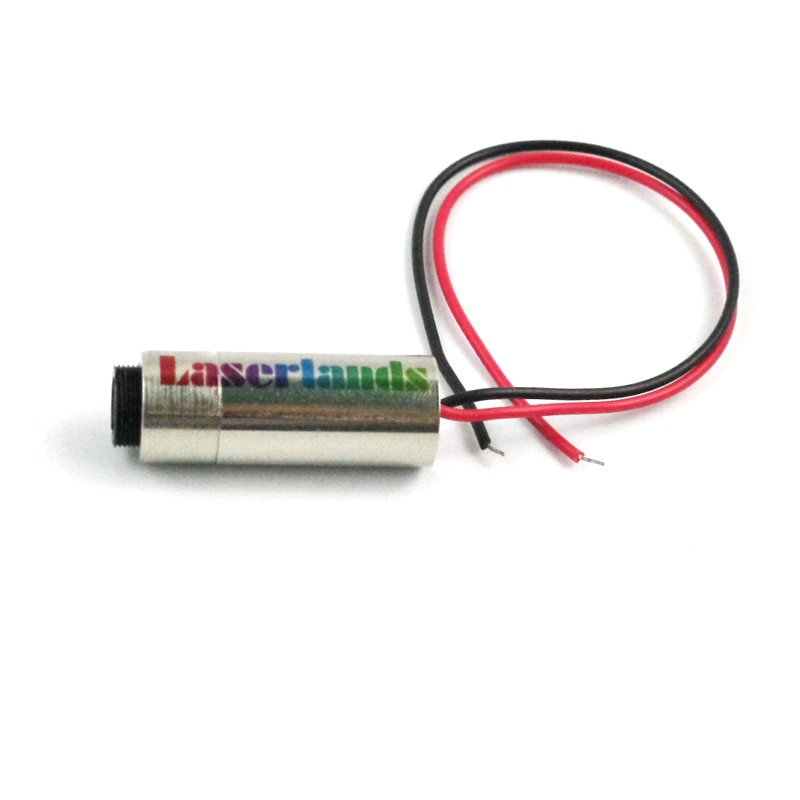

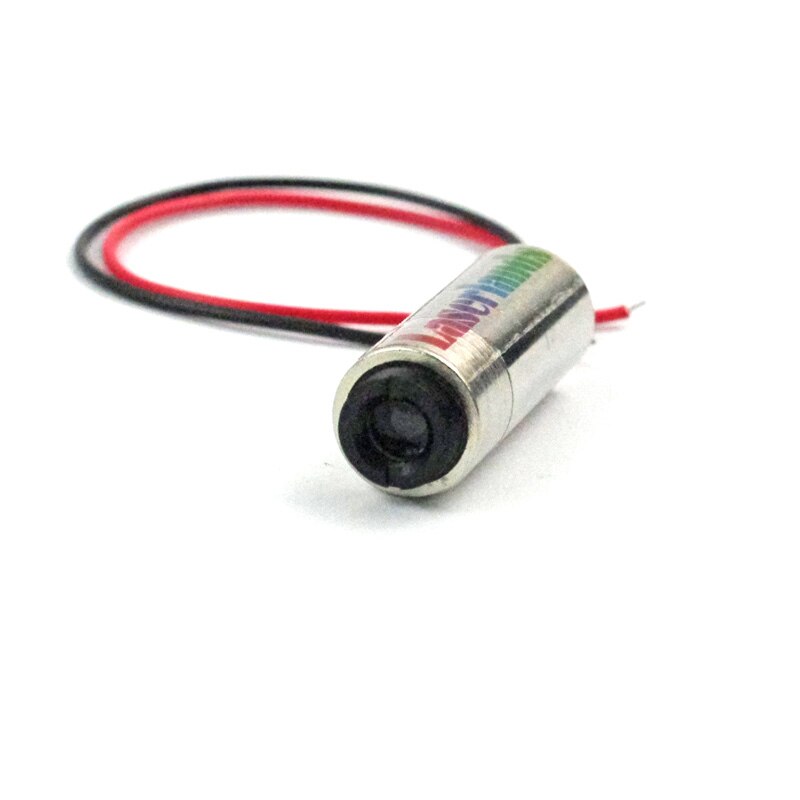

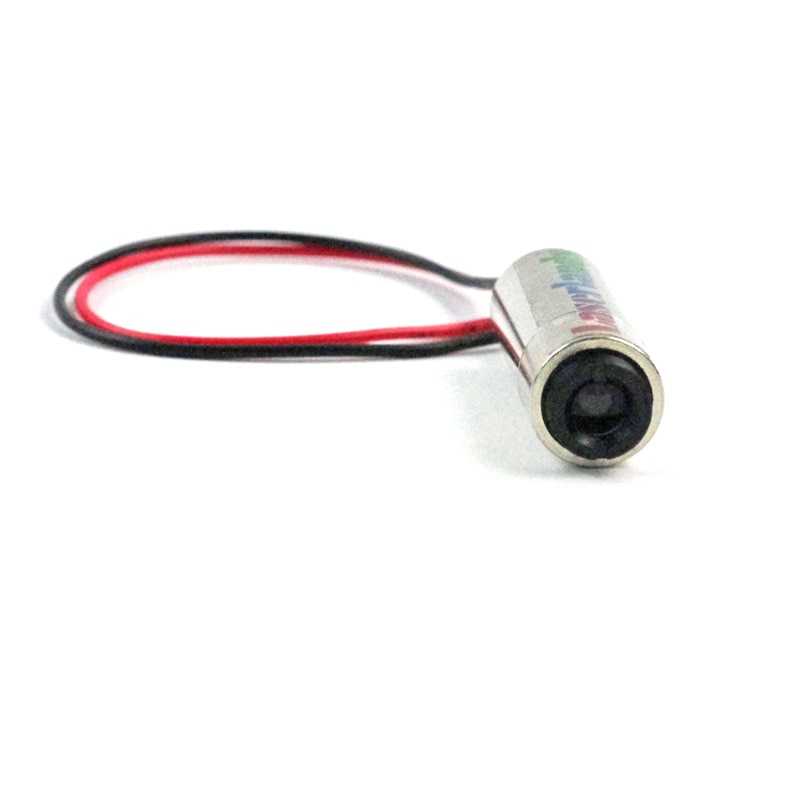

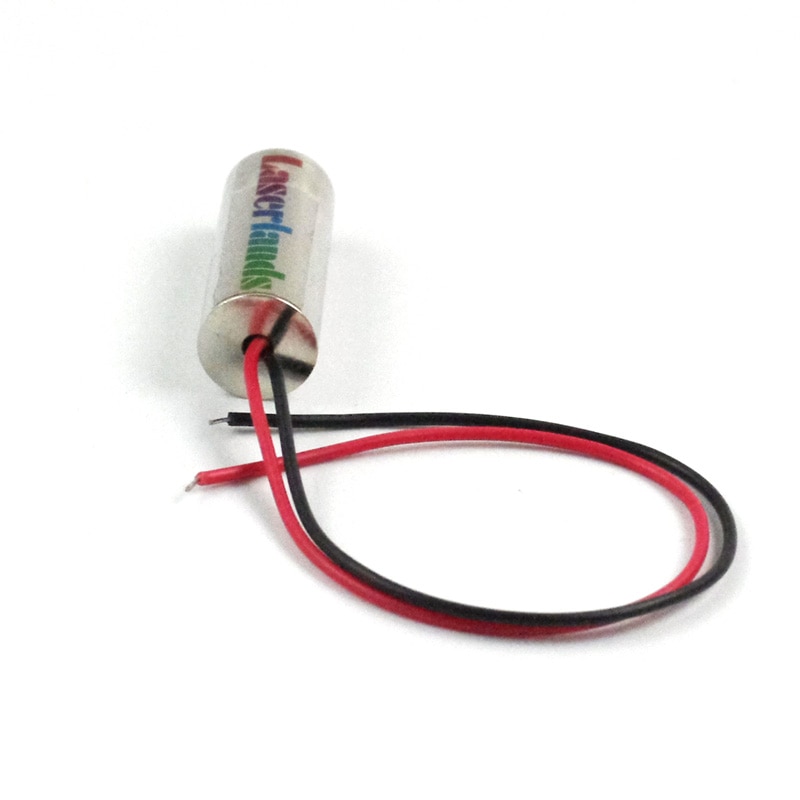

980nm 60mW IR Laser/Lazer DOT Module Diode Module w/TTL driver 35khz
Focusable 980nm 60mW Infrared Laser DOT Diode Module w/TTL
Specification
Model 980MD-60-1238-5V

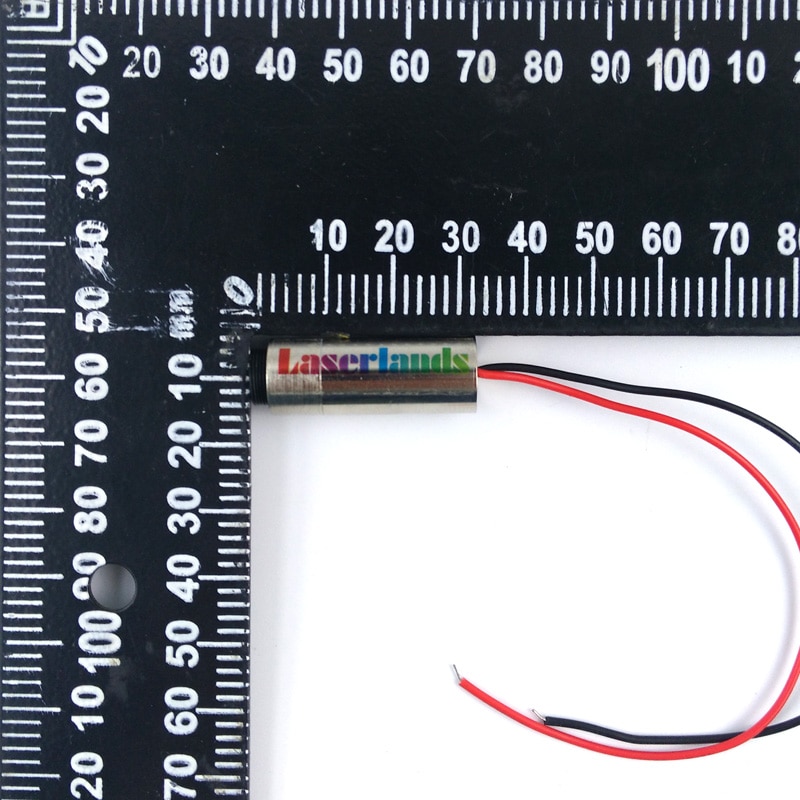

Size 12mm*30mm
Output Power 60 mW
Operating Voltage 5.0VDC
Operating Current 80mA
Wavelength 980 nm
Wire Length 280mm
Life Span >10000 hours
Working Temperature -10 ~40 centi-degree
Focusable YES
TTL >2.5V ON/<1.6V OFF
Package 980nm 60mW laser module with TTL
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
