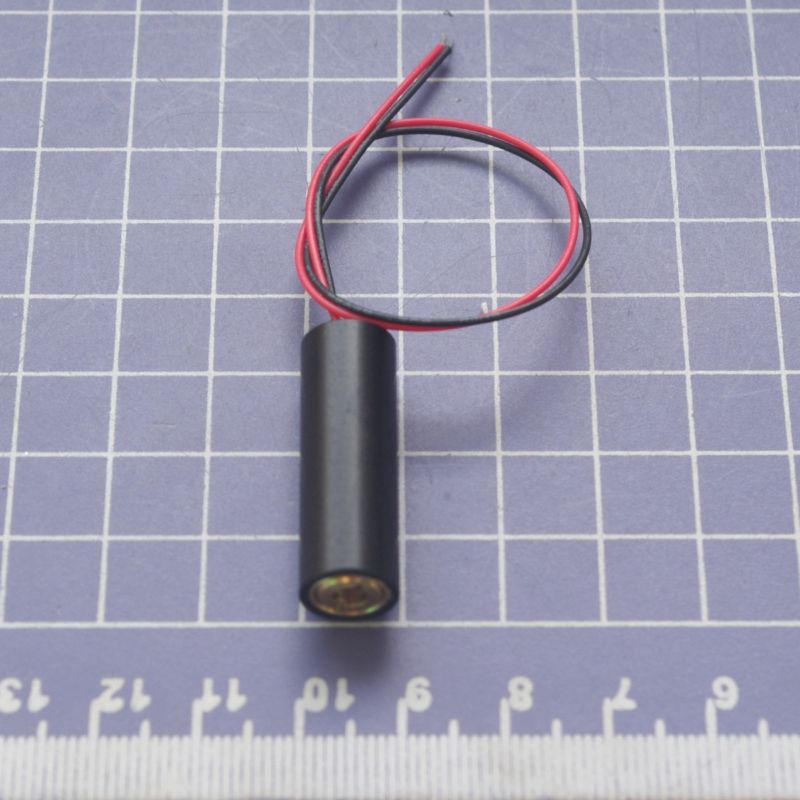

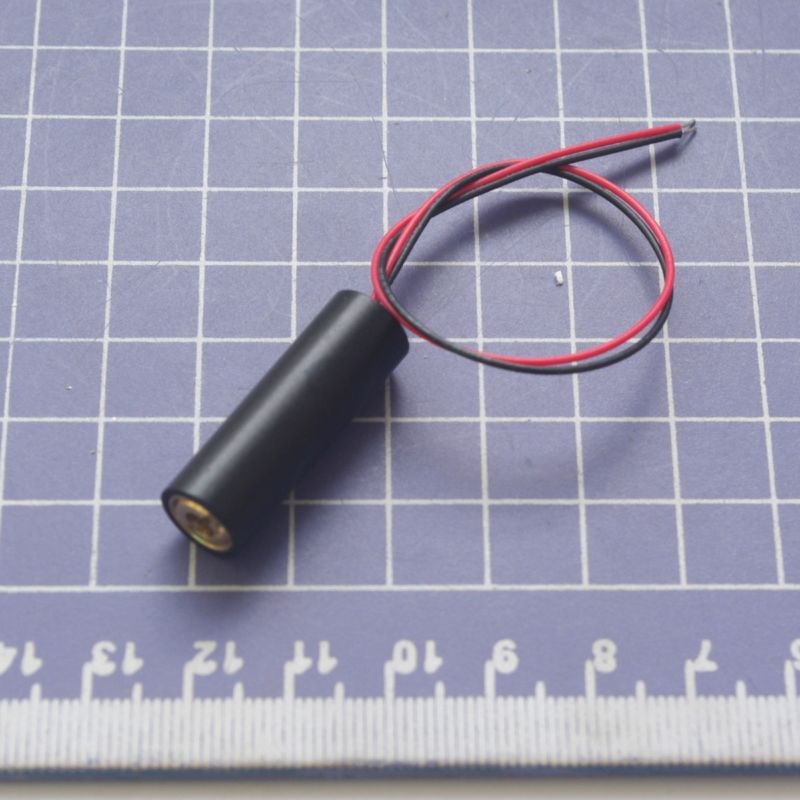

12*33mm 660nm 200mW Red Cross Diode Laser Module 50 degree



Specifications:

Size: φ 12 × 33mm

Material: Aluminum

Surface Treatment / Color:  Black

Life: continuous output and life> 10,000 hours

Output wavelength: 660nm / ± 5nm

Output power: <200mw

Range: 100M

Spot shape / Diameter: Cross, 50 degree

Width: 1m, < 3mm

Circuit control:  ACC circuit

Operating Voltage: DC  3V~5V

Working Current:  <300mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10°C ~ +60 °C

Storage temperature: -20 °C ~ +70 °C

Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.
