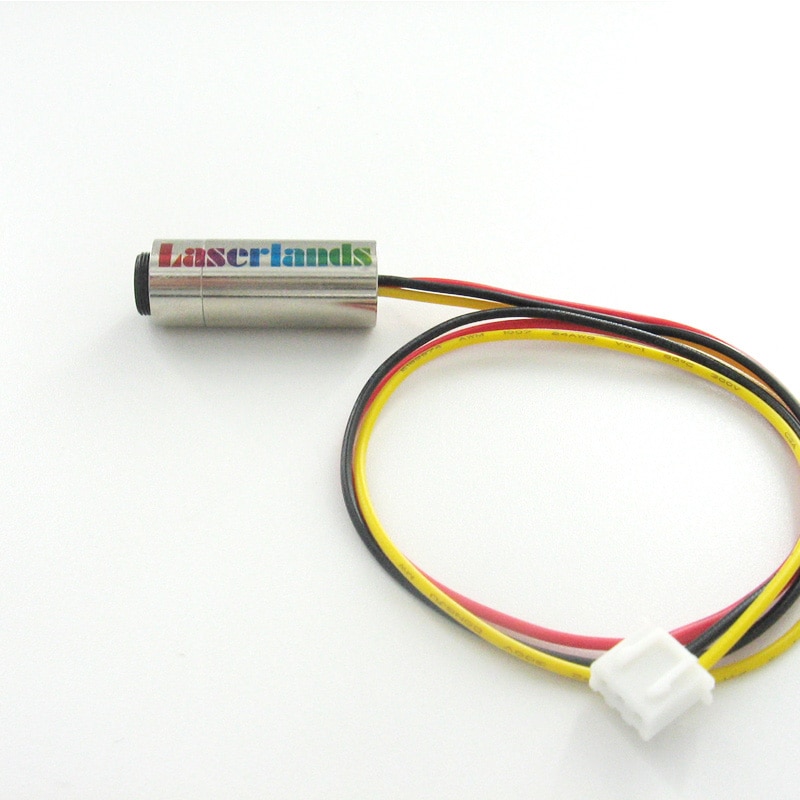

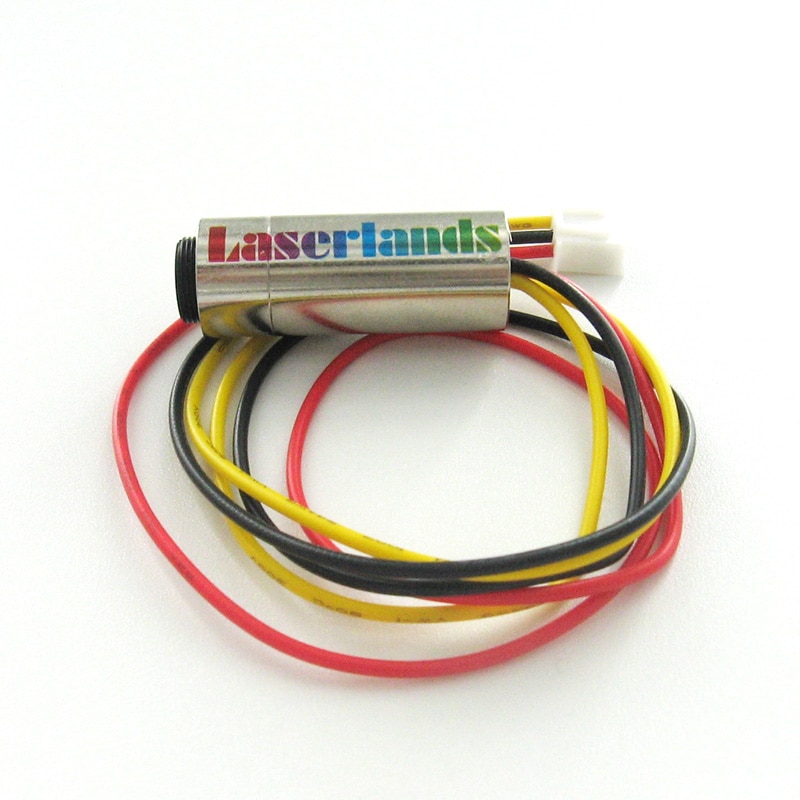

12*30mm 650nm 3.5mW Red Laser Dot Diode Module with TTL 0-100khz

$32.91

997 in stock

SKU: 32665812672 Category:

Description

  • Brand Name: laserland
  • Certification: NONE
  • Origin: CN(Origin)

12*30mm 650nm 3.5mW Red Laser Dot Diode Module with TTL 0-15khz

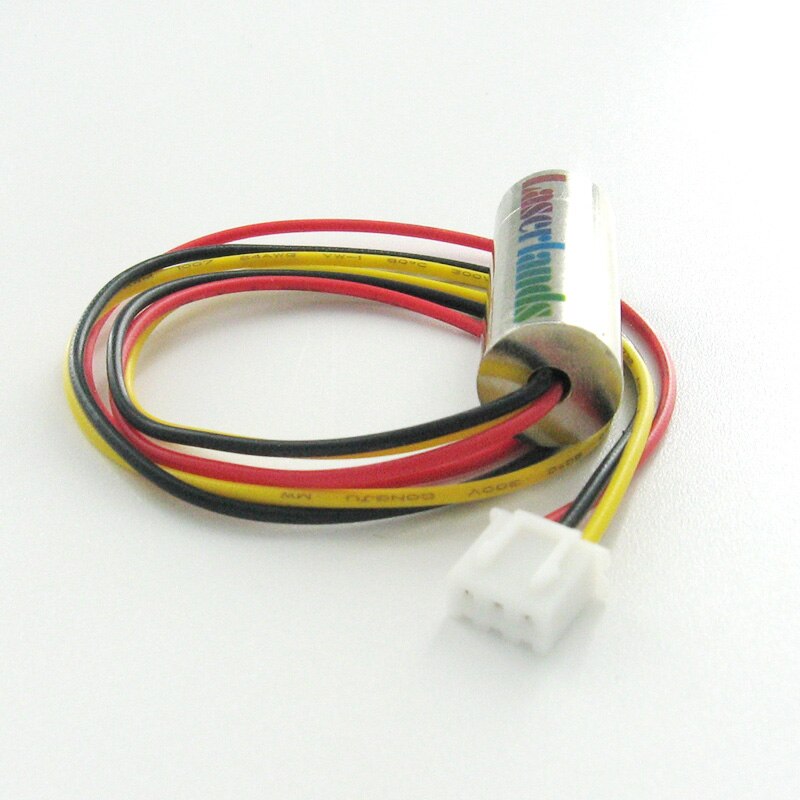

Working Voltage 5.0V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+. When the TTL signal is connected, the higher the frequency is , the less brighteness the laser will have. when it is >100KHZ, the laser cannot be seen.
We also have this laser module of TTL 0-15KHZ for sale, please search our store for it.

Specification

Model   650MD-3.5-1235-TTL

Output Power  3.5mW

Wavelength  650nm

Working Voltage   5.0VDC

Working Temperature  15-35 centi-degree

Divergence  10X10mm at 15m

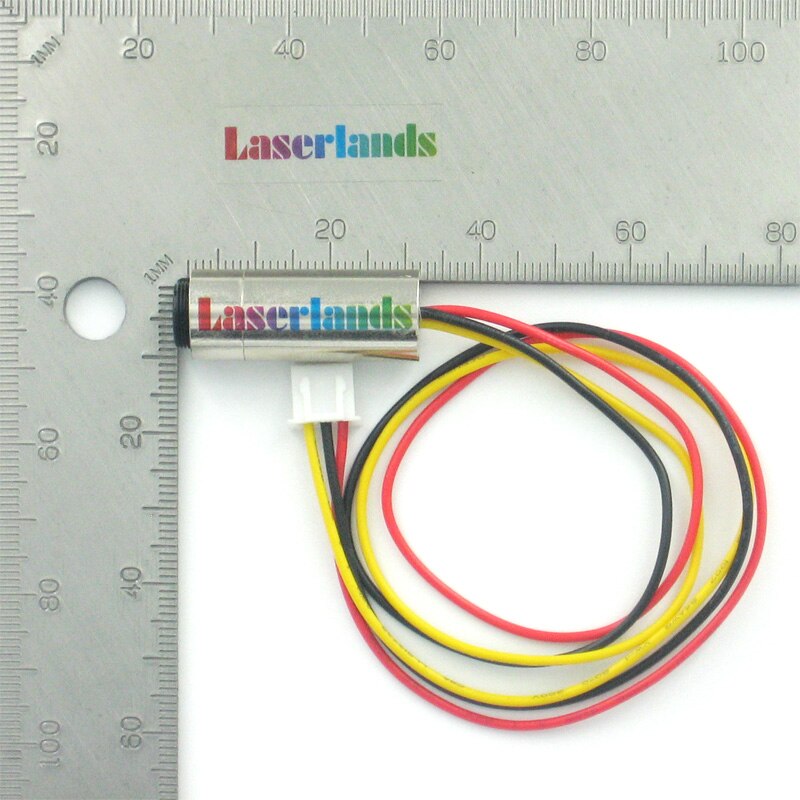

Dimensions  ø12mm*30mm

TTL  0-100khz

Note:

The modules are tested and the output power are measured by laser power meter before sending out.

Please don’t compare the power of this one with a none-measured laser.

If you doubt the output, please have the laser you recieved checked by laser power meter.

If there is any problem, please feel free to contact us. We will solve the problem asap.
