Description
- Origin: CN(Origin)
- Certification: NONE
- DIY Supplies: ELECTRICAL
- Brand Name: BWD
- Key Selling Points: Long Service Life
- Applicable Industries: Machinery Repair Shops, Printing Shops
- Power: 1200w
- Output Power per Bar: 100w
- Numbers of Bar: 12
- Wavelength: 808nm
- Working mode: CW
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-3{padding:0;line-height:20px;font-weight:bold;margin:0}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:inherit;font-family:Arial,Helvetica;vertical-align:baseline;color:#333;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;word-wrap:break-word}#detail_decorate_root .magic-8{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:18px;line-height:27px;font-family:Calibri,”zapf dingbats”;vertical-align:baseline}#detail_decorate_root .magic-9{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-stretch:inherit;font-size:14px;line-height:inherit;vertical-align:baseline;color:#333;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:pre-wrap;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-10{font-weight:400;font-family:Roboto}#detail_decorate_root .magic-11{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:400;font-stretch:inherit;font-size:14px;line-height:inherit;font-family:Roboto;vertical-align:baseline;color:#333;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-12{font-weight:inherit;font-family:inherit;box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-stretch:inherit;font-size:inherit;line-height:inherit;vertical-align:baseline}#detail_decorate_root .magic-13{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:21px;font-family:inherit;vertical-align:baseline}#detail_decorate_root .magic-14{box-sizing:border-box;margin:0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:400;font-stretch:inherit;font-size:15px;line-height:inherit;font-family:”Century Gothic”,Arial,sans-serif;vertical-align:baseline;-webkit-tap-highlight-color:rgba(0,0,0,0);color:#333;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-15{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:18px;line-height:24px;font-family:calibri;vertical-align:baseline;color:#333;background-color:#fff;text-align:center}#detail_decorate_root .magic-16{width:750px}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-19{font-size:16px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:181px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:181px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:182px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:182px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:179px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:179px}#detail_decorate_root .magic-26{width:750px;border-collapse:collapse}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:217px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:246px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:281px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:281px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:469.286px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:469.286px}#detail_decorate_root .magic-33{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-34{margin:0;padding:0}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:442.4157303370786px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:749.9999999999999px;height:442.4157303370786px}
Product Description

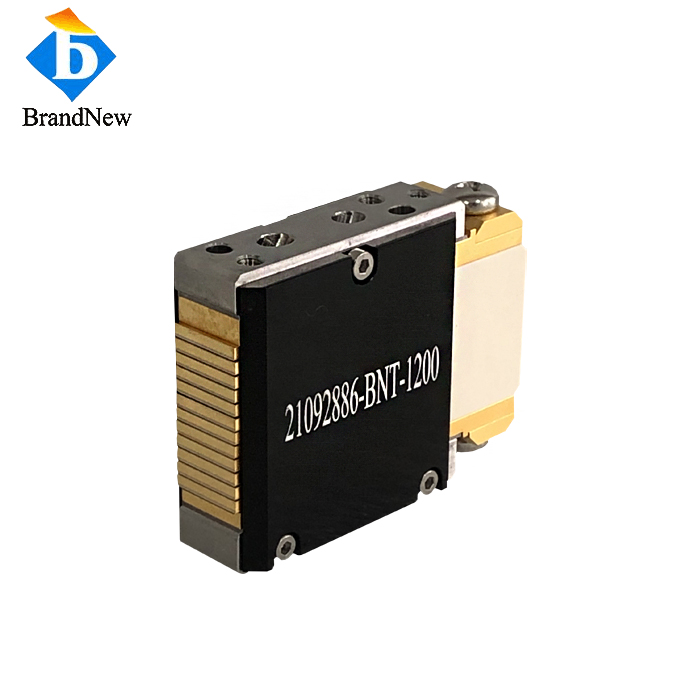

1200W 808nm Alma Laser Diode Bars Stack Replacement
Gold tin hard solider technology
Using original jenoptik laser bars from germany
100W per bar, 12bars, totally 1200W
Active water cooling for optimized lifetime and power
Low thermal resistance package
Special design for Alma diode laser hair removal machine

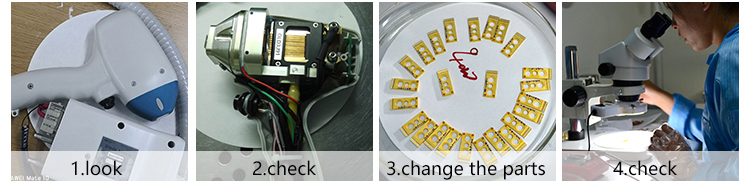

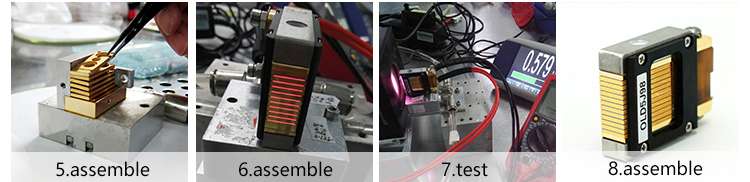

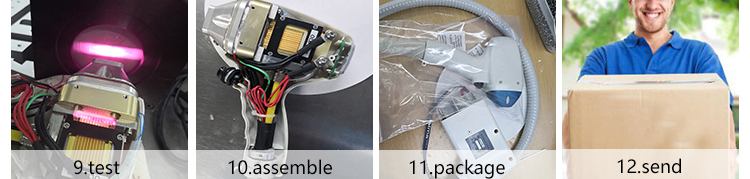

Repairing procedure
>Chioce A: Send the old broken handpiece to our facatory. We will do the process of checking , repairing, cleanning and etc. Then send the fresh new handpiece back to you.
>Chioce B: if you have basic assambly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.

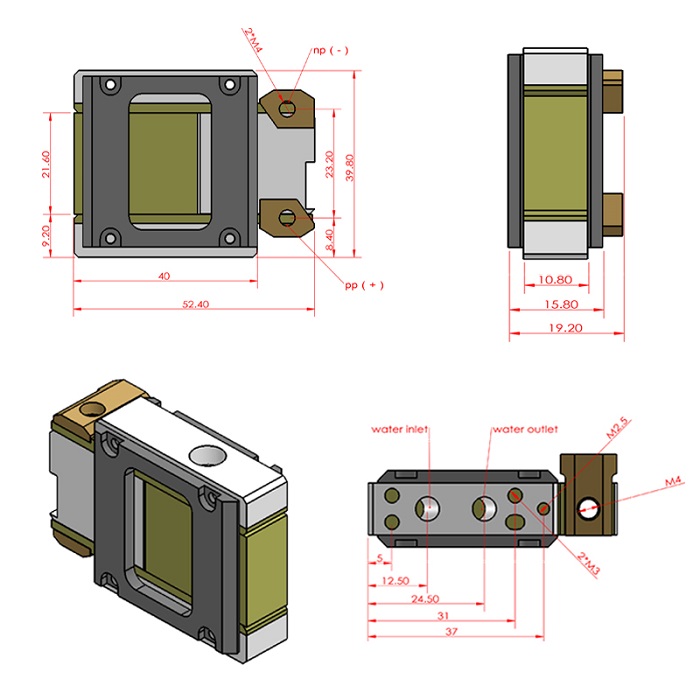

>Choice C: Measure your stack and comfrim the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hadnpiece.
Details
|
Model No.
|
C
|
|
Wavelength
|
808 ± 5nm
|
|
Output Power per Bar
|
100W
|
|
Numbers of Bar
|
12
|
|
Bar to Bar Space
|
1.8mm
|
|
Working Mode
|
CW
|
|
Typical Operation current
|
90A
|
|
Typical Threshold current
|
15A
|
|
Maximum Operating Voltage
|
24V
|
|
Fast Axis Divergence (FWHM)
|
39Degree
|
|
Slow Axis Divergence (FWHM)
|
8Degree
|
|
Operation Condition
|
non-condemsing atmosphere, cleaning room
|
|
Expected lifetime
|
10000hours
|
|
Typical pitch per bar
|
1.8mm
|
|
Flow rate
|
0.3L/min ±10% / Bar
|
|
Water Temperature
|
25+-3°C
|
