Description
- Motor Type: DC Motor
- Origin: Mainland China
- Model Number: DC Motor Speed Controller
- Certification: CE

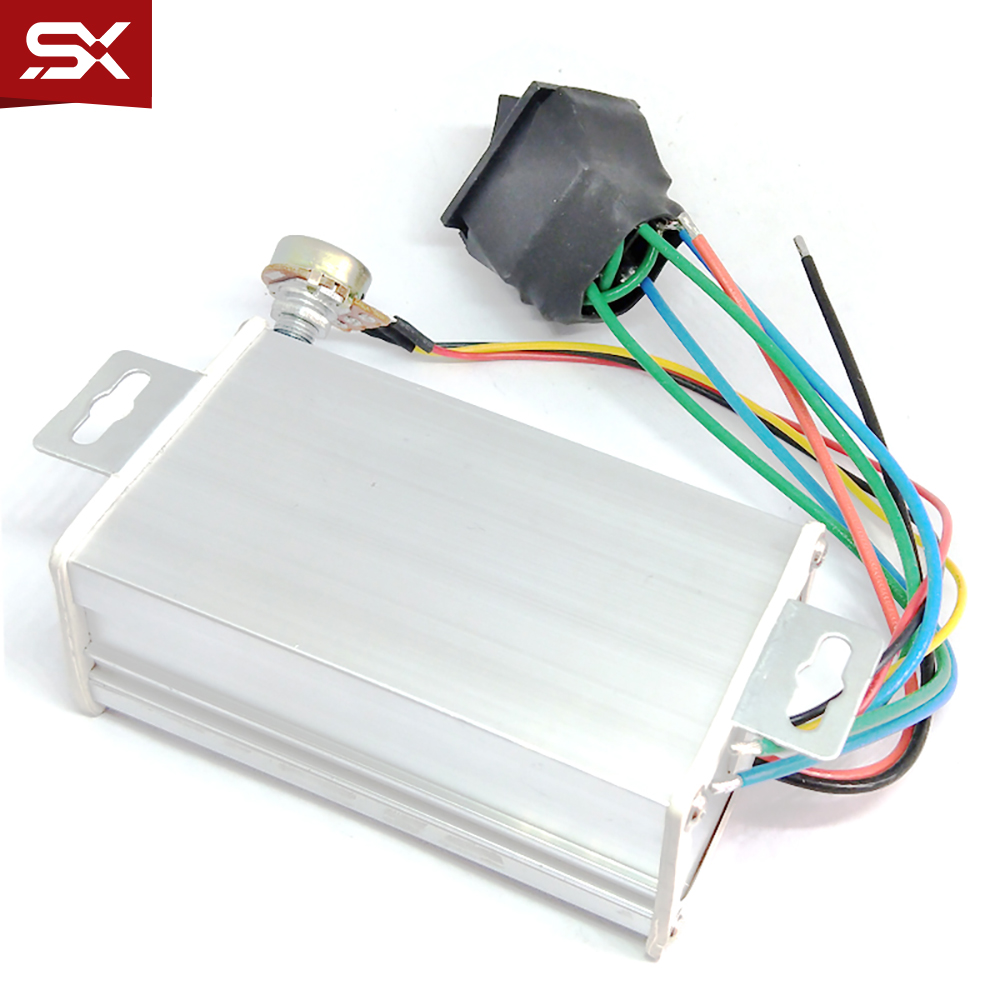

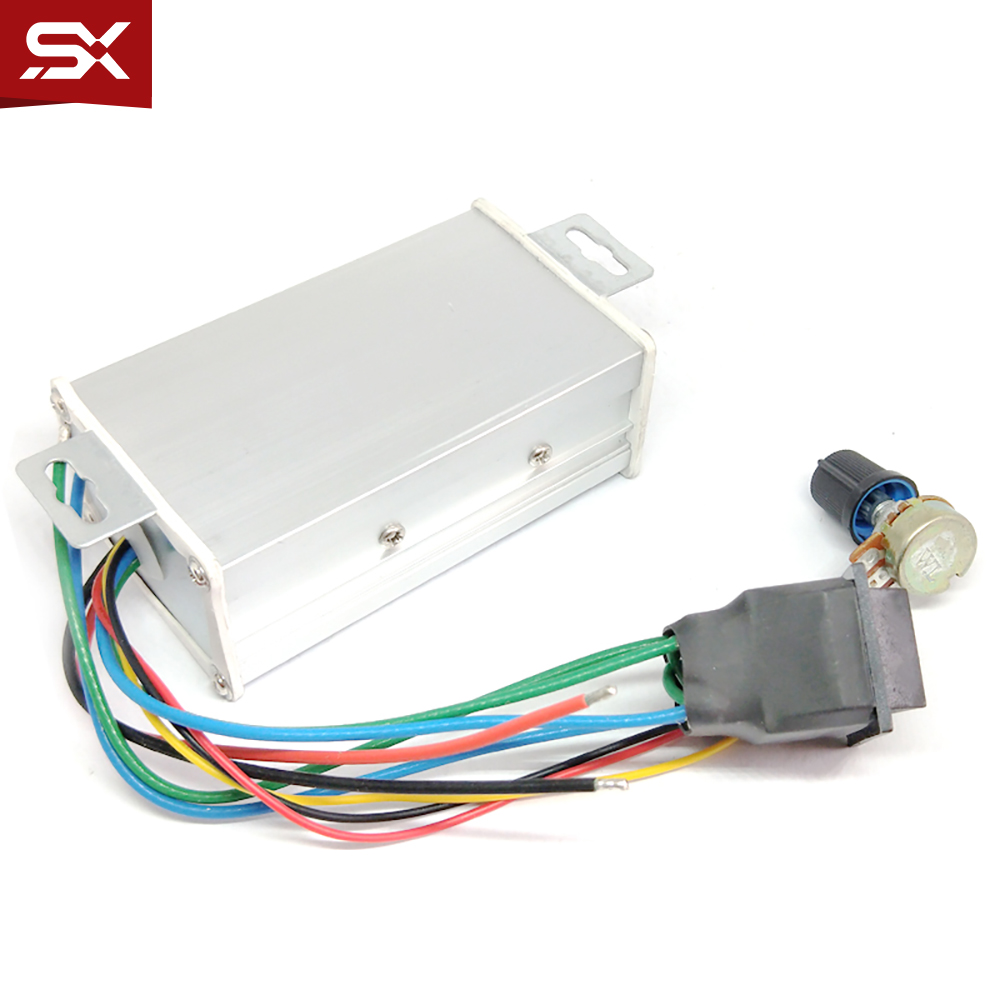

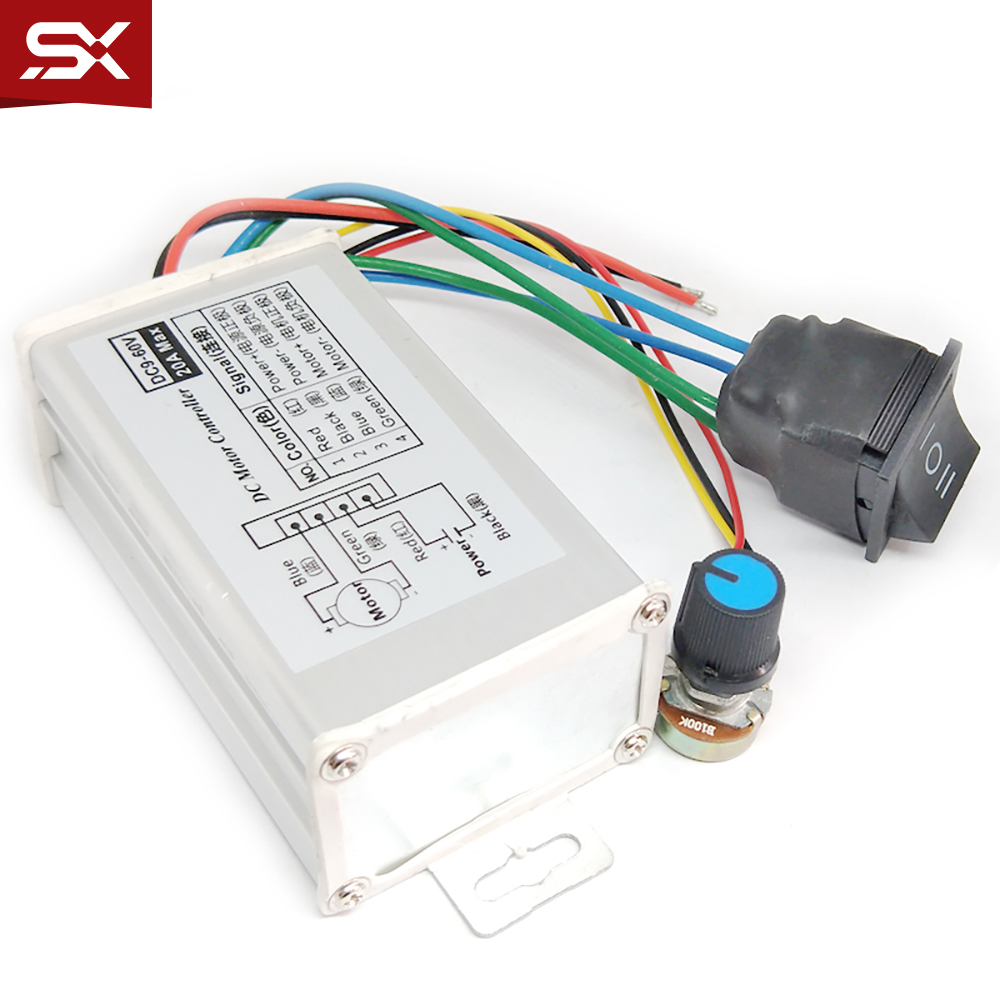

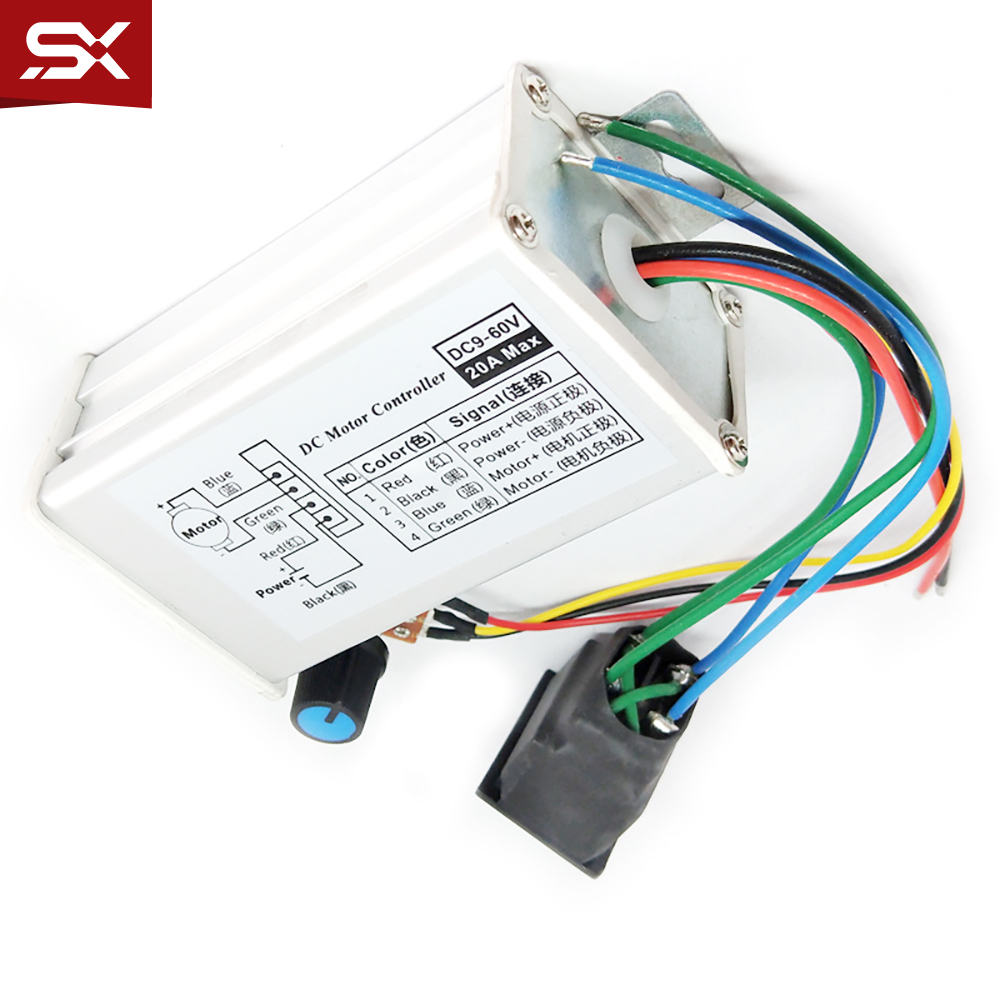

1200W 20A DC Motor Speed Controller Regulator 9V-60V Pulse Width Modulator 9V 12V 24V 36V 48V Adjustable Forward and Reverse
Description:
Operating Voltage: DC 9V-60V
Rated Current: 10A
Maximum Current: 20A
Output Power: 0-1200W
PWM Frequency: 25KHz
Speed Range: 0-100%
Speed Principle: Adjust the current
Shell Material: Aluminum Alloy
Size: 105mm*50mm*33mm
Typical applications:
1. DC 9V 12V 24V 48V 60V DC Motor Speed Controller
2. Motor speed control and regulation in RC models, fans and more
3. Small pump control, such as RS-360 motor
4. Temperature control in devices such as soldering irons
5. Brightness control of DC light bulbs
