Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: Mainland China
- Place of Origin: Beijing, China
- Warranty: 6 Months, 1 Year
- Spare Parts Type: diode 808
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: New Product
- Brand Name: ivylaser-Oriental laser
- Key Selling Points: Long Service Life
- Showroom Location: Turkey, Italy, Peru, Mexico
- Weight (KG): 5 KG
- Certification: CE/ISO
- Function: Skin Tightening Skin Rejuvenation
- Function2: fast hair removal
- Number of submounts in one stack: 10bars
- Maximum Operating Current: 50A
- Expected lifetime: 10000 hours
- Model Number: VS-MA-10-1.0-Model C
- Power per submounts: 50W
- Wavelength: 808nm
- Local Service Location: Turkey, Italy, Brazil
1200w 1000w 800w 600w 500w 400w 300w Germany laser diode bars stack
10 bar 500w macro channel diode laser stack for diode laser hair removal handpiece repair
Oriental laser (Beijing) Technology Co., Ltd. was established in 2007. It has been engaged in the research and development and manufacturing of diode lasers, 755nm/808nm/1064nm diode laser hair removal instruments, and important parts of diode laser instruments. The company has an overall 10K-level, local 1000-level ultra-clean workshop, and is committed to researching hair removal black technology every year, and passed the ISO9001 quality certification in 2013.
Our product offering includes unmounted bars , packaged bars, horizontal arrays, vertical stacks, 808nm diode laser stack, 1064nm laser head, 808nm laser stack array, high power diode laser, laser pump head, laser power supply, line sources, and full turnkey diode systems. Available wavelengths include 755 nm /808nm/ 810nm/1064nm/1060nm. Customized options can also be developed meeting the unique requirements of our customers.

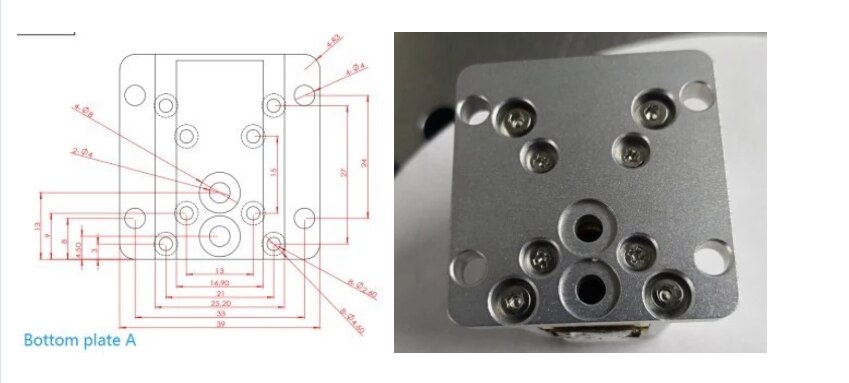

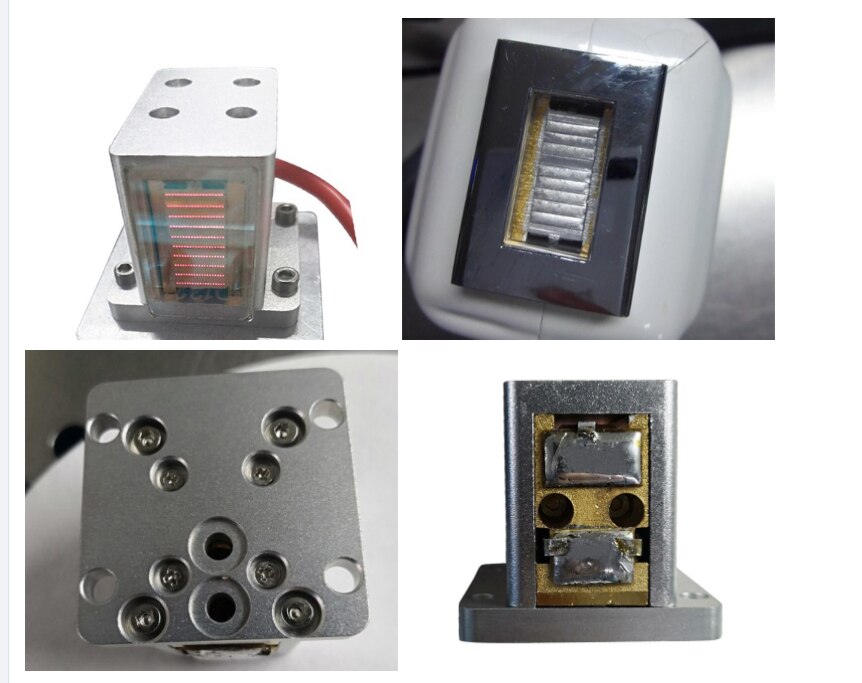

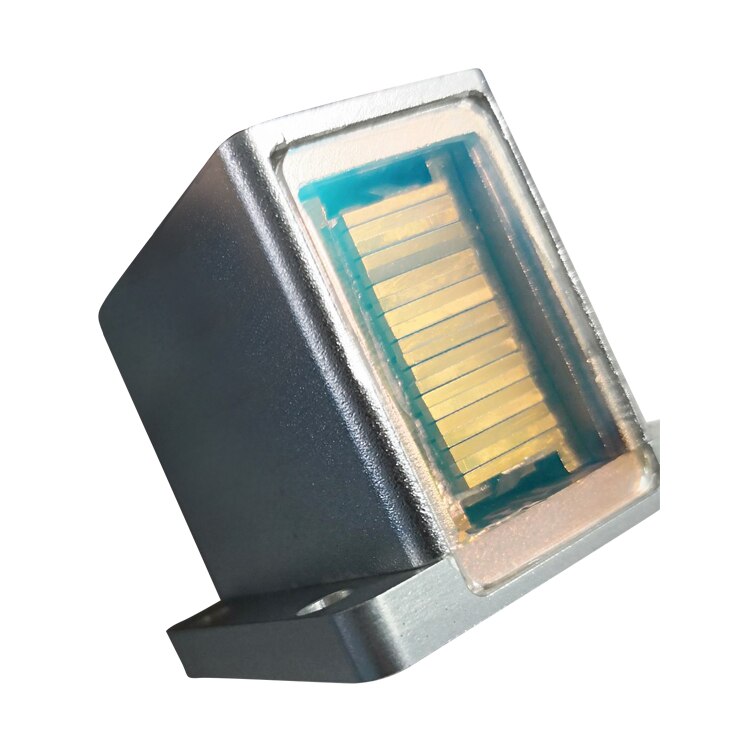

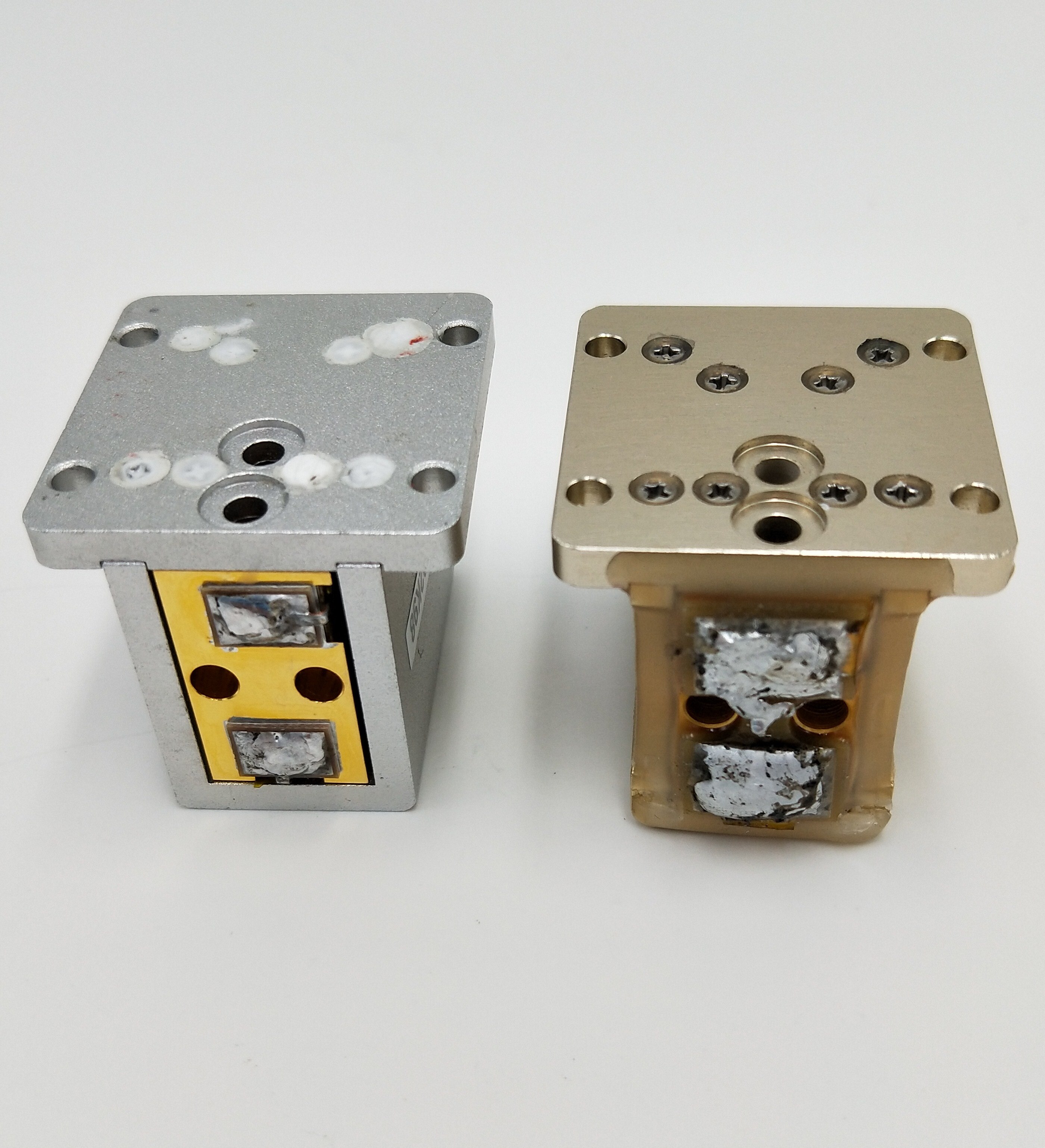

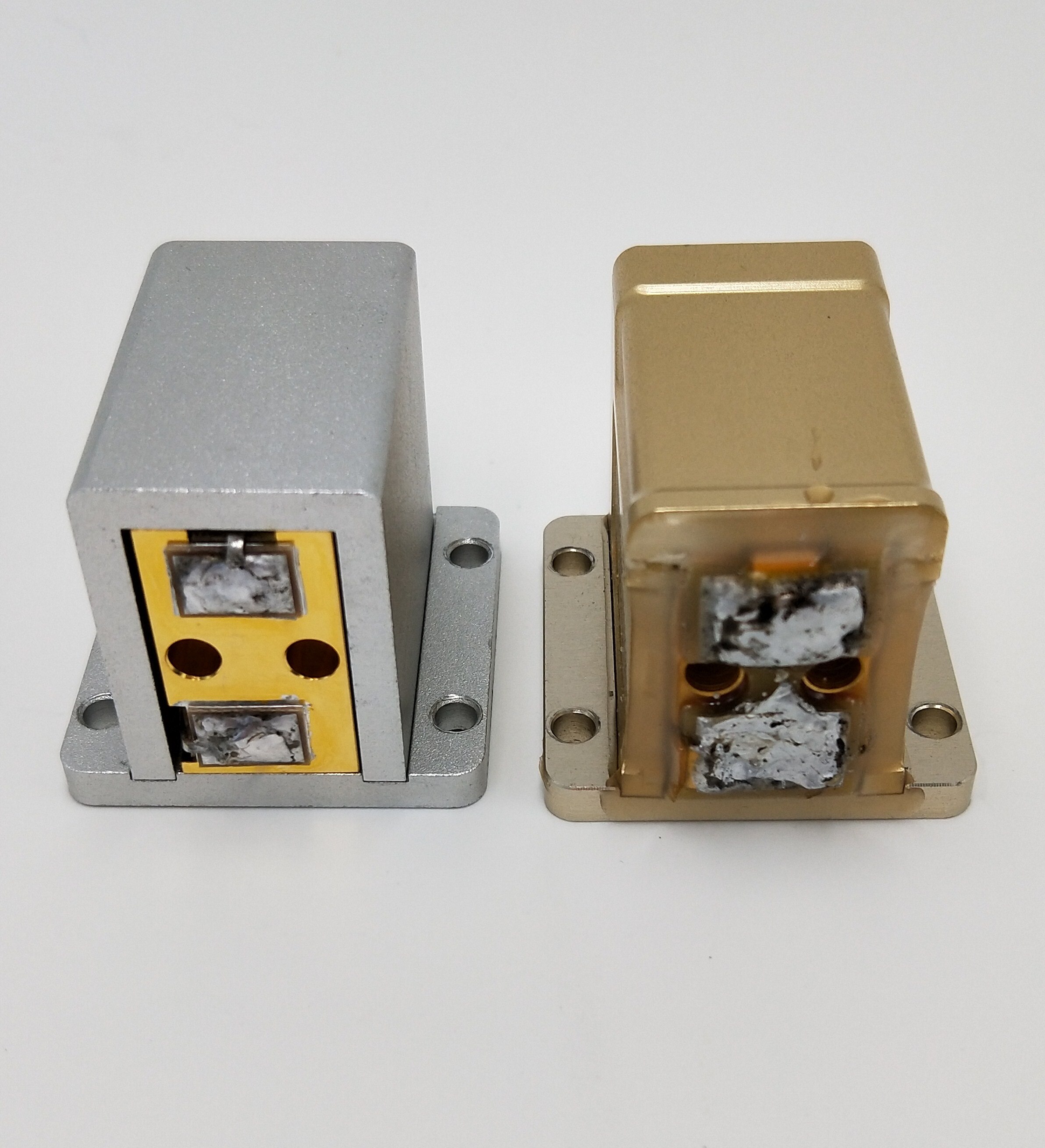

This diode laser stack 10bars Model C for hair removal which has 10 bars with a aluminum shell. The water hole is at the bottom. The electrode is on the back.

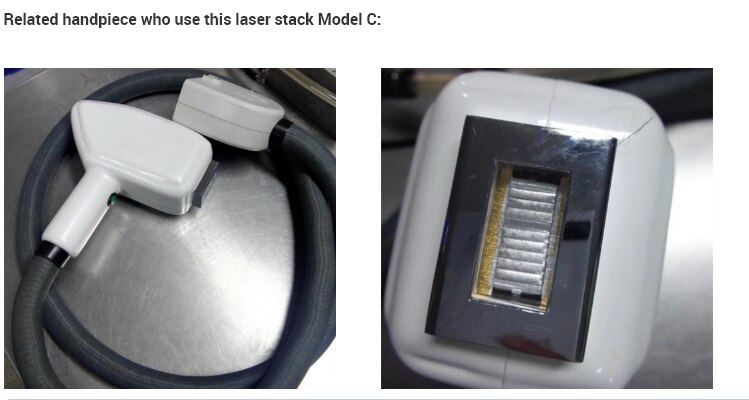

It is used for most of diode laser hair removal machine from China. wavelength 808 or mix wavelength as 755, 808 and 1064.
This diode laser stack usually burn out after working 1 year. Then it need to be refresh. Or you can buy a new one to replace the old one.
Advantages
>Save Money. Replace the broken diode stack only. Low cost and convenient
>Long lifetime. we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
Repairing procedure

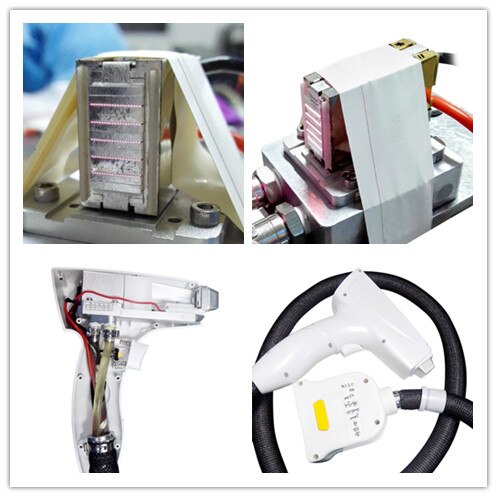

>Choice A: Send the old broken handpiece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new handpiece back to you.
>Choice B: if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.
>Choice C: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old handpiece.
Click to Contact Us Learn More Information

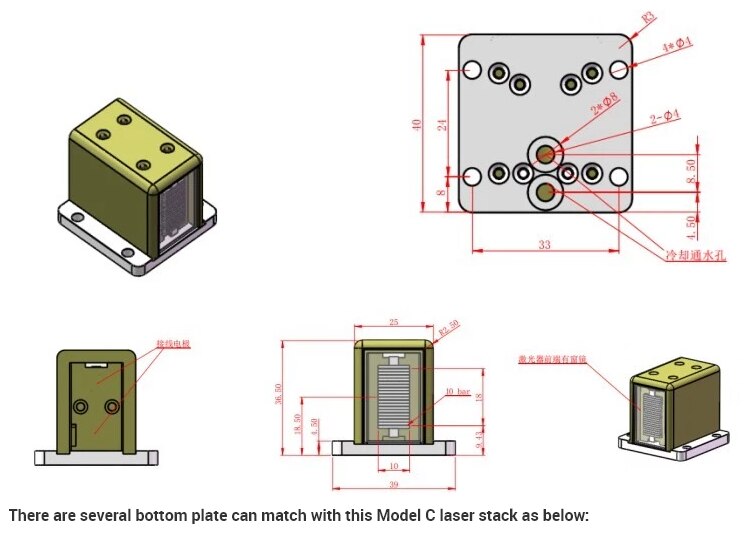

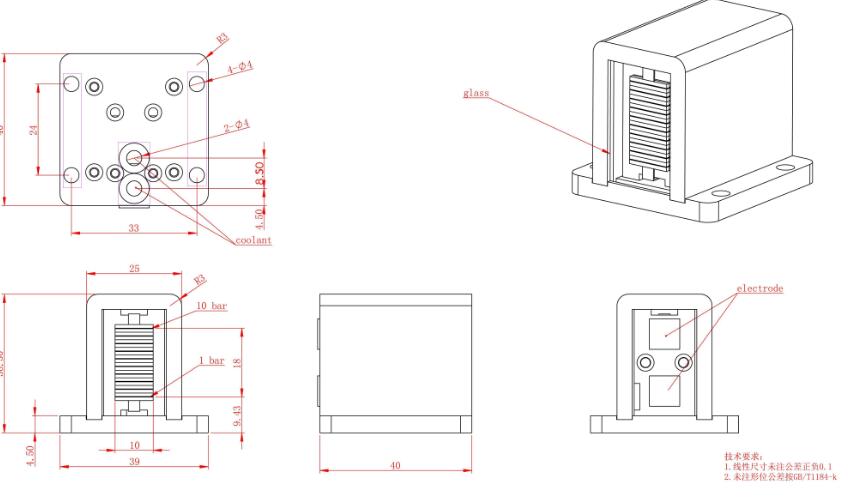

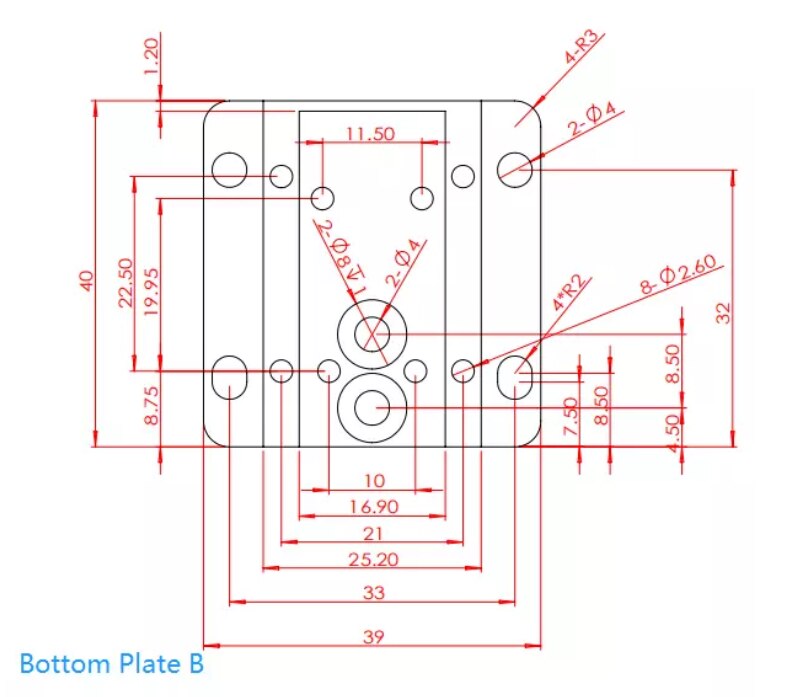

Dimension

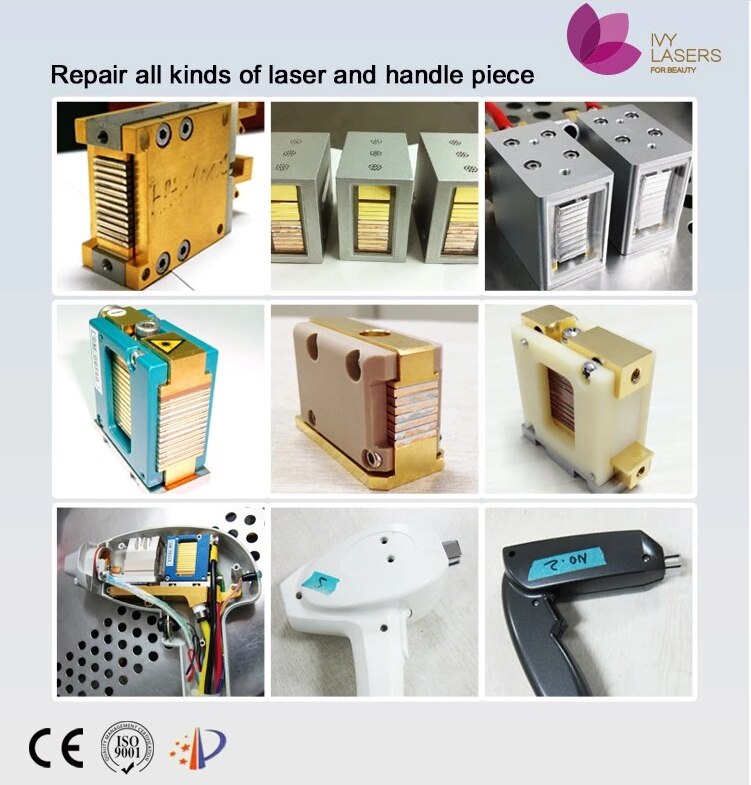

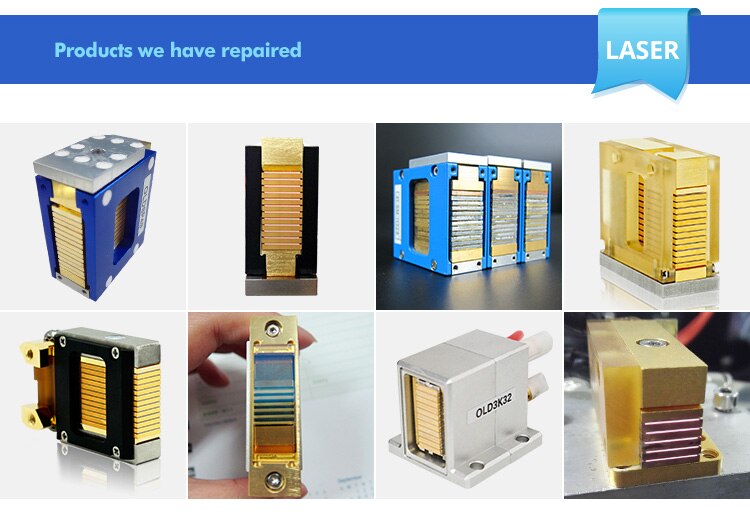

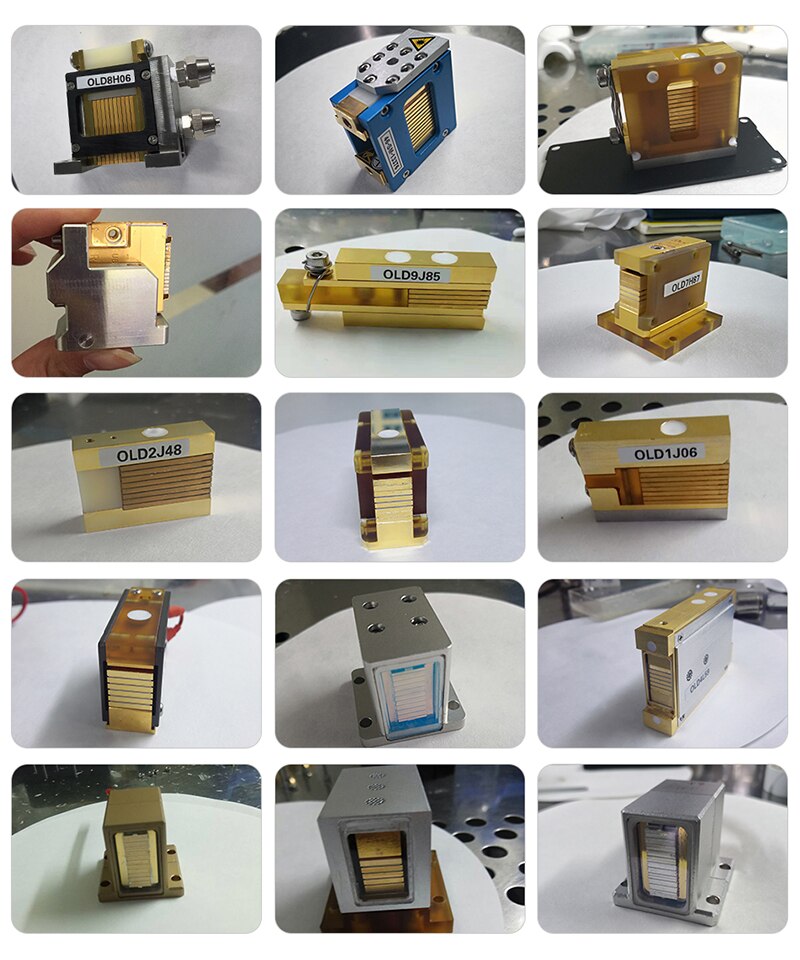

Ivylaser company is able to repair and produce many different types of laser diode part:
