Description
- Type: Hand Tool Parts
- Origin: CN(Origin)
- Warranty: 12 Months, 1 Year
- Customized support: OEM, ODM
- Place of Origin: China
- Model Number: DRJ01200pm
- Size: 80x56x49mm
- Laser Wavelength: 1535nm
- Beam divergence angle: 0.3mrad
- Re-frequency: 1-10Hz
- Accuracy rate: >=98%
- Multi-target detection: 5(Max)
- Interface: UART(TTL_3.3V)/RS232/RS422 (options)
- Power Supply: DC 9-15V
- Shock: 75g, 6ms/Hz
- Weight: <=140g

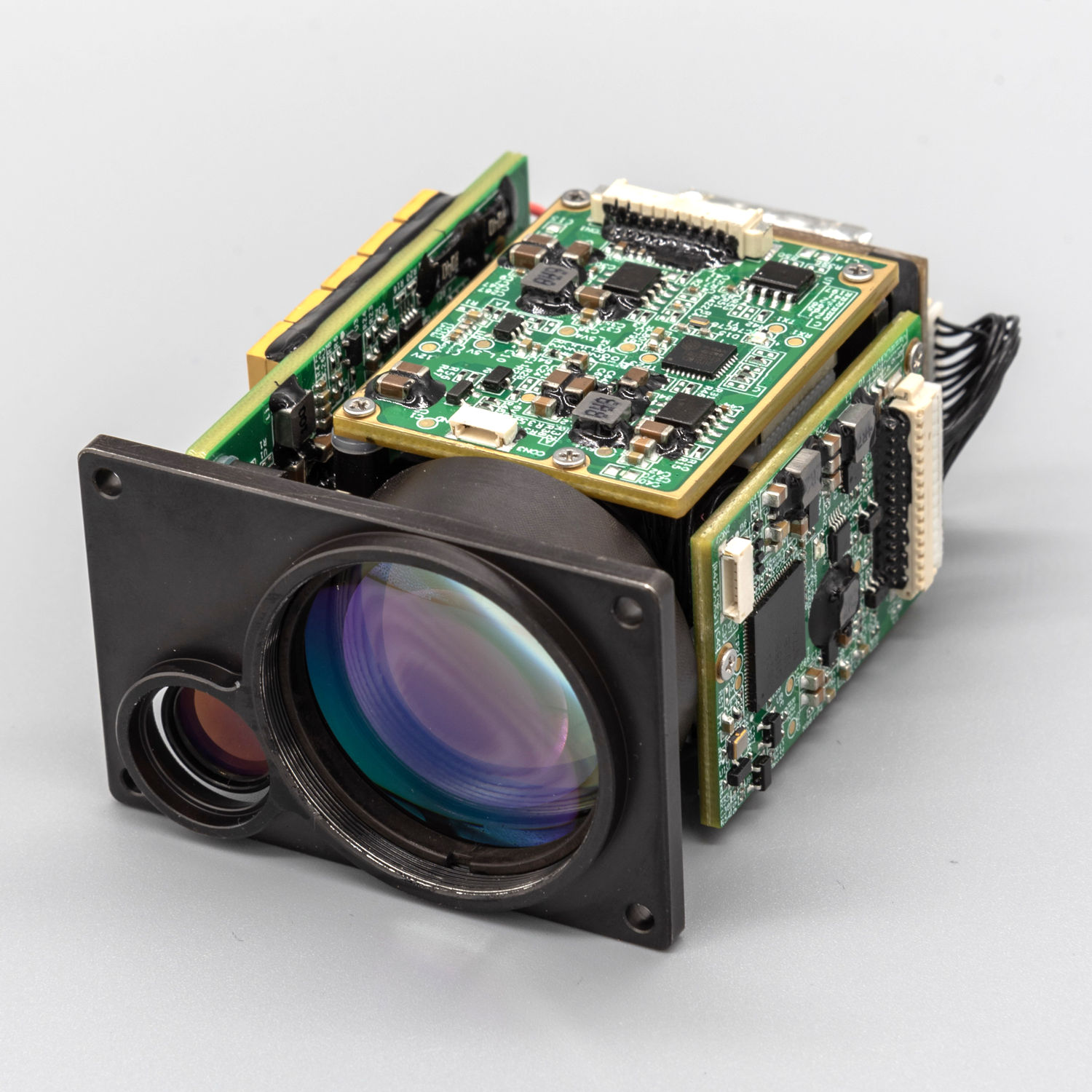

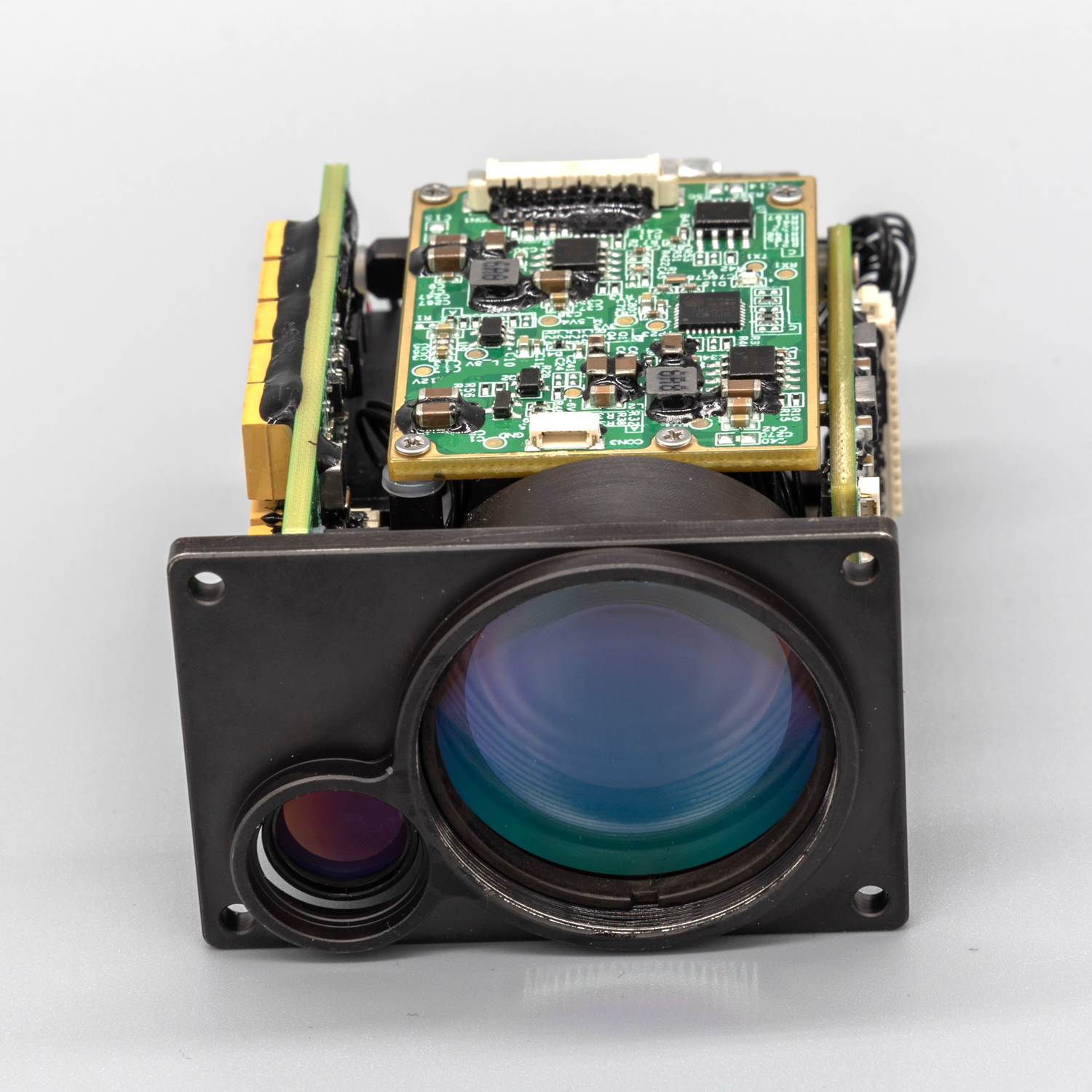

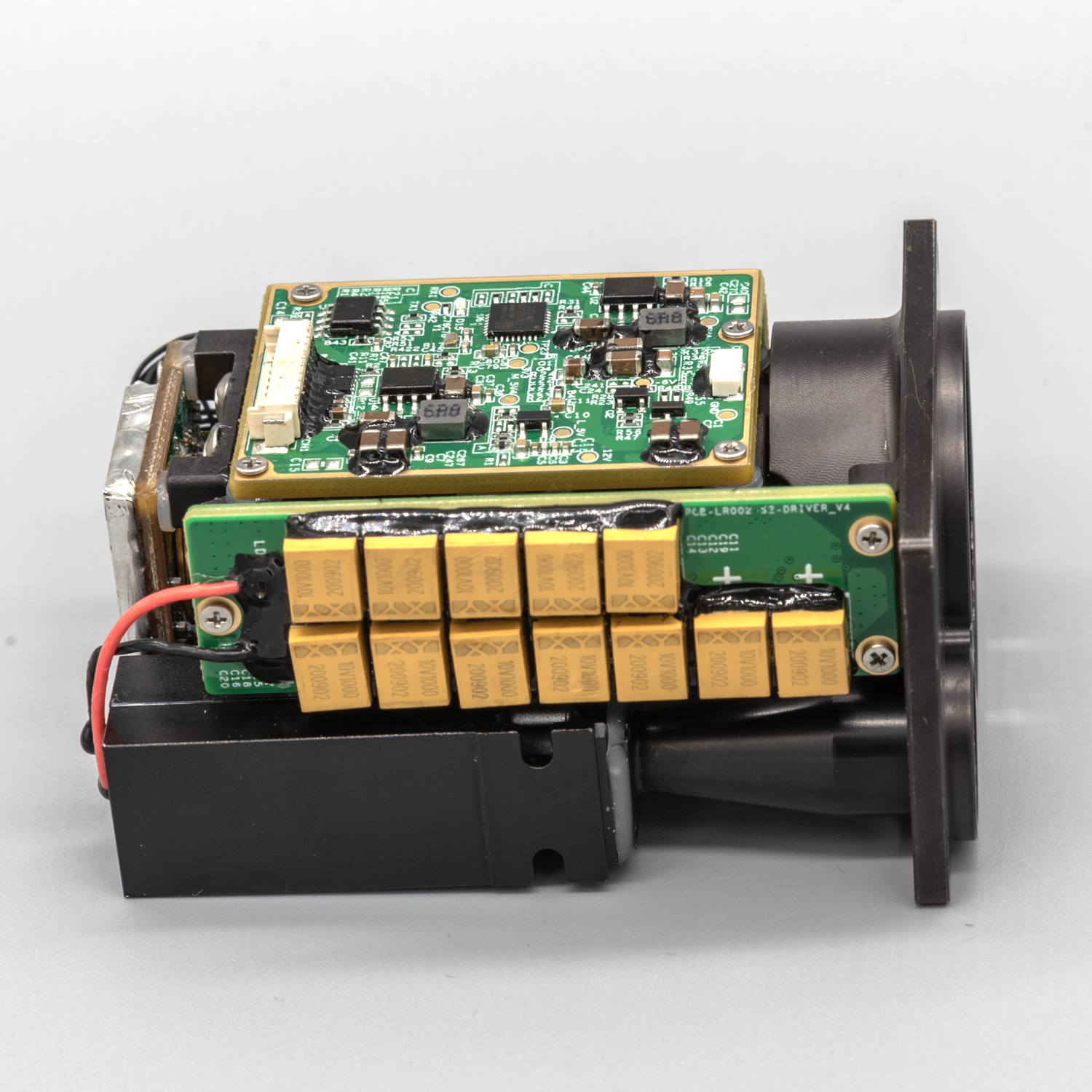

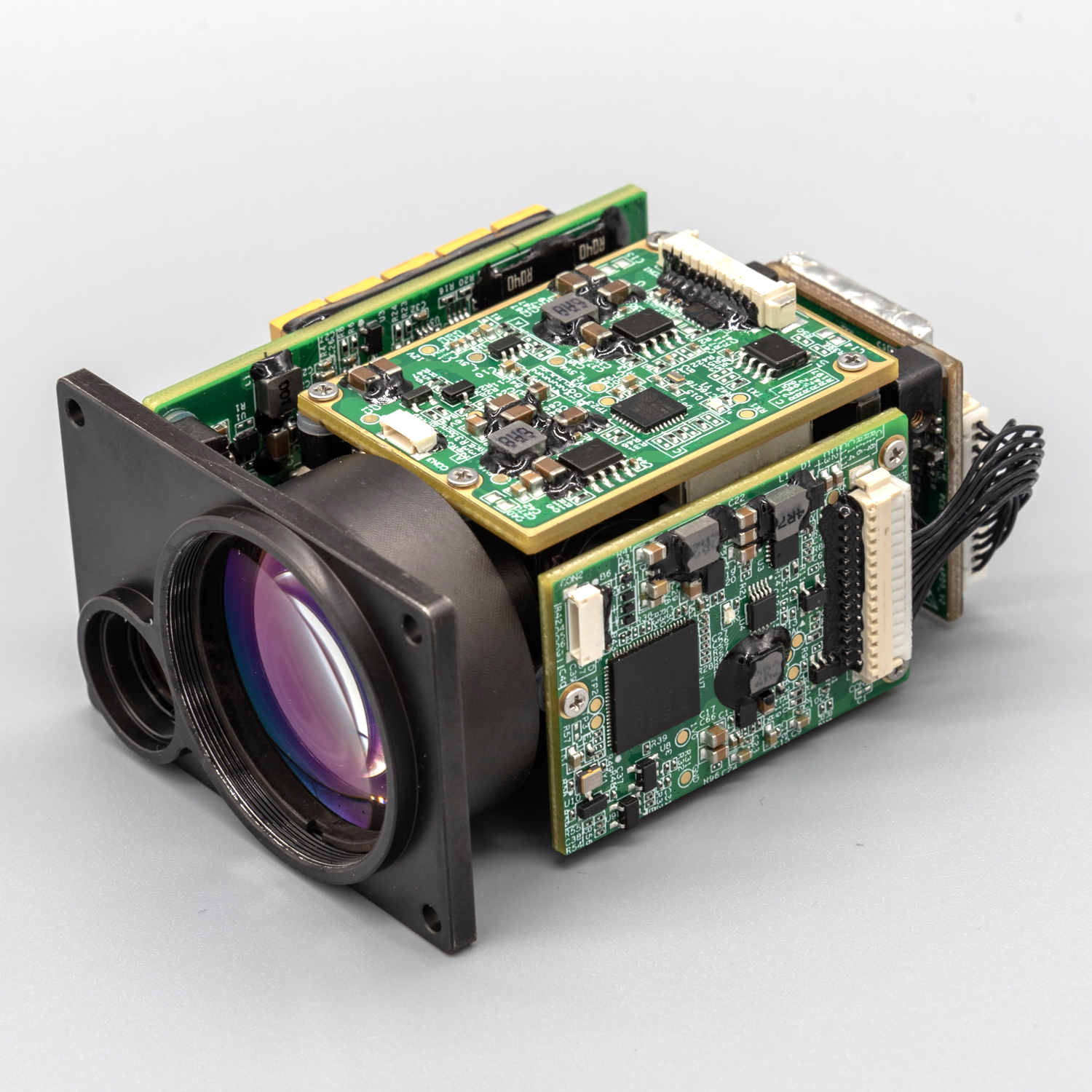

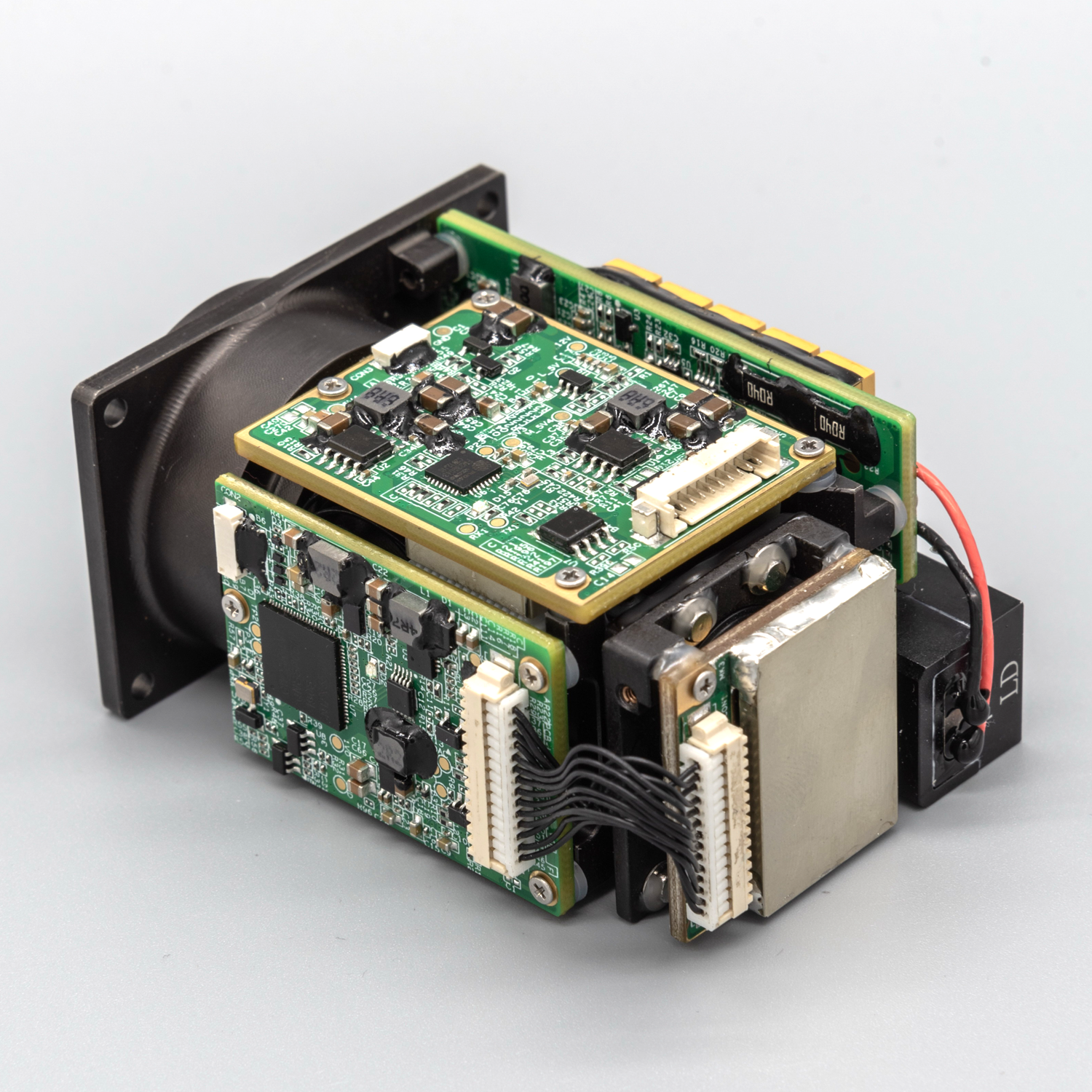

Products Appearance
| Front | Back |
 |
 |
Products Specification
|
Technical Index |
Unit |
DRJ01200pm |
|
|
Eye safety/level |
Class1/1M |
||
|
Laser Wavelength |
nm |
1535±5 |
|
|
Optical receiving aperture |
mm |
Φ30 |
|
|
Beam divergence angle |
mrad |
0.3±0.05 |
|
|
Receiving field of view |
mrad |
1.88 |
|
|

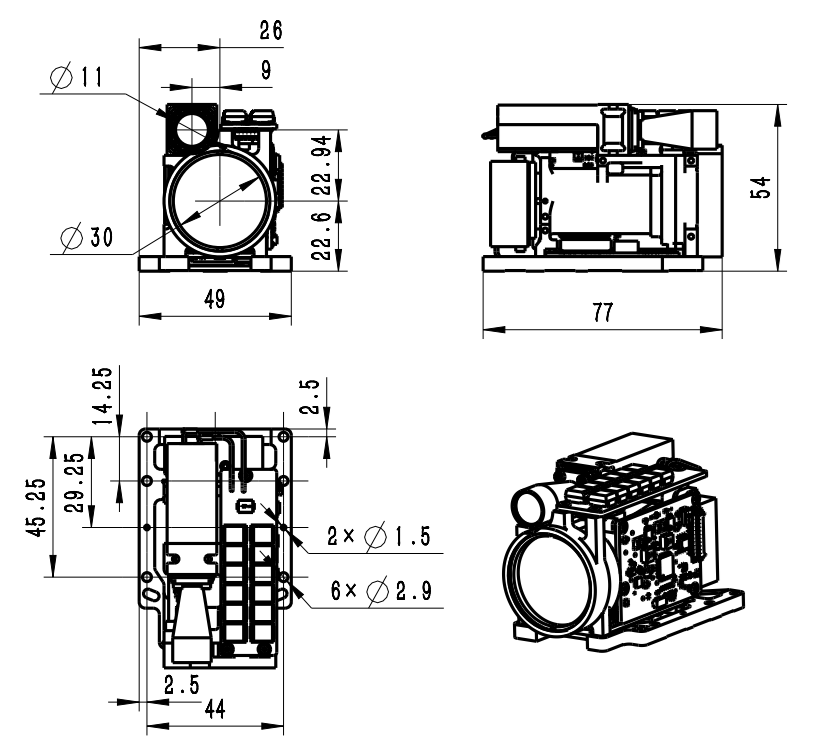

Dimension(L×W×H) |
mm |
80x56x49 |
|
|
Weight |
g |
≤140 |
|
|
Max Ranging Distance |
Big Target |
m |
≥7600 4) |
|
vehicle |
m |
≥6000 1) 4) |
|
|
Human1) |
m |
≥4000 4) |
|
|
Drone1) |
m |
≥2000 4) |
|
|
Min Ranging Distance |
m |
50 |
|
|
Re-frequency7) |
Hz |
1~10 |
|
|
Accuracy8) |
m |
±2 |
|
|
Resolution |
m |
30 |
|
|
Accuracy rate |
— |
≥98% |
|
|
False alarm rate |
— |
≤1% |
|
|
Number of multi-target detection |
— |
5(Max) |
|
|
Data interface |
UART(TTL_3.3V)/RS232/ Full-duplex RS422 (choose one of three) |
||
|
Supply voltage |
V |
DC 9~15V |
|
|
Standby power consumption 9) |
mW |
≤90 |
|
|
Start power consumption 9) |
W |
≤14 |
|
|
Peak working power consumption 9) |
W |
≤10 |
|
|
Operating temperature 10) |
℃ |
-40~+65 |
|
|
Storage temperature |
℃ |
-55~+75 |
|
|
Vibrate |
General low-limit integrity vibration test (GJB150.16A-2009) |
||
|
Shock |
Hz |
75g, 6ms |
|
Notes:
1) Vehicle type target size is 2.3m×2.3m, reflectivity 30%; human-type target size is 0.5m×1.7m, reflectivity 30%; UAV-type target size is 0.2m×0.3m, reflectivity 30%;
2) The target size of the vehicle model is 2.3m×4.6m, and the reflectivity is 30%;
3) Visibility ≥8km;
4) Visibility ≥10km;
5) Visibility ≥15km;
6) The minimum measuring range is 20m optional;
7) The measurement frequency of the nationally produced rangefinder module is 1~5Hz;
8) Ranging accuracy ±1m optional;
9) For the power consumption of different models of products, see 5.2 Electrical Characteristics;
10) For the working temperature range of different models, please refer to 5.3 Electrical Characteristics.
 |

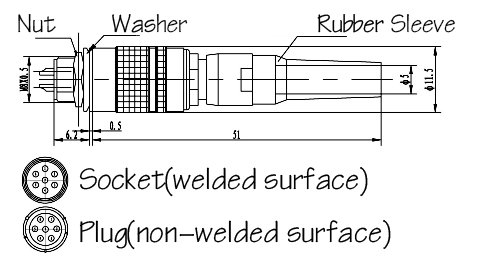

Pin No. & Function 1: Signal Ground 2: +VDD 3: Trigger 4: TXD 5: RXD 6: Charging Port |
Products Application
Application to: Fire control system, Border Security, Law Enforcement, Patrol, Mission, Target Search, Maritime, Military, Army, Airforce, Navy, Personal Security, Hunting, Counter-terrorism, Search & Rescue, Outdoor, Shooting, Terrain, Geophysics, Mining, Oil field, Ports, Railway stations, Airports, City buildings, Roads, Water conservancy project, Transmission line survey, Tracking moving targets, Vehicle automatic control, Automobile safety alarm, Industrial control.
