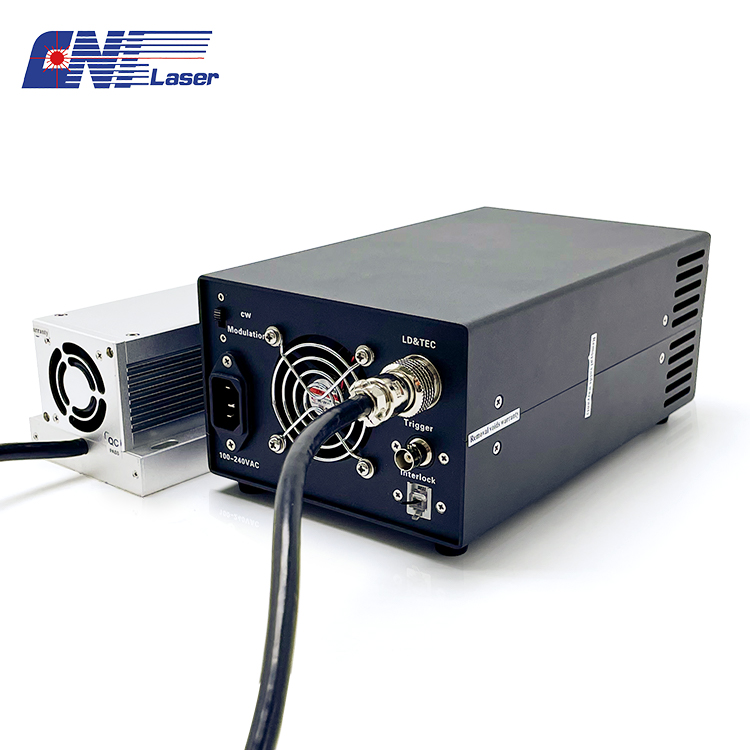

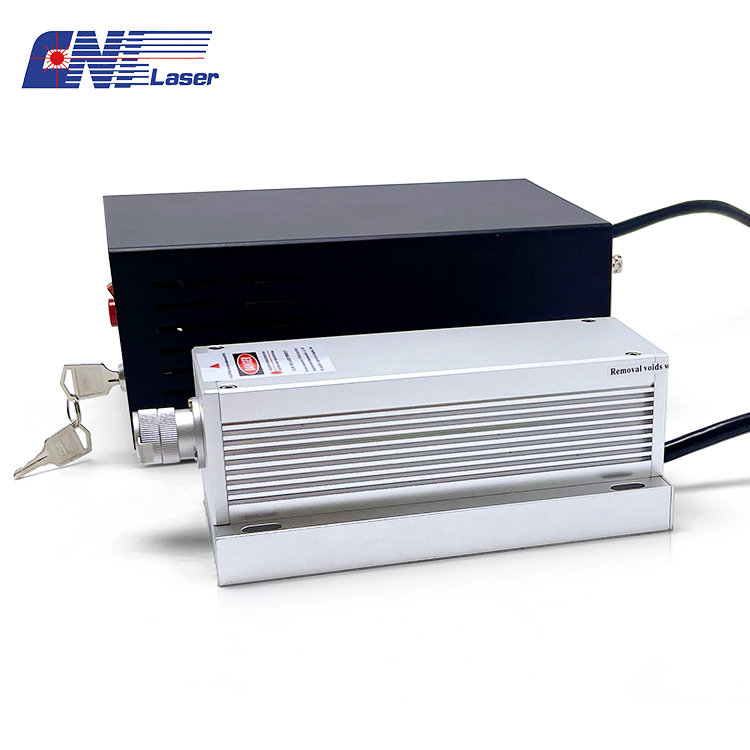

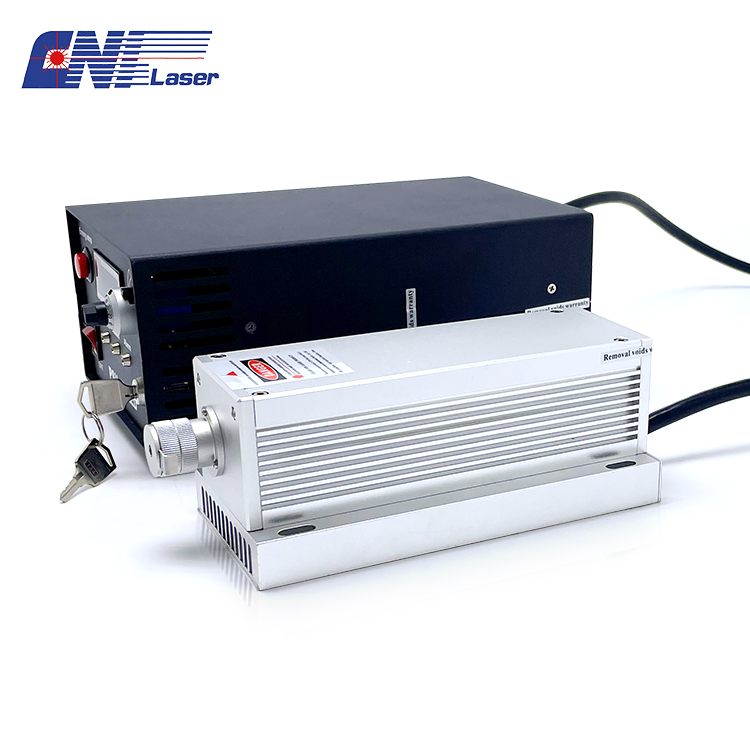

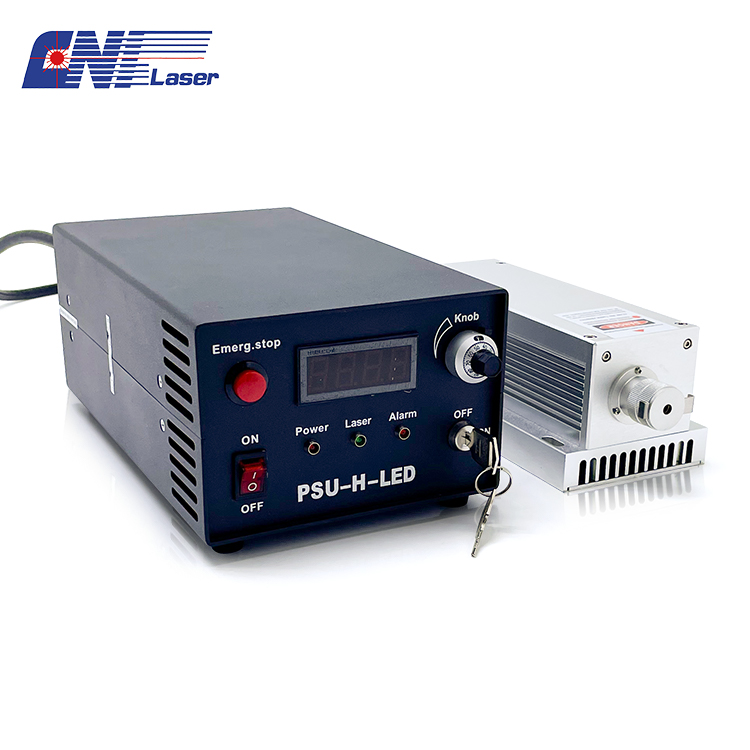

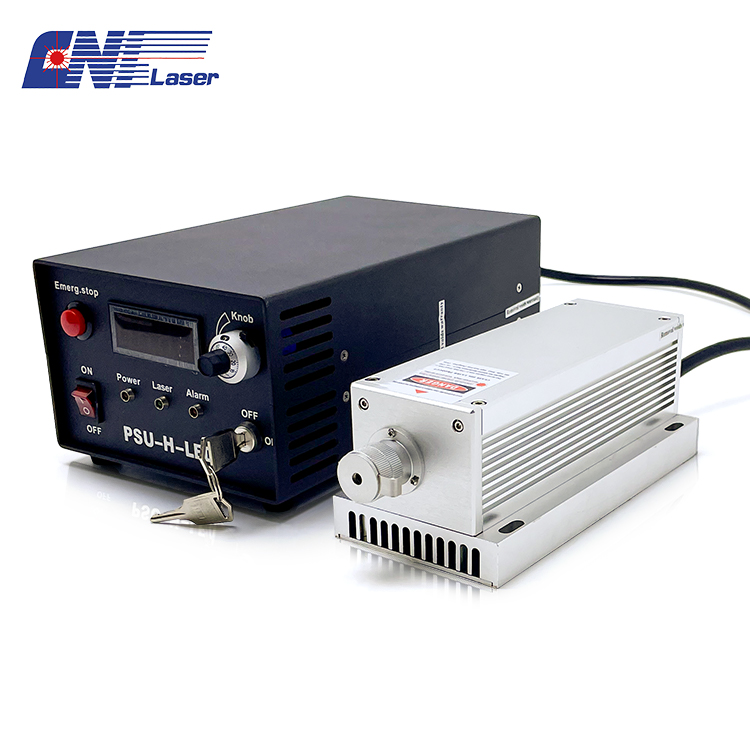

1120 nm ir laser diode module industry laser equipment parts for measurement communication spectrum analysis

$2,438.40 – $5,103.40

SKU: 3554465018651 Category:

Description

Product Description

Central wavelength (nm)
1120±25
Operating mode
CW
Output power (mW)
>2500, 2600, 2700, … , 5000
Power stability (rms, over 4 hours)
<1%, <2%, <3%
Transverse mode
Multimode
Dimensions of beam at the aperture (mm)
~5×8
Beam divergence, full angle (mrad)
<3. 0
Warm-up time (minutes)
<5
Beam height from base plate (mm)
45
Operating temperature (℃)
10~35
Power supply (100-240VAC)
PSU-H-LED
PSU-H-FDA
TTL / Analog modulation
TTL or Analog with 1Hz- 1KHz 1KHz- 10KHz, 10KHz-30KHz optional
Expected lifetime (hours)
10000
Warranty
1 year

Product Show

Applications

Certificate

Additional information

Model Number

"MDL-1120-E-1W-1% stability-include fixed power supply", "MDL-1120-E-2W-1% stability-include fixed power supply", "MDL-1120-E-3W-1% stability-include fixed power supply", "MDL-1120-E-500mW-1% stability-include fixed power supply", "MDL-1120-E-5W-1% stability-include fixed power supply"
