Specifications

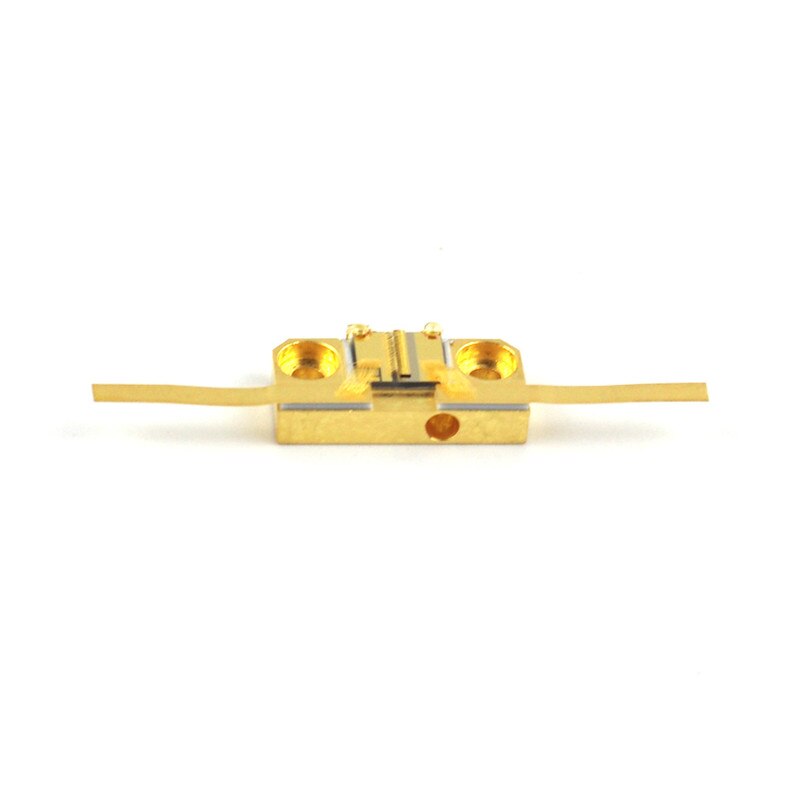

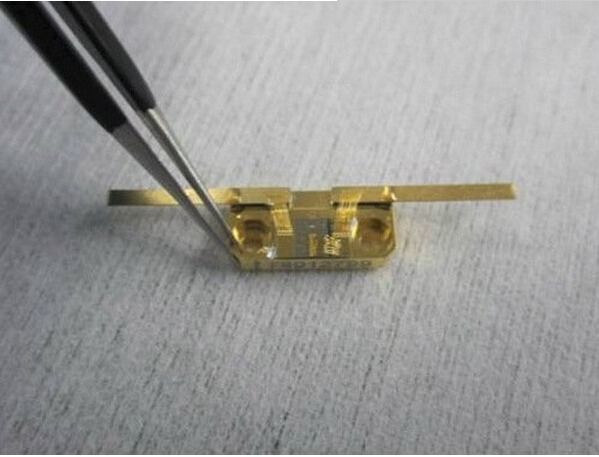

10W 808nm Laser Diode F-mount with FAC lens

Optical

Wavelength (nm) 808
Wavelength Tolerance (nm) 3

Operating Power (W) 10

Emitter Size (µm) 200

Slope Efficiency (W/A) 1.05

Spectral Width FWHM (nm) 2.5

Spectral Width FW90%E (nm) 5

Fast Axis Divergence (90%, degree) 70

Slow Axis Divergence (90%, degree) 10

Wavelength Temp. Coefficient (nm/C) ~0.28

Electrical

Threshold Current (A) 1.5

Power Conversion Efficiency (%) 48

Operating Voltage (V) 2

Operating Current (A) 11

Thermal

Operating Temperature (C) 15~35

Storage Temperature (C) -40~60

Recommended Heatsink Capacity (W) 16

1. Data at the temperature of 25 degree C, unless otherwise stated.

2. For fast axis collimation: Divergence < 40

3. Under normal operating condition, the lifetime of the diode is 10,000 hours
