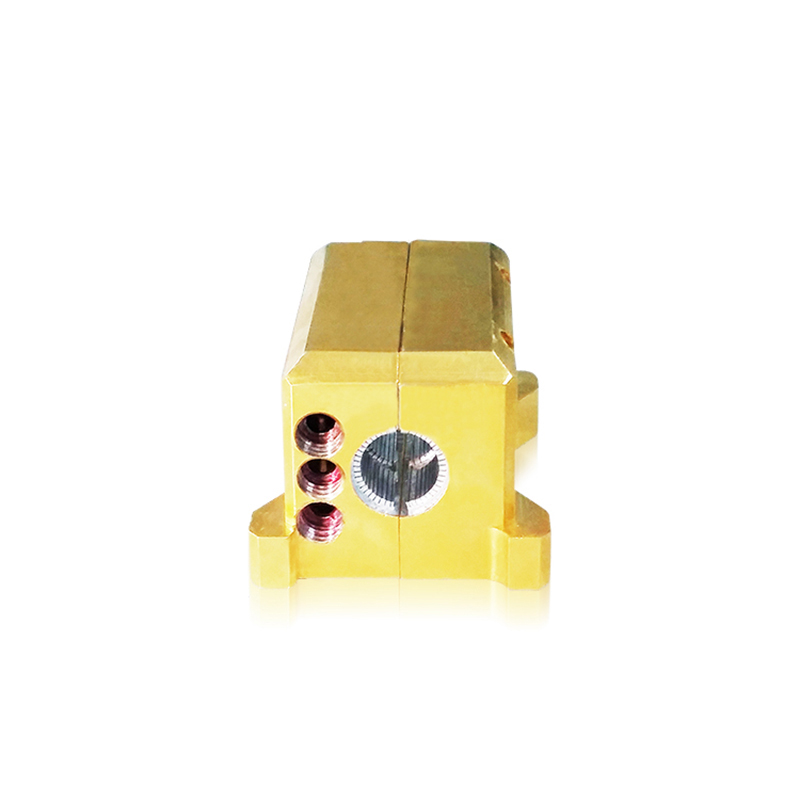

Description
|
Wavelength
|
808nm or up on requirement
|
|
Output power
|
500w up to 10kw
|
|
Operation mode
|
QCW
|
|
Cooling
|
actively cooled/ passively cooled
|
1. Effcient: High output power up into the 4800W.
2. Compact: Arc and lightweight design is easily integrated into pump module.
3. Robust: Shock and vibration resistant.
4. Reliable and high-quality: Gold and Tin (hard solder) mounting. Works even under the most demanding climatic conditions.
5. Wavelength combination: beneficial for full temperature pumping design.
1.High energy research: QCW pumping sources for solid-state lasers.
2.Medical technology: Long pulse operation, use in esthetics (epilation) and dermatology.
3.Excitation light source for solid-state lasers in the 1320 nm range for parenchyma surgery.
4.Defense: Short pulse operation, use as a pumping source, for lighting orin LIDAR systems.
5.Industry: Excitation light source for solid-state and fiber lasers.
|
Model ARCQCW-MA-100~500-N
|
||
|
Optical Parameters
|
||
|
Output power (W)
|
QCW 100~500*N
|
|
|
Center Wavelength at 25℃(nm)
|
808
|
|
|
Number of bars in one stack
|
1~20
|
|
|
Bar pitch (mm)
|
0.8~ 3
|
|
|
CenterWavelength Variationat 25℃ (nm)
|
±3/±10
|
|
|
Typical Spectral Bandwidth (FWHM
|
<3
|
|
|
Divergence (degree)(FWHM)
|
<3⊥< 10‖
|
|
|
Polarization
|
TE
|
|
|
Wavelength shift (nm/℃)
|
~0.28
|
|
|
Electrical Parameters
|
||
|
Working mode
|
QCW
|
|
|
Maximum Duty Cycle (%)
|
≤2%
|
|
|
Pulse Length (us)
|
50~1000
|
|
|
Frequency (Hz)
|
1~ 1000
|
|
|
Operation Current (A)
|
≤100~500
|
|
|
Operating Voltage (V)
|
≤ 2*N
|
|
|
Typical Slope (W/A)
|
> 1.1
|
|
|
Electro-optic Conversion Efficiency (%)
|
> 50
|
|
|
Thermal parameters
|
||
|
Operation Temperature (℃)
|
-40~60
|
|
|
Storage Temperature (℃)
|
-50~85
|
|
|
Storage humidity (%)
|
< 70
|
|
|
Cooling
|
TEC/Wind cooling
|
|
|
Flow rate per bar (L/min)
|
*
|
|

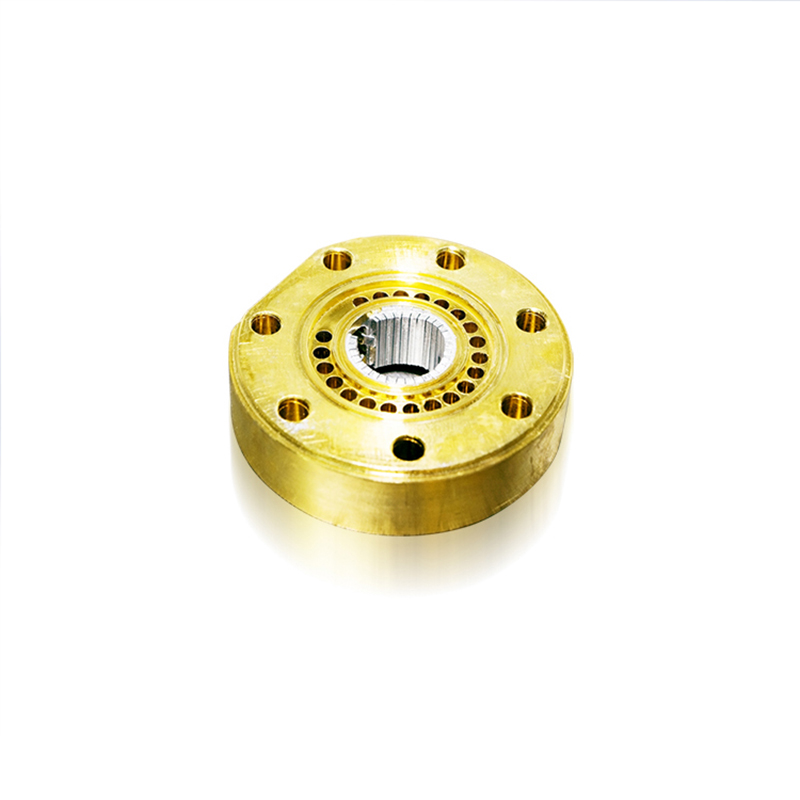

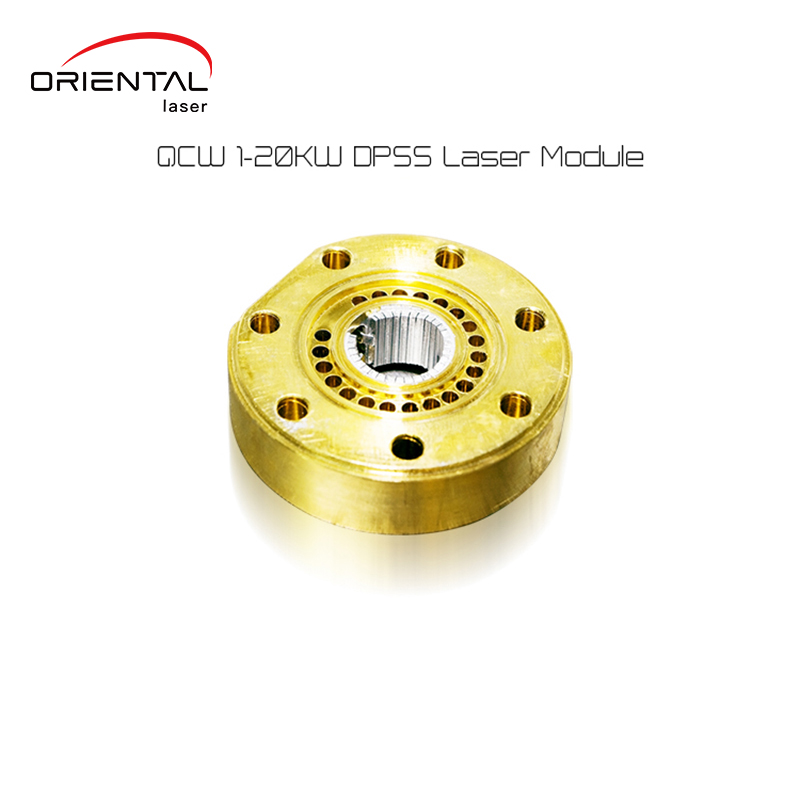

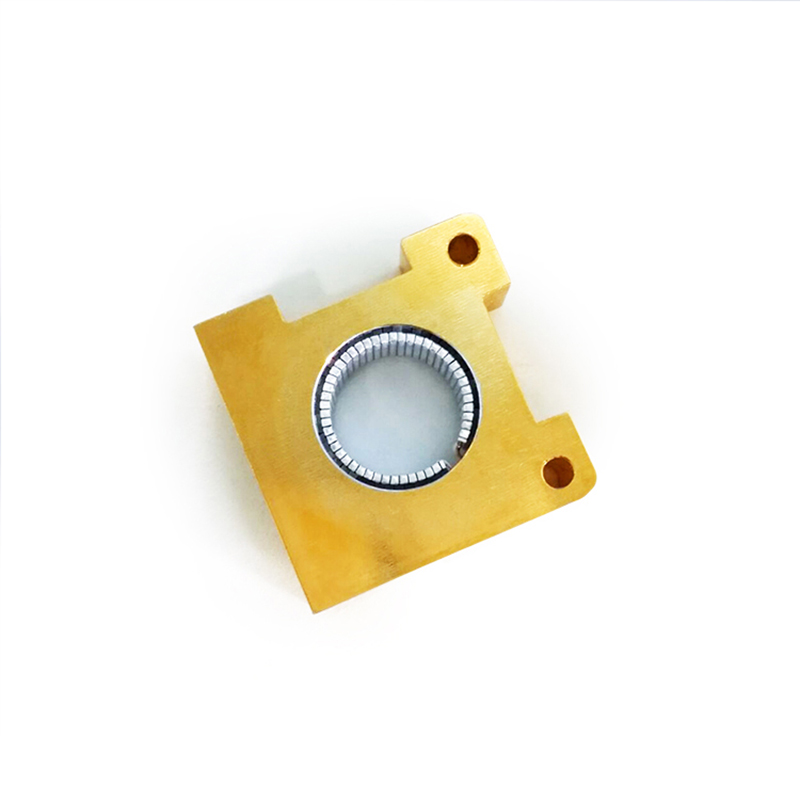

1. CIR QCW-MA-100~ -500-N represent N*100-500W laser stack which is mounted on an annular heat sink. The laser power of single bar is 100W, 200w, 300W and 500W.
2. The wavelengths of each bar in a single device can be arranged and combined according to the heat dissipation conditions.
3. The above parameters are measured at the heat sink temperature of 25℃.

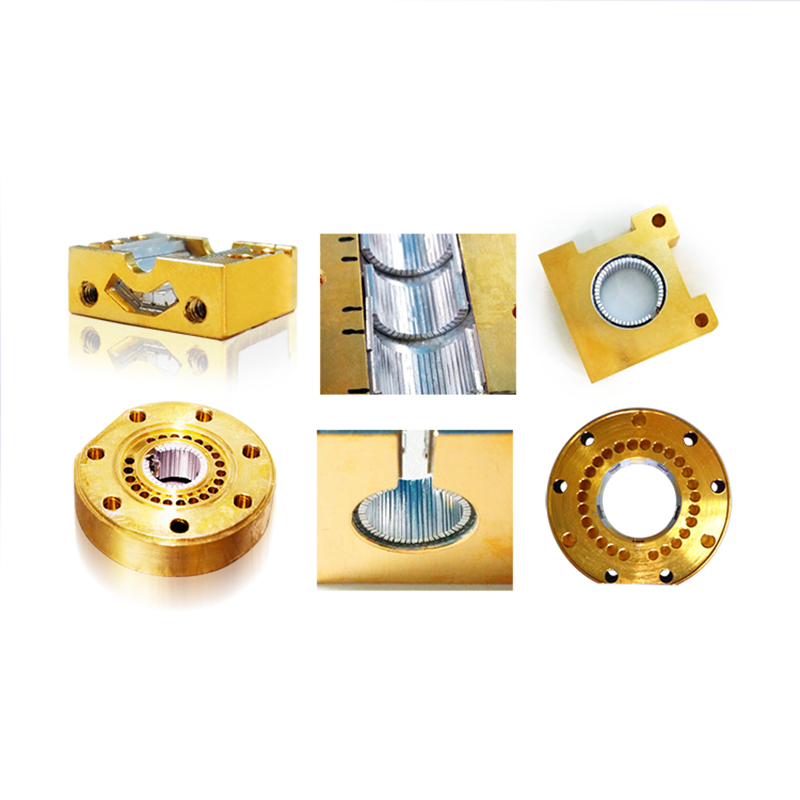

4. Heat sink structure can be customized according to customer’s special requirements.
5. The duty cycle is usually less than 2%.In case of special high duty cycle requirements, the laser structure can be customized. Then duty circle up to 20%.
