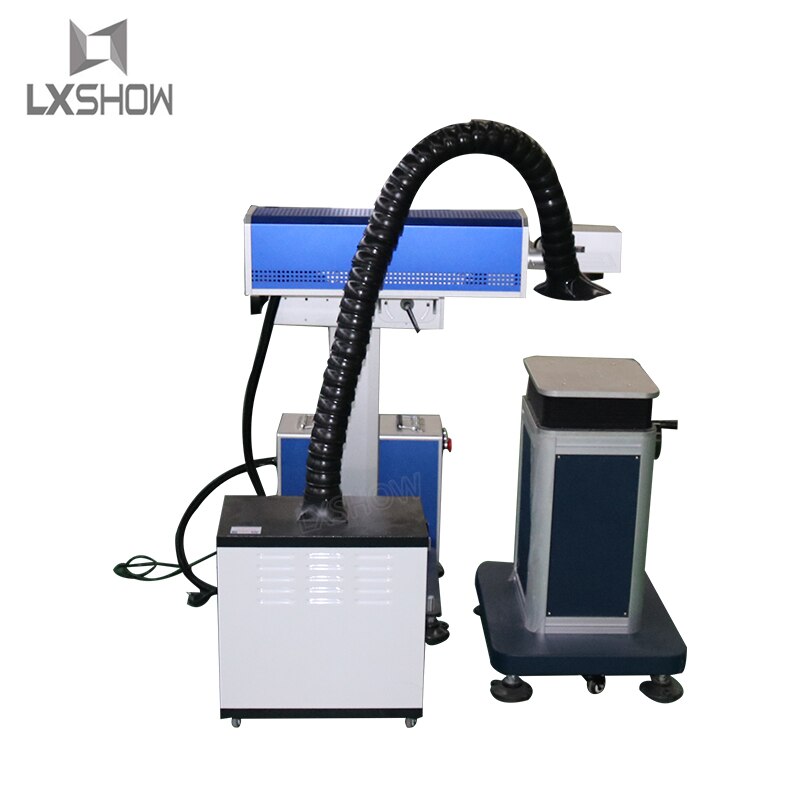

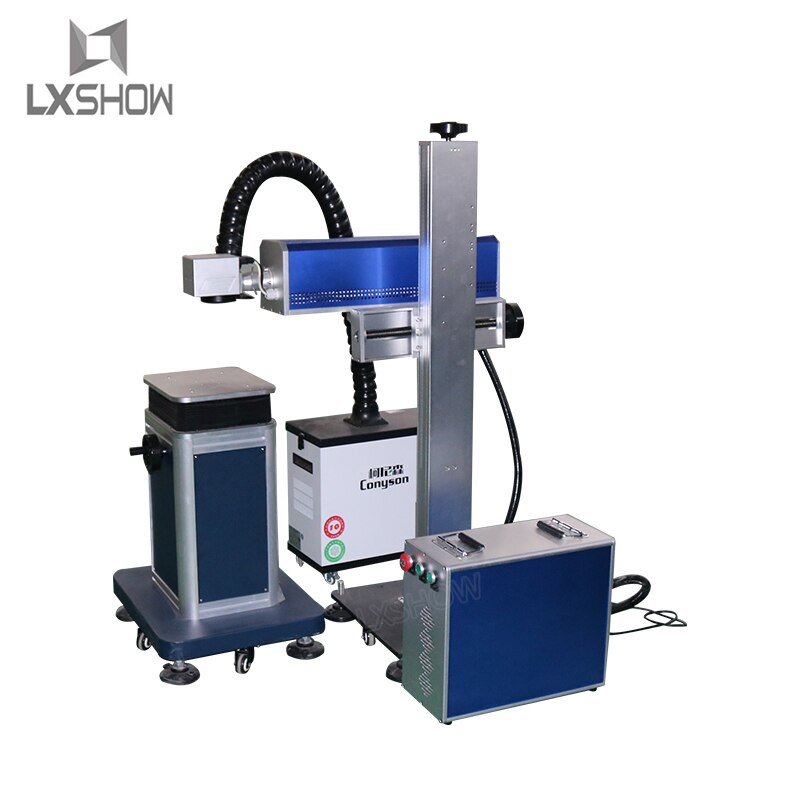

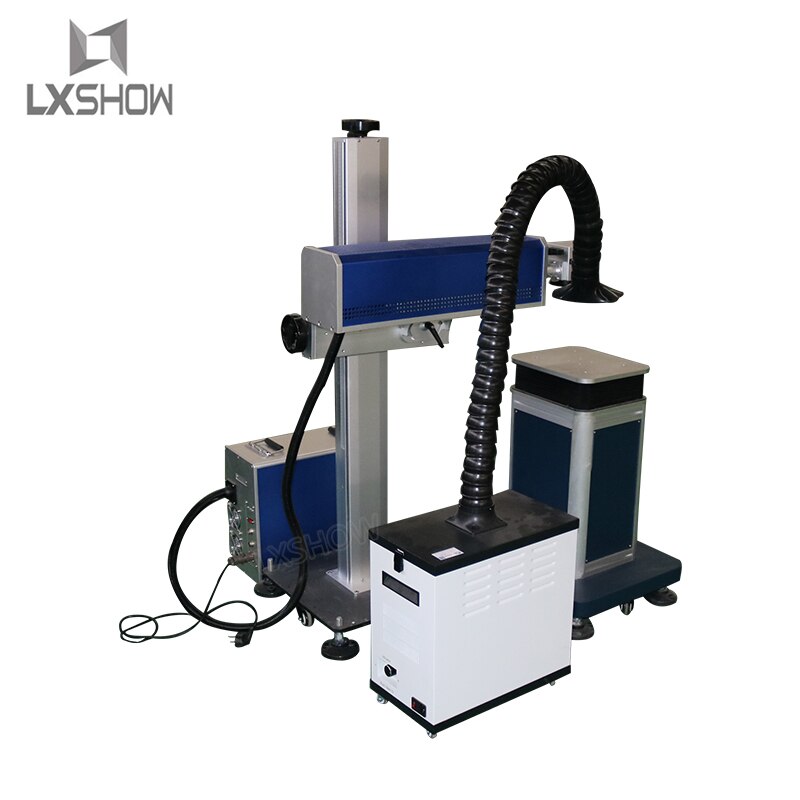

High Precision 20W 30W 50W Co2 laser marking machine price for eggs or metal in Pakistan





Application:

co2 laser marking engraving machine applicable for so many materials like bamboo, coconut shell, paper, plexiglass, PCB board, acrylic, rubber, marble, granite, jade, crystal, leather, fabric and so on the vast majority of non-metallic materials. It was used in craft gifts, advertising decoration, toys, electronic appliances, clothing, medicine, food, paper products and other industries.



Marking sample:



Characture:

1) High precision marking, swift, engraving depth controllable.

2) Applied on most of non-metal material.

3) Excellent beam quality, high photoelectric conversion efficiency, good performance and can be competent at fine processing.

4) Windows interface adopted, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.

5) Support PLT,PCX, DXF,BMP and other formats, execute SHX, TTF font directly, support automatic code, serial number, batch number, two-dimensional bar code marking, and garphic anti marking function available.



Technology Parameter:

Model	Laser Power	Processing Area
LXC-DF60	Glass Laser Tube 60W	175*175MM
LXC-DF80	Glass Laser Tube 80W	175*175MM
LXC-DF100	Glass Laser Tube 100W	200*200MM
LXC-RF10	RF Laser Tube 10W	110X110MM
LXC-RF30	RF Laser Tube 30W	200*200MM
LXC-RF60	RF Laser Tube 60W	200*200MM
LXC-RF100	RF Laser Tube 100W	300*300MM

DF = Chinese Glass Sealed Co2 Laser Tube RF = USA or Chinese Metal Sealed RF Co2 Laser Tube Customized Specification is Available

Laser Type: CO2	Power:  30W/50W/100W
Laser Wave Length: 10.6um	Optional Working Area: 0-400mm
Marking Speed: ≤7000mm/s	Min. Linear Width: 0.15mm
Marking Depth: ≤3mm/≤5mm/≤8mm	Repeat Frequency: ≤100KHz
Min. Character: ≤0.8mm	Repeat Accuracy: ±0.002mm
Power Supply: AC 220V 50KHz 20A	Cooling: Water Cooling
