10pcs WH148 3PIN 20MM Single couplet potentiometer With Nuts B1K B2K B5K B10K B20K B50K B100K B250K B500K B1M 1K 2K 5K 10K 100K

$2.21 – $2.29

SKU: 32859517196 Category:

Description

  • Brand Name: IGMOPNRQ
  • Condition: New
  • Origin: CN(Origin)
  • Resistance Tolerance: ±5%
  • Technology: Cermet
  • Type: Rotary Potentiometer
  • Operating Temperature: -10 °C to 100°C
  • is_customized: Yes
  • Max. Operating Voltage: 200V
  • Model Number: WH148-20MM-B5K
  • Rated Power: 125W

14950

36852

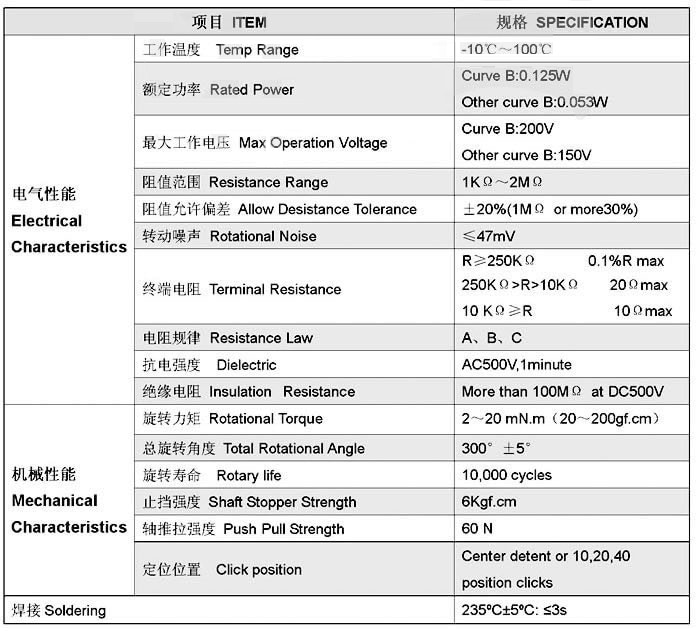

CHARACTERISTICS

WH148-1

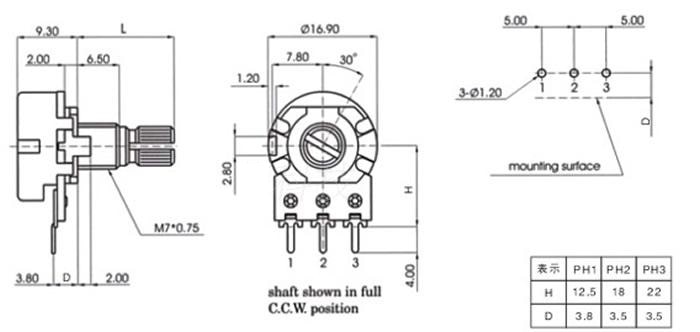

Iron handle potentiometer WH148-1 reference drawing

unit: mm



WH148
