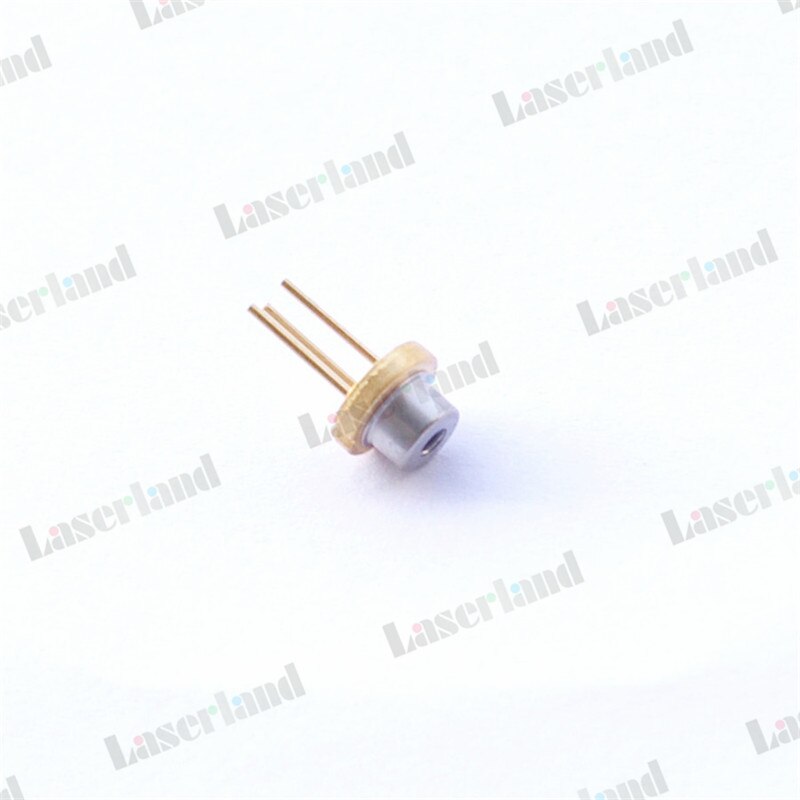

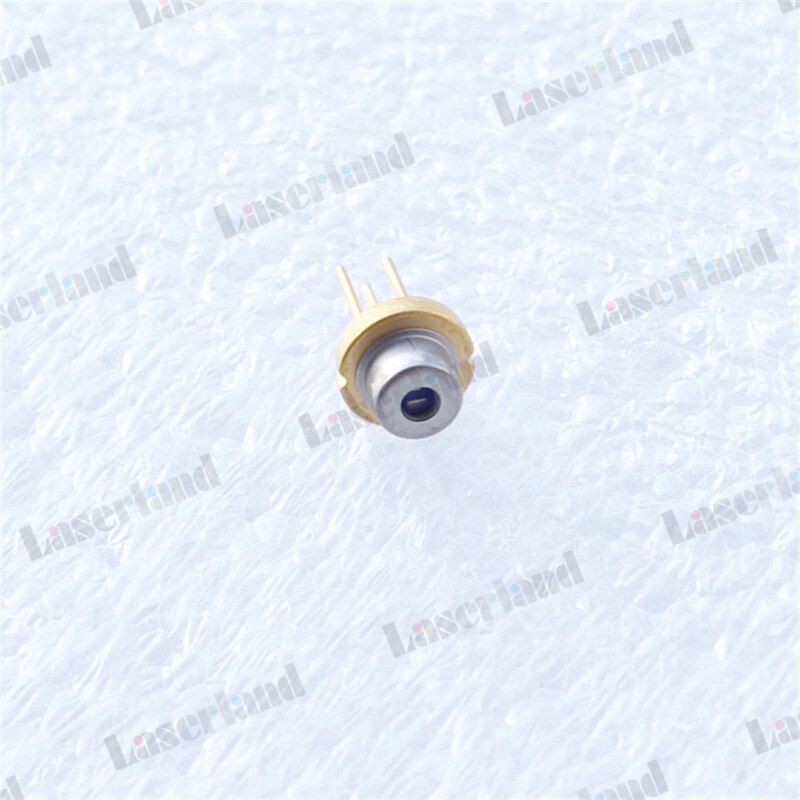

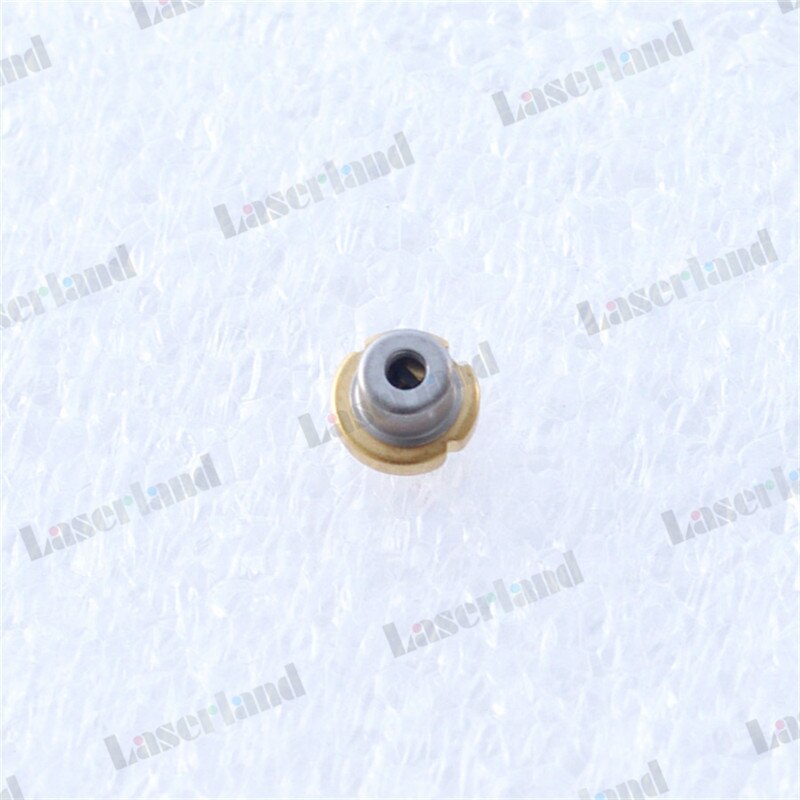

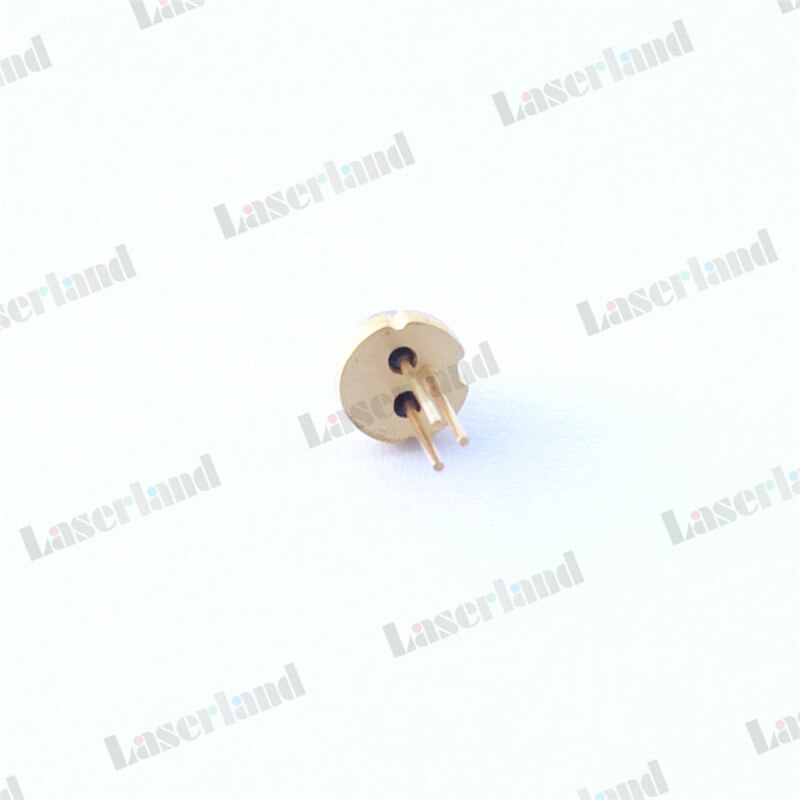

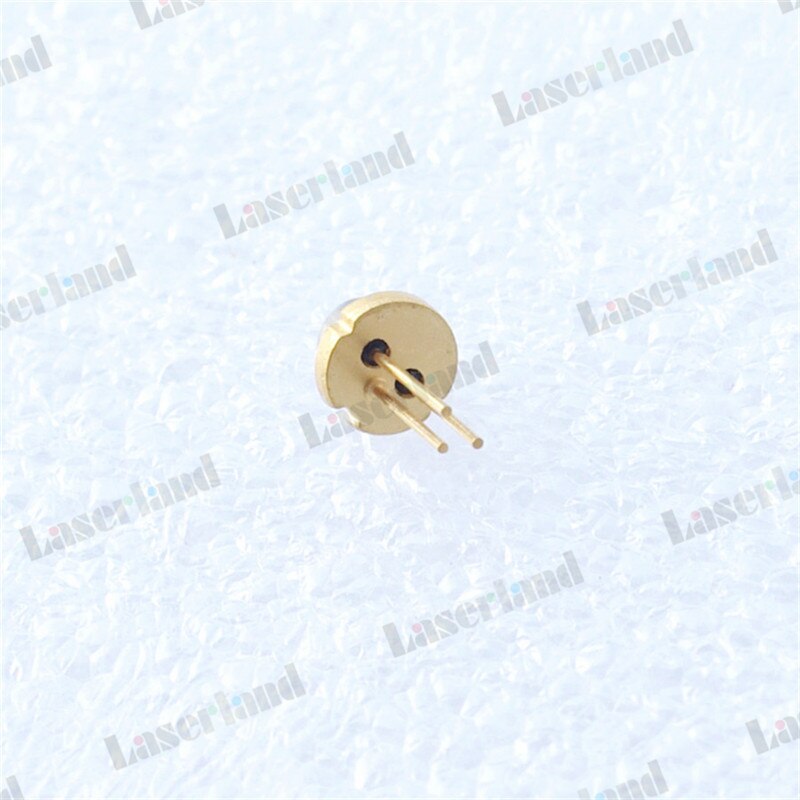

TO-18 5.6mm 300mW 808nm/810nm Infrared IR Laser/Lazer Diode LD no PD

 5.6mm 300mW 808nm Infrared IR Laser/Lazer Diode TO-18 no PD

This Infrared laser diode is an industrial electronic component and used for as Industrial test, Lab, DIY. It need proper driver board to drive.

The IR laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or test. and Don’t operate when the power is connected.

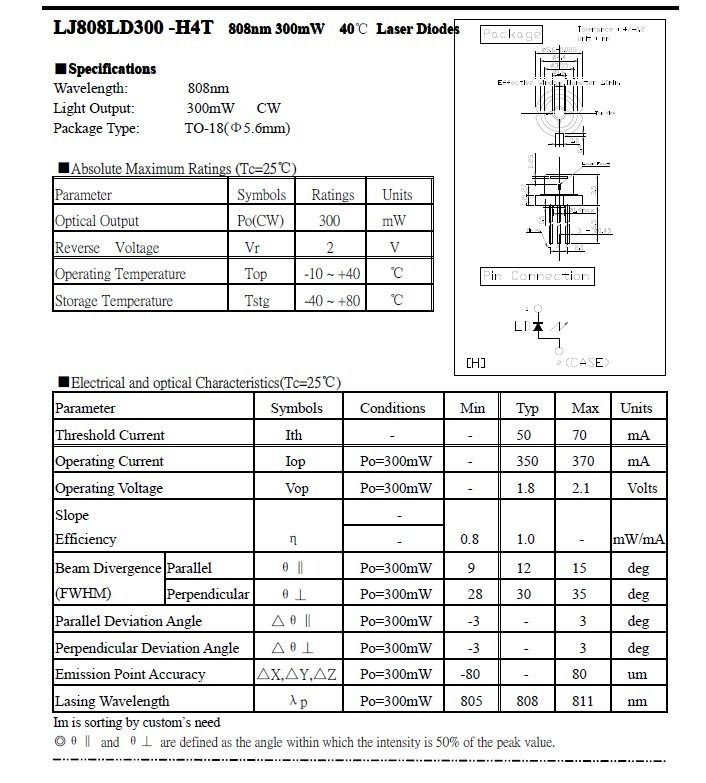

Specification

Model    808D-300-5.6
Output Power   300mw
Wavelength   808nm
working voltage       DC 2V
working current       360mA
 working temperature      -10 ~ 40 centi-degree
working life     >10000h
Dimensions      TO-18 (5.6mm)

Pacakge list:  5.6mm 300mW 808nm Infrared IR Laser/Lazer Diode TO-18
