Description
- Brand Name: NoEnName_Null
- Certification: NONE
- Origin: CN(Origin)
- Item Length: 1m
- Compatible: Huawei
- Fiber Type: Single Mode
- Connector Type: Hybrid
- Size: sm mm
- Model Number: EL-AD-SMA-ST-FC-SC
- Item: fiber optic adapter
- Type: SMA-SMA,SMA-FC,SMA-ST,SMA-SC
- Type1: simplex
- Type2: square Hexagonal
- IL: <0.2dB
- Durability: 1000 times
- Qty: 10pcs
Email:sales@ever-elink.com
Skype:e_link60
Wechat:13065838003

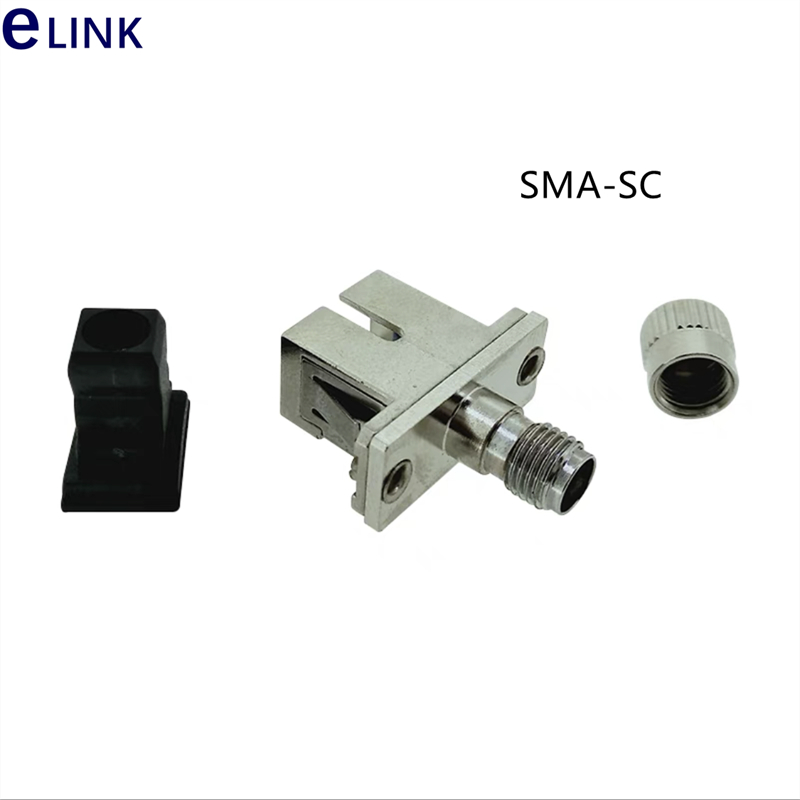

10pcs SMA-ST SMA-SC SMA-FC fiber optic adapter metal optical fibre coupler ftth connector SMA905 SMA906 free shipping ELINK
Female to Male

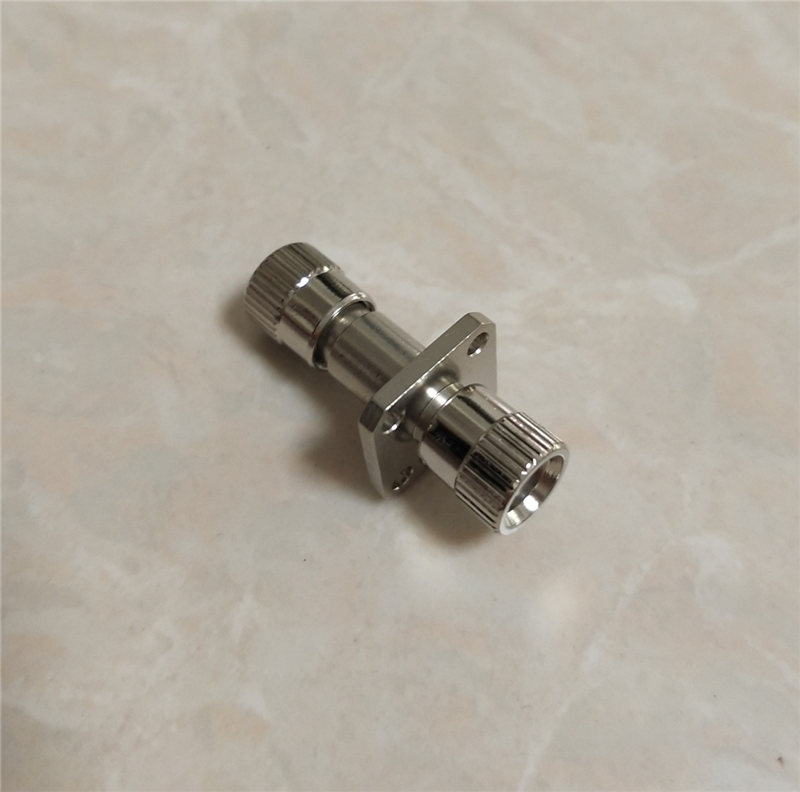

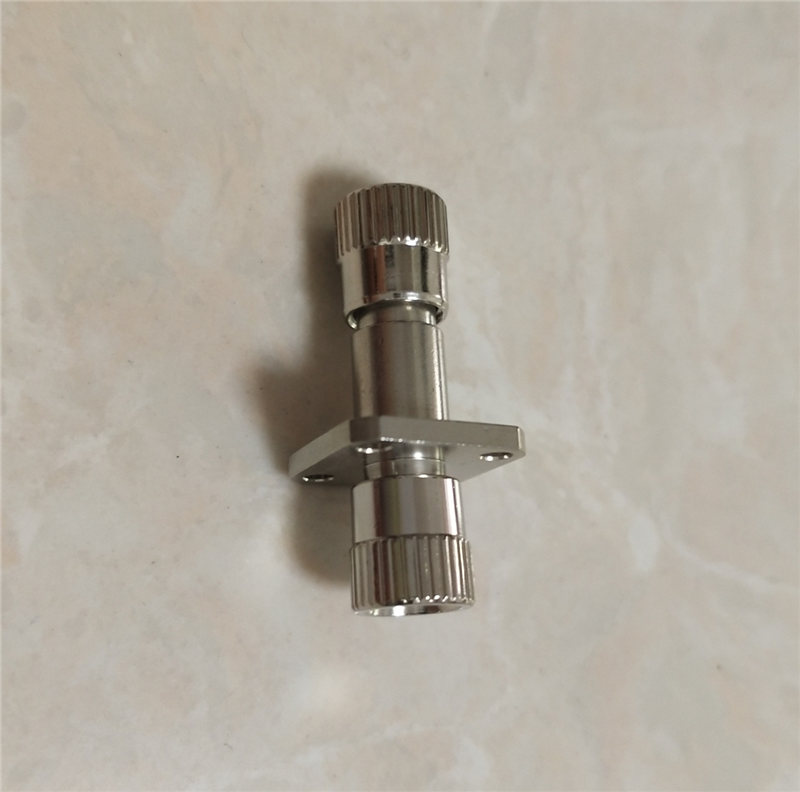

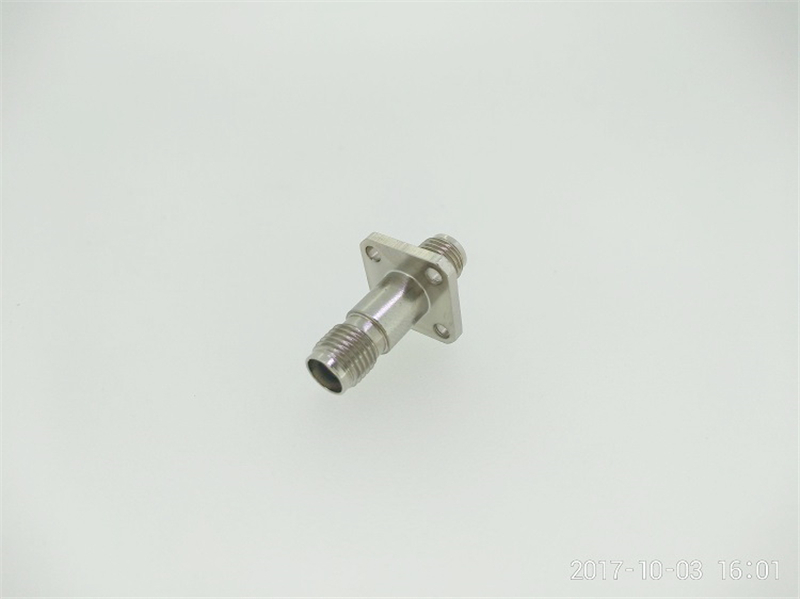

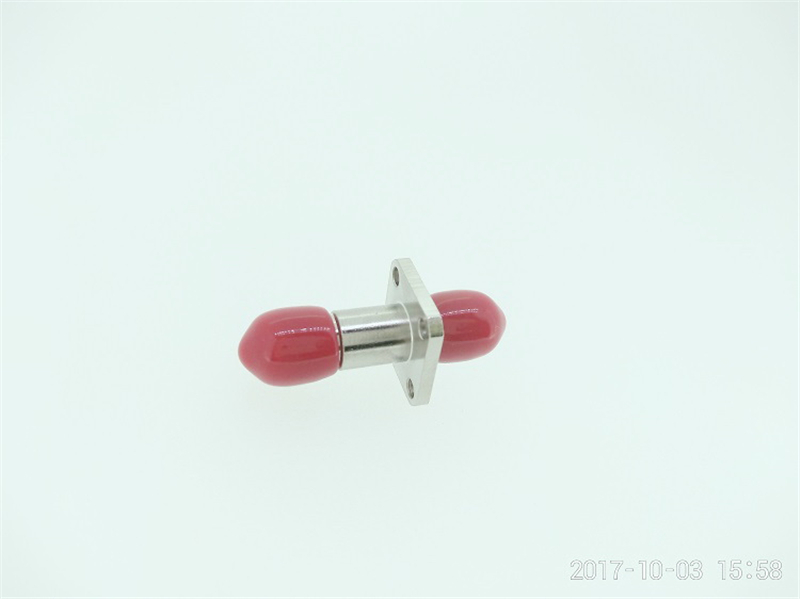

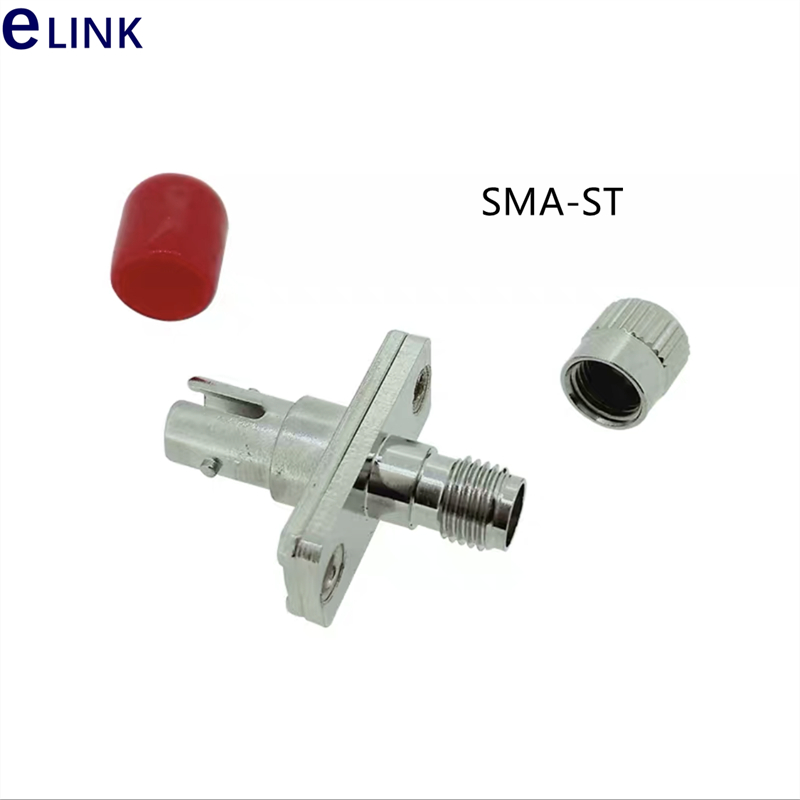

SMA/female-ST/maleflange

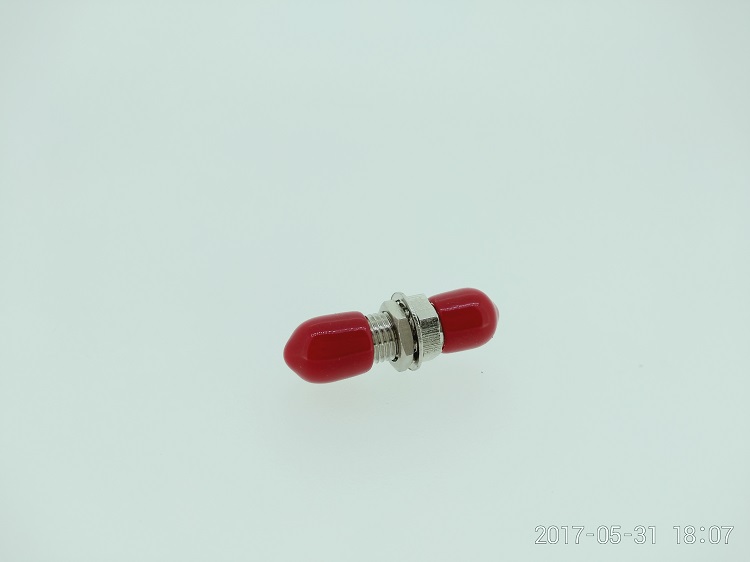

SMA/female-ST/maleround

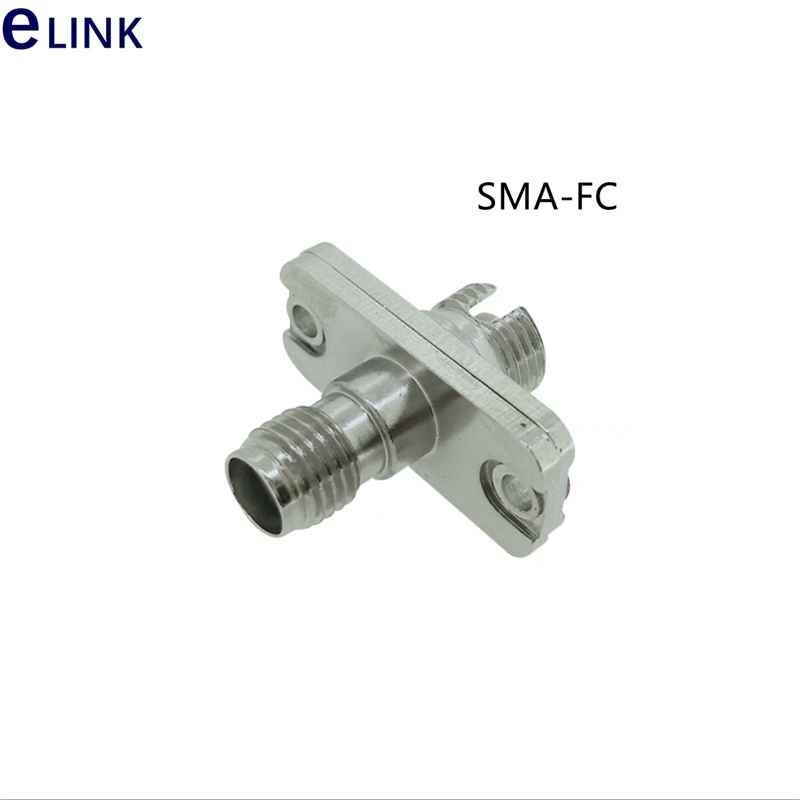

SMA/female-FC/maleround

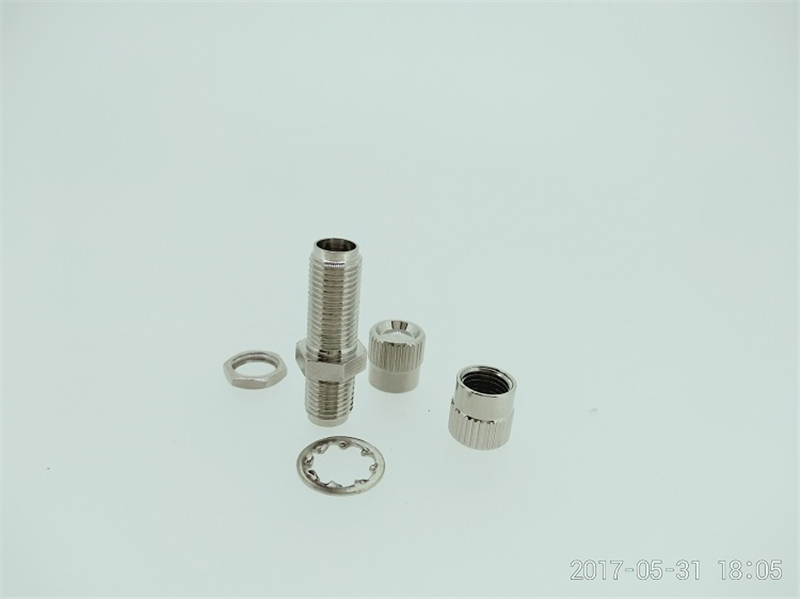

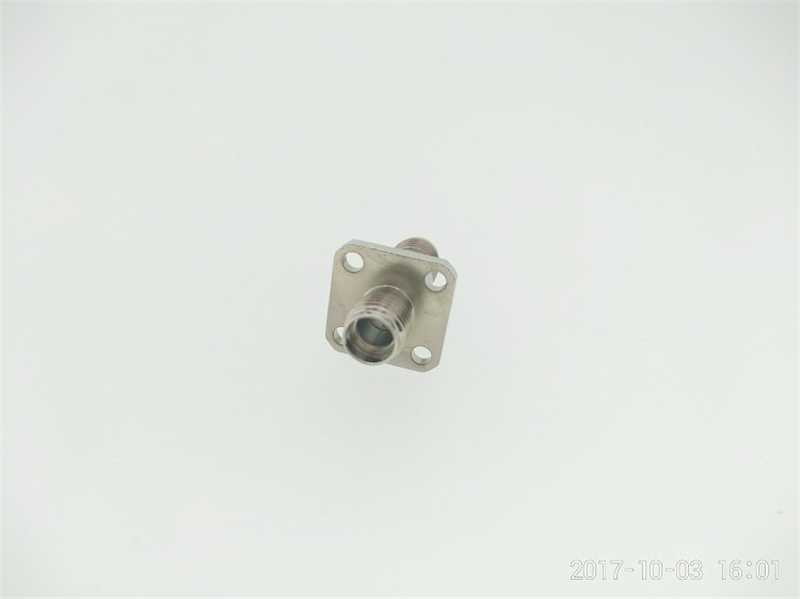

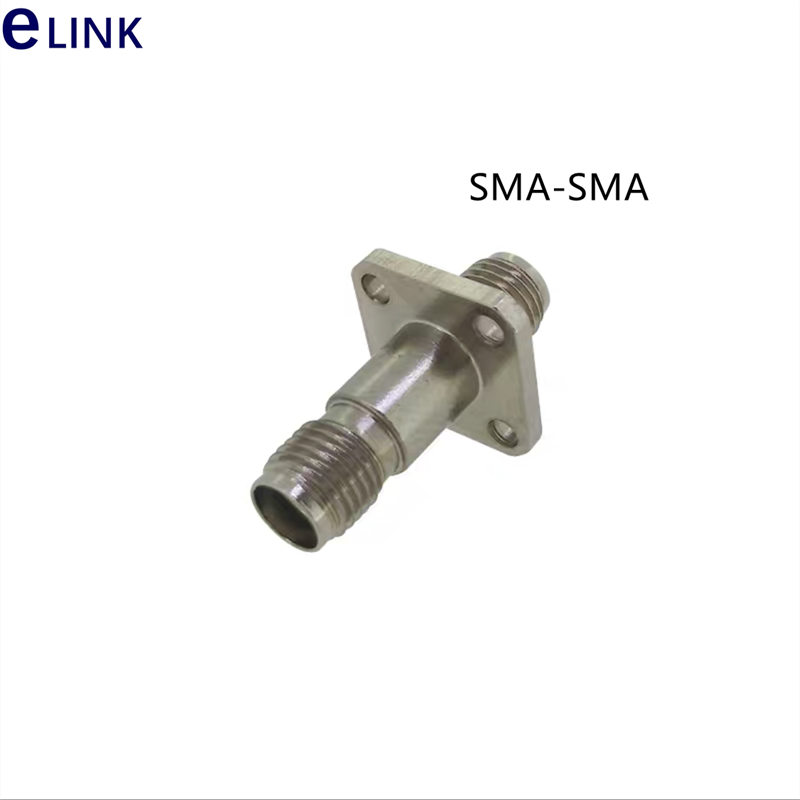

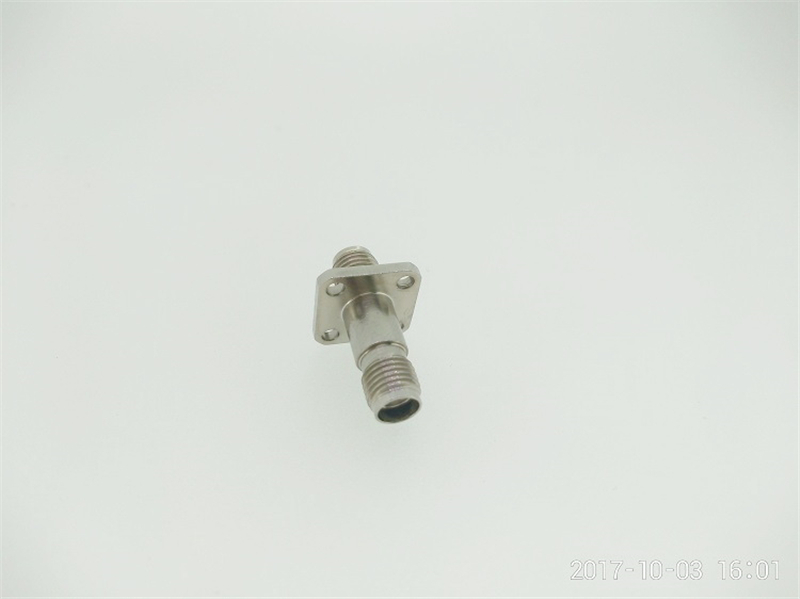

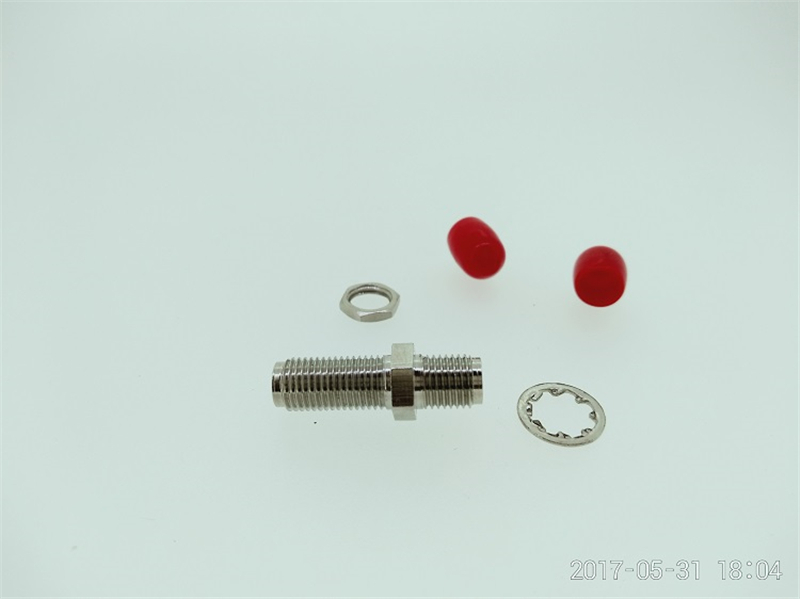

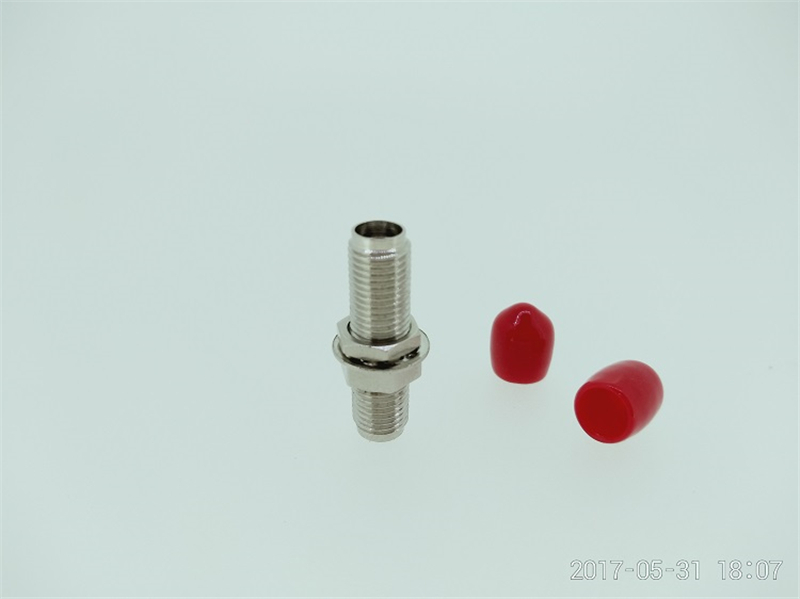

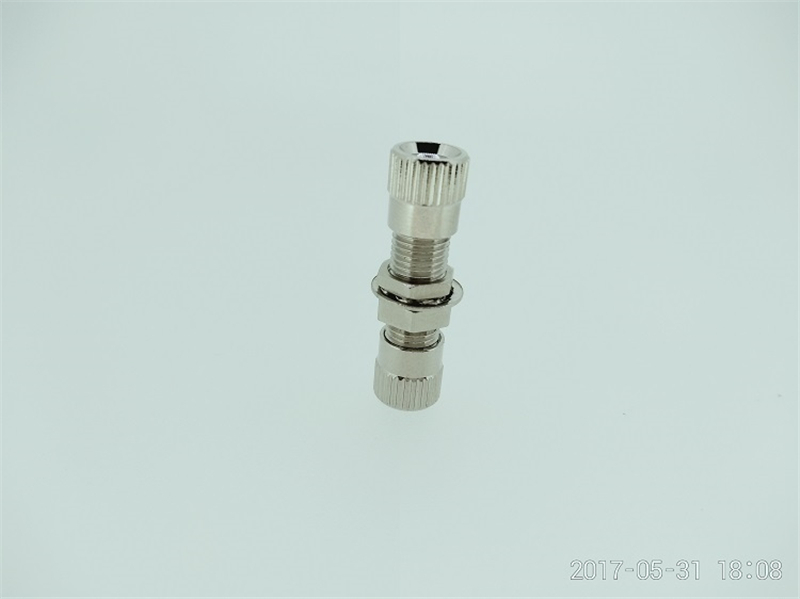

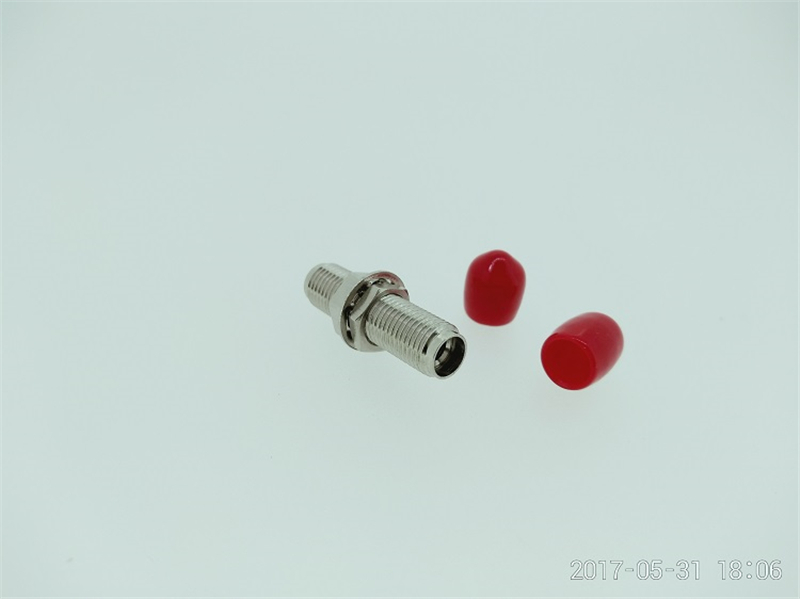

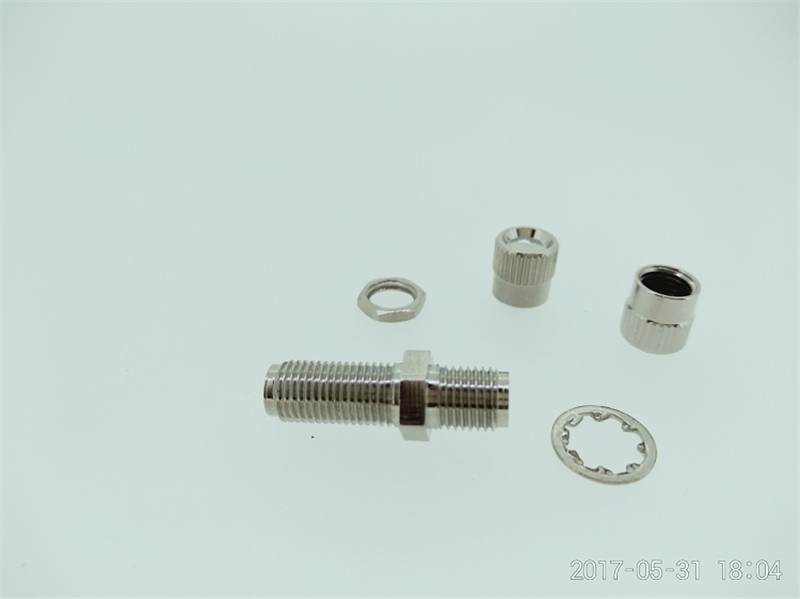

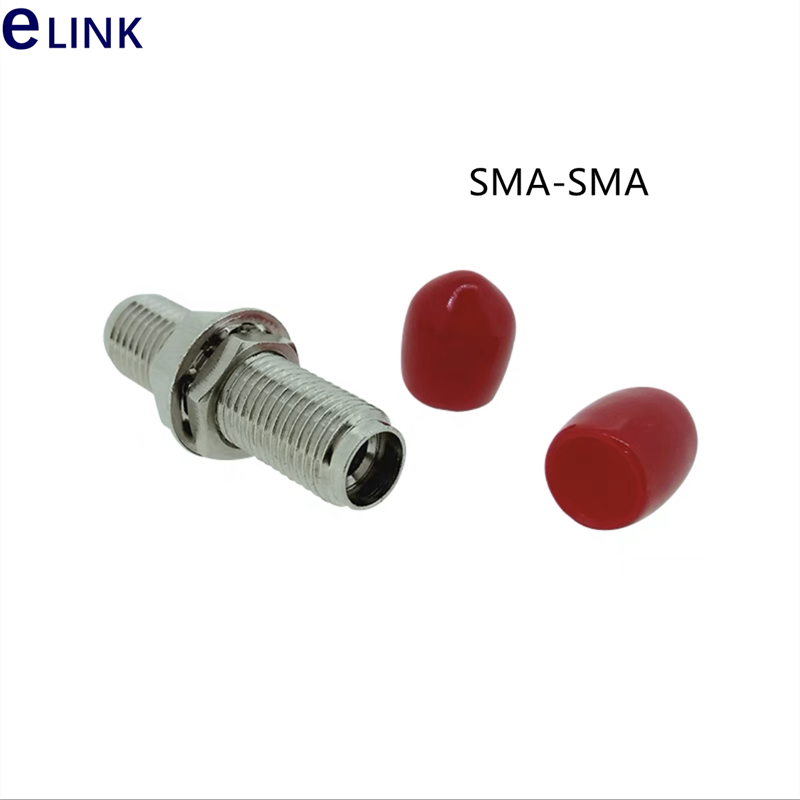

Female to Female
PIC SHOW:
Fiber Optical Adapter Series(Female-Female)
Fiber optical adapter uses a sleeve to precisely connect two side optical fiber connectors to allow optical signals to be transmitted at sufficiently low insertion loss. fiber optical adapter include: SC, LC, FC, ST, MU, D4, DIN, E2000, SMA and other series.
特点Features:
采用套管精密连接Precision connection with sleeve
单模与多模连接头均可互换使用SM and MM connector can be used interchangeably
低插入损耗，高回波损耗Low insertion loss，High return loss
良好的互换性与可靠性High interchangeability,High reliability,
符合IEC及ROHS标准要求Compliance with IEC and ROHS standards
机械尺寸精度高High precision of mechanical dimensions
技术参数Parameter
|
项目ITEM |
单模(SM-9/125) |
多模(MM-50/125) |
|
多模(MM-62.5/125) |
||
|
插入损耗Insertion Loss |
≤0.2dB |
≤0.2dB |
|
回波损耗Retun Loss |
PC≥45dB UPC≥50dB APC≥60dB |
— |
|
一致性Repeatability |
0.1dB Max. |
|
|
工作温度Temperature Range |
-40℃~+75℃ |
|
|
使用次数Opertation Times |
≥1000 |
|
