Description
High Power Laser Module 35W RGB CW Laser Diode TTL Analog LD with Power Supply Driver Board For DIY Laser Light Show
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Model Number: 35W RGB Laser Module
- Power: 125W
- Voltage: 90-240V
- Brand Name: DYUE
- Laser Name: 35W Laser Module
- Color: RGB Laser Modules
- Guaranteed Power: 35W
- Power Red: 8W / 635nm
- Power Green: 10W / 520nm
- Power Blue: 18W / 455nm
- Beam Specifications: ca. 7.5mm / 1.2mrad
- Laser Sources: Diode, DPSS Laser
- Laser Class: 4
- Main Feature: High Power Laser
Main Features:
Color diode laser at 635,520,455nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show
Specifications:
Wavelength: 635/520/445nm ( error range 5nm)
Operating mode: CW
Output power:35W
Ratio power: Red laser 8W, Green laser 10W, Blue laser 18W
Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)
Beam diameter: 6X7.5, 5X5.5, 6X7.5 (mm, at the aperture)
Beam divergence: 1.2 (full angle, mrad)
Polarization direction: Horizontal + Vertical
Warm-up time: less than 5 minutes
Beam height from base plate: 30mm
Operating temperature: 25 degrees celsius (error range 3)
Power supply: 90-240V AC
Modulaton option: TTL / Analog
Expected liftetime: 10000 hours
Warranty: 1 year

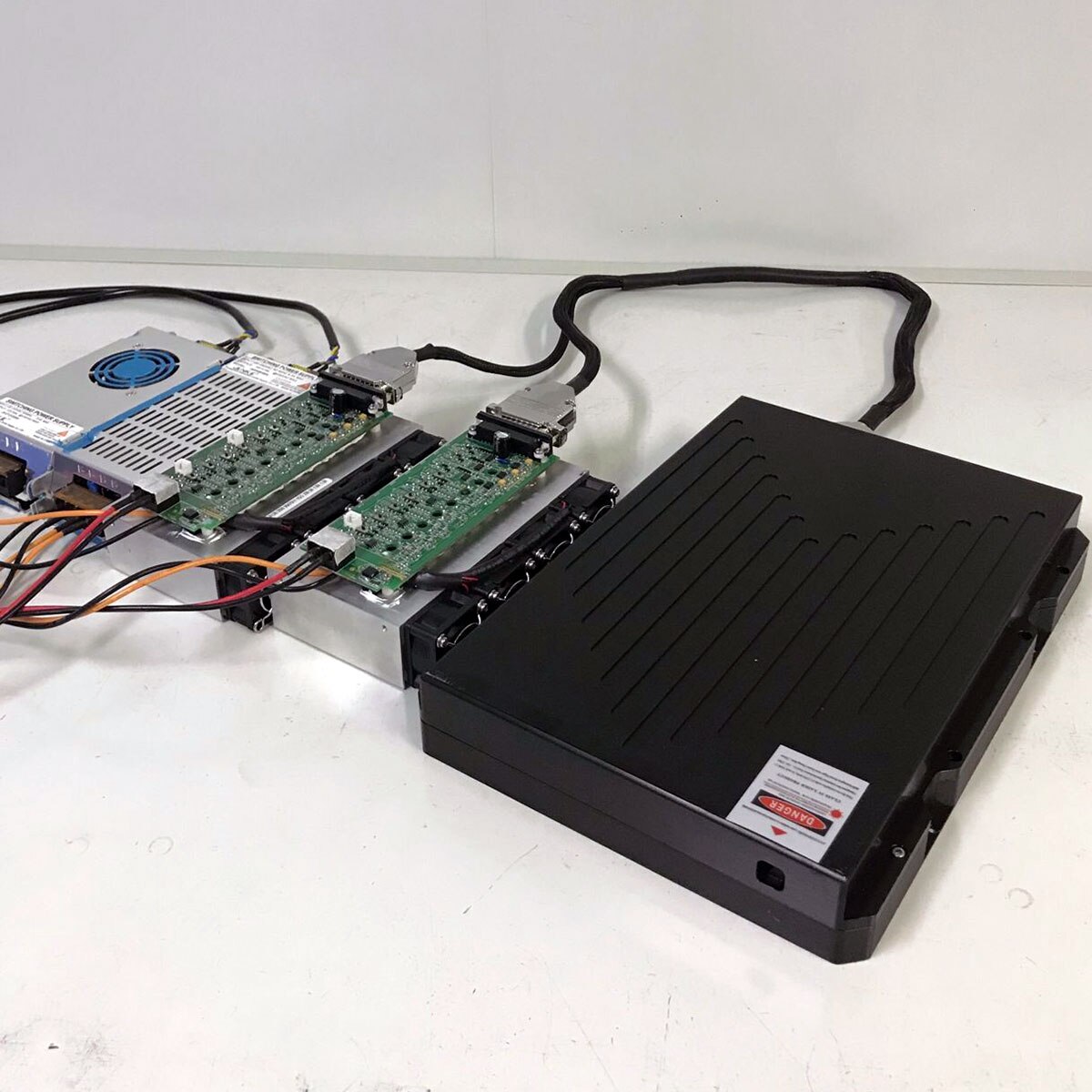

Packing Lists:

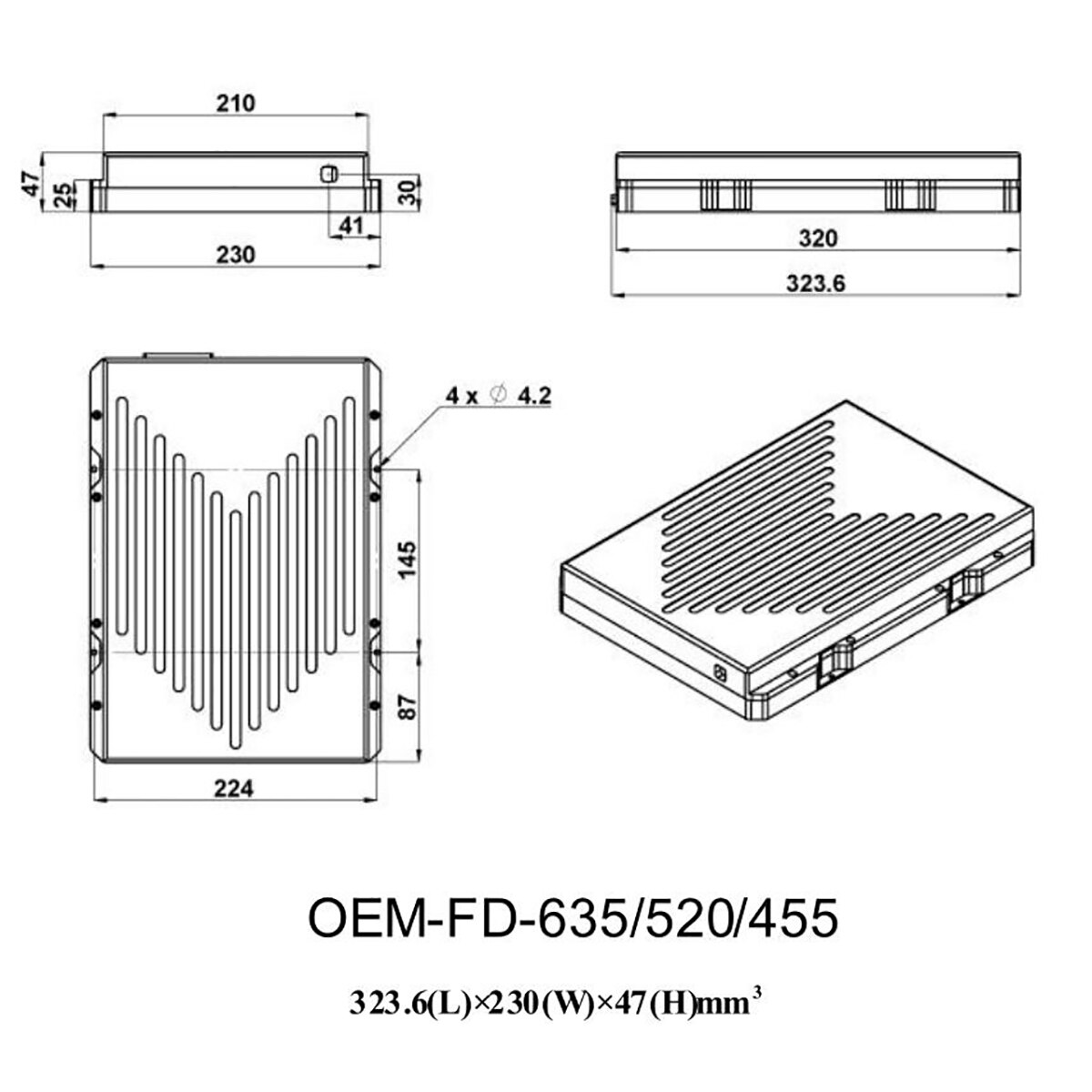

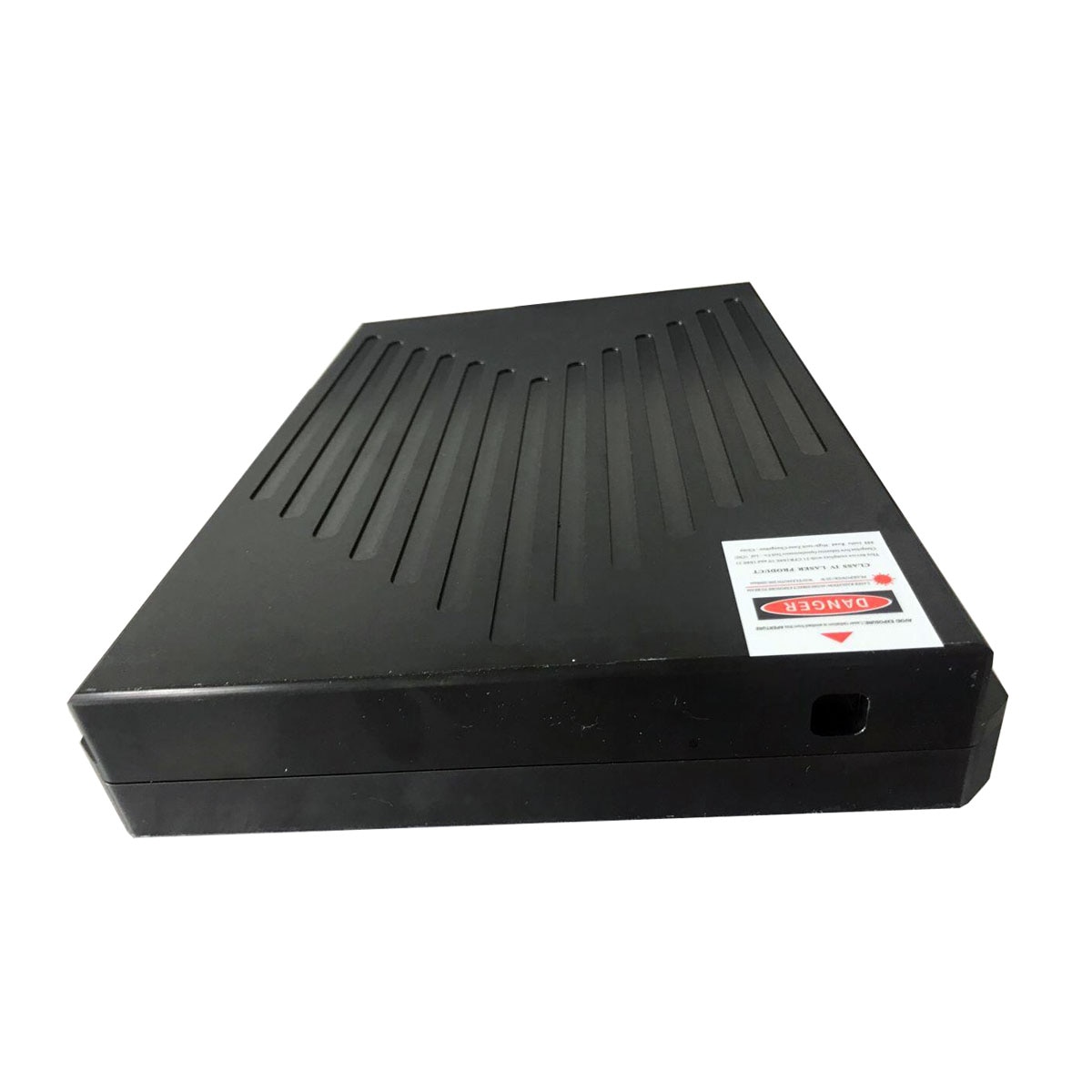

1pcs 35W RGB Laser Head

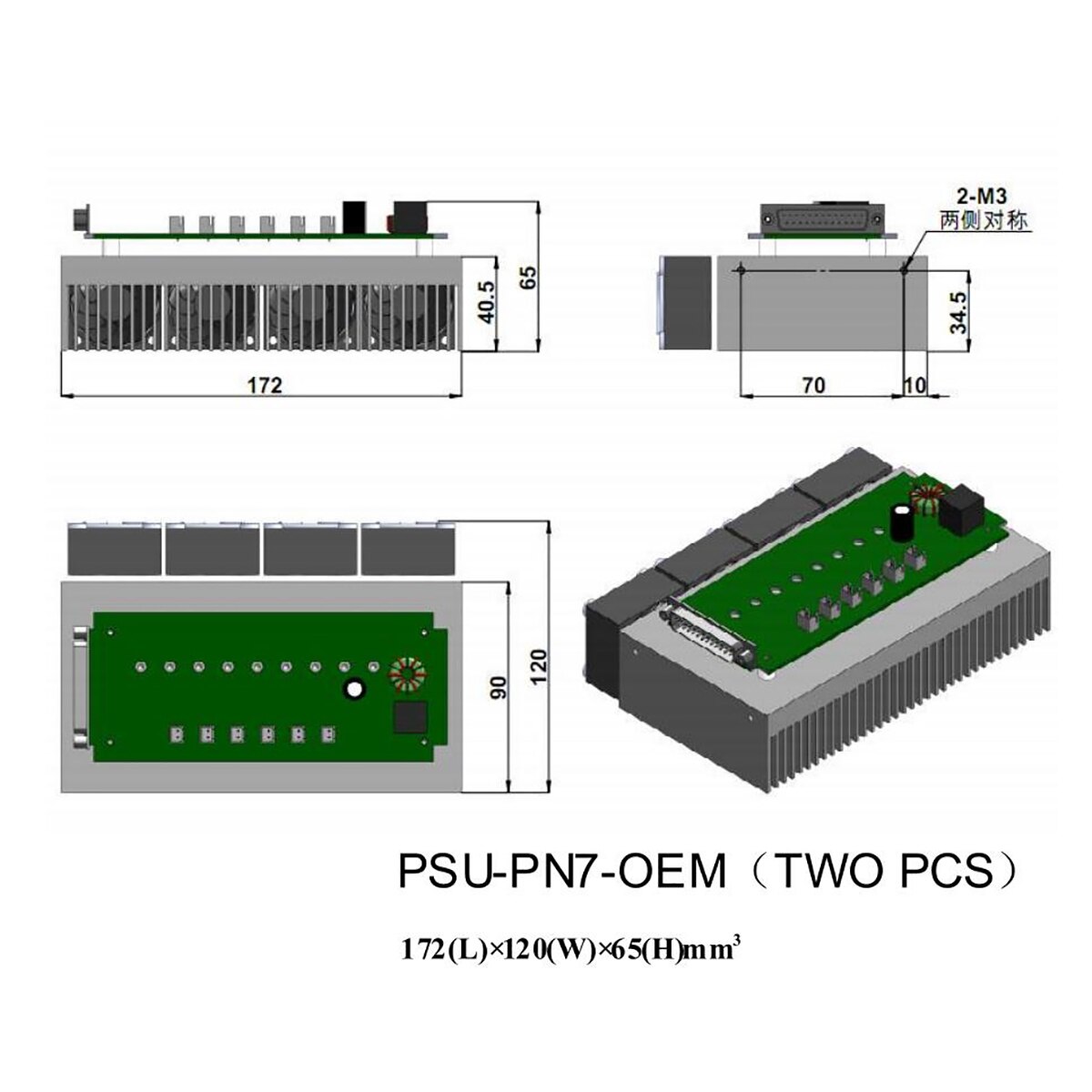

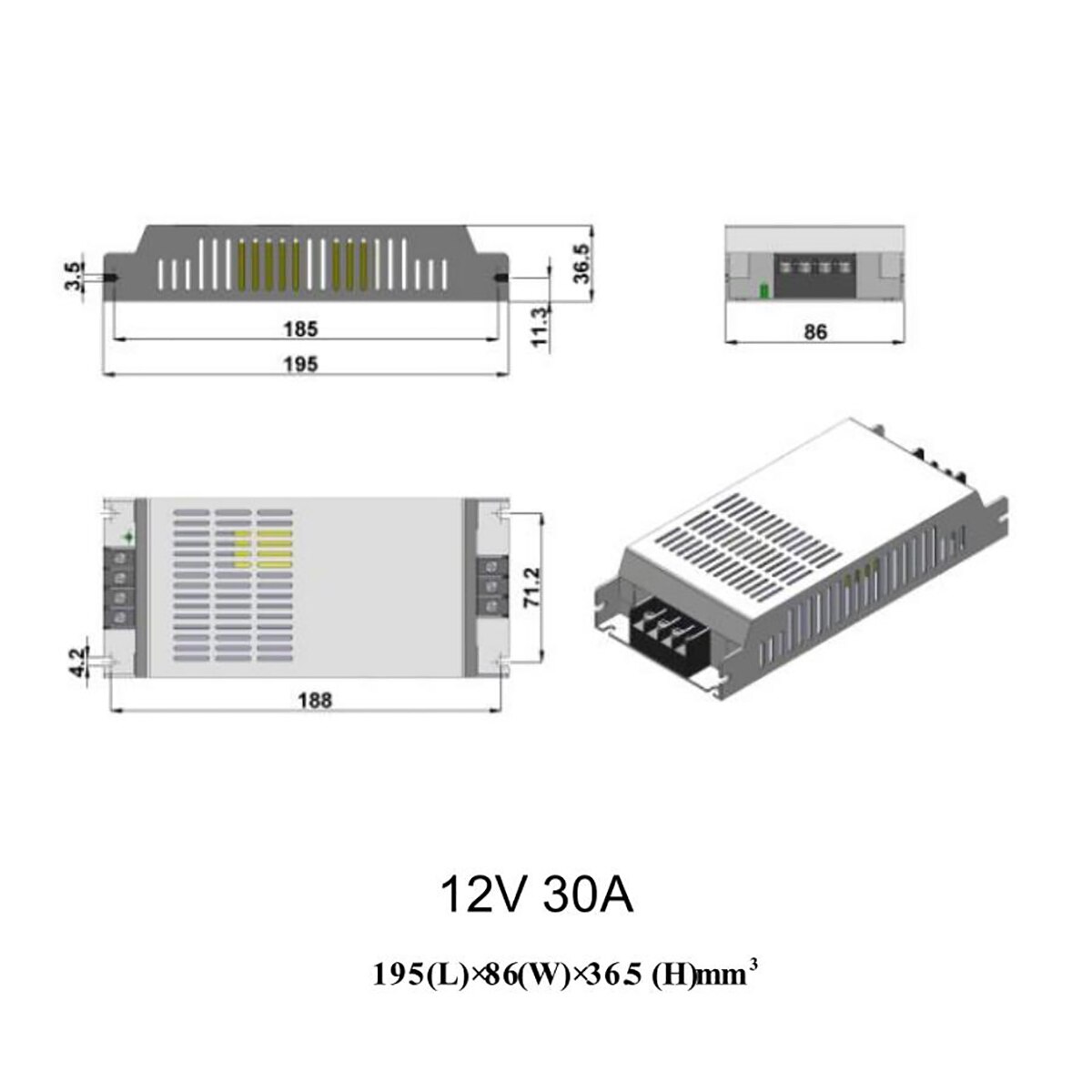

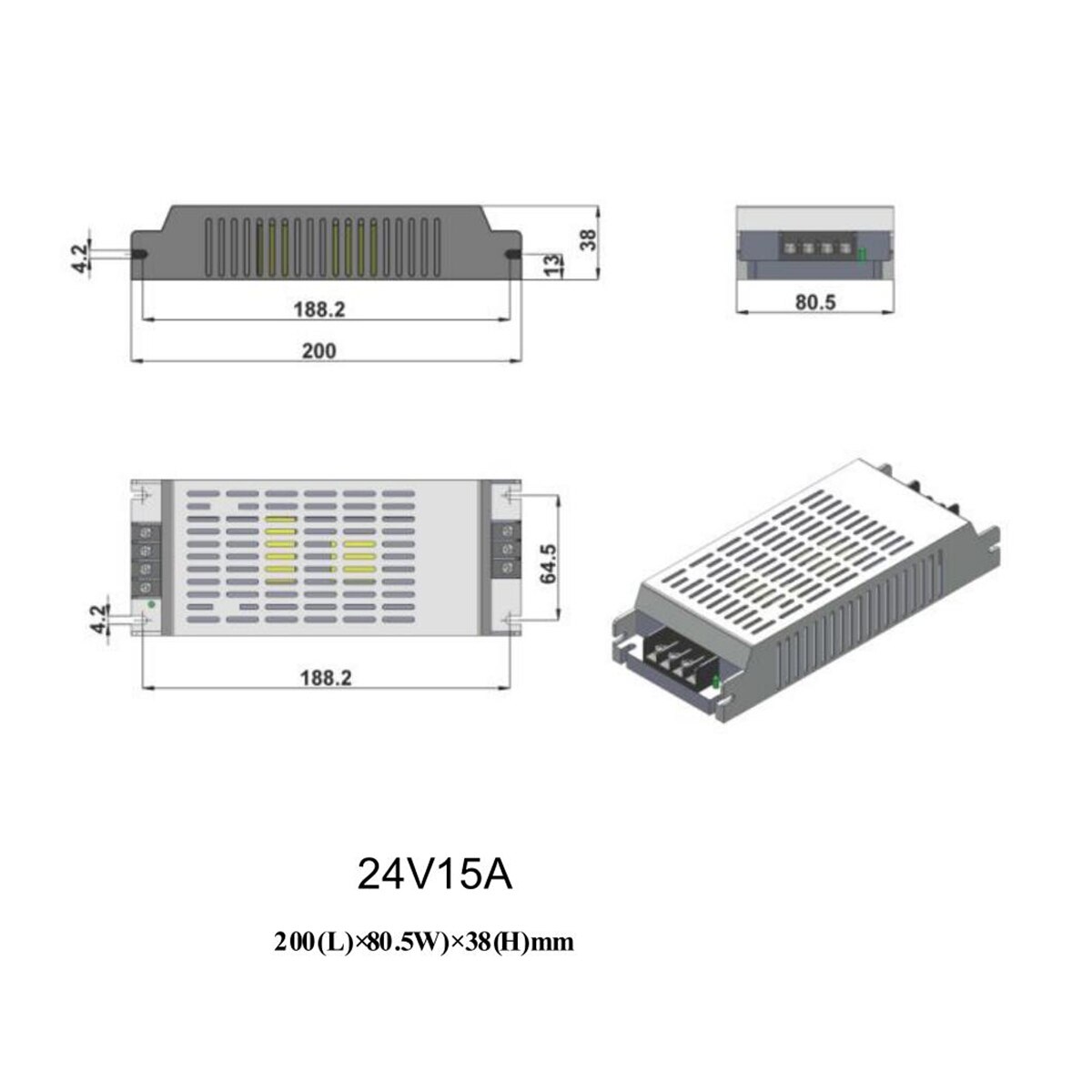

2pcs Power Supply
2pcs Driver Board
