Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±10%
- Technology: Metal Film
- Type: Trimming Potentiometer
- Operating Temperature: -20 -125℃
- is_customized: Yes
- Max. Operating Voltage: AC 50V DC 12V
- Model Number: A103
- Rated Power: 0.05W

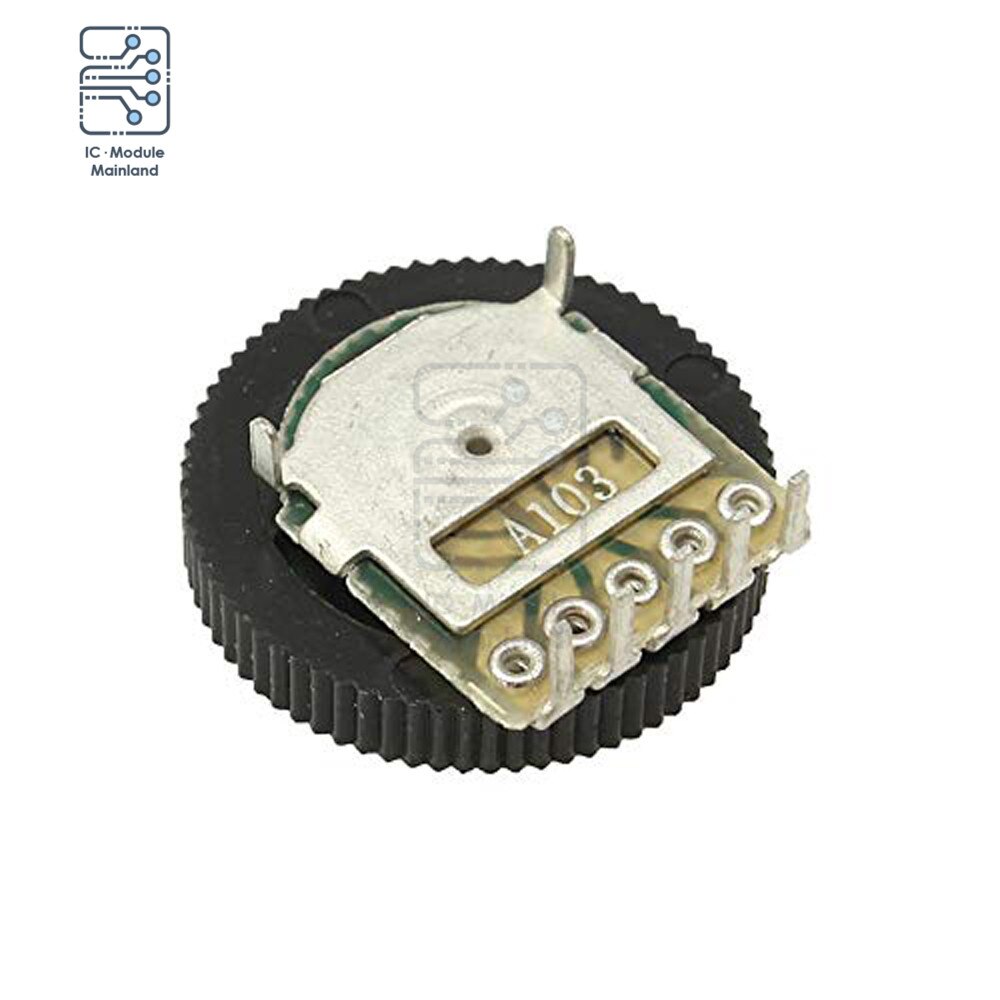

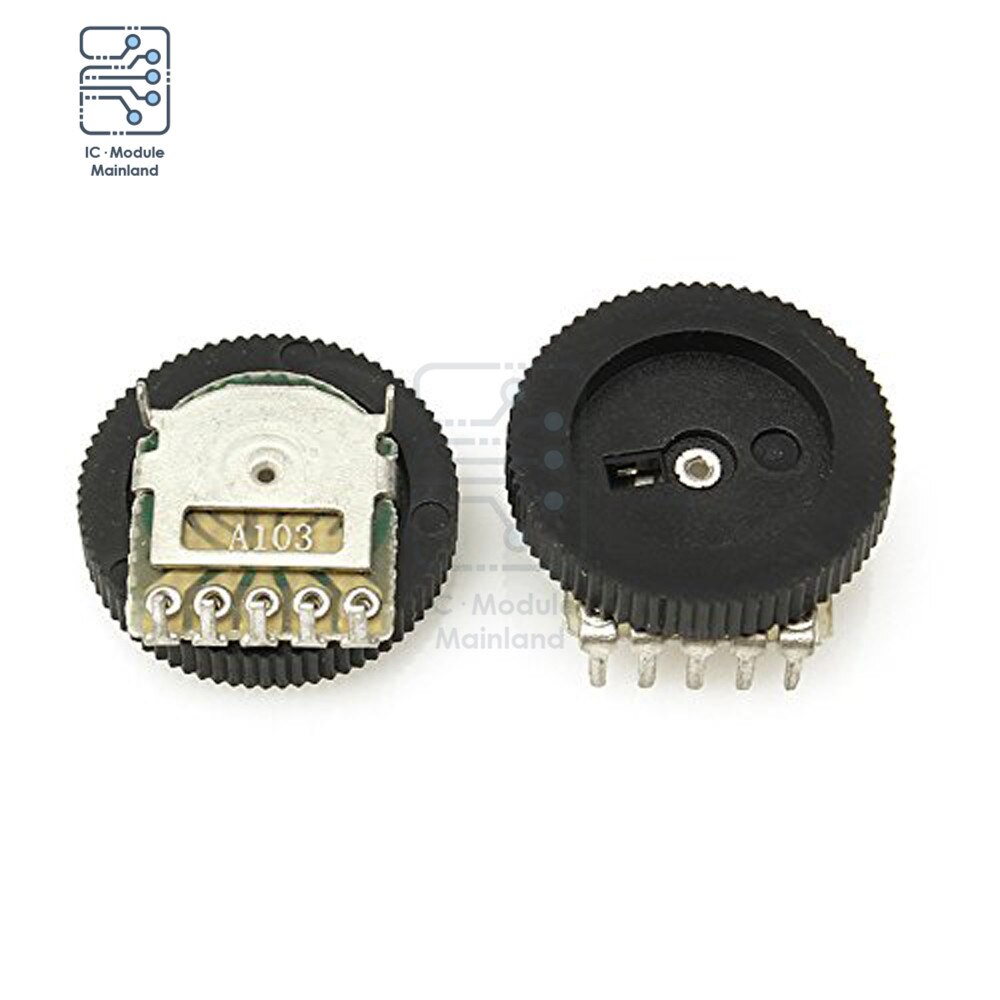

A103 10K Ohm 5 Pins Dial Wheel Potentiometer Audio Stereo Volume Gear Switch Control for Radio MP3 MP4
Description:
Dial adjustment; Linear change
Generally used for radio, tape recorder, repeater, MP3, audio volume adjustment.
Advantages, support high and low level trigger, small size, light weight, strong wear resistance, long life, high resolution
Changing the circuit voltage by rotating the gear to adjust the resistance
Specification:
Product Name: Wheel Potentiometer
Model: A103
Resistance Value: 10K Ohm
Tolerance: ±10%
PIN Mumber: 5
Max use voltage: AC50V / DC12V
Rated power: 0.05W
Size: 16 x 2mm
Package Inluded:
10 * A103 10K Ohm Wheel Potentiometer
