Description
10PCS 3296 potentiometer Kit High Precision 3296W Variable Resistor 100R -1M 200R 500R 1k 2k 5K 10K 20K 50K 100K 200k 500k
- Brand Name: STRX
- Condition: New
- Technology: Carbon Composition
- Type: Rotary Potentiometer
- Operating Temperature: -55 ~ 125
- is_customized: Yes
- Max. Operating Voltage: 300V
- Model Number: 3296W Variable Resistor

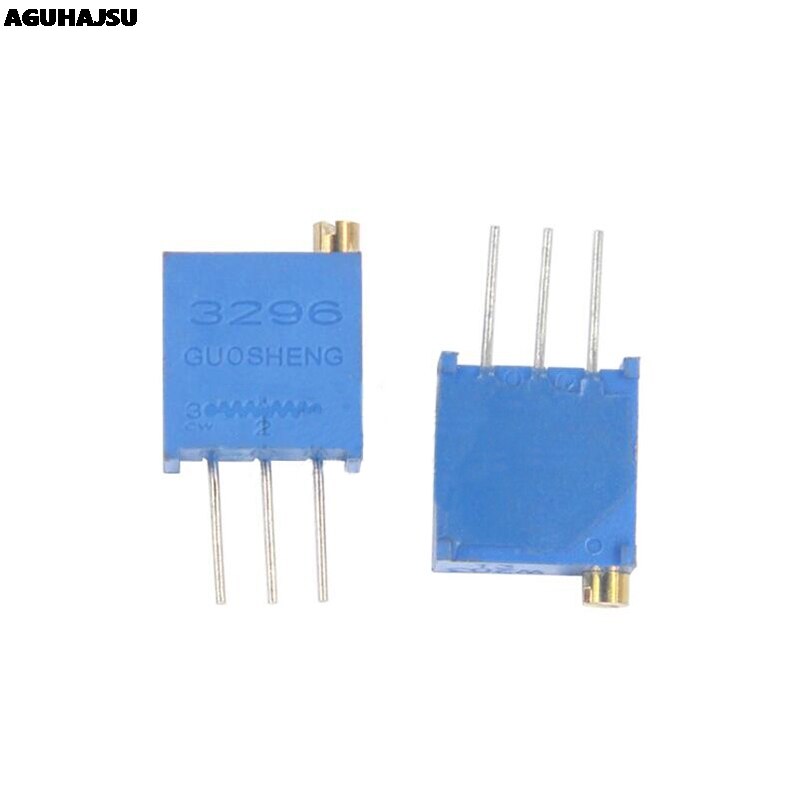

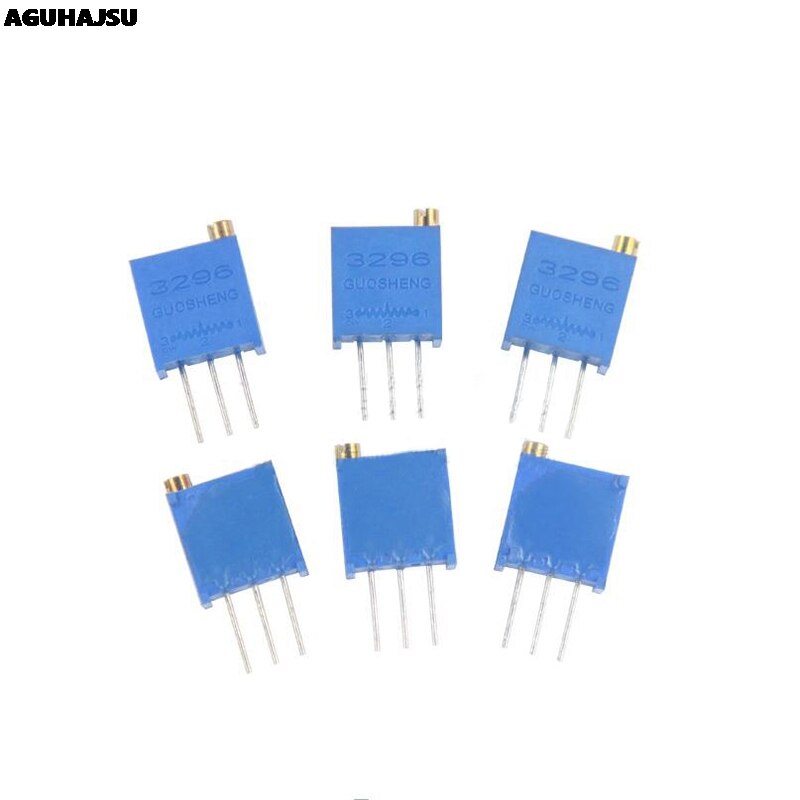

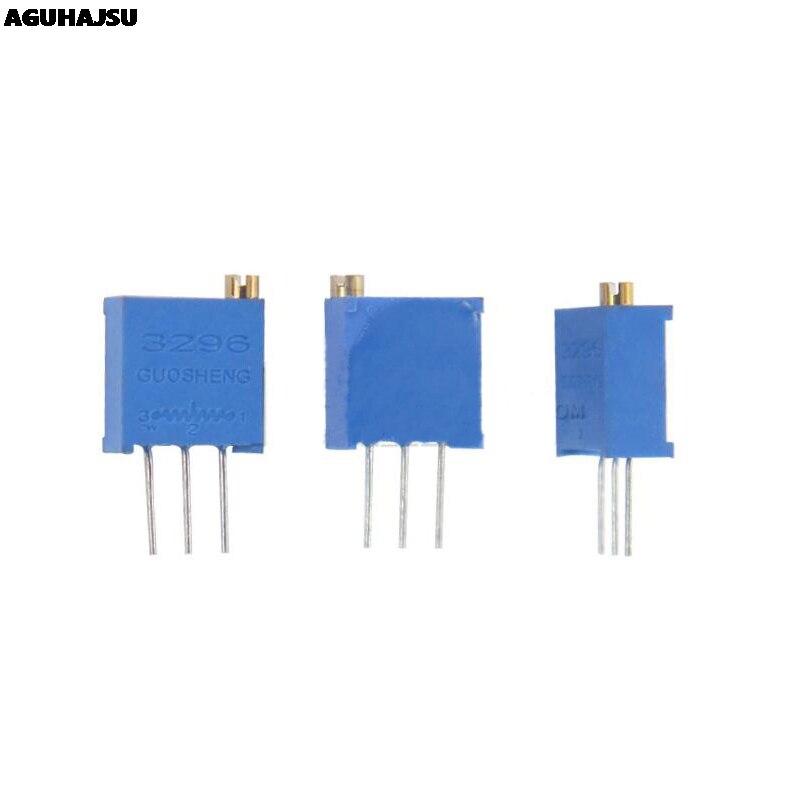

3296W multi-turn potentiometer, 13 commonly used resistance sample packages,
101=100Ω, 102=1K, 103=10K, 104=100K, 105=1MΩ
201=200Ω, 202=2K, 203=20K, 204=200K
501=500Ω, 502=5K, 503=50K, 504=500K
Resistance accuracy: ±10%
Terminal resistance: ≤1% or 2R
Rated voltage: 300V
Electrical travel: 30 ± 2 laps
Rated power: 0.5W (70 ° C), 0W (125 ° C)
Working temperature: -55 ° C ~ +125 ° C
