Description







*Product specifications:

1. Size:φ10*23mm,φ10*30mm, other sizes can be customized

2. Material: environmental protection aluminum

3. Surface treatment / color: anode fog black treatment

4. Service life: continuous output, service life & gt; 5000 hours

5. Output wavelength: 808nm/+5nm

Output power: <: 5mw

7. Range: >: 10M

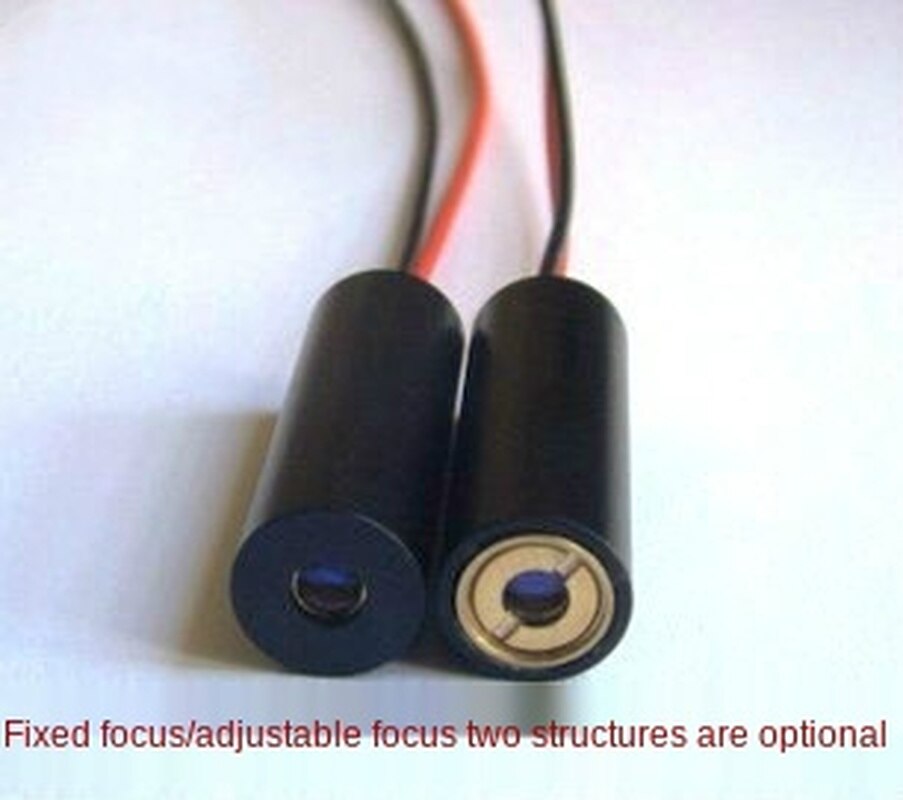

8. Spot shape / diameter: 12 * 18mm at 10m(fixed focus / adjustable focus)

9. Circuit control: ACC line

10. working voltage: 3V,5V(3V uses two No.7 batteries, and alkaline batteries have the best effect)

11. Working current: & lt; 100mA

12. Working temperature: -10℃ ~+40℃

13. Storage temperature: – 20 ℃ to + 70 ℃
