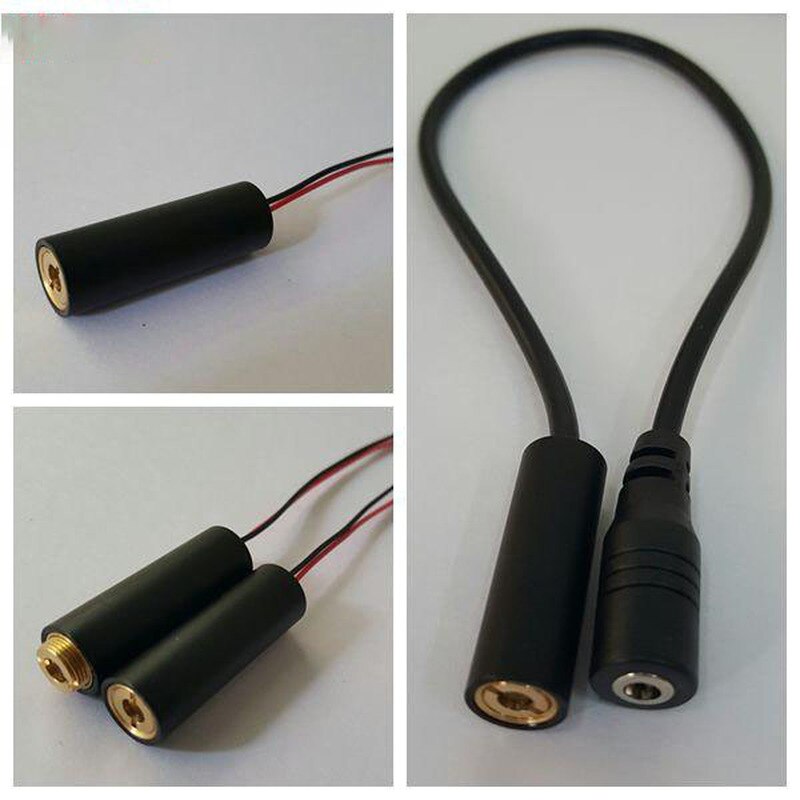

10mm650nm5mw Red Spot Positioning Laser Laser Module, Emitting Laser Diode, Laser, Environmentally Friendly Aluminum Material

$73.17

9999 in stock

SKU: 1005001511465930 Category:

Description

  • Type: Other
  • Origin: CN(Origin)













* product specifications:

1. Size: φ 10 * 23mm,φ10 ::30 mm, Other sizes customizable, default shipping sizesφ10*30mm

2. Material: environmental protection aluminum

3. Surface treatment / color: anode fog black treatment

4. service life: continuous output, service life & gt;5000 hours

Output wavelength: 650nm+/-5nm

6.输出功率:<5mw

(5mw-250mw products can be customized. The higher the power, the farther the range, the brighter the light, and the thicker the light track, the higher the price will be.)

7. Range :& lt;300M

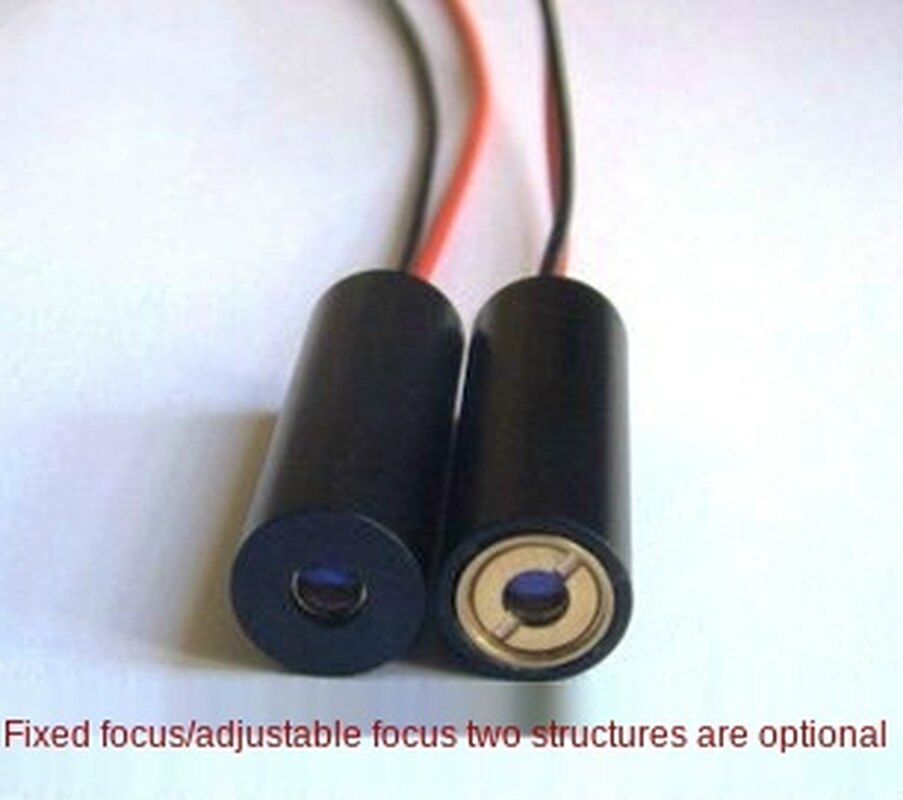

8. Spot shape/diameter: 8*12mm at 10M(固定焦/可调焦两种可选)

9. Circuit control: APC line.

10. Working voltage: 3v-5v (two No.7 batteries, alkaline battery is the best)

11. Working current: & lt; 40mA

12. Working temperature: – 10 ℃ to + 40 ℃

13. Storage temperature :-20 degrees ~70 degrees
