10mm650nm100mw Positioning Laser Module Laser Head Red Light LineEmitting Diode

$60.72

9999 in stock

SKU: 1005001489275275 Category:

Description

  • Type: Other
  • Origin: CN(Origin)









* Product Specifications:

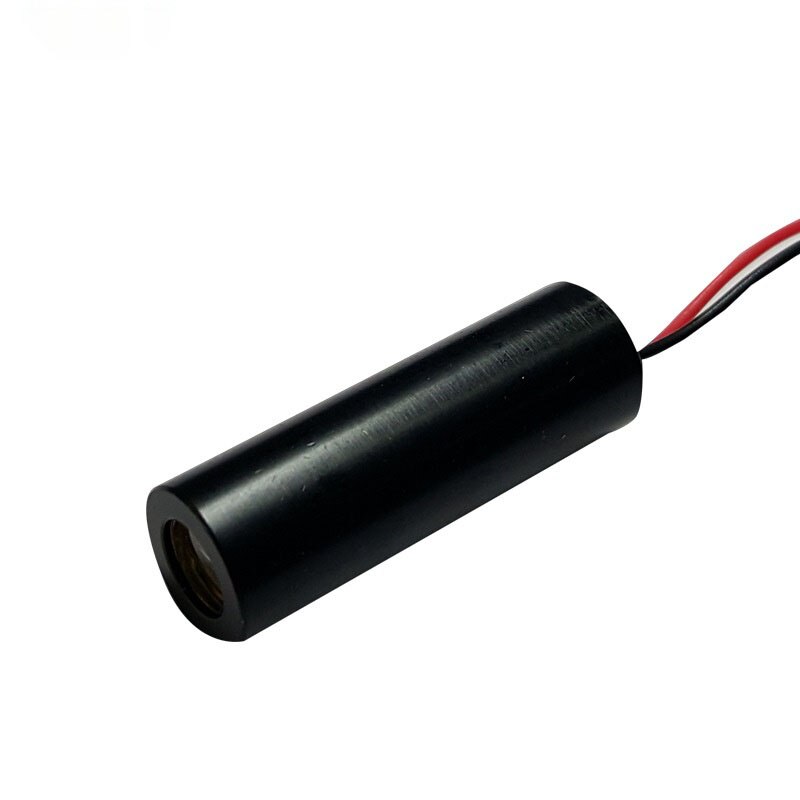

1. Size:φ10*23mm,Other Size Can Be Customized

2. Material: Environmentally Friendly Aluminum

3. Surface Treatment/Color: Anode Fog Black Treatment

4. Service Life: Continuous Output, Service Life> 5000 Hours

5. Output Wavelength: 650Nm/+/-5NM

6. Output Power:<100MW

* (You Can Order 5MW ~ 250MW Products, the Higher the Power, the Farther the Range, the Brighter the Light, and the Thicker the Light Track Line, the Higher the Price Will Be)
7. Range: 30M

8. Light Spot Shape/Diameter:Straight Line, Minimum Line Width ≤ 1.0; Line Width <4mm at 1M,

9. Light Spread Angle:36.5 °,60 °,90 °,110 ° (Available at Various Angles)The Default Delivery Is 90 °

10. Circuit Control: OPC Circuit

11. Working Voltage: 3v-5v (Two AAA Battery, Alkaline Battery Is the Best)

12. Working Current: <150ma

13. Working Temperature:-10 Degrees ~ +70 Degrees

14. Storage Temperature:-20 Degrees ~ +80 Degrees
