Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: Fiber Laser Engraving Machine
- CNC or Not: CNC
- Is Smart Device: No
- Laser power: 20W/30W/50W
- Working Area: 200x200mm(110x110mm or 300x300mm optional)
- Cooling Mode: Air Cooling
- Laser Wavelength: 10.64 um
- Marking Depth: Max 0.3 mm
- Marking Speed: Max 8000 mm/s
- Marking Lines: 1-10 lines
- Minimum Line Width: 0.01 mm
- Minimum Character: 0.15 mm

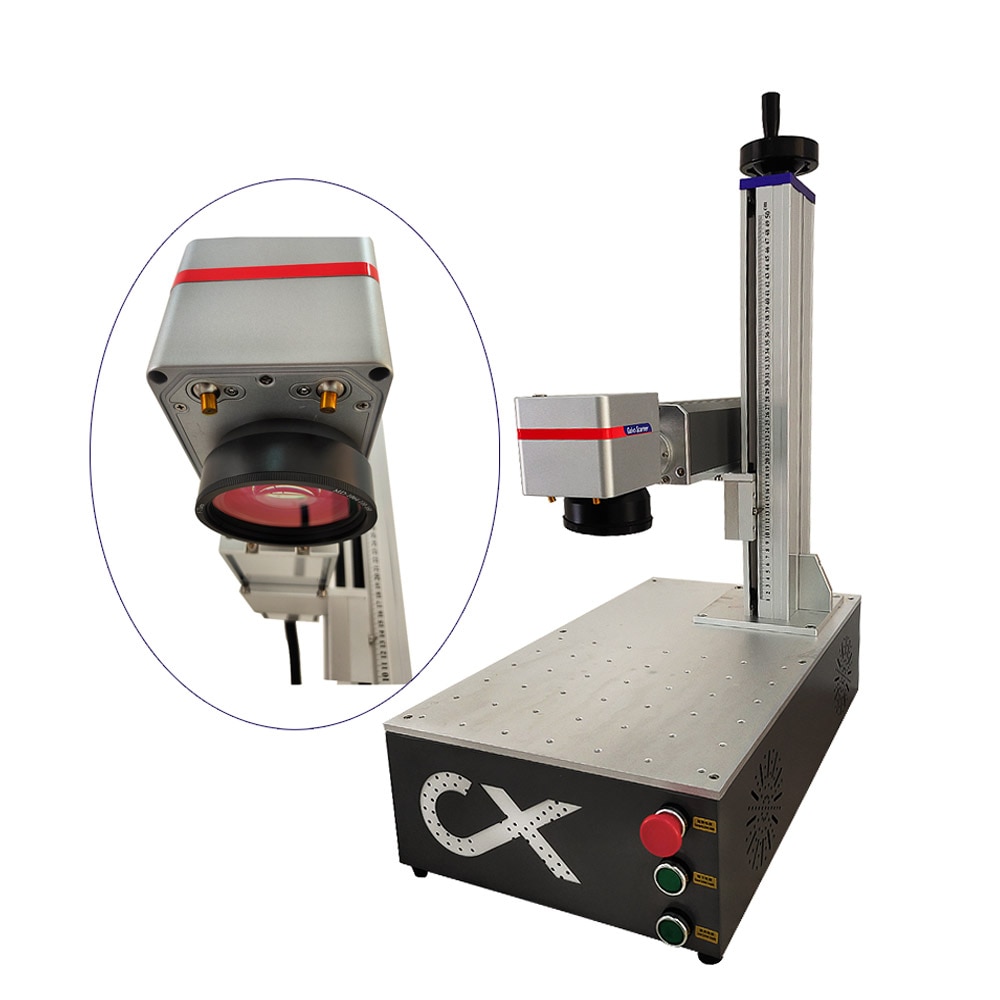

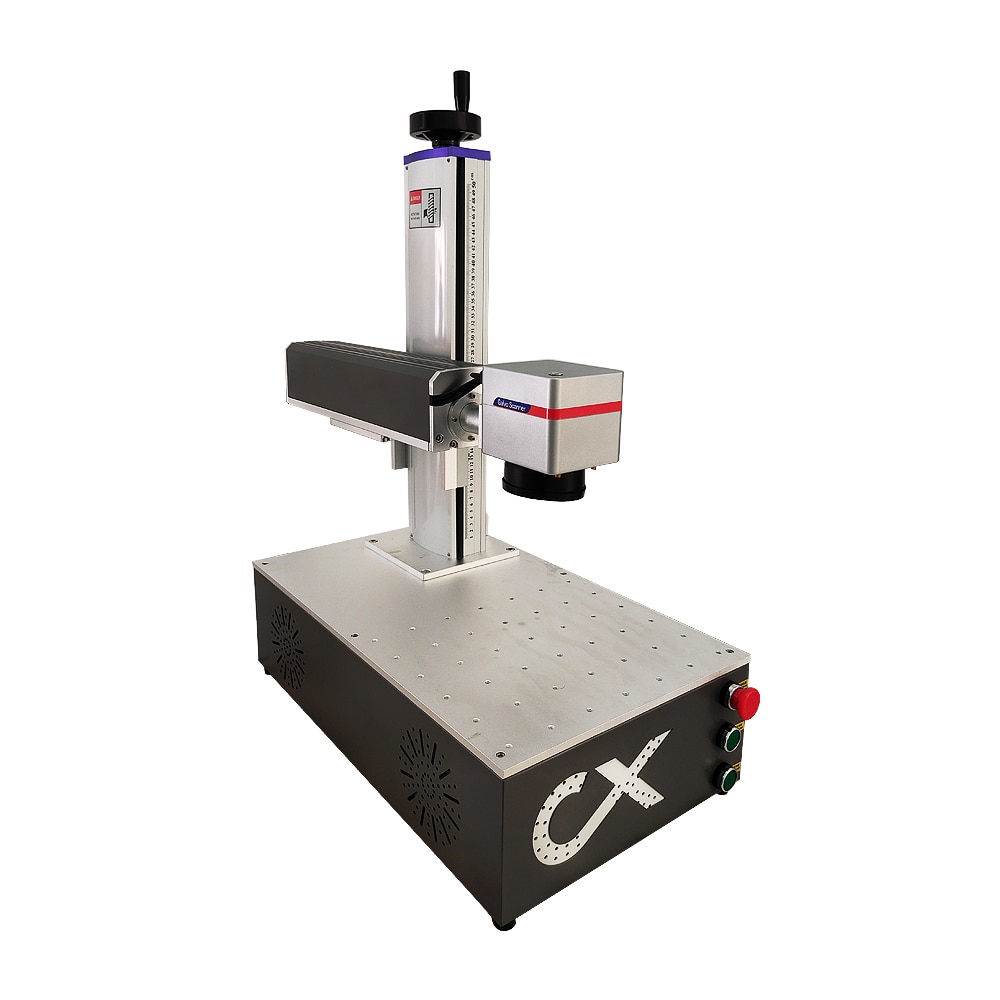

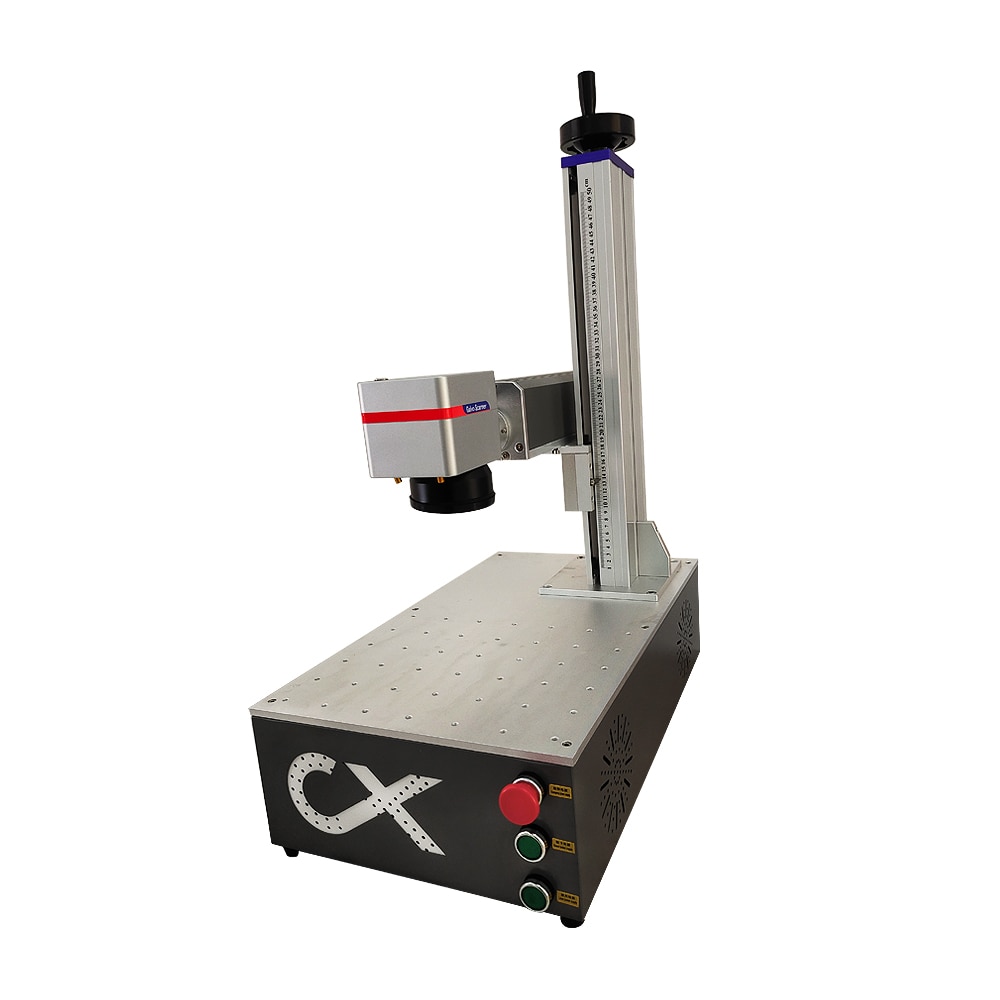

Fiber Laser Nameplate Marking Machine 1064um Super-laser Max Raycus 20W 30W 50W Fiber Laser Engraver with Align System
The motherboard supports win10 and supports 32-bit 64-bit.
Technical Parameter
Model |
|
Laser power |
20W/30W/50W |
Working Area |
200*200mm(110*110mm or 300*300mm optional) |
Cooling Mode |
Air Cooling |
Laser Wavelength |
10.64 um |
Frequency of pulse |
20-100 KHz |
Marking Depth |
≤0.3 mm |
Marking Speed |
≤8000 mm/s |
Marking Lines |
1-10 lines |
Minimum Line Width |
0.01 mm |
Minimum Character |
0.15 mm |
Repeatability Accuracy |
±0.002 mm |
Resolution Ratio |
0.1 mm |
Marking Content |
Text, pattern, date, bar code, etc |
Operation System |
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |
Control Software |
EZCAD ENGLISH Control Software |
Graphic Format Supported |
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
Unit Power |
≤0.9 KW |
Operation Temperature |
5°C-40°C |
Relative Moisture |
≤ 90%, no fog |
Dimensions(L*W*H) |
95 x 78 x 55 cm |
Power supply requirements |
220 V or 110V |
Weight |
60KG |
Warranty |
24 months |
