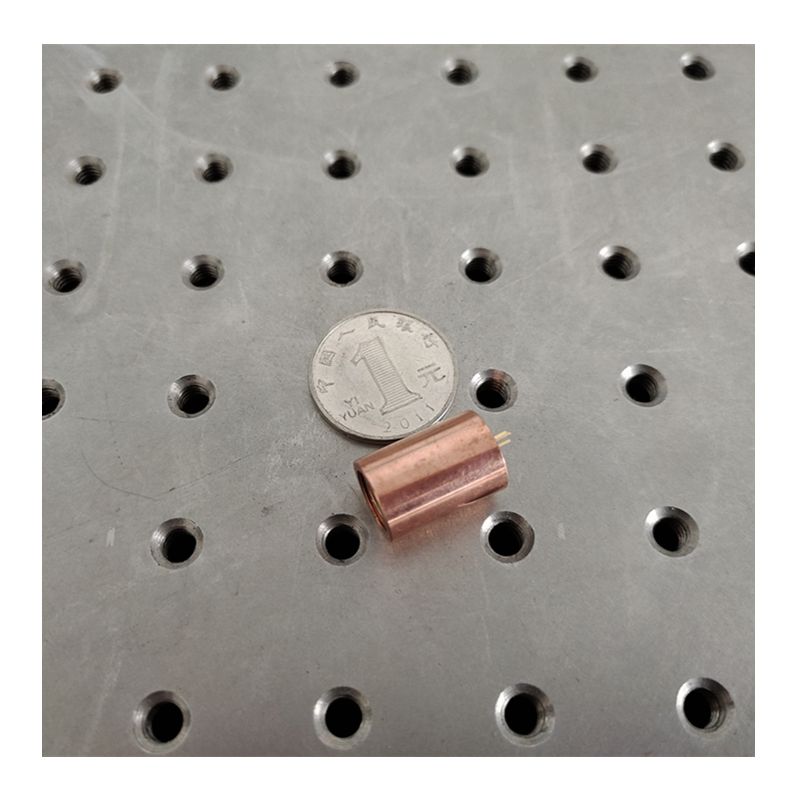

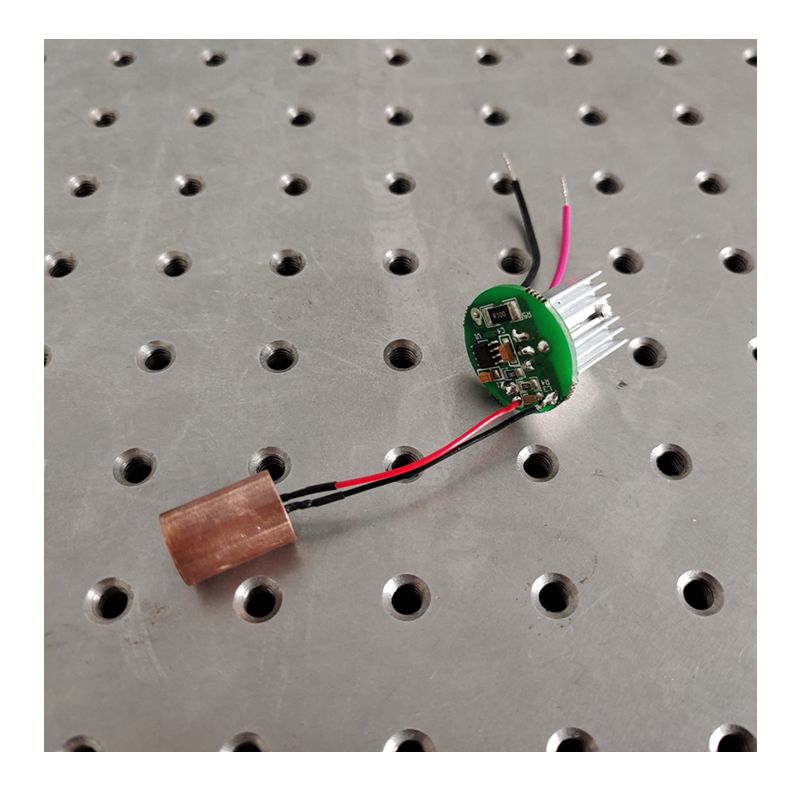

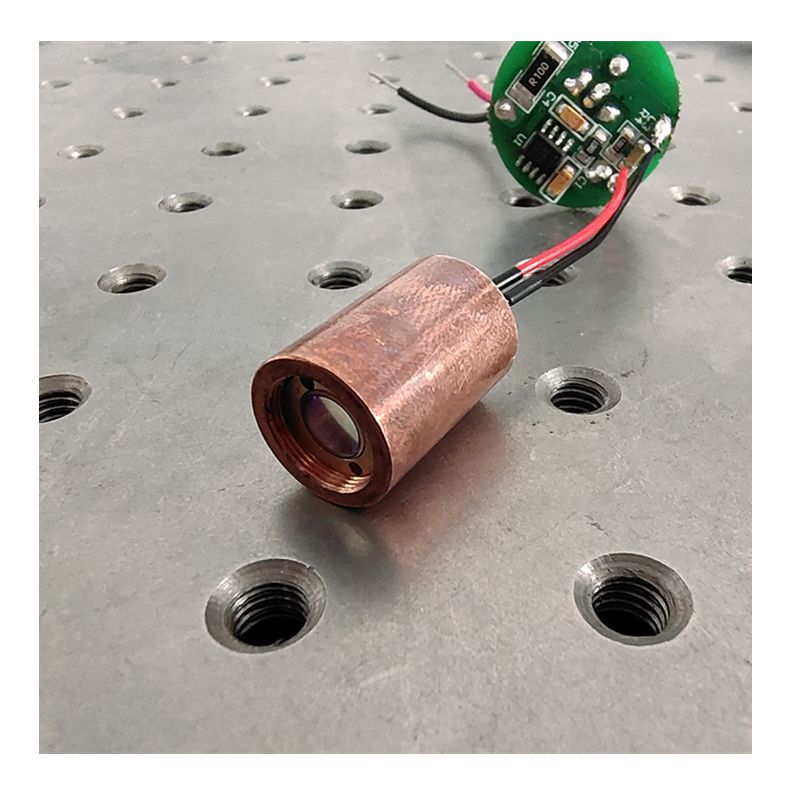

1064nm Infrared Solid Laser Diode Module With Driver Small Size Mini 200mw-500mw
Wavelength: 1064nm
linewidth FWHM: <2nm
Operation Mode: CW
Output Power: 200mW or 500mW
1064nm 200mw 500mw Infrared Solid Small Size Laser Diode Module With Driver
Parameters
Wavelength: 1064nm
linewidth FWHM: <2nm
Operation Mode: CW
Output Power: 200mW or 500mW
Spatial Mode,Near TEM00 for 200mW, TEM00 for 500mW
Beam Size:0.8mm * 0.6mm for 200mW, 0.6mm for 500mW
Beam Divergence full angle:3.3*3 mrad for 200mW, 3mrad for 500mW
Polarization: 100:1
Power Stability:1%
Beam Height:25mm/29mm
warm up time: < 1 minutes
Lifetime, MTTF: 5,000 hrs
Power Supply: 25mm * 22mm DC 2.5-3.3V Input
linewidth FWHM: <2nm
Operation Mode: CW
Output Power: 200mW or 500mW
Spatial Mode,Near TEM00 for 200mW, TEM00 for 500mW
Beam Size:0.8mm * 0.6mm for 200mW, 0.6mm for 500mW
Beam Divergence full angle:3.3*3 mrad for 200mW, 3mrad for 500mW
Polarization: 100:1
Power Stability:1%
Beam Height:25mm/29mm
warm up time: < 1 minutes
Lifetime, MTTF: 5,000 hrs
Power Supply: 25mm * 22mm DC 2.5-3.3V Input
Package:
1pc small size 1064nm infrared laser module
