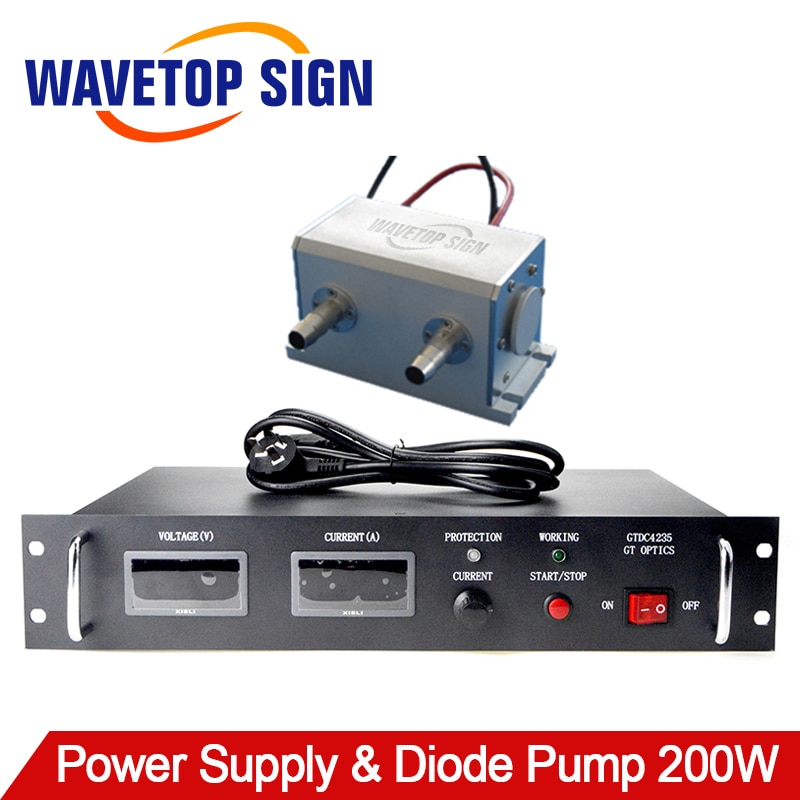

1064nm GTPC-200W High Power Diode Pumped Nd: YAG Laser Cavity Size 130x64x72mm

$5,999.00

SKU: 32788642118 Category:

Description



  • Brand Name: wavetopsign
  • Type: Other
  • Origin: CN(Origin)
  • Model Number: YAG 200W
  • is_customized: Yes
  • Material: Aluminium-copper Alloy
  • Usage: Commercial Manufacture
  • SKU: WT06107024



Features:

1.High power output                          2.Specular-light conversion efficiency

3.High-reliability seal                         4.Long service life

5.Compact structure                          6.Easy to use

7.Low drive voltage, low energy consumption                8.Small amount of refrigerant





1064nm GTPC-200W High Power Diode Pumped Nd: YAG Laser Cavity Size 130x64x72mm

未标题-1_04





Technical parameters:

1.CW Output Power:200W                                       2.Threshold Current:12A

3.Operating Current:29A                                          4.Drive voltage: 42V

5.Center Wavelength:1064nm                                  6.YAG Rod length: 105mm

7.The Diameter of the YAG rod:5mm                       8.YAG Terminal:Flat/AR at 1064nm/YAG doped 1%

9.The cooling water flux: 20-40L/min                       10.Cooling power: >1500W

11.Optimum temperature:   21°C                             12.Storage temperature: -20 ℃~ +70℃

13.YAG Rod diameter: 5mm                                    14.YAG Bar Center height: 40mm

10.Working temperature: 22 ℃

Note: the above test conditions for the driving current 29A 、 20 ℃ And short-cavity, the cavity length 200mm And transmittance of the output mirror 20 %



Cooling requirements:

1.Cooling capacity: 〉1500W                                                            2.Refrigeration temperature: 5℃—35℃

3.Temperature control accuracy: < +0.5 c                                         4.Temperature resolution: 0.1 ℃

5.Pressure: 〉3.5kg, &Lt, 4kg                                                            6.Flow rate: 20 litres/min

7.Pressure: 3.5kg (or pump lift 35 meters).                                        8.Pressure switch: 〉3.0kg

9.Flow switch: 20 litres/min                                                                11.Water: distilled water

10.Flow switch installation location: module water waterways           12.Filter: 5 μ m

未标题-1_06
详情页_02详情页_04详情页_06详情页_08详情页_10
