Description

1060nm Variable Optical Attenuator Fiber HI1060-6/125 um

Adjustable optical attenuator uses high precision adjustable attenuator, combined with embedded data processing platform, to provide a maximum of 30/60 dB of accurate attenuation. The RS232 communication interface is built in the attenuation meter, and the user can realize remote control of the attenuation meter through the RS232 interface.

Application:
Optical transceiver testing
Active optical device testing
Research and Laboratory application

Full scale accuracy better than 0.2dB
Repeatability better than 0.1dB
RS232 Communication interface

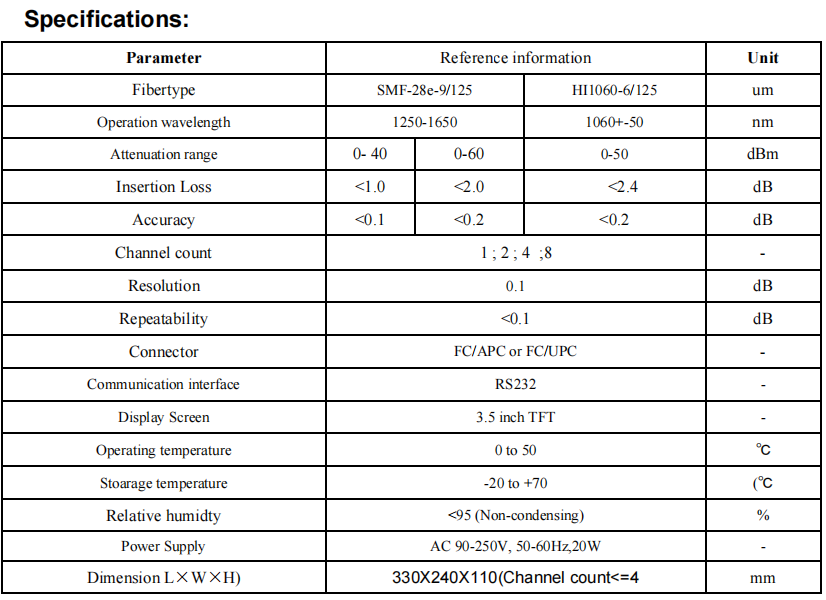

Fibertype HI1060-6/125 um
Operation wavelength 1060+-50 nm
Attenuation range 0-50 dBm
Insertion Loss <2.4 dB
Accuracy <0.2 dB
Channel count 1,2,4,8
Resolution 0.1dB
Repeatability <0.1 dB
Connector FC/APC or FC/UPC –
Communication interface RS232 –
Display Screen 3.5 inch TFT –
Operating temperature 0 to 50
Stoarage temperature -20 to +70
Relative humidty <95 (Non-condensing) % Power Supply AC 90-250V, 50-60Hz,20W
Dimension L*W*H) 330X240X110(Channel count<=4 mm
