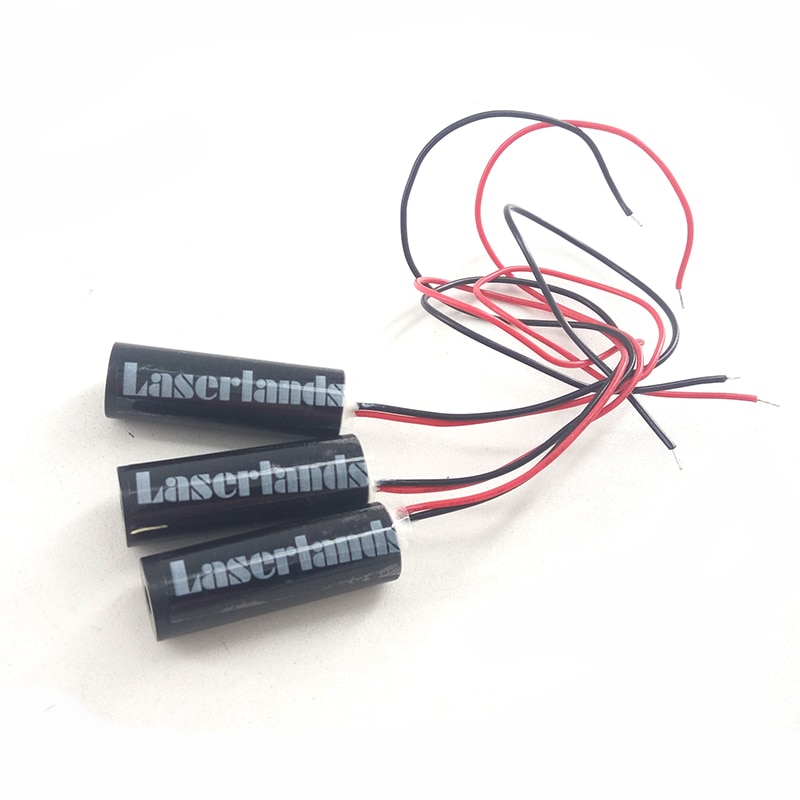

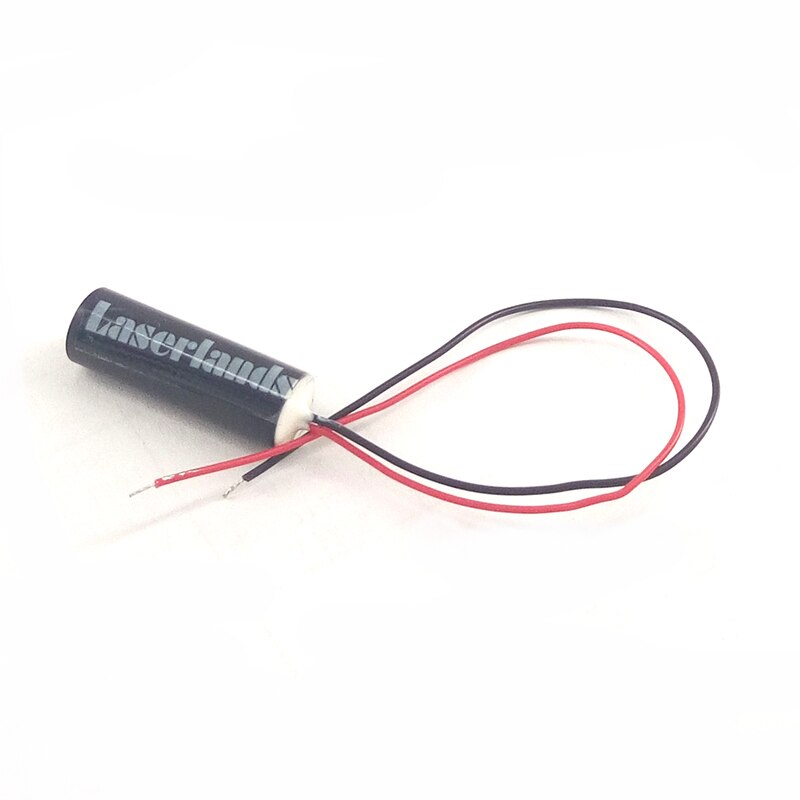

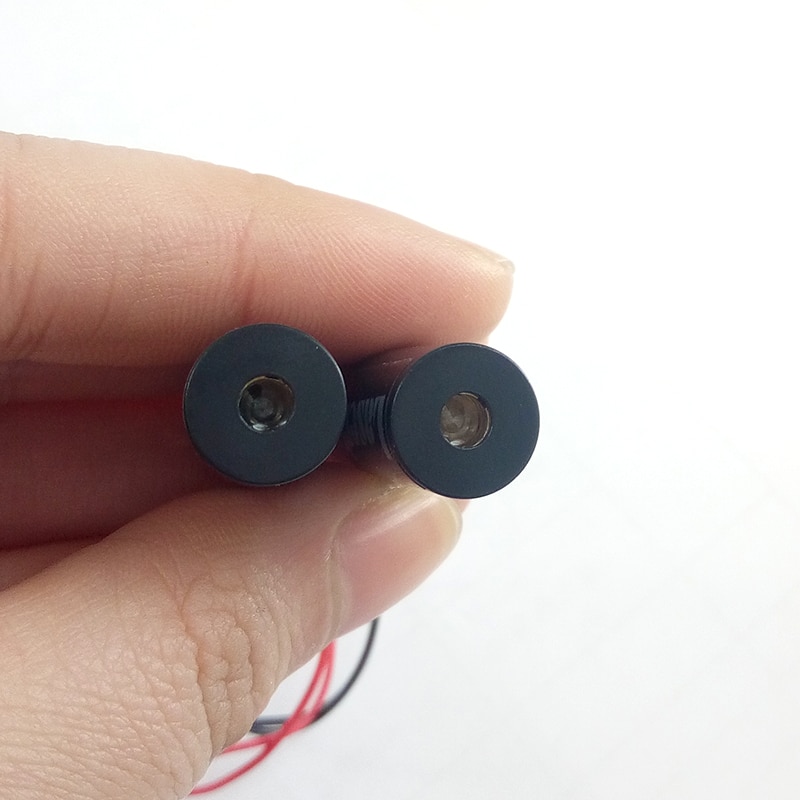

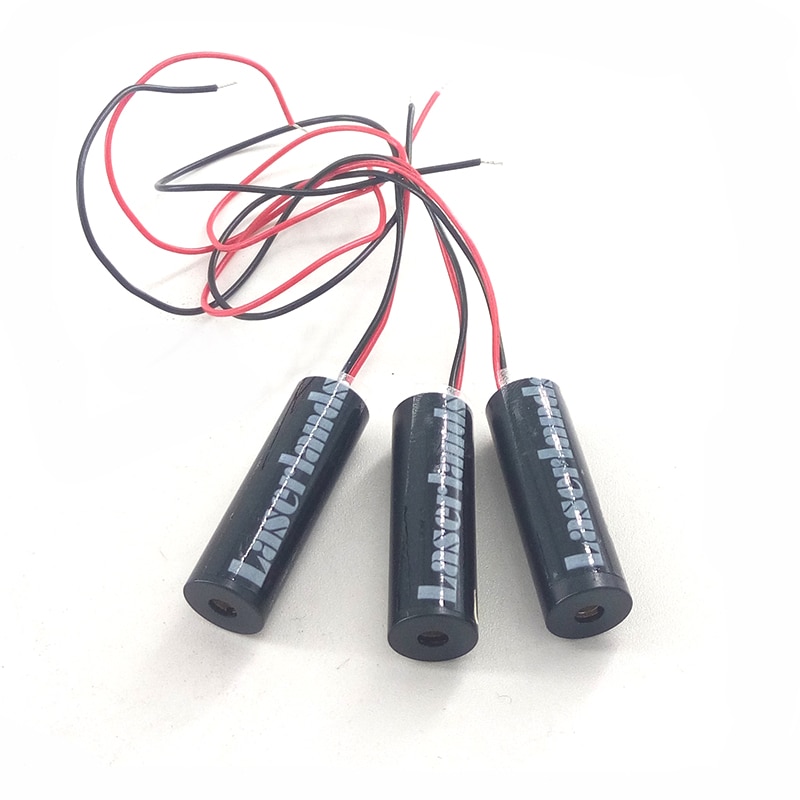

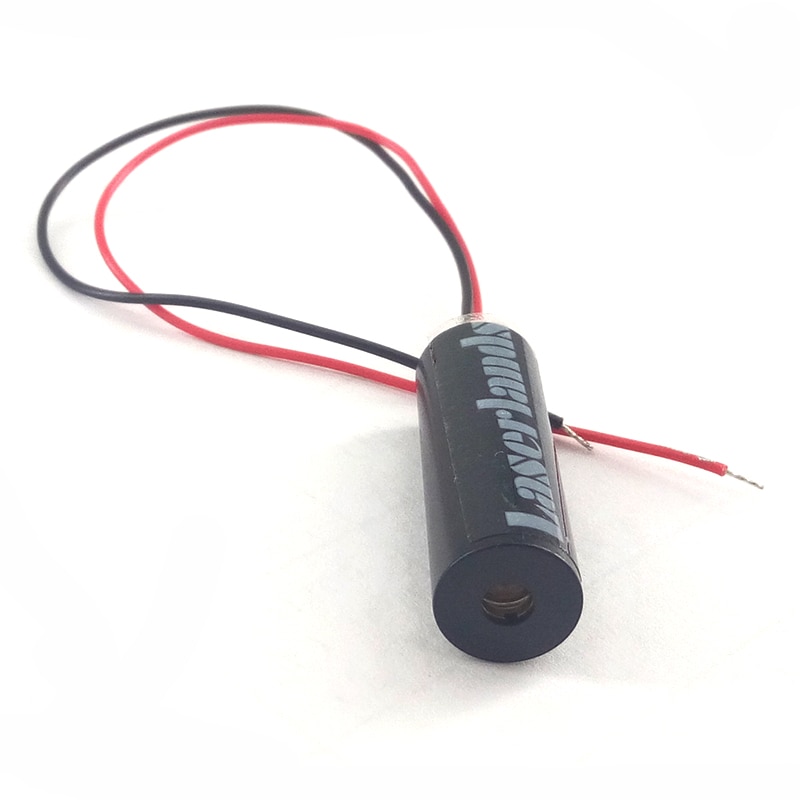

10*30mm 50mW 980nm Infrared IR Dot Laser Diode Module DC 3V

Size: φ 10 × 30mm(we have other size, contact us for it.)

Material: Copper

Surface Treatment / Color: Copper

Life: continuous output and life> 5,000 hours

Output wavelength: 980nm / ± 5nm

Output power: <50mw

Range: >1000M

Spot shape / Diameter:Elliptical spot

Circuit control:  APC circuit

Operating Voltage: DC  3V

Working Current:  <100mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10°C ~ +40 °C

Storage temperature: -20 °C ~ +60 °C



Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.

Note: This is a Infrared laser module, the dot can not be seen by bared eye, you need a camera or a special glasses to see it.

The dot is not perfect circle, it is a elliptical spot.

Need add a heatsink for a longtime use.
