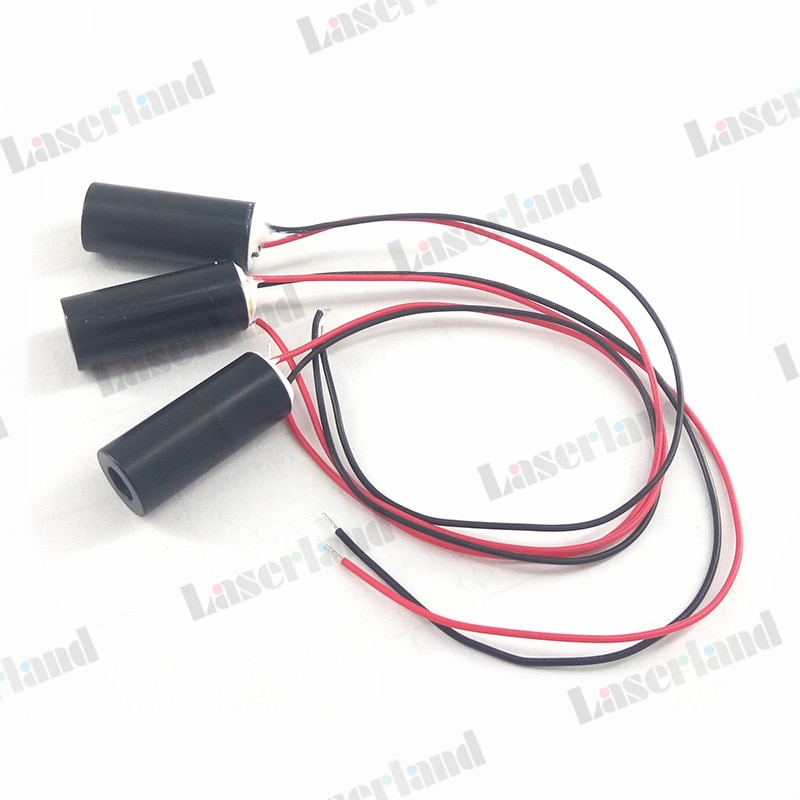

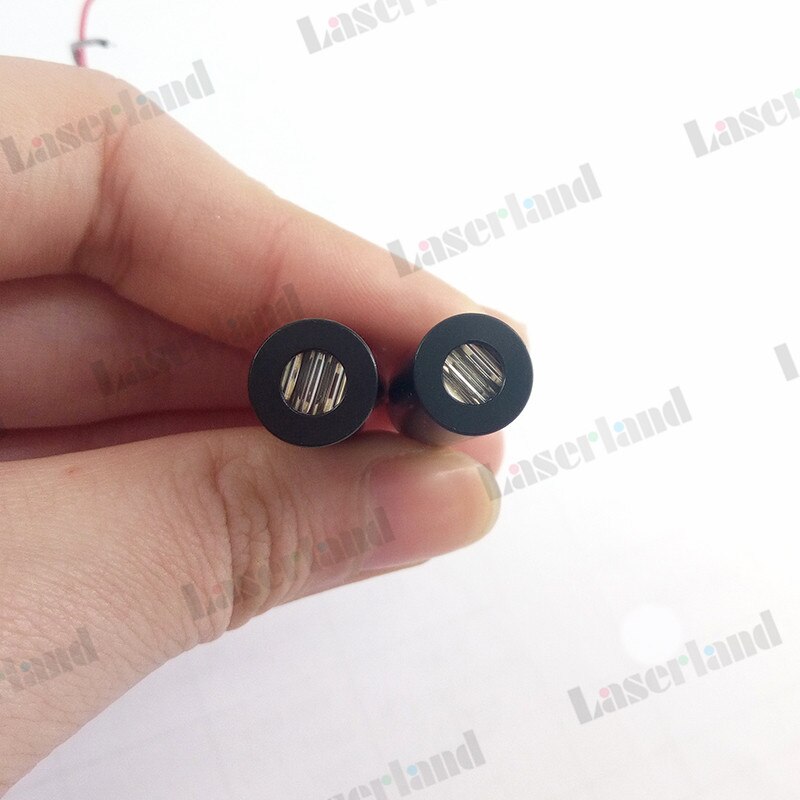

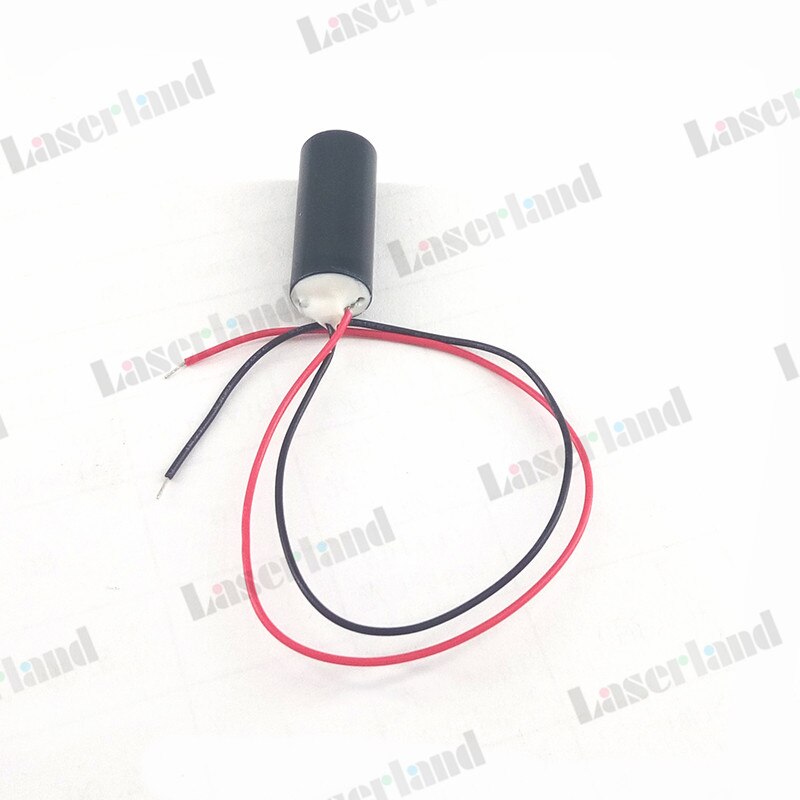

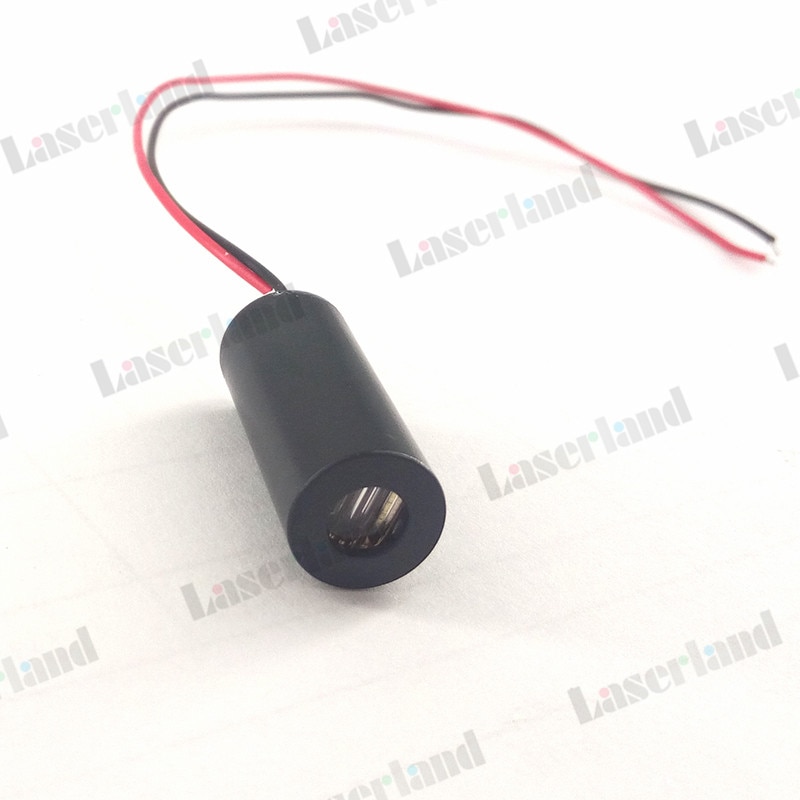

10*23mm 808nm 100mW Infrared Line Diode Laser Module DC 3V~5V



Specifications:

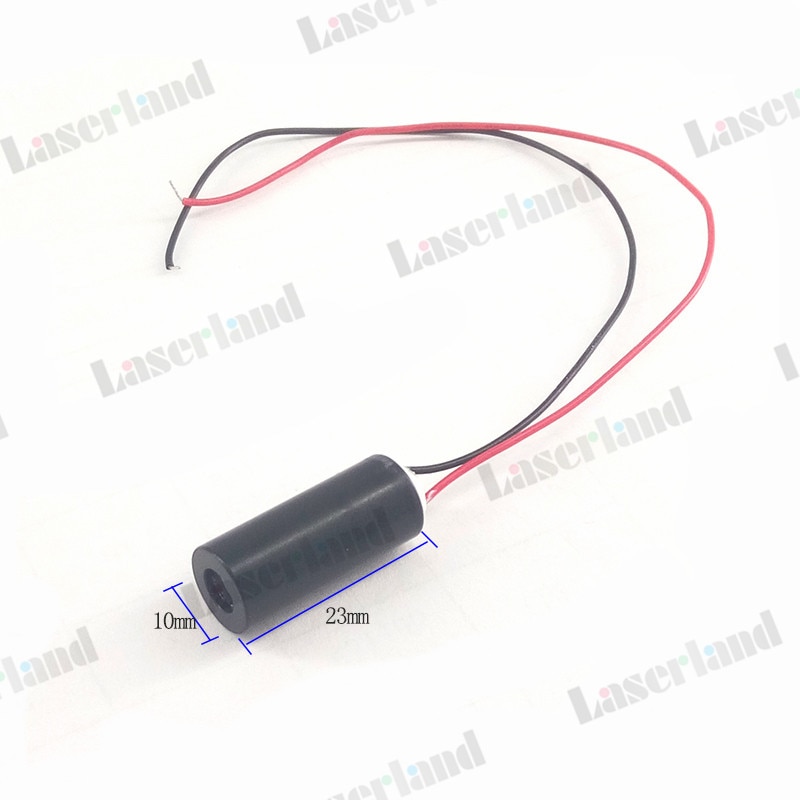

Size: φ 10 × 23mm(we have other size, contact us for it.)

Material: Copper/Aluminum( send at random)

Surface Treatment / Color: Copper/Black

Life: continuous output and life> 10,000 hours

Output wavelength: 808nm / ± 5nm

Output power: <100mw

Range: 20m

Spot shape / Diameter: Line. 88 degree( We also have other version, please contact with us)

Circuit control:  APC circuit

Operating Voltage: DC  3V~5V

Working Current:  <280mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10°C ~ +40 °C

Storage temperature: -20 °C ~ +60 °C

Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.

Note: This is a Infrared laser module, the dot can not be seen by bared eye, you need a camera or a special glasses to see it.

Need add a heatsink for a longtime use.

The 808nm laser has red bomb phonomenon.
