Description
- Certification: CE
- Origin: Mainland China
- Ballast: Electromagnetic
- Features: laser equipment
- Power Factor Compensation: Active
- Item Type: Ballasts
- Warranty: 2years
- Model Number: BCX
- Matched Tube: T5
High Resolusion Fiber Laser Cleaning Machine for Rust, Paint, Oil, Dust Removal
Product description
Laser cleaning machine is the latest high-tech product. It iseasy to install, operate , and to be automated. Plug in power,turn on and start cleaning-without using chemicals, media,dust and water. Auto-focusing function enables precision positioning and 3D cleaning.It canclean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.

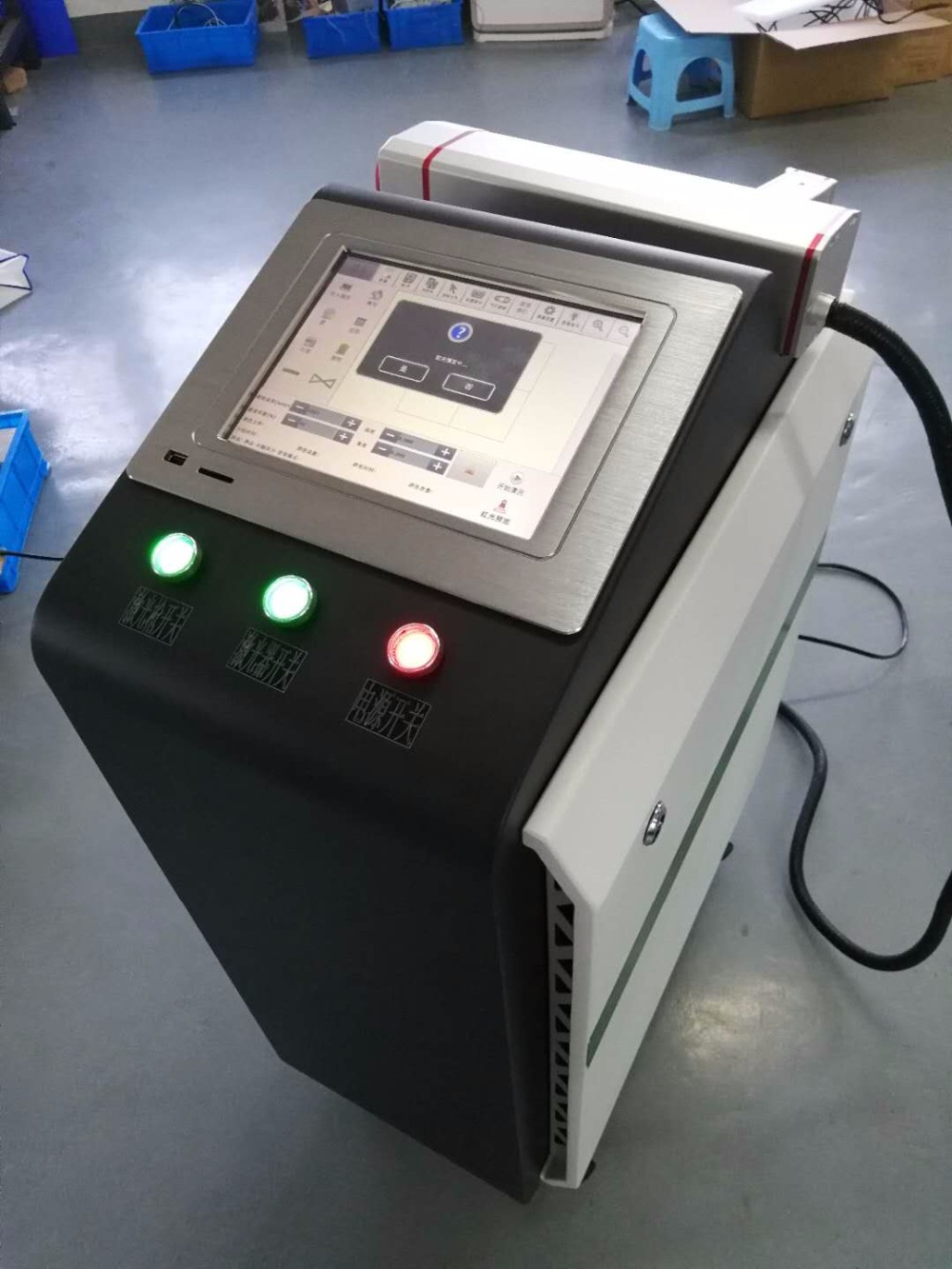

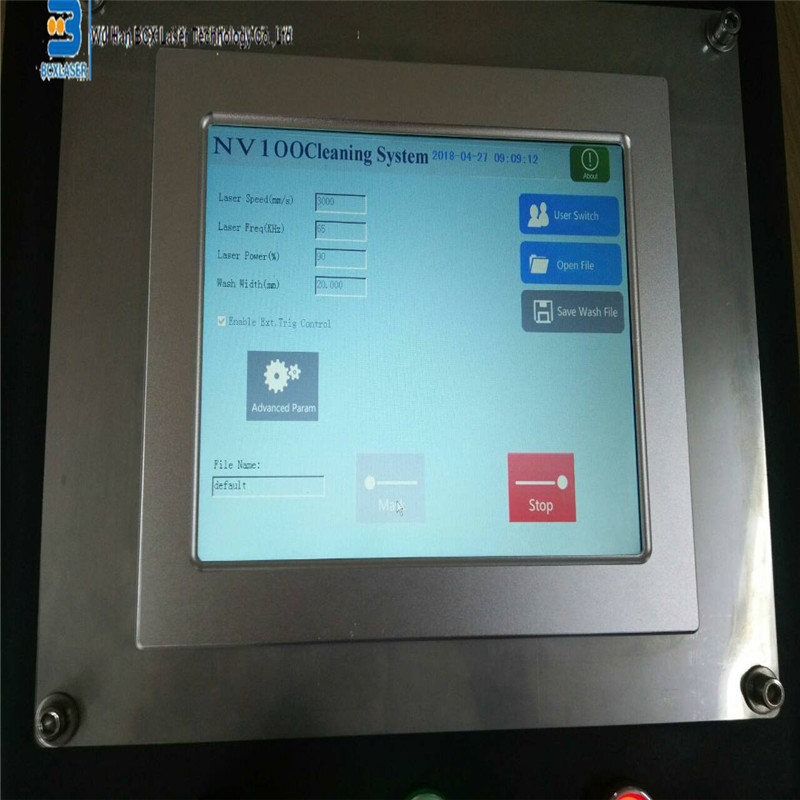

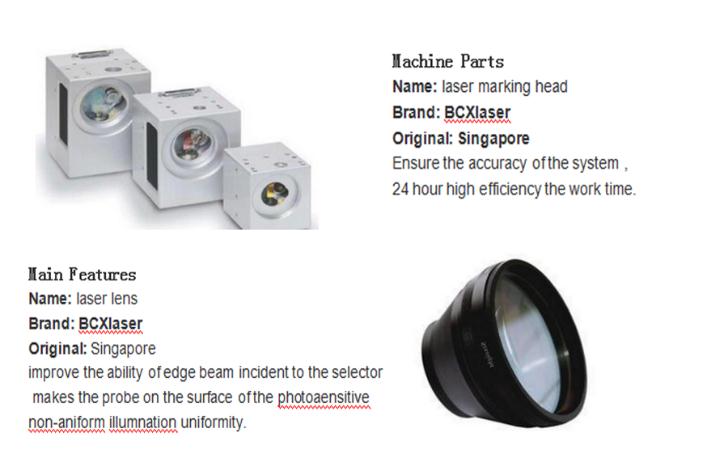

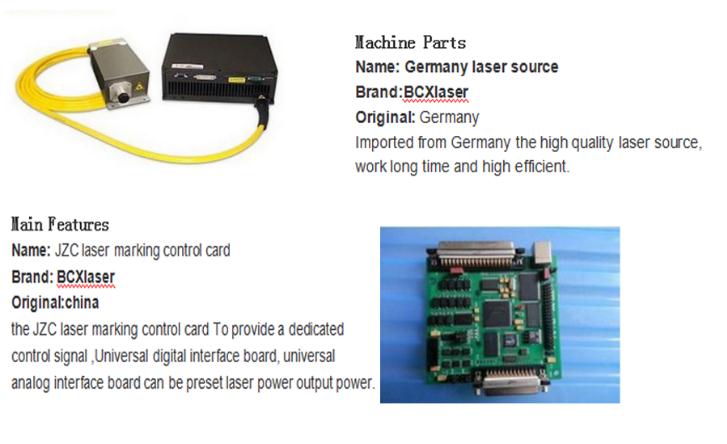

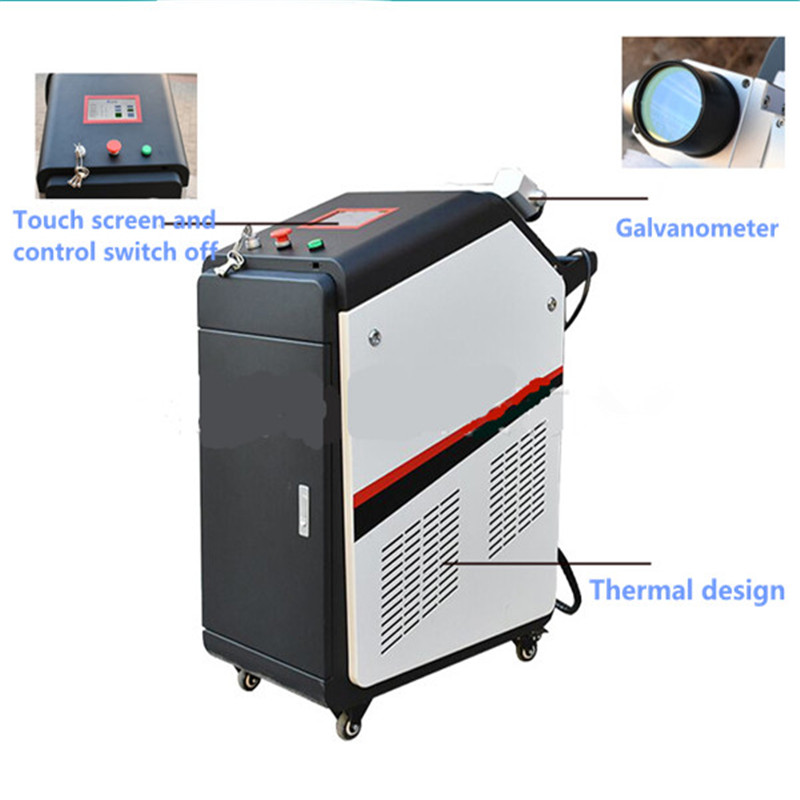

Detailed image

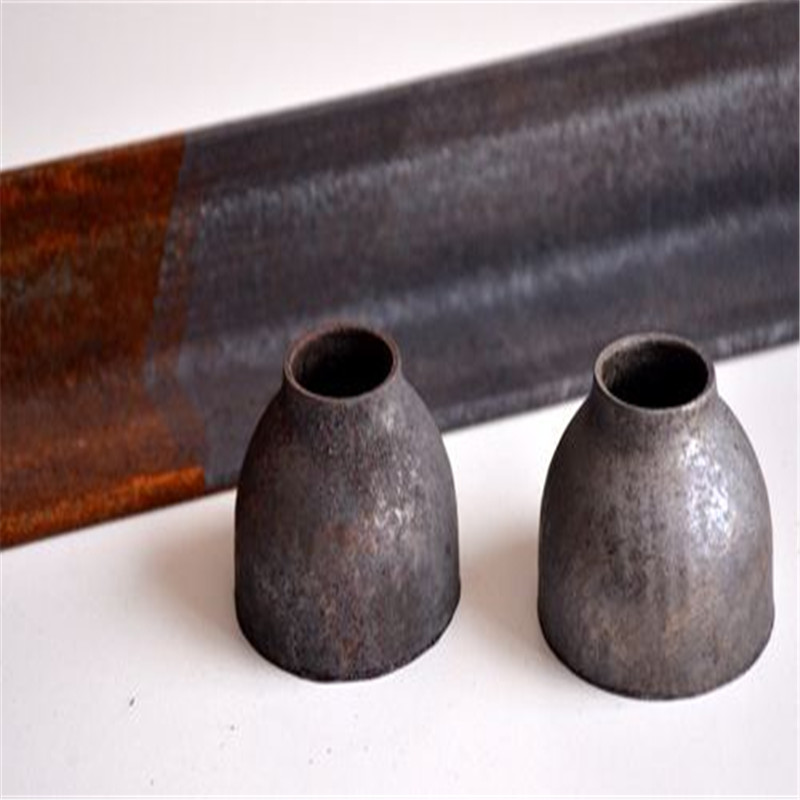

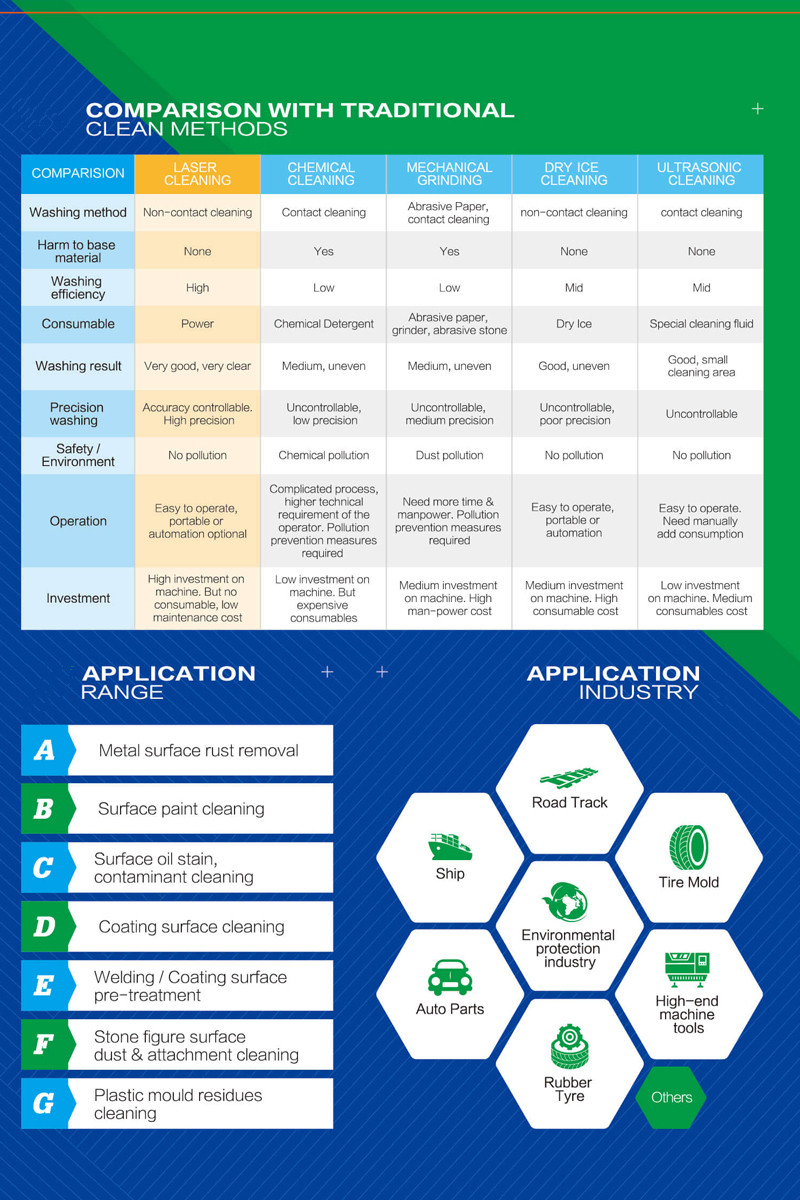

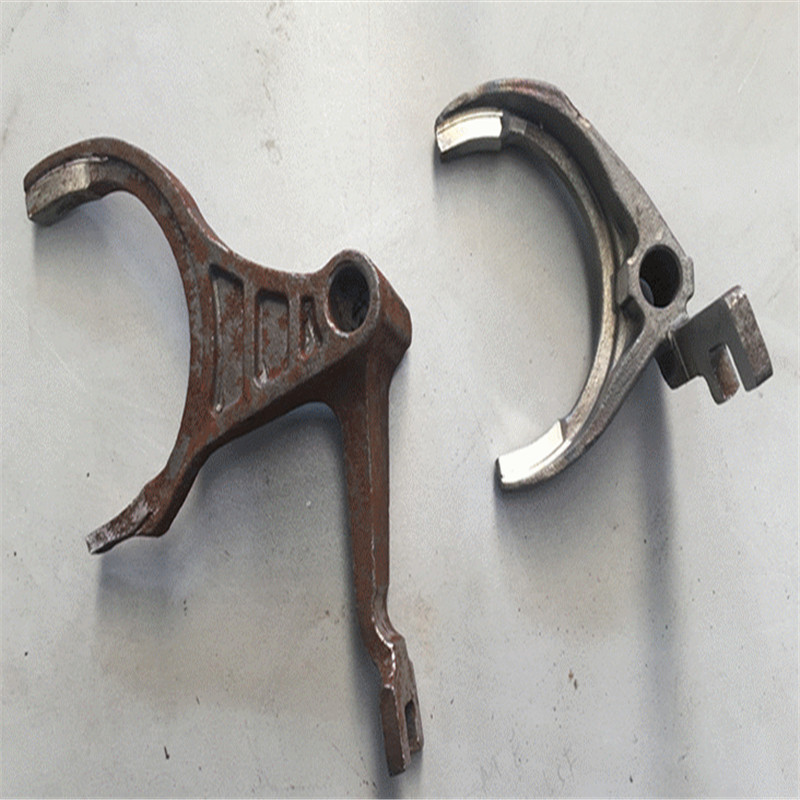

Application&sample show
Technical specification
Description of high efficiency laser cleaning machine |
||
Model |
BCX-200 |
BCX-500 |
Laser power |
200W |
500W |
Laser source type |
IPG fiber laser source |
|
Laser wavelength |
1064 nm |
|
Cooling method |
Water cooling |
|
Cooling water |
Deionized water |
|
Water temperature |
18-22℃ |
|
Cabinet size |
1420 mm*850mm*1370mm (L*W*H) |
|
Total weight (with water tank) |
225 kg |
275 kg |
Maximum power |
2200 W |
5100 W |
Focal depth |
10 mm |
15 mm |
Scan width |
10-60 mm |
|
Auxiliary gas |
Compressed air/Nitrogen |
|
Air pressure |
0.5-0.8 MPa |
|
Optional accessory |
Handheld / Manipulator |
|
Working condition |
5-40℃ |
|
Apply to |
a.Metal surface rust removal b.Surface paint cleaning c.Surface oil stain/contaminant cleaning d.Coating surface cleaning e.Welding / coating surface pre-treatment f.Stone figure surface dust & attachment cleaning g.Plastic mould residues cleaning |
|
Features |
a.Revolutionary eco-friendly cleaning technology b.Non-contact cleaning, no damage to work piece c.Precision positioning, selective cleaning d.Safe & environment-friendly. Without using chemical detergent or other consumables e.Easy to operate, with portable mode and could be equipped with robot for automatic cleaning f.High efficiency, time-saving g.Stable laser cleaning system, practically maintenance free |
Company introduction
Packing&delivery&service
Contact us
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden box. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

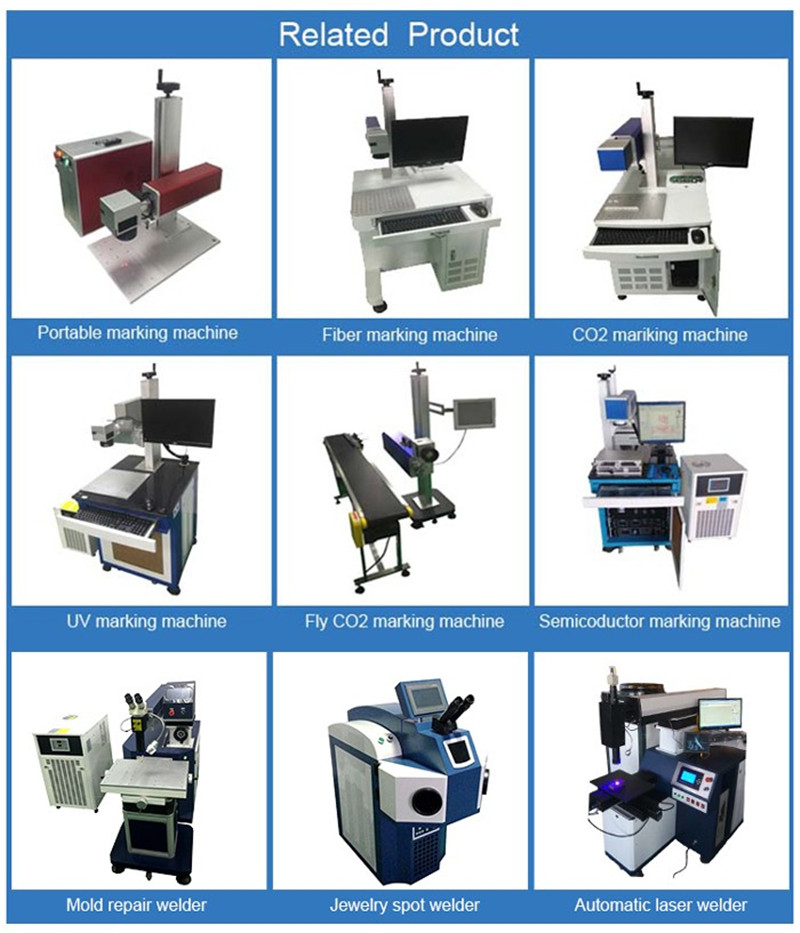

Related Products
