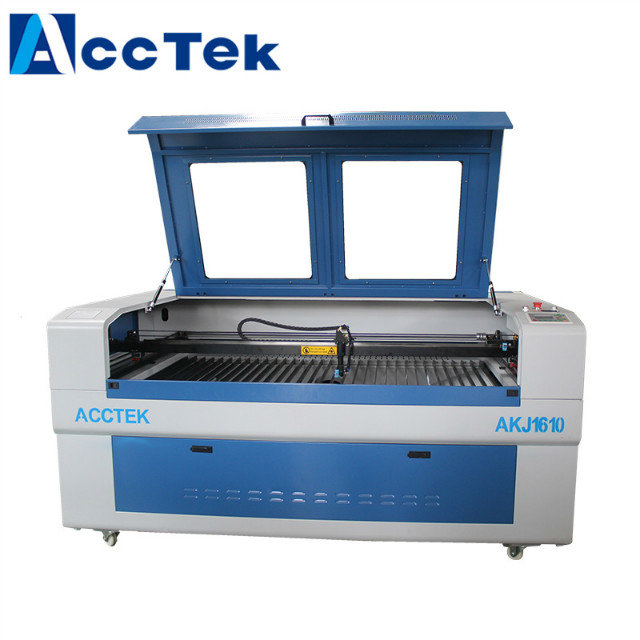

100w Co2 Laser Cutting Rudia System Machine AKJ1610 Reci W2 90w Tube

$3,621.08$10,821.08

SKU: 1005002747093941 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AKJ1610 laser machine co2
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Working area: 1600x1000mm
  • Laser tube: Reci laser tube
  • Laser power: 80w/90w/100w/130w/150w/180w
  • Rail: Taiwan Hiwin square rails
  • Transmission: Belt transmission
  • Belt: Fulong belt
  • Driver: Leadshine driver
  • Controller: Ruida controller
  • Mirrors and lens: Singapore mirrors and lens
  • Exhaust fan: Yes

cnc laser cutting machine sealed co2 laser tube/ 60w co2 laser cutting machine/ laser co2 cutter

Product Description

Features of laser machine co2:

1). Fixed cabinet frame for rigidity.
2). Materials can extend through the front and rear doors to allow for a larger work product.
3). Large motors for faster engraving speeds
4). Taiwan Hiwin rail guide and Shanghai Fulong belt make the engraving and cutting smooth.
5). Red-Dot pointer to help you see the expected laser beam position.
6). Main components are imported.
7). When the laser tube>=100W, Advanced water chiller for cooling laser tube, adjust temperature automatically. Besides, it has the function that protect the laser tube from damaging caused by any incidents.

Applicable material of laser machine co2:

1). Cutting: acrylic,perspex,wood,rubber,cloth,fabric,paper,leather,dual-color boards, foam,plastic,PVC,etc.

2). Engraving: acrylic, stone,marble,granite,jade,crystal, glass, perspex,wood,rubber,cloth,fabric,paper,leather,dual-color boards, foam,plastic,PVC,metal-coating etc.

Parameters data of laser machine co2:

Model

6040

1290

1390

1610

1325

Laser

CO2 glass sealed laser tube

Laser power

60W 80W 100W 130W 150W

Work platform size

600×400mm

1200×900mm

1300×900mm

1600*1000mm

130×2500mm

Control system

RDCAM

Engraving speed

0~1000mm/s

Cutting speed

0~500mm/s

Worktable

Blade table/Honeycomb table

Precision of positioning

≤±0.025mm

Graphic format Supported

The Files which CorelDraw, Photoshop, AutoCAD can identify
(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,
DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)

Compatible software

CorelDraw, AutoCAD

Working temperature:

0-45 degree C

Motor type:

Stepper or Srevo Motor

Cooling:

Water pump or Water Chiller

Control Configuration

DSP /USB Interface

Electricity:

220V/50Hz/1kva

Detailed Images

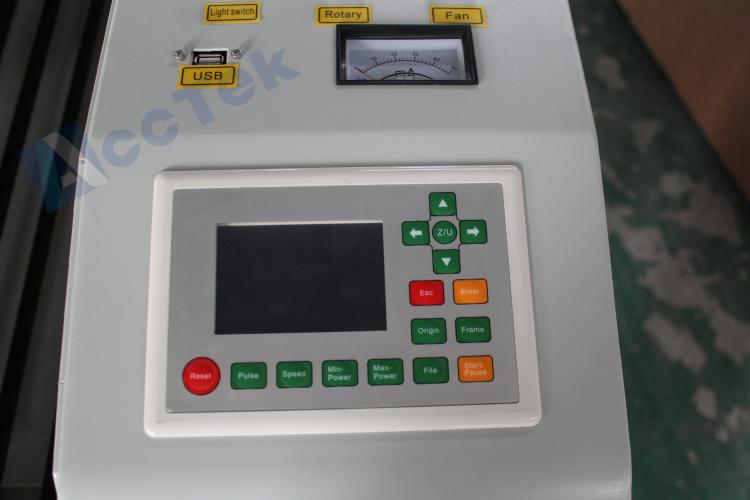

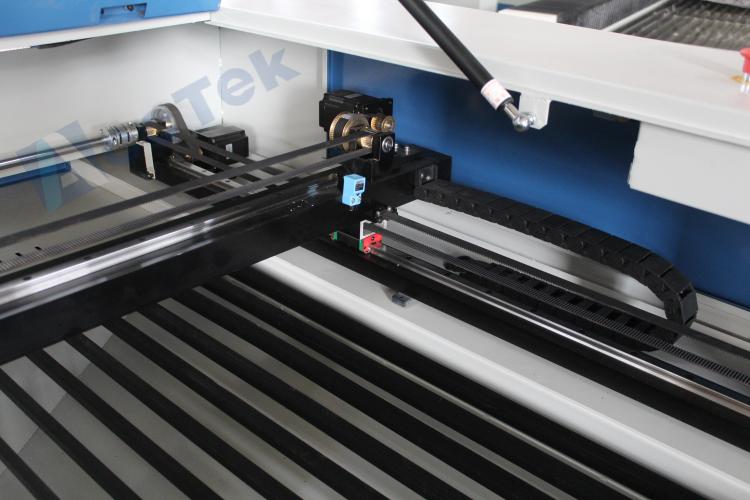

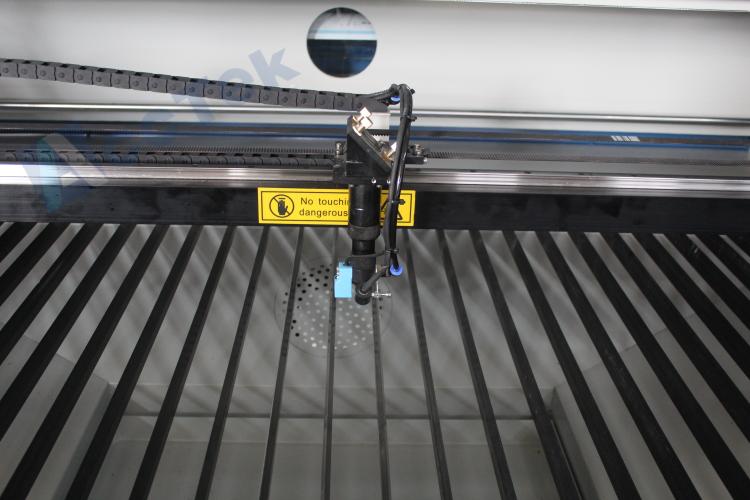

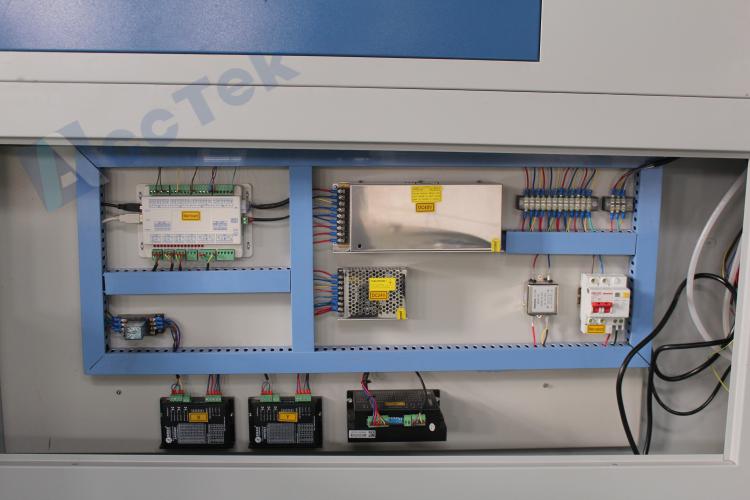

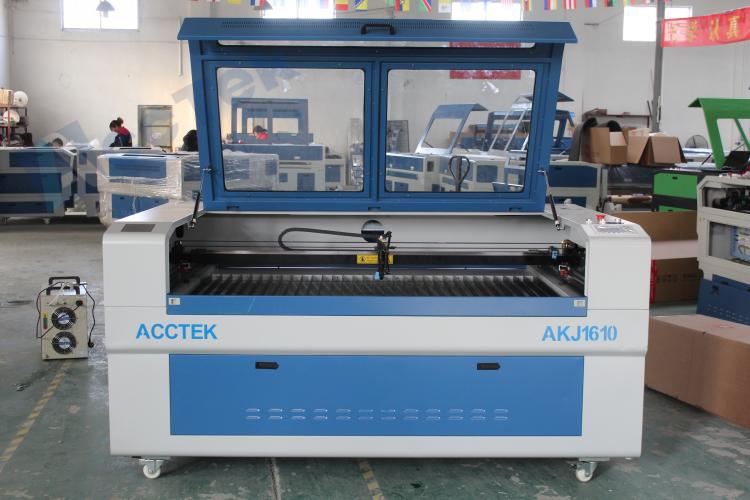

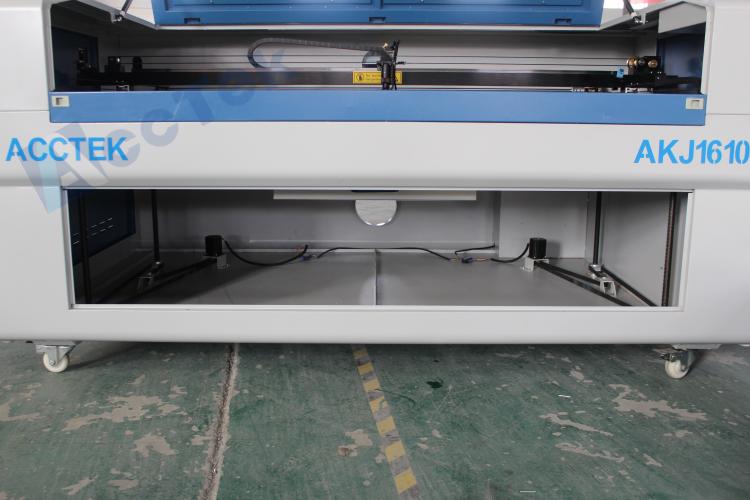

Some details of laser machine co2:

About our company

Samples

Samples of laser machine co2:

Our Services

Our services:

1.1years quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery

7.Our staff can be sent to your company to install or adjust if necessary.

FAQ

1. What materials do you want to engrave or cut?

For different types of cnc routers apply to different materials (wood, stone, metal, foam etc.)

2. What’s the max, size of the materials? (Length*Width*Thickness)

3.Once you tell me all about this, then I’m able to recommend the most suitable machine and the best price for you

Please let me know such information :

1.What kind of material do you want to process?
2.What is the dimension of your working material?
Based on the above analysis, we will recommend the most suitable machine and best solution for you.

1.MOQ

1 set

2. Delivery

dispatch the goods within 7 days upon receipt of payment.

3.Delivery port and shipment

Qingdao/by AIR or SEA to port or by DHL, UPS, TNT or FedEx to door

4.Packing details

each packed in standard export plywood box.

5.Payment terms

by T/T, L/C or Western Union in advance
