Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±30%
- Technology: Carbon Film
- Type: Trimming Potentiometer
- Operating Temperature: B100R B200R B500R B1K B2K B2.2K B3K B5K B10K B20K B50K B100K B500K B1M
- is_customized: Yes
- Max. Operating Voltage: 50V
- Model Number: RM-065 WH06-2
- Rated Power: 0.1W

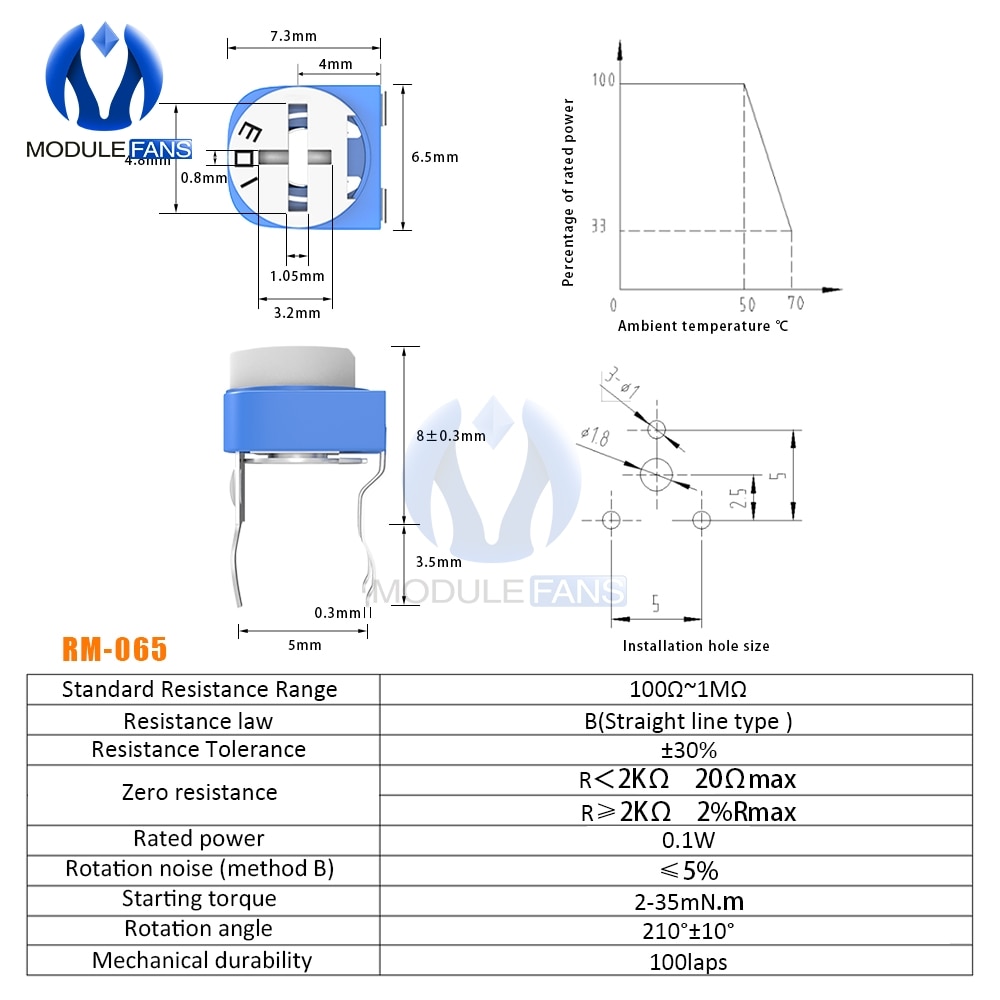

Specification:
Model number: RM065 WH06-2
Technology: Carbon Film Resistance
range (Ohms): 100Ω, 200Ω, 500Ω, 1KΩ, 2KΩ, 2.2KΩ, 3KΩ, 3.3KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ
Resistance Tolerance: ± 30%
Rotation angle: 210 ° ± 10 °
Starting torque: 2-35mN.m
Mechanical strength: resistance film can withstand 1kg pressure does not break
Resistance change characteristics: B
Maximum use voltage: 50V
Rate Power: 0.1W
Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 20Ω
Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%
Load life: load rated power 3 hours, the maximum resistance change of ± 5%
