Description
- Brand Name: HKNA
- Origin: CN(Origin)
- DIY Supplies: Woodworking
- Certification: CE
- Model Number: BA6A-100U
- Place of Origin: Sichuan, China
- Brand Name: JRT
- Usage: Distance Sensor
- Theory: Optical Sensor
- Output: Digital Sensor
- Brand: 100m Laser Distance Module with USB
- Voltage – Supply: DC2.0~3.3V
- Operating Temperature: 0~40℃
- Resolution (Bits): 1mm
- Frequency: 3Hz
- Output Configuration: USB/TTL
- Size: Sensor Module

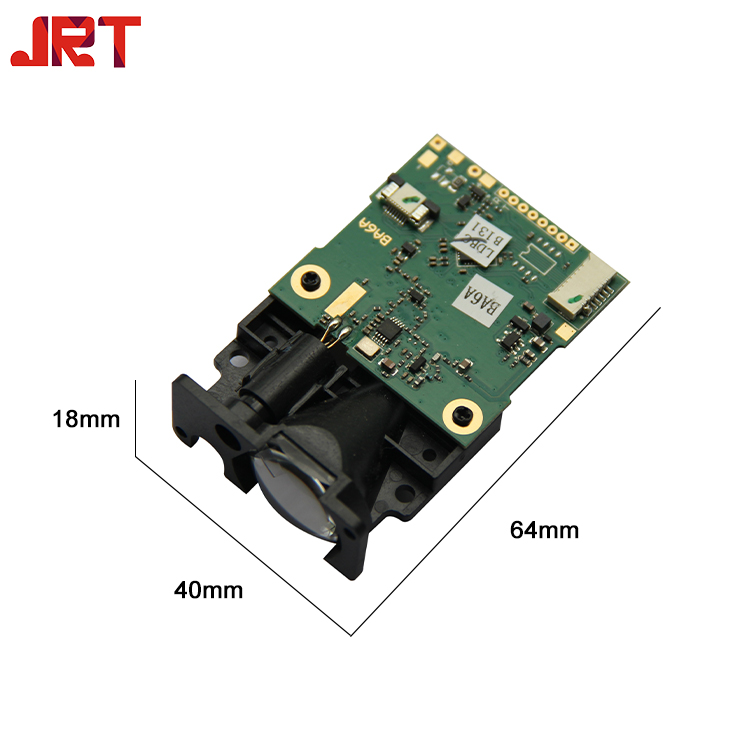

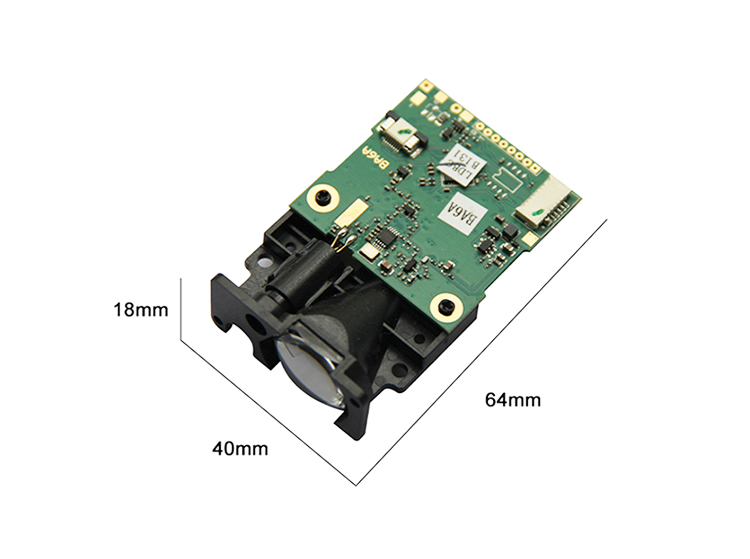

- Size / Dimension: 64*40*18mm
- Measuring Range: 0.03~100m
- Continuous Measurement: YES
- Measuring Time: 0.4~4 seconds
- Buzzer Indication: YES
- Laser Beam Color: RED
- Certificate: ISO9001 CE ROHS FCC
- Warranty: 1 Year
- Laser Class: Class 2
- Laser Type: 620~690nm, <1mW
- Accuracy: /-3mm
- Storage Temperature: -25~60℃

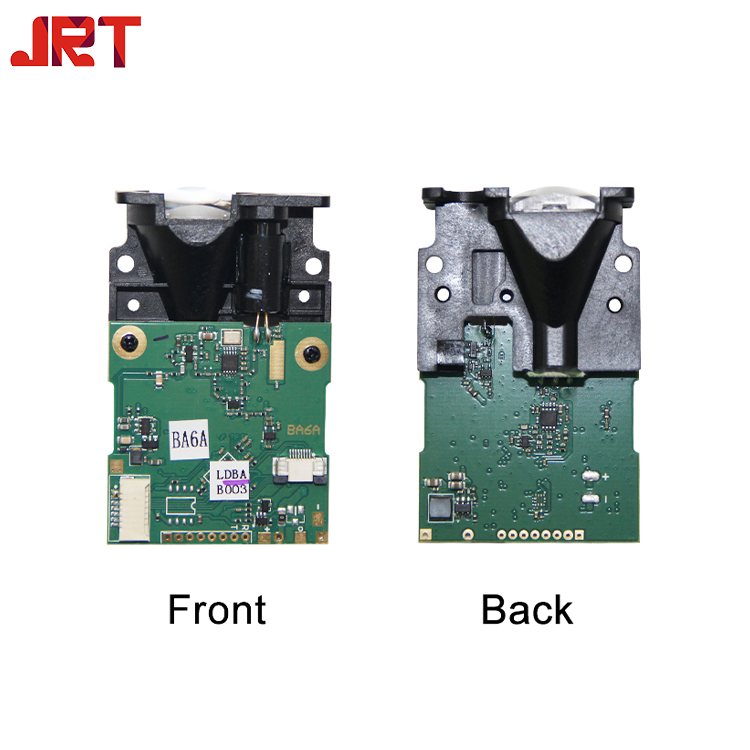

100m Low Cost Digital Laser Distance Measure Sensor Laser Distance Module with USB
1. JRT module responds quickly with high accuracy and long range measuring
2. We have been in this laser line since 2004, leading supplier of laser distance meter modules in China
3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional
4. Voltage can be changed by power converter LDO
5. Operating temperature -10 ℃~50 ℃ can be customized
6. Analog can be customized.
|
Accuracy |
3 mm (0.04 inch) |
|
Measuring Unit |
meter/inch/feet |
|
Measuring Range |
0.03-100m |
|
Measuring Time |
0.4~4 seconds |
|
Laser Class |
Class II |
|
Laser Type |
620~690nm, <1mW |
|
Size |
64*40*18mm (±1 mm) |
|
Weight |
About 13g |
|
Voltage |
DC2.0~3.3V |
|
Electrical Level |
TTL/CMOS |
|
Frequency |
3Hz |
|
Operating Temperature |
0-40 ℃ |
|
Storage Temperature |
-25~60 ℃ |

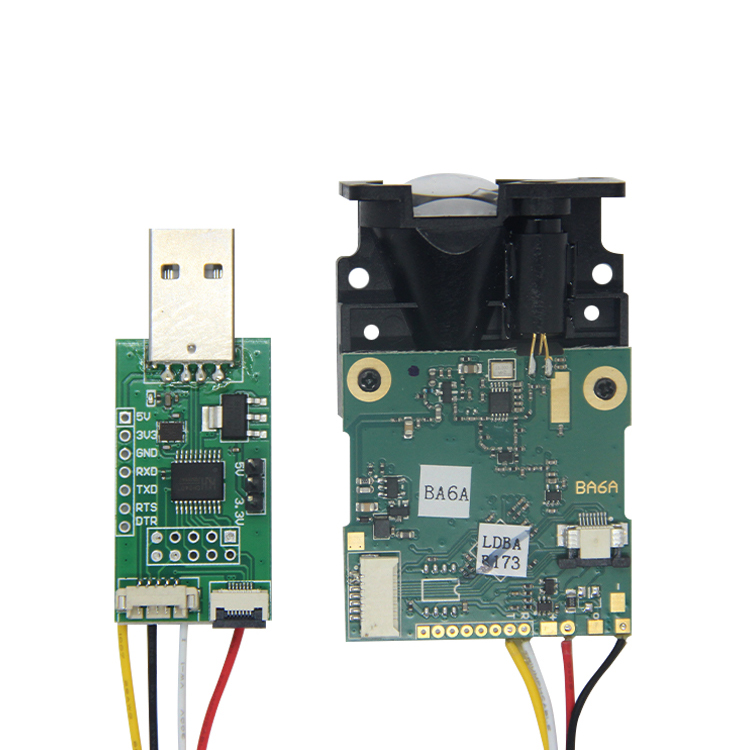

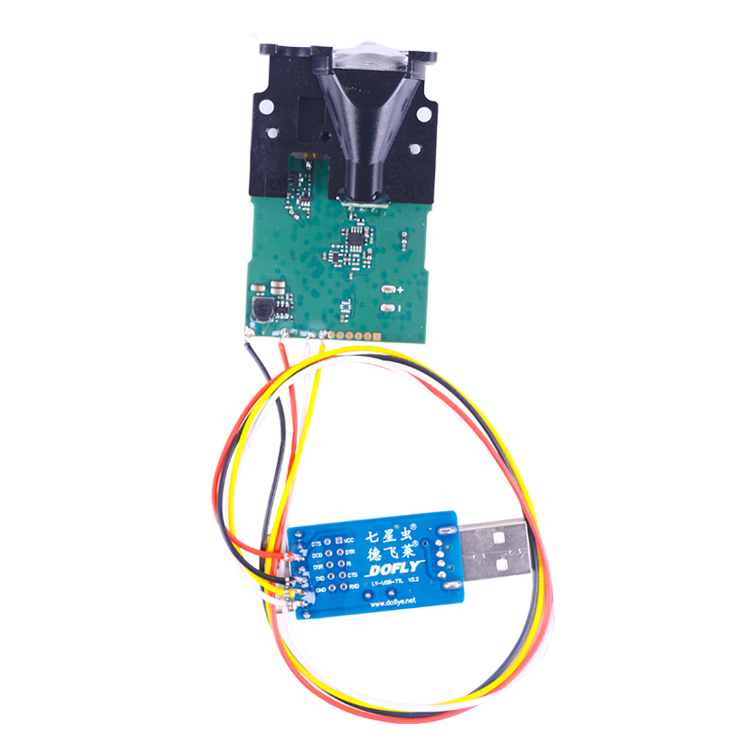

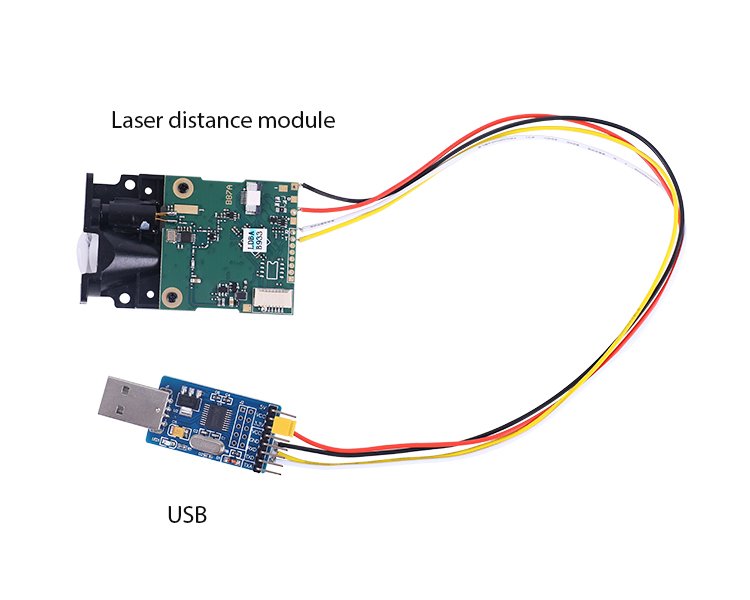

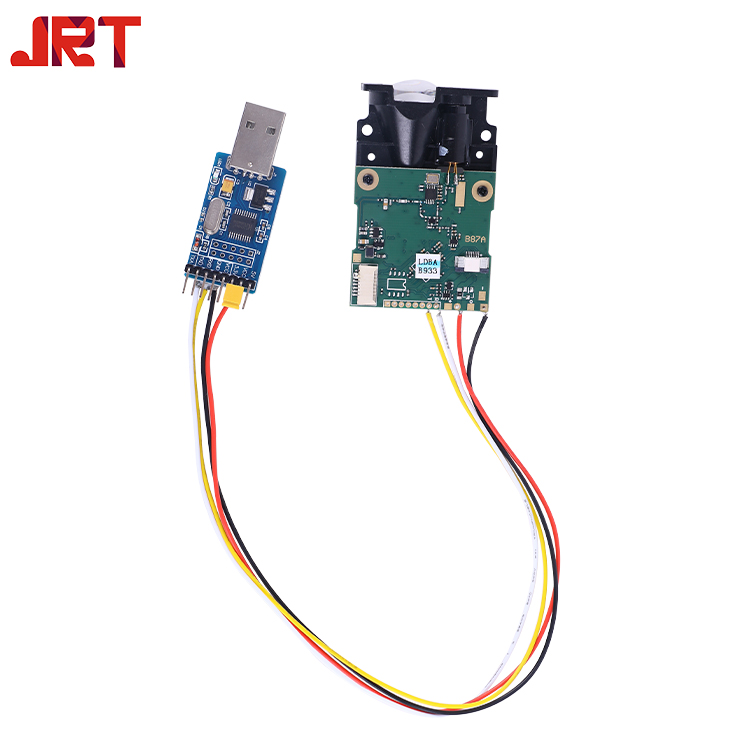

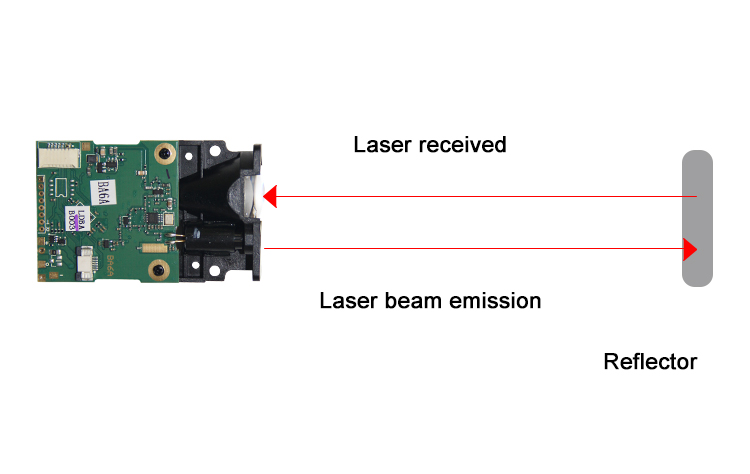

Laser distance measure sensor, we also call it secondary development laser distance sensor, which support TTL level and CMOS. The laser distance sensor can be widely used in professional surveying, mapping, construction, robots, hunting arrows, industrial monitoring and automated measurement applications in electricity, transportation, etc. This Precise laser distance module with usb is conneted by usb is much more coniventent for users to test through conneting with laptop or any device which support USB.
1: Are you factory or wholesaler or trading company?
We’re the one of three leading manufacturers in China, production capacity up 10000 units/day.
2: What’s the delivery time after an order placed for this Laser Distance Module?
Our standard delivery is 3 days if we have stock, otherwise we will let you know in time, usually we manufacture 5000pcs a day.
3: What’s the MOQ?
Regular products only 1pcs, OEM/ODM products need 1000pcs at least.
4: What’s the warranty of the laser sensor?
All our products have one year guarantee and a life-time after sales service.
5: Can I have a sample for testing?
Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.
6:Can you offer customized service?
Yes, we can offer customized service. If your laser measurement project has other requirements, please contact us.
After-sale service
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
