Description
- Brand Name: HKNA
- Origin: CN(Origin)
- DIY Supplies: Woodworking
- Certification: CE
- Warranty: 1 year, 12 Months
- Customized support: OEM, ODM
- Place of Origin: Sichuan, China
- Brand Name: JRT/OEM
- Model Number: B87A-100U
- Size: 64x40x18mm
- Item: Industrial Laser Distance Sensor Module
- Data interface: TTL/serial/serial port/usb interface
- Laser Type: 620nm-690nm
- Measuring Unit: mm
- Working Voltage: DC2.0~3.3V
- Operating Temperature: 0-40 ℃ (32-104 ℉ )
- Function: Distance /Height/Width
- Continuous Measurement: YES
- Certification: CE ,ISO9001,ROHS, FCC.

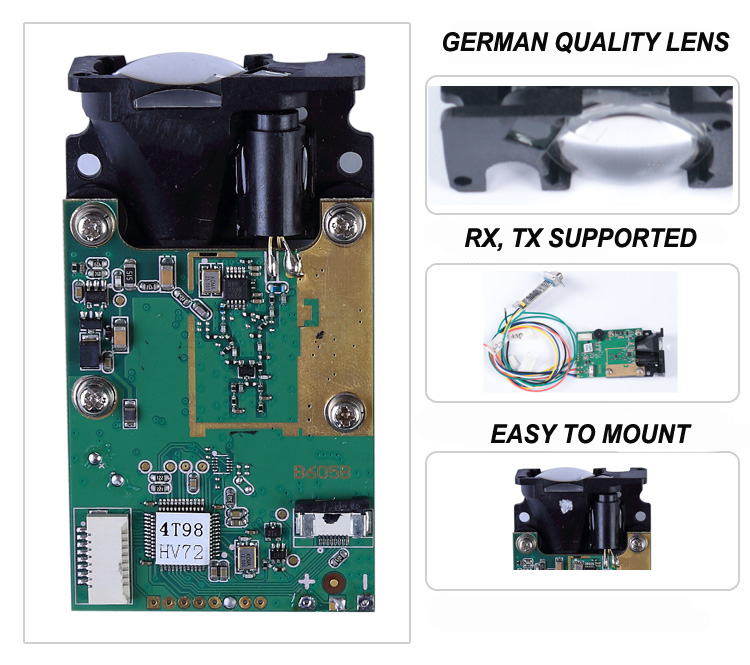

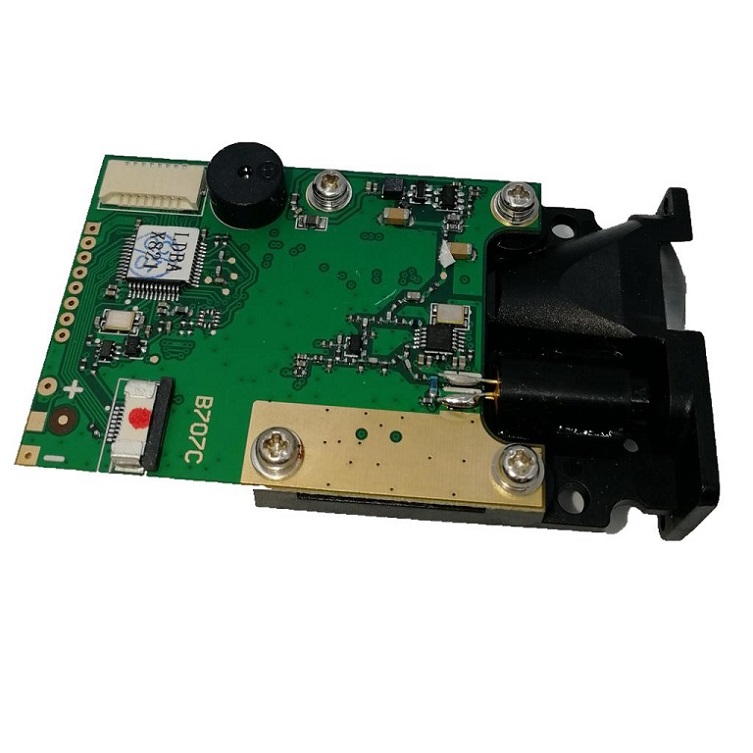

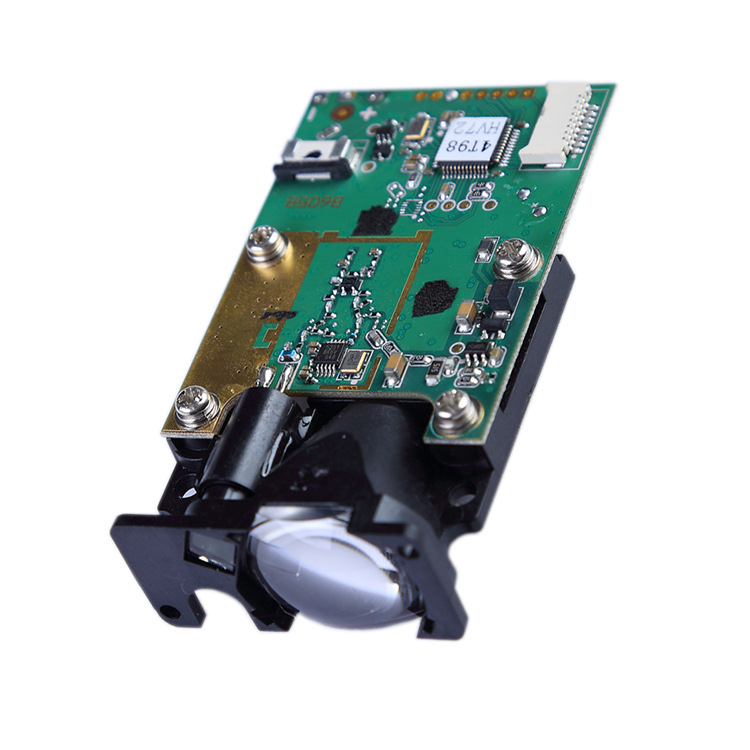

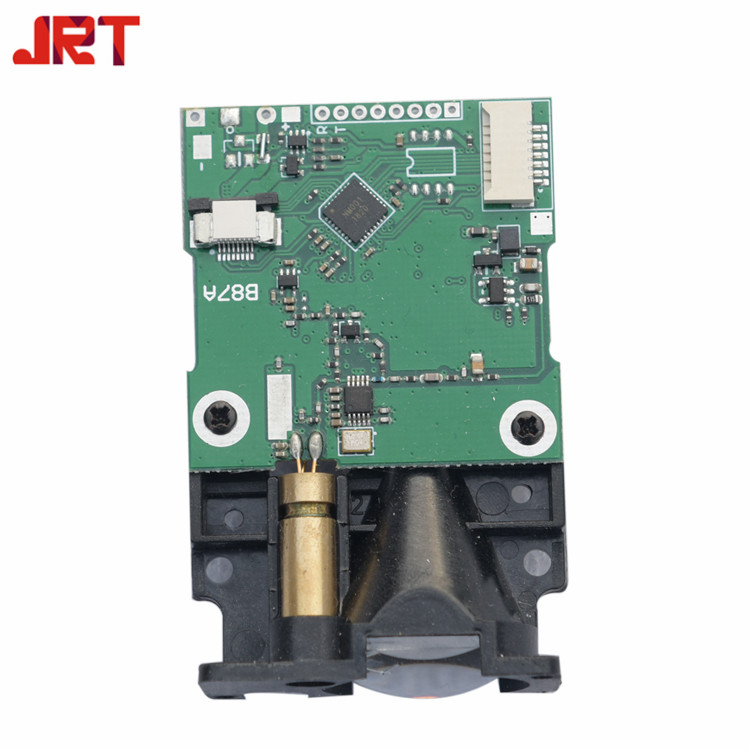

100m Digital Laser Distance Meter Lidar Sensor Range Finder Module
1. JRT module responds quickly with high accuracy and long range measuring
2. We have been in this laser line for over 17 years, leading supplier of laser distance meter modules in China
3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional
4. Voltage can be changed by power converter LDO
5. Operating temperature -10 ℃~50 ℃ can be customized
6. Analog can be customized.
|
Accuracy |
+-1~3 mm |
|
Measuring Unit |
mm |
|
Measuring Range |
0.03-100m |
|
Measuring Time |
0.3~4 seconds |
|
Laser Class |
Class II |
|
Laser Type |
620-690nm, <1mW |
|
Size |
64*40*18mm (±1 mm) |
|
Weight |
About 13g |
|
Voltage |
DC2.0~3.3V |
|
Electrical Level |
TTL/CMOS |
|
Frequency |
3Hz |
|
Operating Temperature |
0-40 ℃ |
|
Storage Temperature |
-25~60 ℃ |

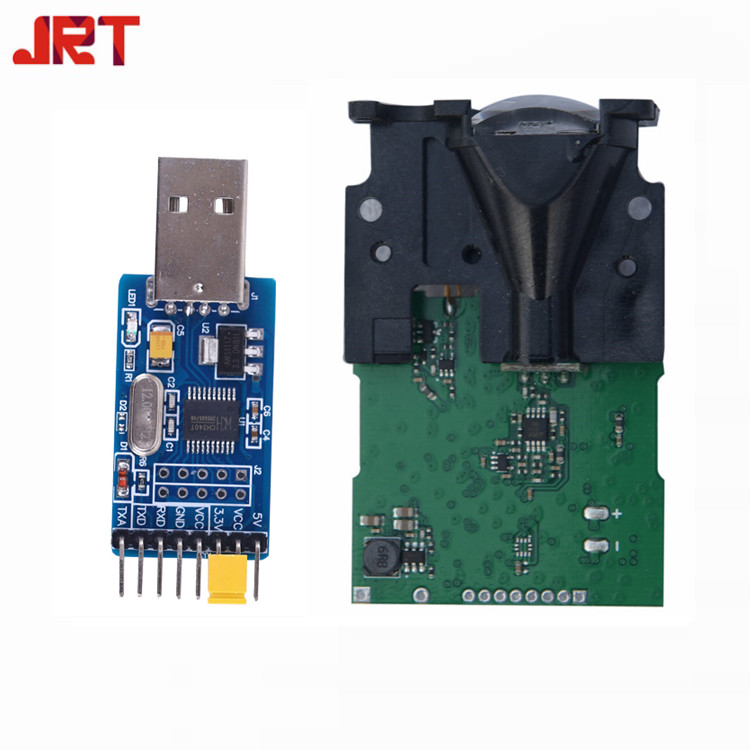

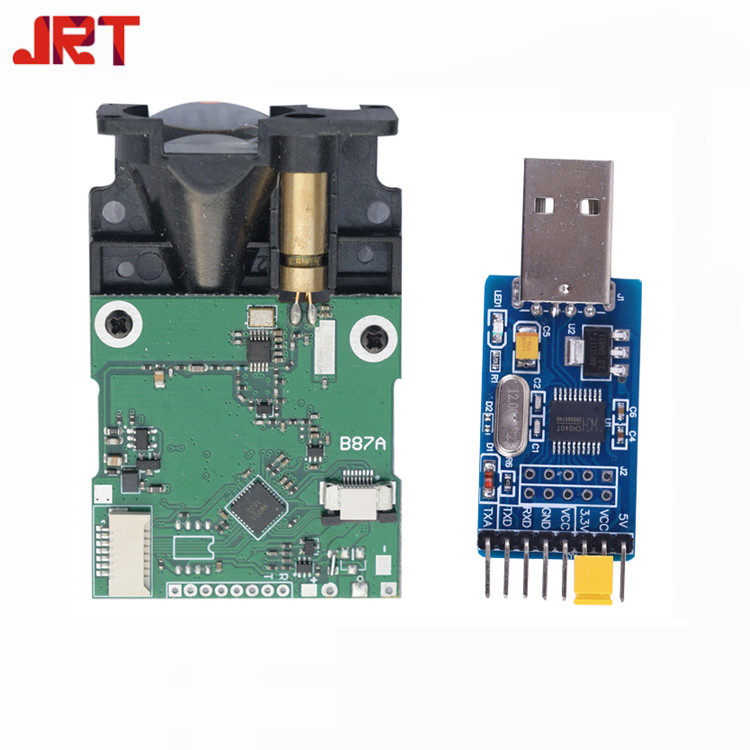

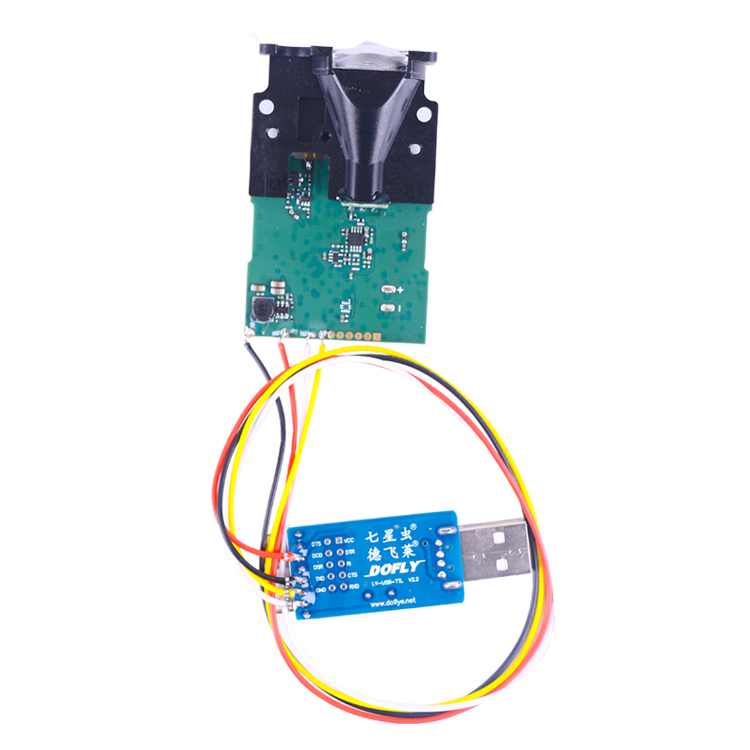

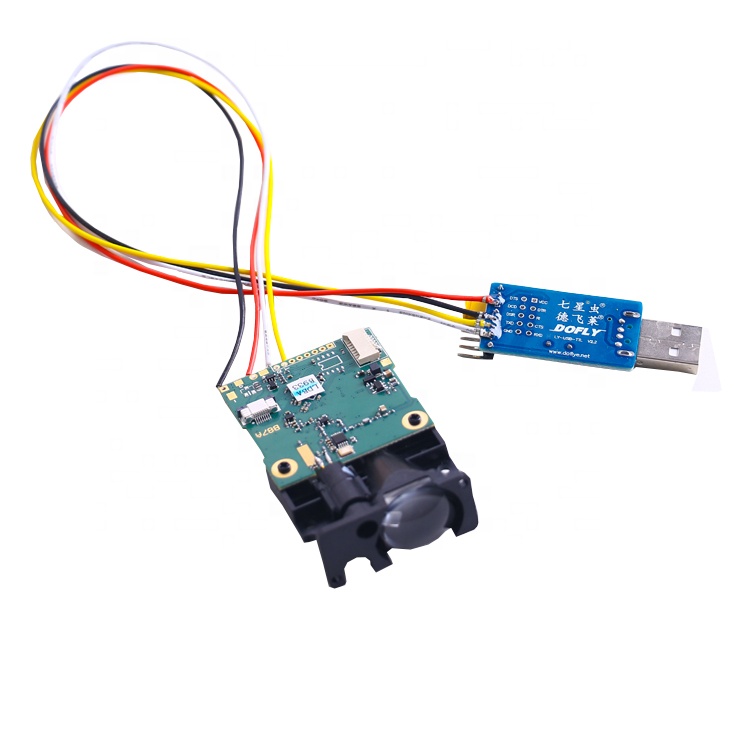

Industrial Laser Distance Sensor, we also call it secondary development laser distance module, which support TTL level and CMOS. The laser range sensor can be widely used in professional surveying, mapping, construction, robots, hunting arrows, industrial monitoring and automated measurement applications in electricity, transportation, etc. Our laser distance module supports data communication via RS232,RS485, USB,BeagleBoard,Renesas controller,and also can be applied to Raspberry Pi, UDOO, MCU etc.
1: Are you factory or wholesaler or trading company?
We’re the one of three leading manufacturers in China, production capacity up 10000 units/day.
2: What’s the delivery time after an order placed for this Laser Distance Module?
Our standard delivery is 3 days if we have stock, otherwise we will let you know in time, usually we manufacture 5000pcs a day.
3: What’s the MOQ?
Regular products only 1pcs, OEM/ODM products need 1000pcs at least.
4: What’s the warranty of the laser sensor?
All our products have one year guarantee and a life-time after sales service.
5: Can I have a sample for testing?
Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.
6:Can you offer customized service?
Yes, we can offer customized service. If your laser measurement project has other requirements, please contact us.
After-sale service
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
