Main features:

1) Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2) High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3). High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
4) The laser maintenance free;
5) The cutting edge looks perfect and the appearance is smooth and beautiful;
6) Imported the transmission mechanism and servo motor, and high cutting accuracy;
7) Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.

Application:

1. Application industry.
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers,

Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,Aerospace technology, rocket, plane,

robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
2. Application materials.
Our fiber cutting machine can work on the following materials : steel, copper, aluminum and stainless steel can be processed.

Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

Working area	1500*3000mm
Whole structure	Heavy duty full enclosure
Control system	Cypcut controller
Guide rails	Taiwan HIWIN linear guide rail
Transmission	Rack and pinion transmission
Electronic Components	French Schneider
Max cutting speed	Depend on power and materials
Repeat positioning accuracy	±0.01mm
Maximum Acceleration	0.5G
Min line width	0.1mm
Power Requirements	220V/380V, 50/60Hz
Cooling Way	Water Cooling
Machine Operating temperature	0 ℃ -40 ℃
Graphic Format Supported	AI, BMP, DST, DXF, DXP, PLT

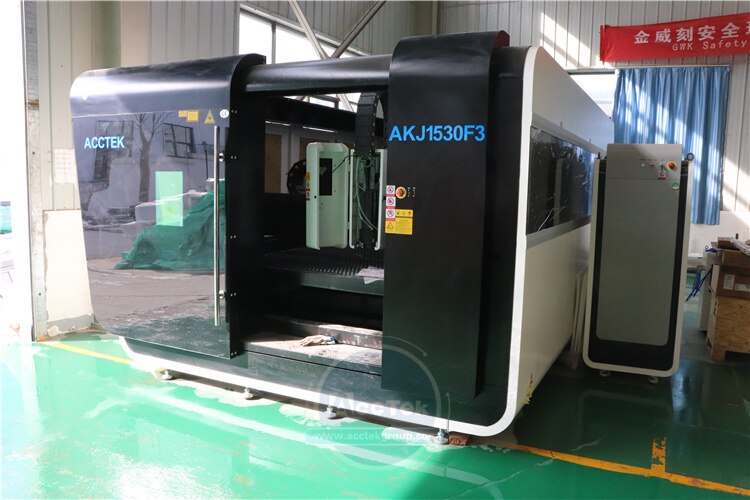

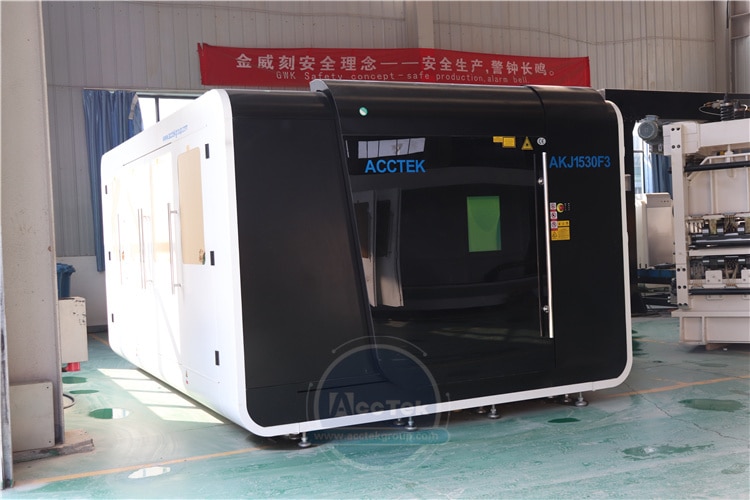

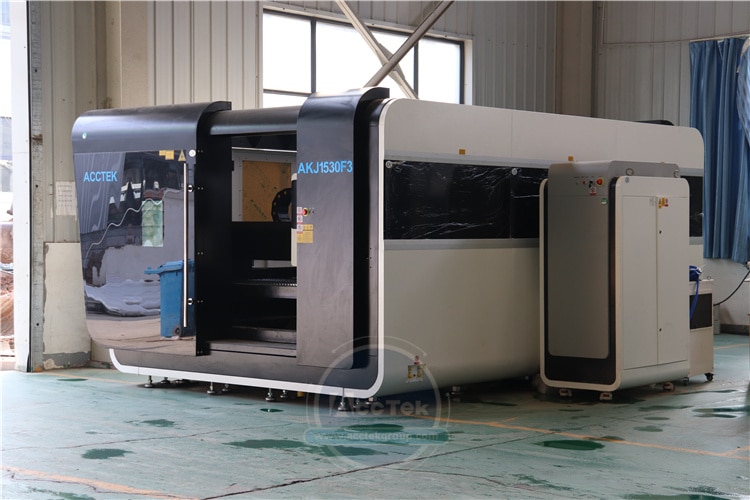

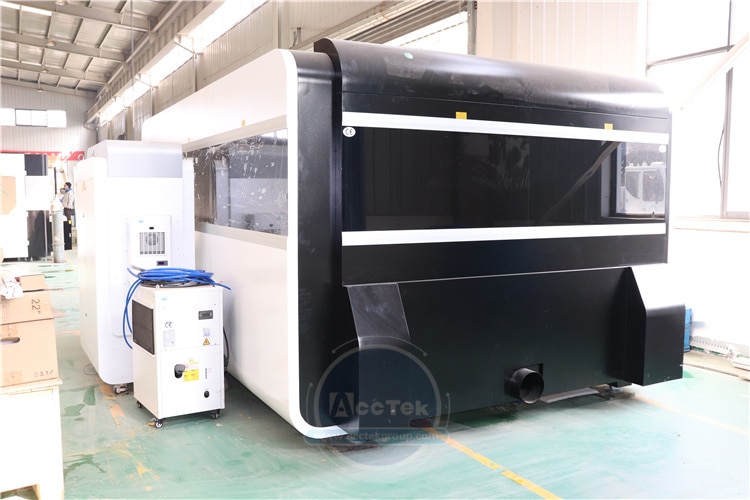

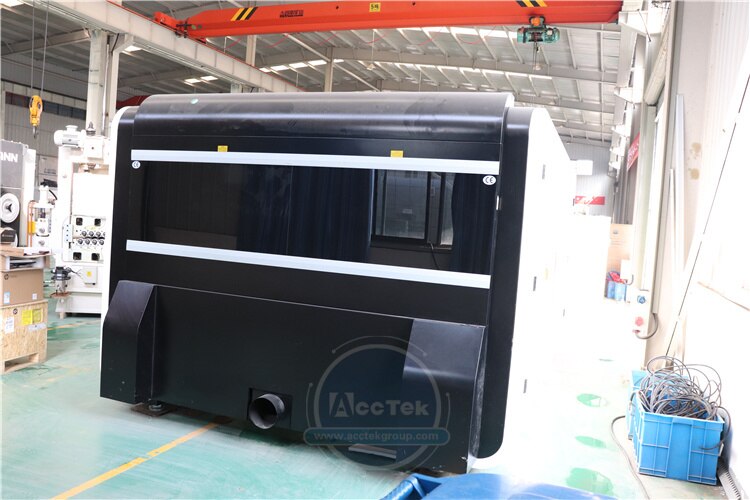

Details of fiber laser cutting machine:

Aftersale Service :

1. 24 months guarantee of the whole machine, including fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.

About us:

FAQ:
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF, etc?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.

Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone,email or skype.

Q3. How long is the delivery time?
For standard machines, it would be 10-15 days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 20 days.

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, already exported to more than 100 Countries.

Q5. Do you arrange shipment for the machines?
Yes. For CIF or DDU DAp price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
