Description

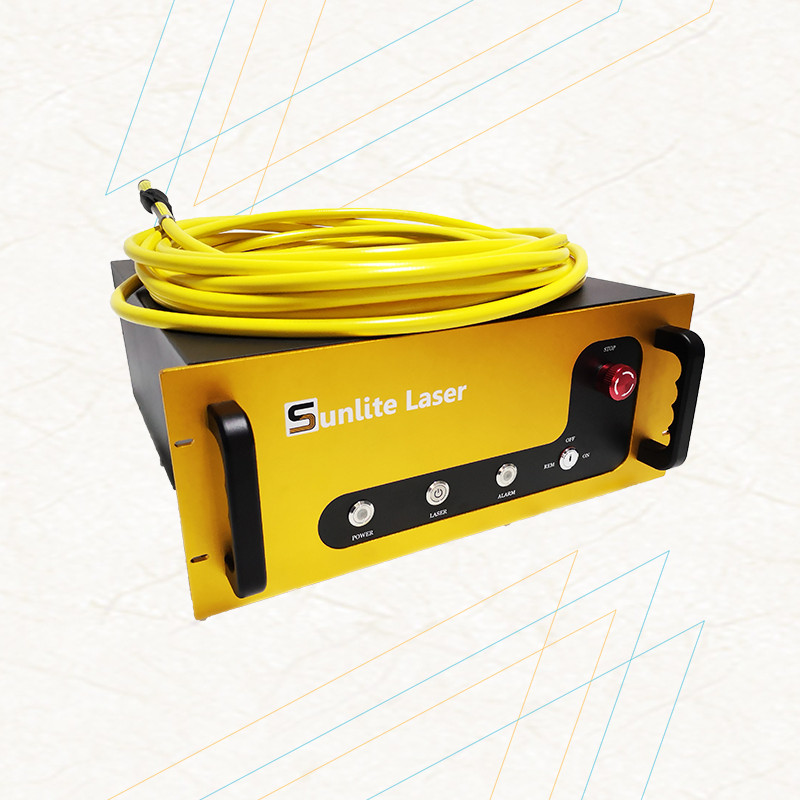

1000W Fiber Laser Source
Product Description
|
Model
|
ISUN-12G
|
ISUN-18G
|
ISUN-24G
|
||
|
Rated Power(w)
|
1100
|
1600
|
2000
|
||
|
Central Wavelength(nm)
|
1070
|
||||
|
Working Mode
|
CW/Modulation
|
||||
|
Max Modulation Frequency(KHZ)
|
50
|
||||
|
Output Power Instability
|
＜3%
|
||||
|
Red Indicator
|
YES
|
||||
|
Fiber Output Interface
|
QBH/QCS
|
||||
|
Output Fiber Core
|
50μm
|
||||
|
Delivery Cable Length
|
15m/Customizable
|
||||
|
Working Voltage(v)
|
AC220
|
AC380
|
|||
|
Max Power Comsumption(w)
|
3200
|
5000
|
|||
|
Control Type
|
Rs232/AD/Hyper Terminal
|
||||
|
Power Adjusting Range(%)
|
10~100
|
||||
|
Working Enviroment Temperature
|
5~35℃
|
||||
|
Cooling Method
|
Water Cooling 25℃/＞12(l/min)
|
Water Cooling 25℃/＞20（l/min）
|
|||
|
Dimension
|
476*213*656
|
608*440*208
|
|||
