Description

1000w Cnc Sheet Metal Fiber Laser Cutting Machine IPG Laser Cuitting Machine For Aluminum Copper Brass

Why Laser Beams Are Better Than CO2 Beams

The biggest advantages of using beams with limited wavelengths are:

#Cut materials considered ‘problematic’ or tough including non-ferrous metals such as brass, copper, and aluminum.

#Improve focus

#Increase rate of cutting

#Lower heat dissipation

#Smoother cut surfaces

Parameters of IPG Laser Cuitting Machine fiber Laser 2kw

1	Model	AKJ1530F
2	Laser power	1000W /1500W/2000W /3000W /4000W/8000W/12000W(Optional)
3	Dimensions	4600*2450*1700mm
4	Working area	3000mm x 1500mm
5	Repeat positioning accuracy	±0.02mm
6	Maximum speed	120m/min
7	Max. acceleration	1.0G
8	Max Cutting Speed	80m/min
9	Motor &driver	Japanese YASKAWA  brand
10	Laser head	Raytools
11	voltage	380V 50Hz/60Hz/60A
12	Weight	5000Kg

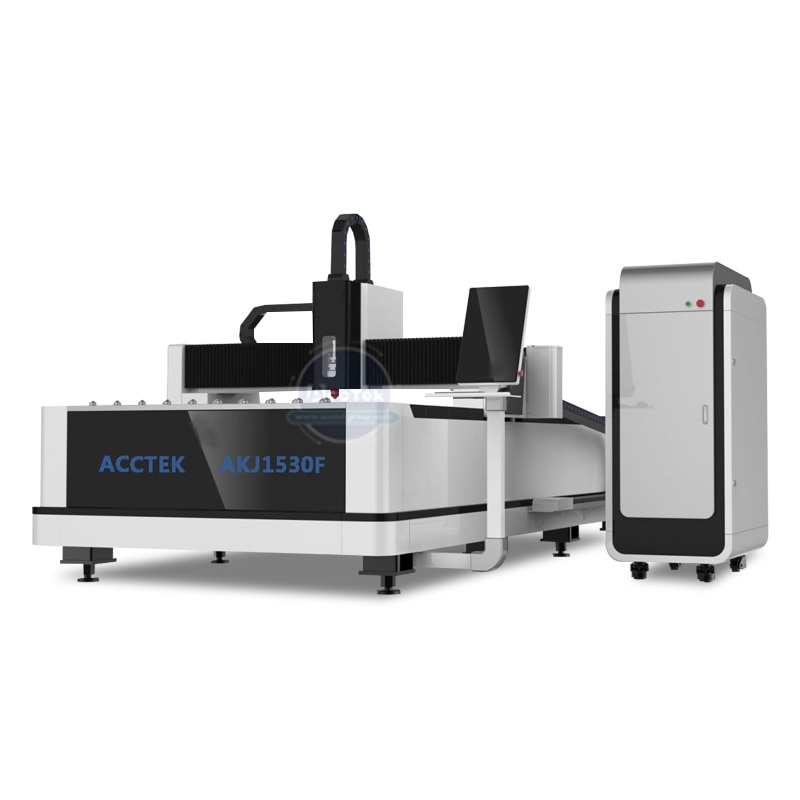

Machine Real photo:

Detail photos of IPG Laser Cuitting Machine

Raytools laser cutting head:
Highly dust-proof: the dust-proof grade is IP65, and the light path is fully enclosed,
so the possibility of lens contamination is almost zero. Efficient water cooling: The focusing lens, collimating lens and nozzle
have built-in cooling function, which can solve the problem of cutting heating.

Anti-collision design, height adjustment high sensitivity. With raise system, adjust focal length automatically according to the height of metal plate.

Raycus laser source:

Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency,

good beam quality and low maintenance cost,(Germany IPG Laser source is optional)

Water chiller

Dual temperature fiber chiller is used to cool both the fiber laser and the QBH connector.
Users can manually set water temperature control working mode according to actual needs.

Application materials of IPG Laser Cuitting Machine

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube),

Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube),

Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate,

Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc

Application industry:

This Fiber Laser Cutting Machine is applied in sheet metal processing, aviation, spaceflight, electronics,

electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment,

elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Our service:

Pre-sale

1)Professional sales team and engineer team provide professional technical Support

2)24 hours of online service each day,you can contact us by email, Whatsapp, Skype, Wechat, Phone number, and so on.

3)Test video and Sample support

4)OEM support

5)Certificate support: CE

In-sale Service
1)In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.

2)Shooting working video and machine pictures for customers' confirmation.

Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve questions faster.

After-sale

1. 3 years quality guaranty (1.5 years for laser generator), the machine with main parts(excluding the consumables) shall be

changed free of charge when if there is any problem during the warranty period.

1. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.24hours of online service each day, free technical support.

6. Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, pleasekindly tell me.
