Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AKJ1530F
- CNC or Not: CNC
- Is Smart Device: No
- MOQ: 1 set
- Transmission: APEX/YYC Gear Rack transmission
- Drive mode: Delta servo/Yaskawa servo
- laser power: 1kw/1.5kw/2kw/3kw/4kw/6kw/8kw
- control system: Au3tech control system
- Laser head: Au3tech laser cutting head
- Warranty: 3 years for machine
- laser generator brand: Raycus/ IPG/ MAX/ Reci
- Gear and rack: Taiwan APEX gear and rack
- Reducer: French MOTOVARIO reducer
- Rails: Taiwan Hiwin guide rails
- Table Size: 1500*3000mm

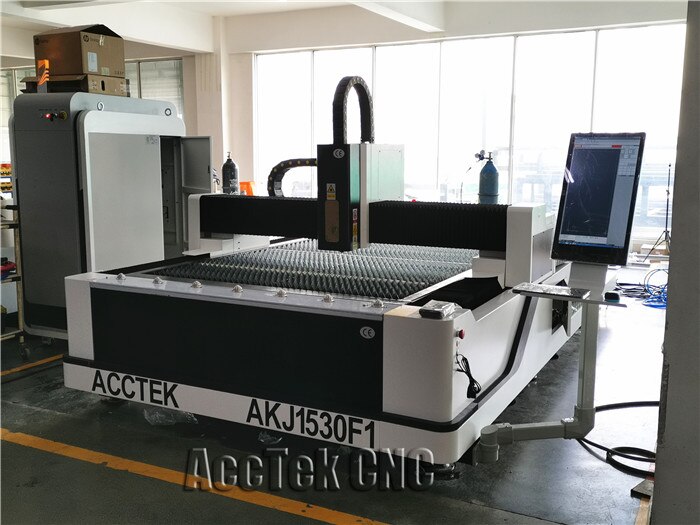

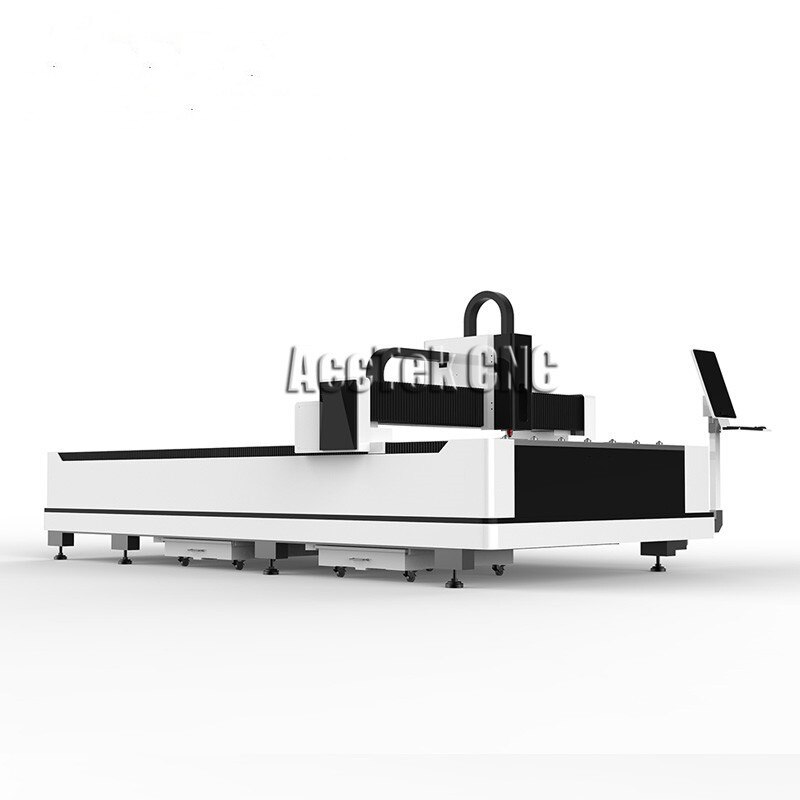

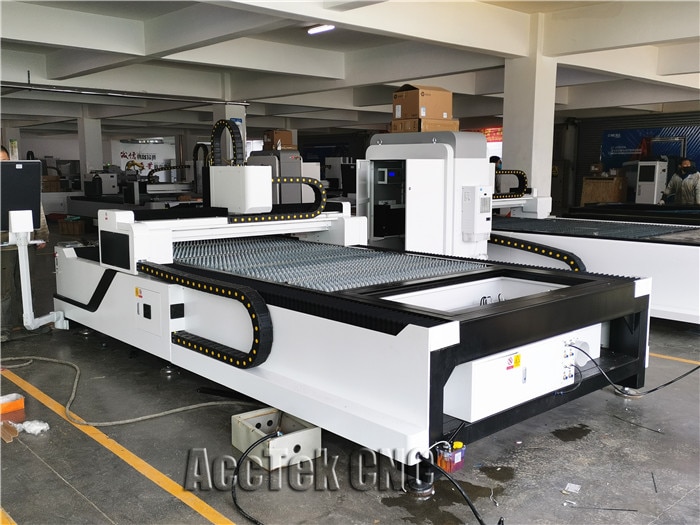

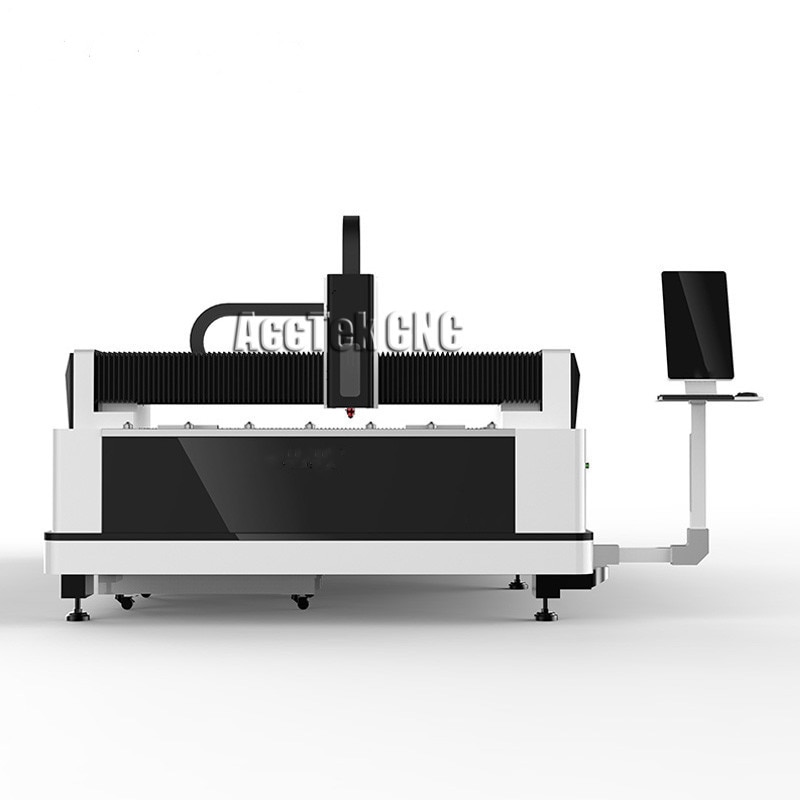

1000W 3mm SS Laser Cutter Application and Cypcut Control Software 1500 w optical Fiber laser cutting machine
Advantages ofoptical Fiber laser cutting machine
1.High Efficiency–The rapid cutting speed is two times higher than normal laser cutting machine.
2.Environment friendly–Laser cutting will not creates any gases for the special cutting technology for steel sheet.
3.Lower Consumption–The power consumption is 20%-30% lower than ordinary laser cutting machine.
4.Maintenance-free–For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted. The laser generator with longer lifetime which no need maintained during usage.
# Au3tech fiber laser cut head.
# Taiwan Delta servo drivers and other electric elements
# Industry water chiller
# Taiwan PMI square guide rais and rack transmission (Y axis dual-drive)
# Raycus brand fiber laser souce 1kw, 1.5kw/2kw for optional
Parameters ofoptical Fiber laser cutting machine
|
Working area |
1500*3000mm |
|
Control System |
Au3tech controller |
|
Laser head |
Au3tech laser cutting head with auto follong system |
|
Guide rail |
Taiwan HIWIN linear guide rail |
|
Transmission |
Rack and pinion transmission |
|
Electronic Components |
French Schneider |
|
Motor |
Taiwan Delta servo motor |
|
Max Cutting Speed |
35m/min |
|
X axis max speed |
65m/min |
|
Y axis max speed |
100m/min |
|
Z axis max speed |
30m/min |
|
X axis max acceleration |
1G |
|
Y axis max acceleration |
1G |
|
Cooling Way |
Water Cooling |
|
Min line width |
0.1mm |
|
Power Requirements |
380V, 50/60Hz, 16A |
|
Continuous Working Time |
24Hours |
Applications:
AKJ1530F fiber laser cutting machine as one classic model, widely used in life, such as processing of stainless steel kitchenware,metal door,
metal storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel,
galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

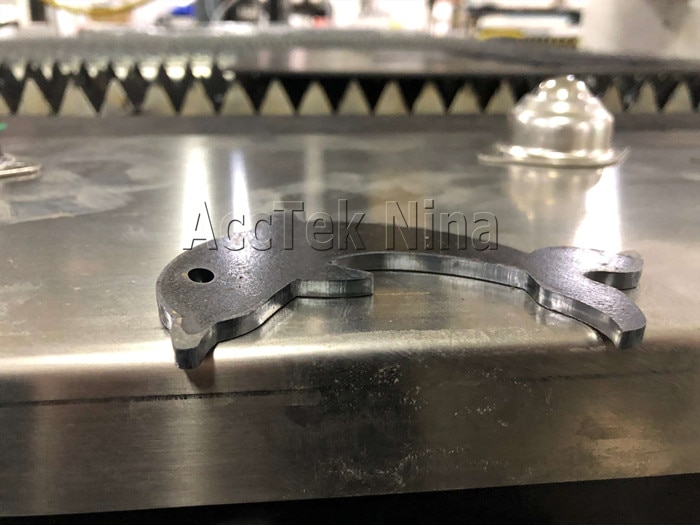

Cut ability:
1000W: cut stainless steel up to 5mm, 12mm carbon steel .
1500W:cut stainless steel up to 6mm, 14mm carbonsteel .
2000W:cut stainless steel up to 8mm, 18mm carbonsteel .
Other hot sale fiber laser metal cutting machine:
1. 3 years guarantee of the whole machine. 1.5 years for fiber laser generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem duringthe warranty period.
3.Lifetime maintenance free of charge.
4.We will provide the consumable parts at a factory price when you need replacement.
5.Machine has been adjusted before delivery.
6.Our technician can be sent to your company to install or calibrate if necessary.
