1000W 1500W 2000W 3000W Metal Steel Raycus Fiber Laser Cutting Machine 3015

$36,017.27$70,517.27

SKU: 1005002065289015 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AKJ1530F
  • CNC or Not: CNC
  • Is Smart Device: No
  • keyword: Metal Plate Fiber Laser Cutter 1.5kw
  • name: Raycus Fiber Laser Cutting Machine 3015
  • laser source: Raycus/IPG
  • Cooling Mode: water cooling
  • Transmission: rack pinion transmission
  • laser power: 1kw/1.5kw/2kw/3kw
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Control system: Au3tech control system
  • laser head: Au3tech laser cutting head
  • Warranty time: 3 years for machine

1000W 1500W 2000W 3000W Metal Steel Raycus Fiber Laser Cutting Machine 3015

Know fiber laser cutting machine:

The modern technology which uses a fiber laser integrated into an optical fiber.

It means the laser cavity and beam delivery are both present inside the optic fiber.

One of the most effective uses of this technology is in the Fiber Laser Cutting Machines.

Advantages of Raycus Fiber Laser Cutting Machine 3015

1.High Efficiency–The rapid cutting speed is two times higher than normal laser cutting machine.
2.Environment friendly–Laser cutting will not creates any gases for the special cutting technology for steel sheet.
3.Lower Consumption–The power consumption is 20%-30% lower than ordinary laser cutting machine.
4.Maintenance-free–For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted.

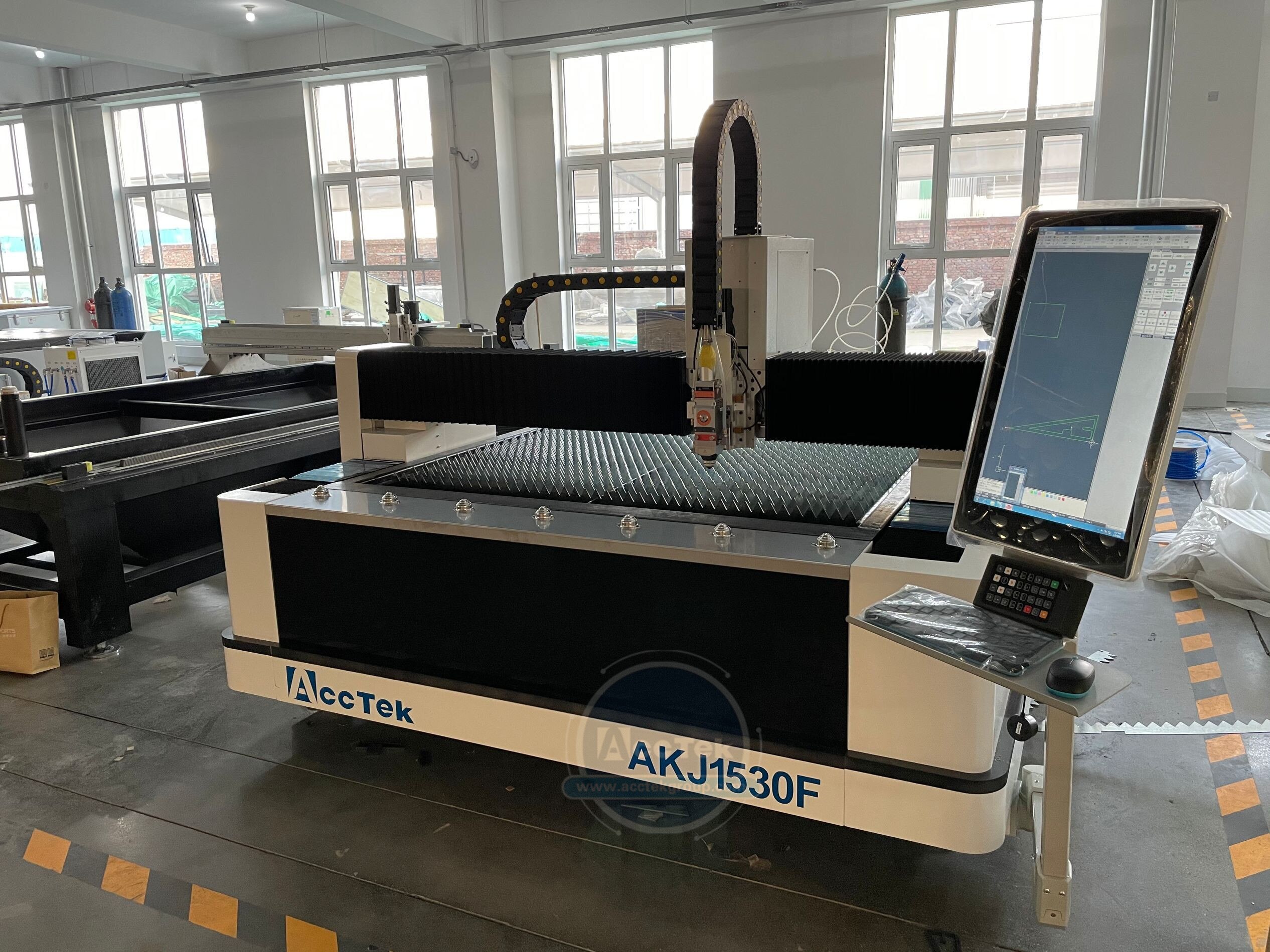

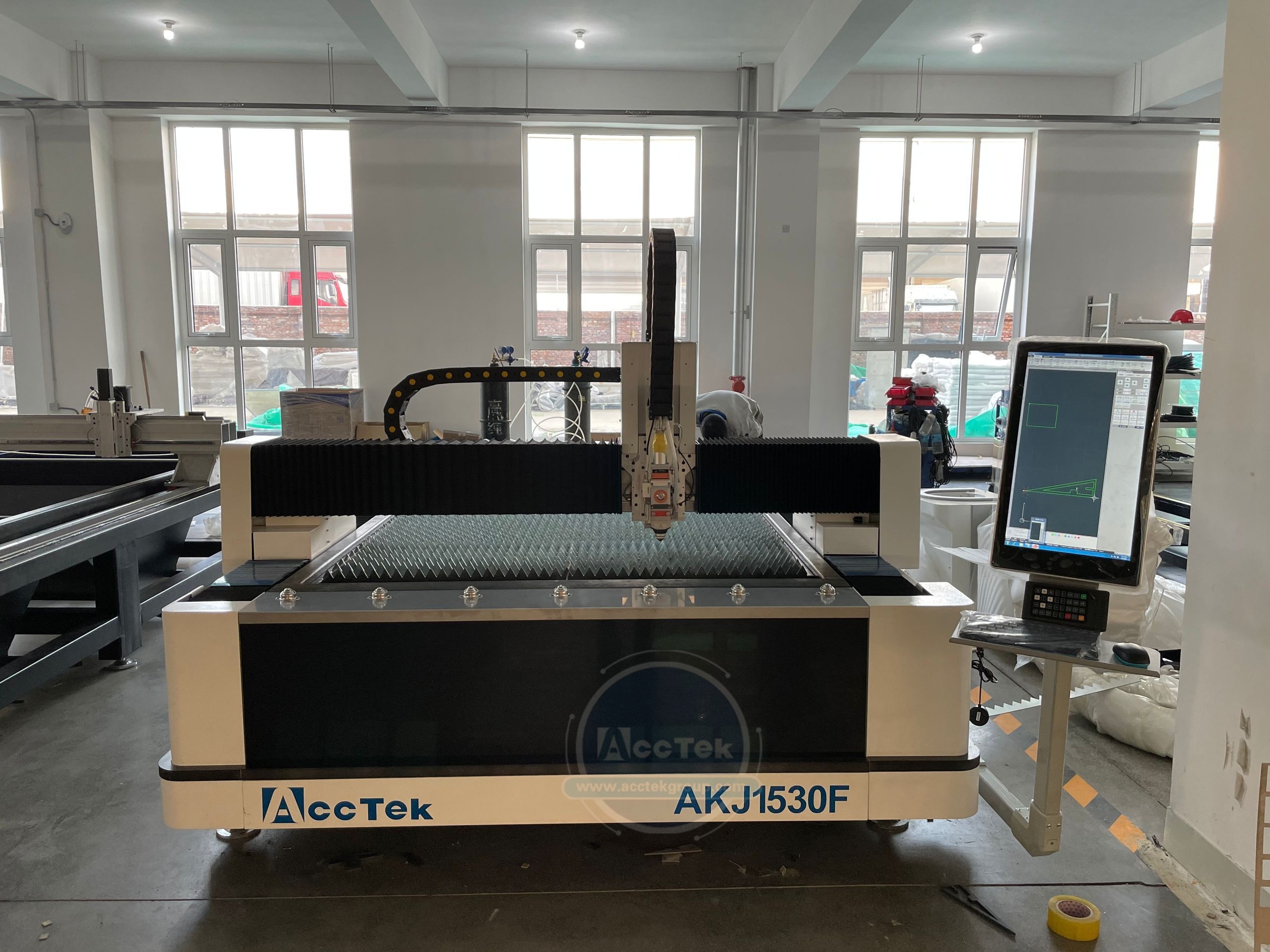

Detail pictures of Raycus Fiber Laser Cutting Machine 3015

# Au3tech fiber laser cut head.

# Taiwan Delta servo drivers and other electric elements

Water chiller

Dual temperature fiber chiller is used to cool both the fiber laser and the QBH connector.

Users can manually set water temperature control working mode according to actual needs.

Raycus Laser Source

Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric

conversionefficiency, good beam quality and low maintenance cost,(Germany IPG Laser source is optional)

Parameters of Raycus Fiber Laser Cutting Machine 3015

1

Model

AKJ1530F

2

Laser power

1000W /1500W/2000W /3000W (Optional)

4

Working area

3000mm x 1500mm

5

Repeat positioning accuracy

±0.02mm

6

Maximum speed

80m/min

7

Max. acceleration

1.0G

8

Max Cutting Speed

60m/min

9

Motor &driver

Japanese YASKAWA servo / Delta servo

10

Laser head

Raytools

11

voltage

380V 50Hz/60Hz/60A

12

Weight

2000Kg

Applications:

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube),

Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube),

Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate,

Silver Plate, Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc

Application industry:

This Fiber Laser Cutting Machine is applied in sheet metal processing, aviation, spaceflight, electronics,

electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment,

elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Cut ability:

1000W: cut stainless steel up to 5mm, 12mm carbon steel .

1500W: cut stainless steel up to 6mm, 14mm carbon steel .

2000W: cut stainless steel up to 8mm, 18mm carbon steel .

Our Services

1. 3 years guarantee of the whole machine. 1.5 years for fiber laser generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem duringthe warranty period.
3.Lifetime maintenance free of charge.
4.We will provide the consumable parts at a factory price when you need replacement.
5.Machine has been adjusted before delivery.
6.Our technician can be sent to your company to install or calibrate if necessary.
