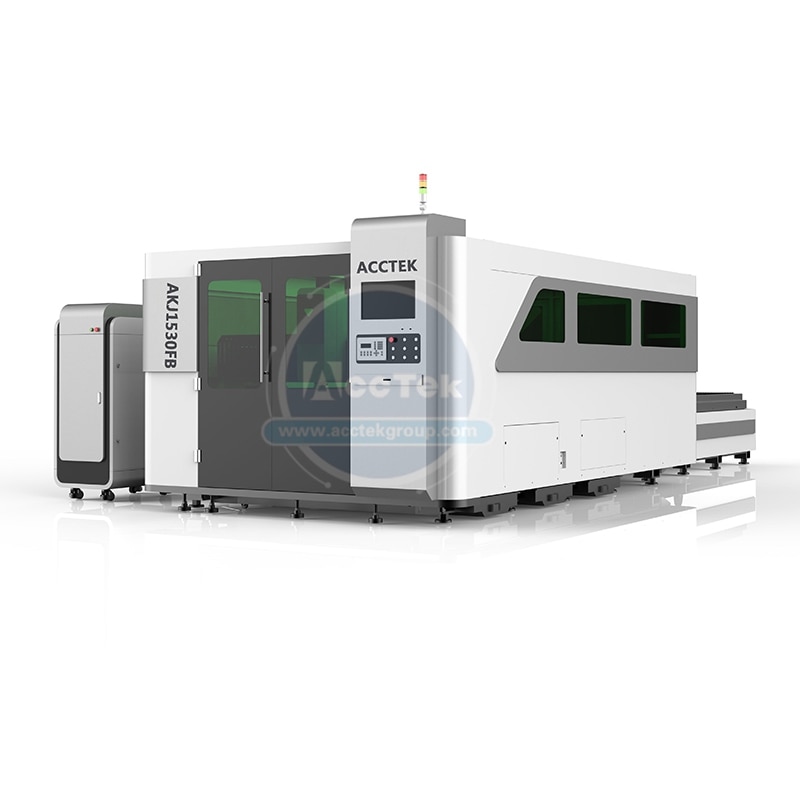

1000W 1500W 2000W 3000W 4000W 6000W Metal Steel Fully Enclosed Seal Fiber Laser Cutting Machine 3015

$112,517.27

SKU: 1005002070225878 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AKJ1530FB
  • CNC or Not: CNC
  • Is Smart Device: No
  • keyword: Enclosed Seal Fiber Laser Cutting Machine
  • name: Enclosed Fiber Laser Cutting Machine
  • MOQ: 1 set
  • Transmission: Rack pinion transmission
  • Drive mode: Delta servo/Yaskawa servo
  • laser source: Raycus/IPG
  • laser power: 1kw/1.5kw/2kw/3kw/4kw/6kw/8kw/12kw
  • control system: Cypcut control system
  • Laser head: Raytools laser cutting head
  • Warranty: 3 years for machine

1000W 1500W 2000W 3000W 4000W 6000W Metal Steel Fully Enclosed Seal Fiber Laser Cutting Machine 3015

Know fiber laser cutting machine:
The modern technology which uses a fiber laser integrated into an optical fiber.

It means the laser cavity and beam delivery are both present inside the optic fiber.

One of the most effective uses of this technology is in the Fiber Laser Cutting Machines.

As the name suggests, these cutting machines which use fiber lasers to carry out operations or help move the production line forward.

Tow of the most advanced laser technologies, namely semiconductor laser diodes and active optical fiber are used in conjunction with each other to offer and ease of use.

According to Wikipedia, “Rare earth ions are used to dope the active fibers to ensure high-reliability.”

Why Laser Beams Are Better Than CO2 Beams

The biggest advantages of using beams with limited wavelengths are:

#Cut materials considered ‘problematic’ or tough including non-ferrous metals such as brass, copper, and aluminum.

#Improve focus

#Increase rate of cutting

#Lower heat dissipation

#Smoother cut surfaces

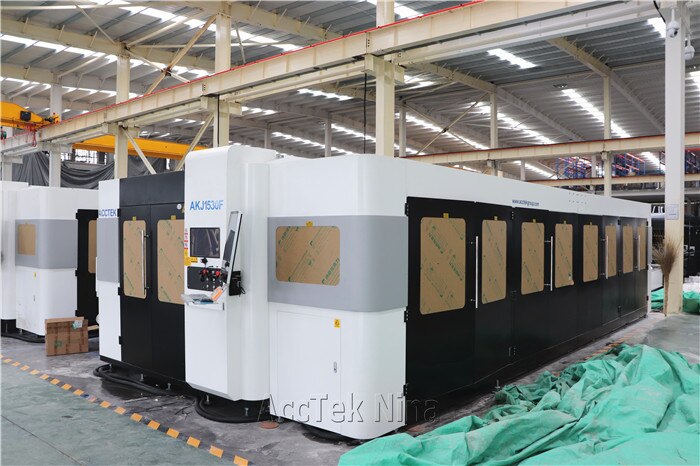

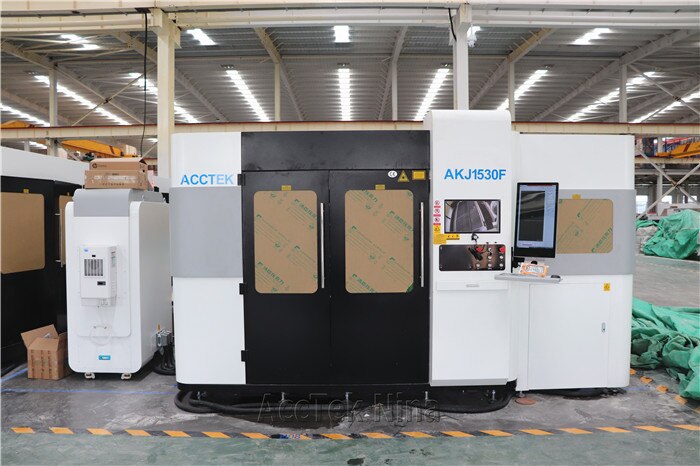

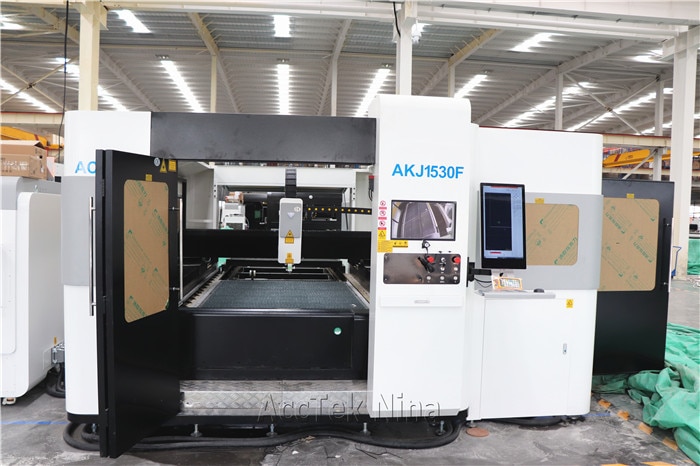

Detail photos of Enclosed Seal Fiber Laser Cutting Machine:

Raytools laser cutting head:
Highly dust-proof: the dust-proof grade is IP65, and the light path is fully enclosed,
so the possibility of lens contamination is almost zero. Efficient water cooling: The focusing lens, collimating lens and nozzle
have built-in cooling function, which can solve the problem of cutting heating.

Anti-collision design, height adjustment high sensitivity. With raise system, adjust focal length automatically according to the height of metal plate.

Cypcut control system

Advanced technology, suit for all kinds of metal materials cutting.
Automatic optimization of imported graphics, Concise and clear process settings,

For the use of machine tools, it can provide rich and timely statistics. Accurate edge finding aid.

Raycus laser source:

Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency,

good beam quality and low maintenance cost,(Germany IPG Laser source is optional)

Water chiller

Dual temperature fiber chiller is used to cool both the fiber laser and the QBH connector.
Users can manually set water temperature control working mode according to actual needs.

Parameters of Enclosed Seal Fiber Laser Cutting Machine

1

Model

AKJ1530FR

2

Laser power

1000W /1500W/2000W /3000W /4000W/8000W/12000W(Optional)

3

Dimensions

4600*2450*1700mm

4

Working area

3000mm x 1500mm

5

Repeat positioning accuracy

±0.02mm

6

Maximum speed

120m/min

7

Max. acceleration

1.0G

8

Max Cutting Speed

80m/min

9

Motor &driver

Japanese YASKAWA  brand

10

Laser head

Raytools

11

voltage

380V 50Hz/60Hz/60A

12

Weight

5000Kg

Application materials of Enclosed Seal Fiber Laser Cutting Machine

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube),

Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube),

Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate,

Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc

Application industry:

This Fiber Laser Cutting Machine is applied in sheet metal processing, aviation, spaceflight, electronics,

electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment,

elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.


Our service:

Pre-sale

1)Professional sales team and engineer team provide professional technical Support

2)24 hours of online service each day,you can contact us by email, Whatsapp, Skype, Wechat, Phone number, and so on.

3)Test video and Sample support

4)OEM support

5)Certificate support: CE


In-sale Service
1)In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.

2)Shooting working video and machine pictures for customers' confirmation.

Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve questions faster.

After-sale

1. 3 years quality guaranty (1.5 years for laser generator), the machine with main parts(excluding the consumables) shall be

changed free of charge when if there is any problem during the warranty period.

1. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.24hours of online service each day, free technical support.

6. Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, pleasekindly tell me.
